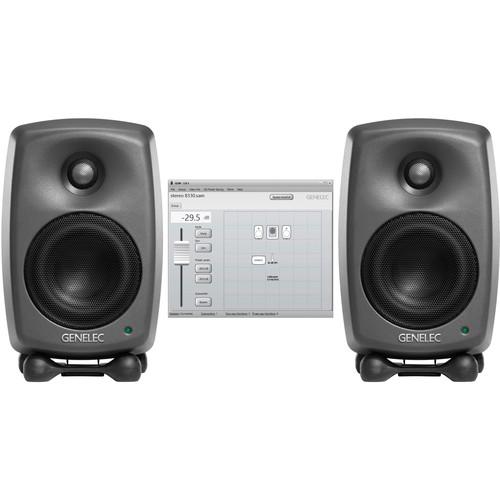

Genelec Two 8320A Studio Monitors &

User Manual for Genelec Two 8320A Studio Monitors & GLM V2.0 User Kit with 9310AM Volume Control Stereo SAM Kit

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

• 8320A Bi-Amplified Smart Active Monitor (Single) The single 8320A Bi-Amplified Smart Active Monitor from Genelec is a two-way monitor designed for professional applications. It features built-in Smart Active Monitor (SAM) digital signal processing (DSP), with the Genelec Loudspeaker Manager (GLM) software designed to provide accuracy and ease of use in difficult acoustic environments.

  The high performance drivers are directly connected to dedicated D Class power amplifiers. System protection is implemented as a part of the SAM signal processing. The MDE (Minimum Diffraction Enclosure) enclosure is made of die-cast aluminum and shaped to reduce edge diffraction, and is combined with the Directivity Control Waveguide (DCW).
• 9310A Volume Controller for GLM 2.0 The 9310A Volume Controller from Genelec provides wired volume control for all SAM studio monitors and subwoofers linked to the GLM 2.0 Network Adapter via the software volume fader. The controller connects to the GLM 2.0 interface using a built-in 3.5mm stereo male connector.
• GLM 2.0 User Kit The GLM 2.0 User Kit from Genelec is an accessories kit designed for Genelec's GLM 2.0 networking system. It includes a GLM network adapter, a microphone with a holder, a USB cable, and a GLM network cable.

  The GLM 2.0 Loudspeaker Manager Software is available for download with the purchase of a GLM 2.0 User Kit. GLM 2.0 is a monitor control networking system that manages connectivity with up to 30 SAM studio monitors and subwoofers. The GLM software is compatible with Windows and Mac and features level adjustment, distance delays, and flexible room response compensation equalization with the AutoCal automated calibration system. All parameters and settings are stored in system setup files or saved in each individual monitor or subwoofer if the GLM network needs to be disconnected.

  GLM 2.0 Loudspeaker Manager Software

  • Connectivity with up to 30 SAM monitors and subwoofers
  • User interface designed for fast, easy setup
  • Adapts SAM monitors to various environments
  • Provides neutral sound reproduction via flat system frequency response for in-room calibration
  • Automatic calibration of levels and distance-compensating delays for accurate and stable sound stage imaging
  • Stores calibration settings for different listening positions and instantly recalls them during the production stage
  • Symmetrical or individualized stereo pair equalization compensation
  • Subwoofer crossover phase is set for all subwoofers on the network
  • Each monitor group has its own AutoCal calibration file
  • Groups contained in one GLM system setup file can use both analog and digital input
  • Unlimited number of system setup files
  • Volume control via external wired or wireless volume controller or GLM software master fader
  • Real-time on-screen SPL reading of the active monitor group

  GLM AutoCal Calibration Module

  • Provides an integrated process for complete automated measurement, analysis, and adjustment of every monitor on the GLM control network
  • Aligns relative levels, compensates distance differences, and adjusts correct crossover phase for all subwoofers on the network
  • Acoustic Response Editor provides graphical display of measured response, filter compensation, and system response for each monitor, with full manual control of acoustic settings
  • SinglePoint and MultiPoint microphone positions provide measurements for one-, two-, or three-person mixing environments
  • Uses a factory-calibrated Genelec 8300A acoustic measurement microphone (included)

• Power Cord

• 16.4' RJ45 Cable

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• GLM Network Adapter

• Microphone

• Microphone Holder

• USB Cable

• GLM Network Cable

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 8320A Bi-Amplified Smart Active Monitor (Single)

  Monitor Type	Active 2-Way
  Enclosure	Bass-Reflex, Shielded
  Drivers	HF Driver: 1 x 0.75" / 1.9 cm Tweeter LF Driver: 1 x 4" / 10.2 cm Woofer
  Amplification	HF Amplifier: Rated at 50 W LF Amplifier: Rated at 50 W

  Frequency Range	55 Hz to 23 kHz (at -6 dB)
  Frequency Response	66 Hz to 20 kHz ± 1.5 dB

  I/O	1 x 3-Pin XLR Balanced Analog Input
  Computer Interface	2 x RJ45 (Controller, Network)

  Dimensions (W x H x D)	6.0 x 9.5 x 5.6" / 15.1 x 24.2 x 14.2 cm
  Weight	7.0 lb / 3.2 kg

  Box Dimensions (LxWxH)	14.8 x 8.1 x 7.5"

• 9310A Volume Controller for GLM 2.0

  Box Dimensions (LxWxH)	4.4 x 4.4 x 2.0"

• GLM 2.0 User Kit

  Operating System	Windows 8 or 8.1 (32- or 64-bit), Windows 7 SP1 or newer (32- or 64-bit), Vista, XP
  Processor	Intel Pentium or compatible (1.6 GHz minimum)
  GPU	DirectX 11.0 class or better
  Minimum RAM	2 GB
  Minimum Disk Capacity	1 GB
  Display	1024 x 768 or higher resolution
  Additional Requirements	Internet connection

  Operating System	OS X 10.10 Yosemite, OS X 10.9 Mavericks
  Processor	Any processor compatible with the above operating systems
  GPU	Any GPU compatible with the above operating systems
  Minimum RAM	2 GB
  Minimum Disk Capacity	1 GB
  Display	1024 x 768 or higher resolution
  Additional Requirements	Internet connection

  Box Dimensions (LxWxH)	9.9 x 4.8 x 2.3"
