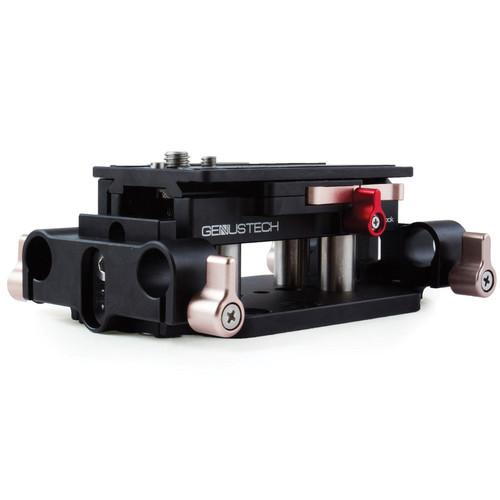

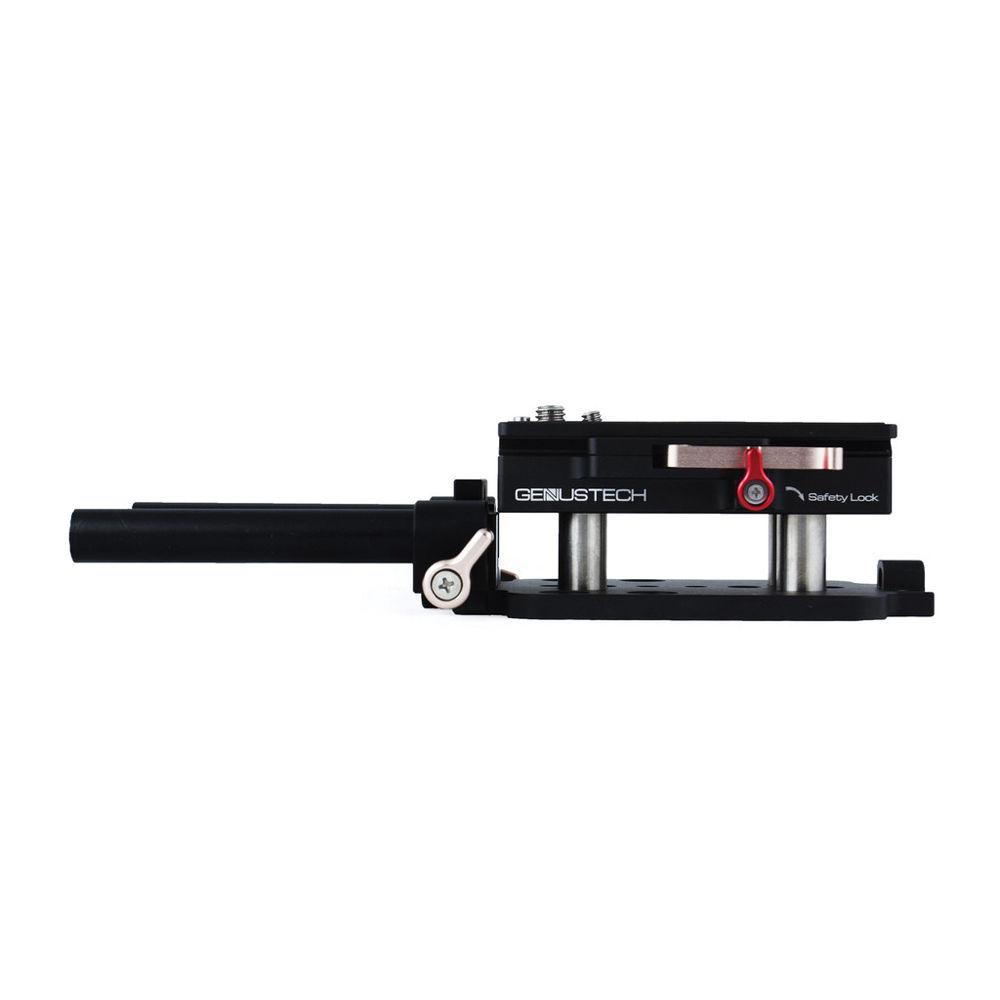

User Manual for Genustech Gen X Plate Camera Base Plate Package 1 Click to enlarge the picture
Contents of the user manual for the Genustech Gen X Plate Camera Base
- Product category: Camcorder Supports & Rigs Genustech
- Brand: Genustech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genustech Camcorder Supports & Rigs
 |
User manual for the Genustech Gen X Plate Camera Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genustech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genustech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genustech product will considerably shorten its lifespan!
|

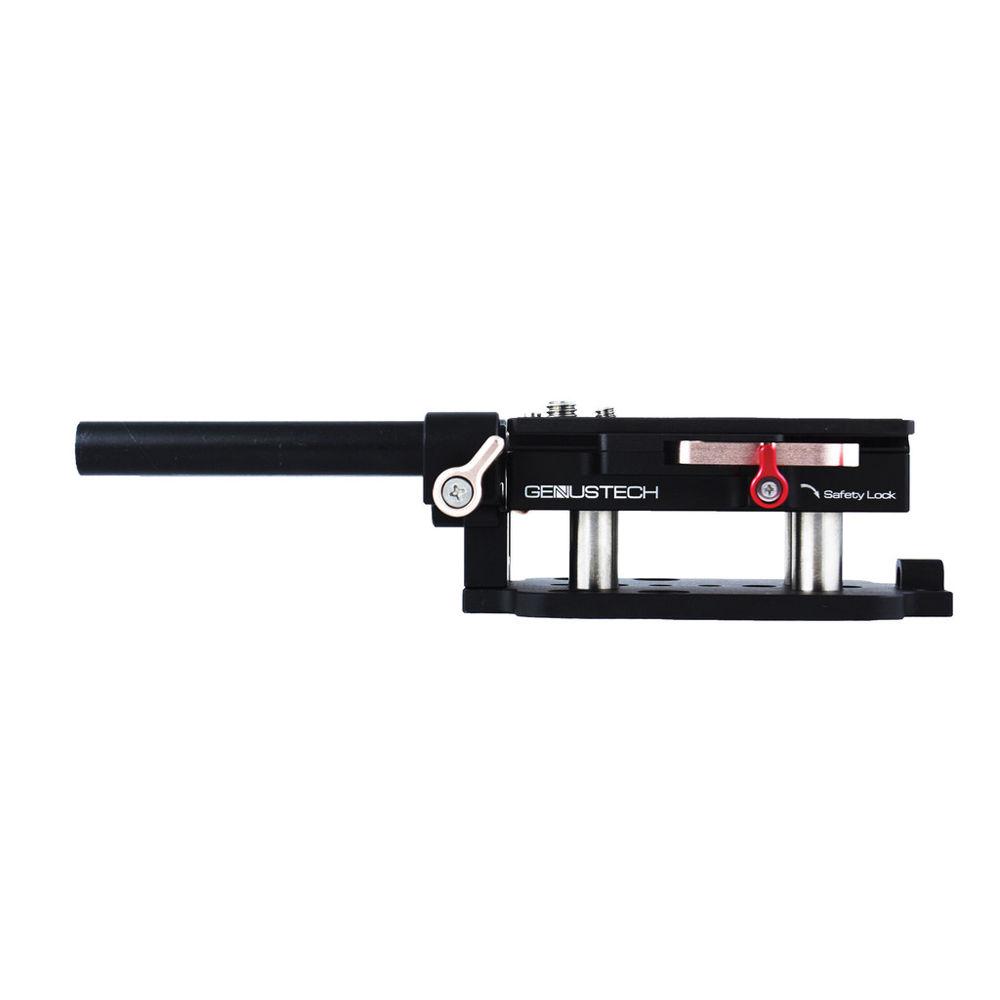

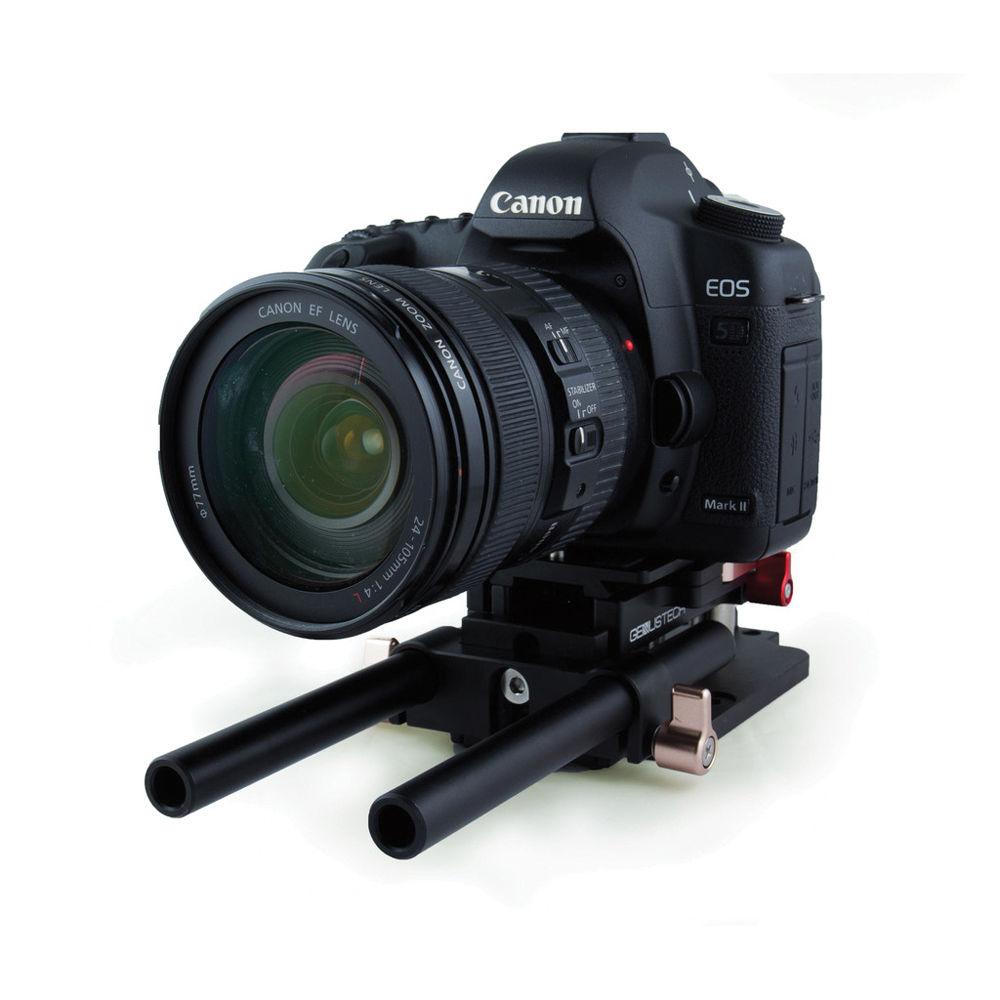

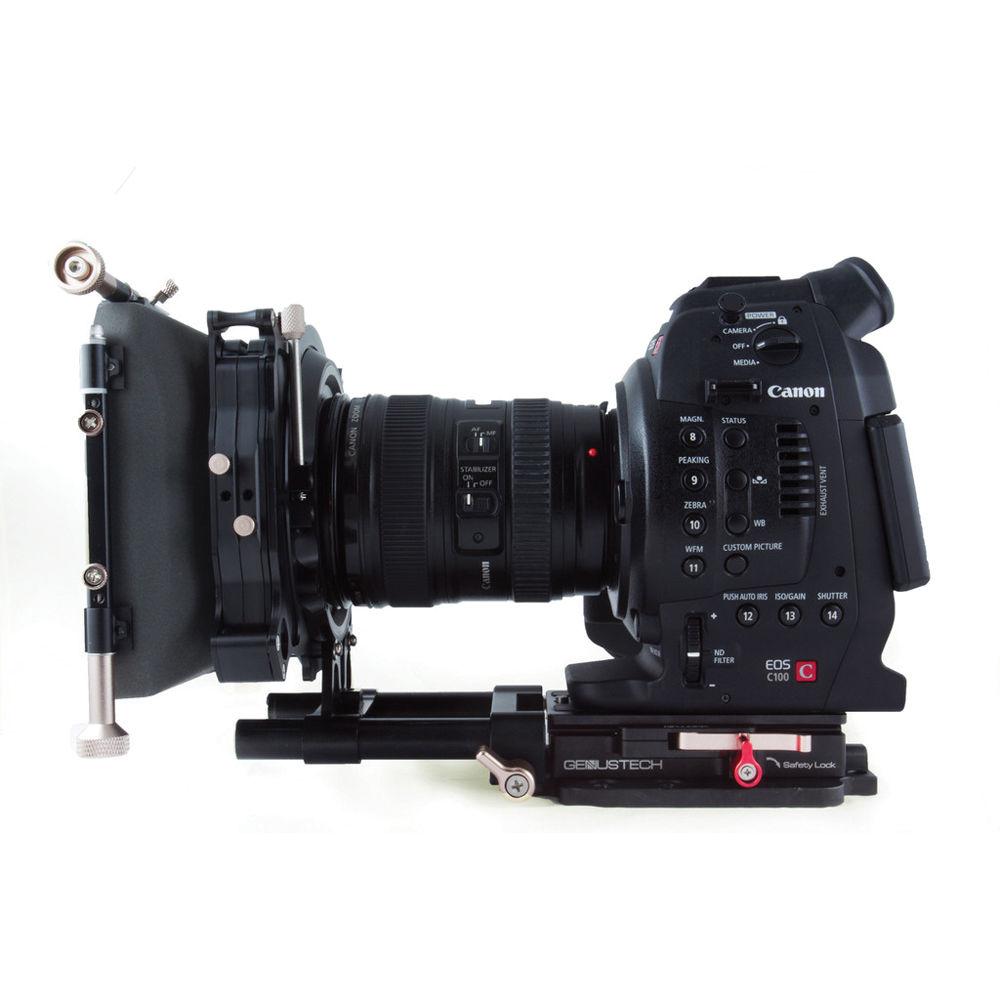

Product description Suitable for use with most DSLRs as well as larger cameras, the Genustech Gen X Plate Camera Base Plate Package 1 is an adjustable base plate with sliding QR camera plate and 15mm LWS rods. The sliding plate is Arca Swiss compatible and features over 7.8" of front to back travel with a removable camera locating pin. It comes with both a 1/4"-20 and a 3/8"-16 camera tie-down screw. The base plate QR mechanism features a safety lock that helps prevent the sliding camera plate from being accidentally released.

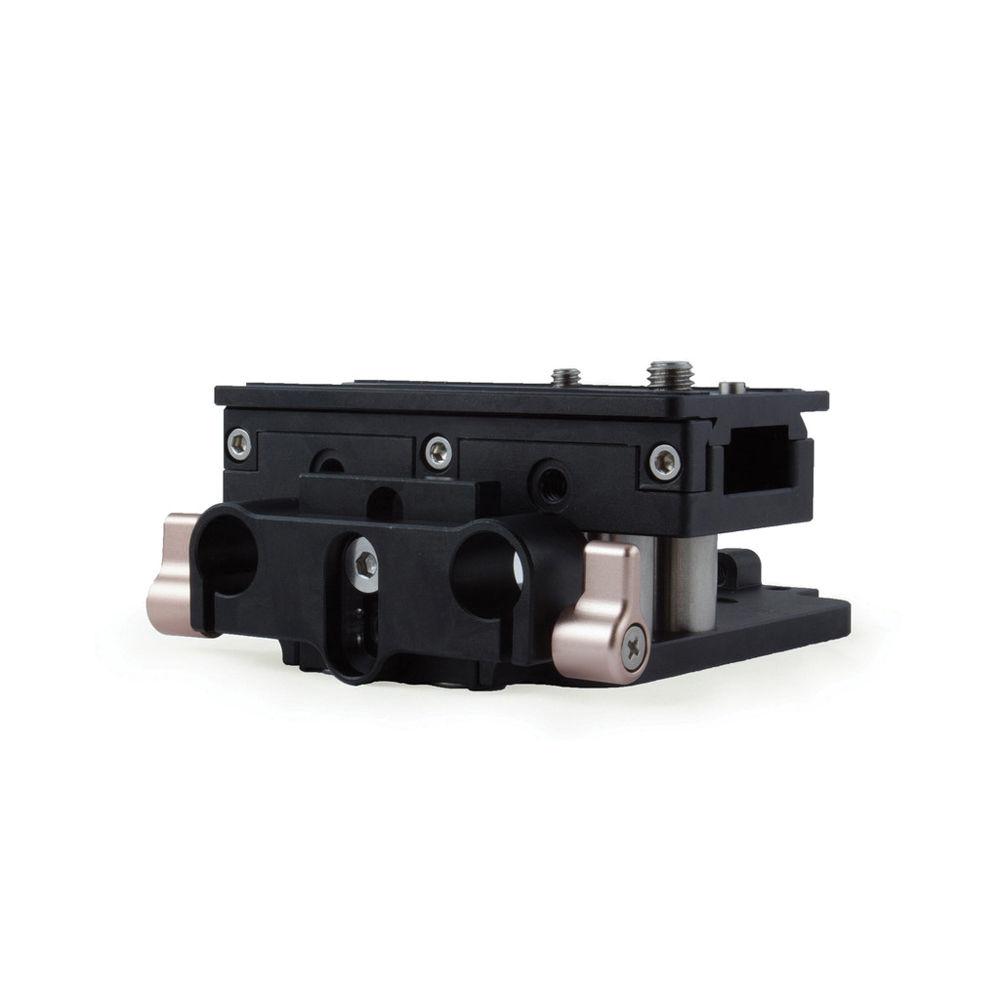

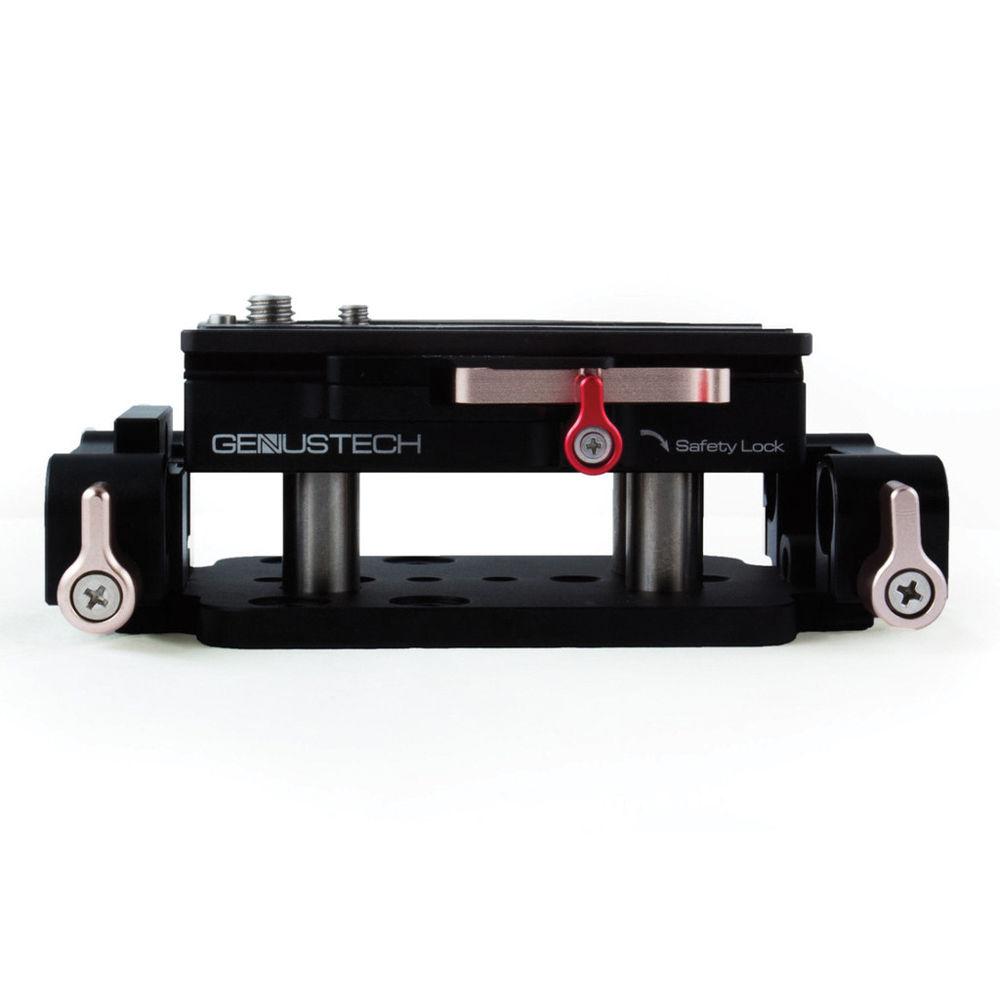

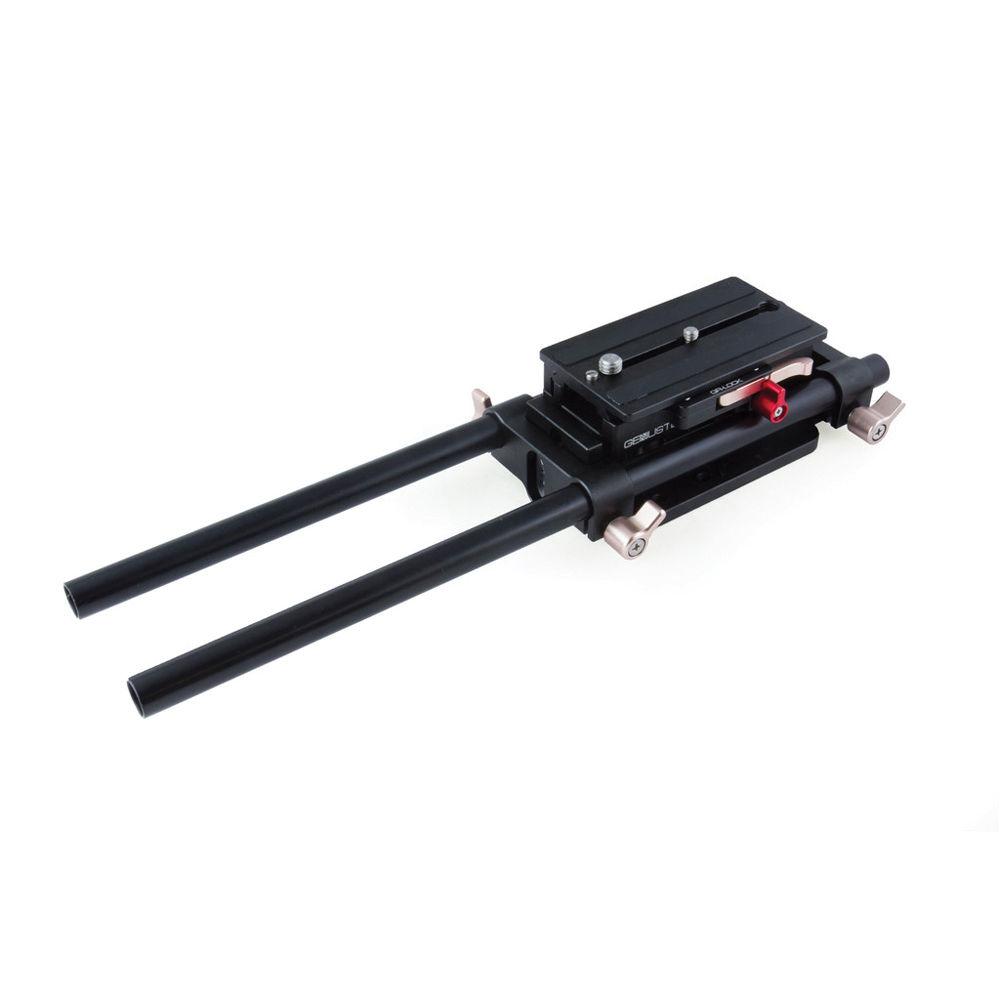

The base plate comes with four removable riser posts that allow you to adjust the height in two positions. Adding the riser posts adds just over eight tenths of an inch of height to your base plate; this adjustment is secure and stable without using a locking lever, which may be jarred loose. The included front rod bracket features over two inches of height adjustment using a single 1/4" screw. This adjustment combined with the riser post allows you to maintain the industry standard rod to lens height using a variety of optional cameras. The base plate's locking levers are spring-loaded, allowing you to loosen or tighten them even if you can't rotate the levers through a full 360°. Included with the baseplate is a pair of eight-inch-long 15mm rods. - The base plate includes a Swiss Arca compatible camera plate with removable locating pin, 1/4"-20 and 3/8"-16 camera tie-down screws, and almost eight inches of forward to back adjustment for balancing your camera

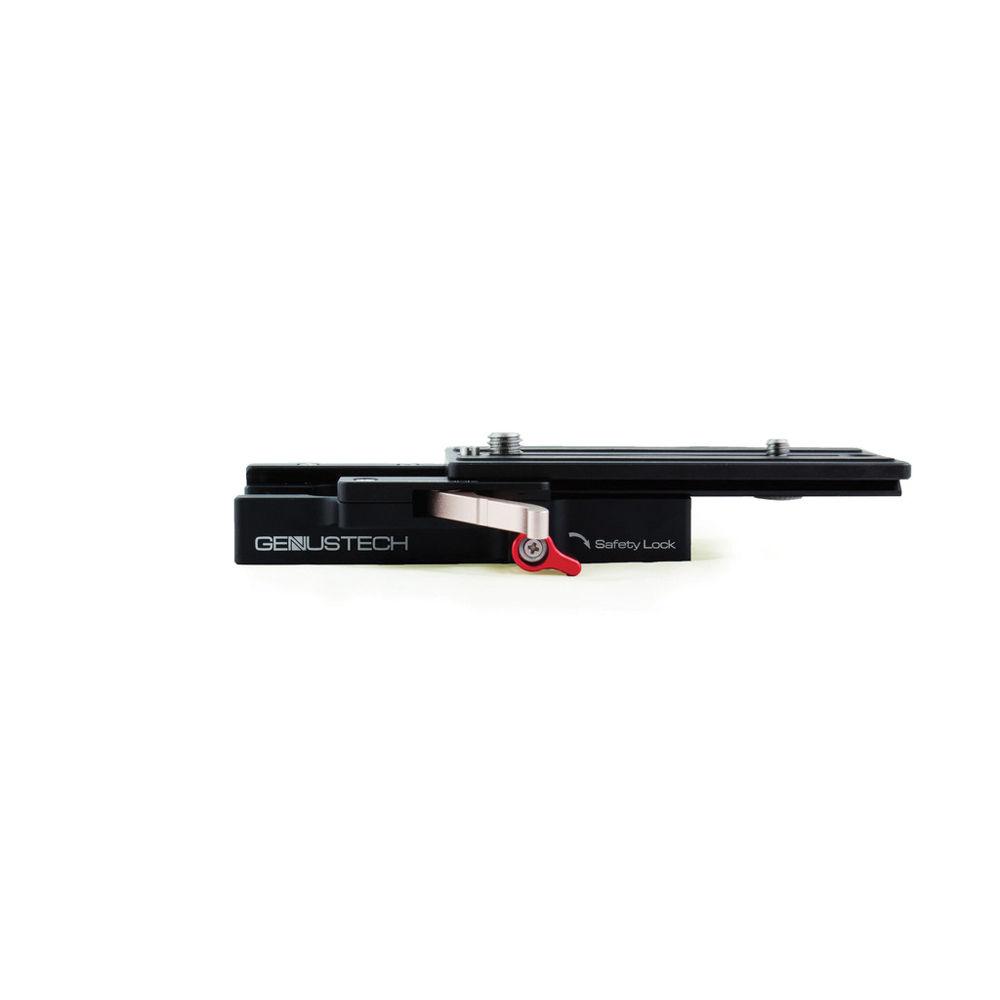

- The QR release is protected from accidently being opened by a locking lever that physically engages the QR lever.
- The removable front rod support bracket features approximately two inches of adjustment.
UPC: 849501000948 In the Box Genustech Gen X Plate Camera Base Plate Package 1 2 x 8.5" 15mm Support Rods GEN-X-SAQRP Arca Swiss Sliding Quick Release Plate 4 x Removable Riser Posts Front Rod Bracket Adapter 4 x 1/4" Attachment Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genustech Gen X Plate Camera Base Plate Package 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenustech GEN-X-PLATE/1 Specs | Vertical Adjustment | 0.83" / 21 mm (via removable riser posts) | | Sliding Balance Plate Travel | 7.9" / 200 mm | | Rod Support Bracket Adjustment | Front: 2.2" / 55 mm | | Dimensions | 5.8 x 4.4 x 2.4" / 145 x 110 x 60 mm | | Weight | 26 oz / 0.8 kg | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.9 x 5.7 x 3.2" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
