Product description

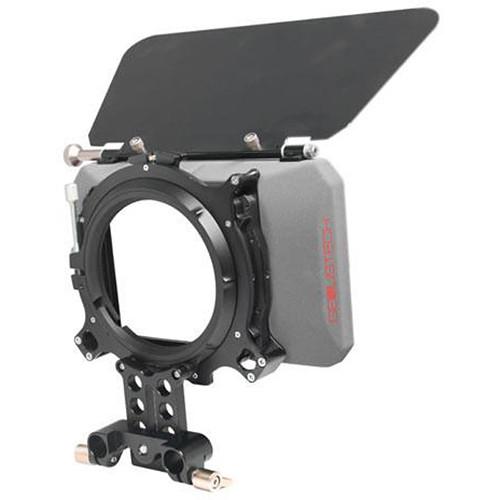

• GWMC Wide-Angle Matte Box for 4 x 4" Filters The Genus GWMC Wide-Angle Matte Box for 4 x 4" Filters includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide-angle rayshade. Standard lenses as well as wide-angle lenses can be accommodated using the wide rayshade.Two lockable 4 x 4" filter holders are provided; one fixed and the other 360°-rotatable for graduating filters. Also included is an 82mm adapter ring, as well as a clamp ring that supports lenses and wide-angle adapters with diameters up to 105mm. A GARD donut adapter ring allows you to achieve a secure fit between the lens adapter ring and clamp ring of the matte box. You can use the matte box with 58 to 86mm lenses via screw-in adapter rings.You can use the matte box with 12 or 15mm rods via an optional adapter unit. Weighing just 11.9 ounces, the Wide-Angle Matte Box is portable and provides an ideal solution for location-based shoots. You can use the matte box with camcorders and DSLRs such as the Canon 5D or 7D. Note: Adapter for 12/15mm rods sold separately (GSP-400-038).
  • Includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide-angle rayshade
  • Wide rayshade accommodates standard as well as wide-angle lenses
  • Provides two lockable 4 x 4" filter holders, one fixed and the other 360°-rotatable for graduating filters
  • Includes a clamp ring that supports lenses and wide-angle adapters with diameters up to 105mm
  • Supports 12 or 15mm rods via an optional adapter unit
  • Weighs 11.9 oz, making it portable and ideal for location-based shoots
  • Compatible with video cameras and DSLRs such as the Canon 5D or 7D
  UPC: 719821319160
• GFF French Flag Assembly The Genus GFF is a French flag for Genus 4x4" matte boxes. This French flag adds more light control to a matte box system. It comes with mounting hardware and is made of hard plastic. UPC: 719821319351
• Height Extension Bracket The Genus Height Extension Bracket allows you to adjust the height of the Genus GWMC Matte Box. Designed to attach to industry standard 15mm rods, the bracket can be easily attached to the GWMC matte box. You can easily adjust the height of the matte box via a single lock-off on the central riser. It has a CNC grade aluminum construction.
  • Allows you to adjust the height of the Genus GWMC Matte Box
  • Designed to attach to industry standard 15mm rods
  • Can be easily attached to the GWMC matte box
  • You can adjust the height of the matte box via a single lock-off on the central riser
  • CNC grade aluminum construction
  UPC: 719821331513

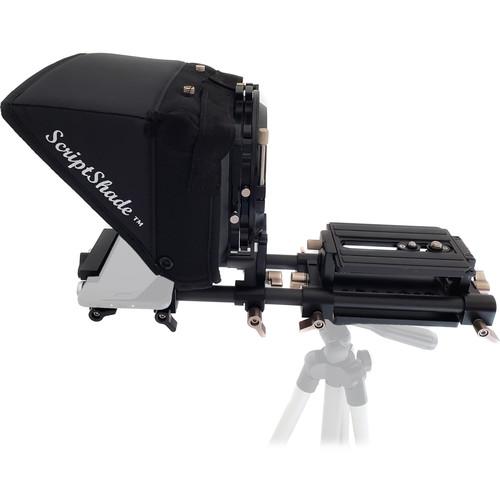

• Beamsplitter Glass for ScriptShade The Genustech Beamsplitter Glass for ScriptShade provides 70/30 transmission/reflectance for maximum light transmission without the prompting text becoming visible to the camera. It has a trapezoidal shape and is designed for the Genustech ScriptShade teleprompter. UPC: 849501001495
• Glass Bracket for ScriptShade (Affix to Bottom of Matte Box) The Genustech Glass Bracket for ScriptShade mounts on the bottom of your GWMC matte box, providing the proper angle for your beamsplitter glass. It features locking screws to hold the mirror in place. UPC: 849501001501
• S-HOOD for ScriptShade The Genustech S-HOOD for ScriptShade is a folding hood that mounts onto your matte box and stretches to hold the S-BSG mirror and S-HB Hood Bracket. UPC: 849501001518
• 15mm Carbon Fiber Rods (14") Lightweight and rigid, Genustech 15mm Carbon Fiber Rods allow you to mount accessories to your rig with minimal weight impact. These rods are manufactured from cross-hatched carbon fiber and feature metal end-caps with tapered edges for reduced wear of the rod ends over time. UPC: 849501001129

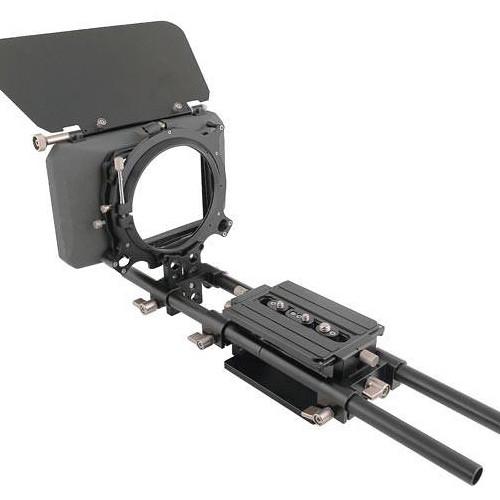

• Uni-Plate Adaptor Bar System (Without Rods) The Genustech Uni-Plate Adaptor Bar System (Without Rods) is designed for use with large sensor video cameras such as the Sony F3, Canon EOS C300, and Panasonic AF100. By utilizing industry standard 15mm rods (sold separately) the shoulder mount ensures compatibility with other accessories. The height of the rods can be varied by changing the orientation and fixing point of the rod support bracket. You can accessorize your camera with the easy attachment of matte boxes and follow focuses. Construction from aviation grade aluminum makes the rig both strong and lightweight. The Uni-plate comes with a selection of 1/4” and 3/8” camera screws to suit a wide range of cameras.
  • Easy to grip lock-offs that tighten and loosen gently
  • Non-slip rubber strips on the back-plate help prevent movement and damage to your camera
  • 15mm lightweight industry standard rods (sold separately) to accommodate a wide range of accessories
  • Comes with a selection of 1/4" and 3/8" camera screws for all cameras
  • Able to attach to all tripods with either 3/8" and 1/4" screw sizes
  • Accommodates 8.5" (215mm) Support Bars and 8" (200mm) Extension Bars with Female Threads (both sold separately)
  • Capable to slide the camera plate horizontally for balancing the camera

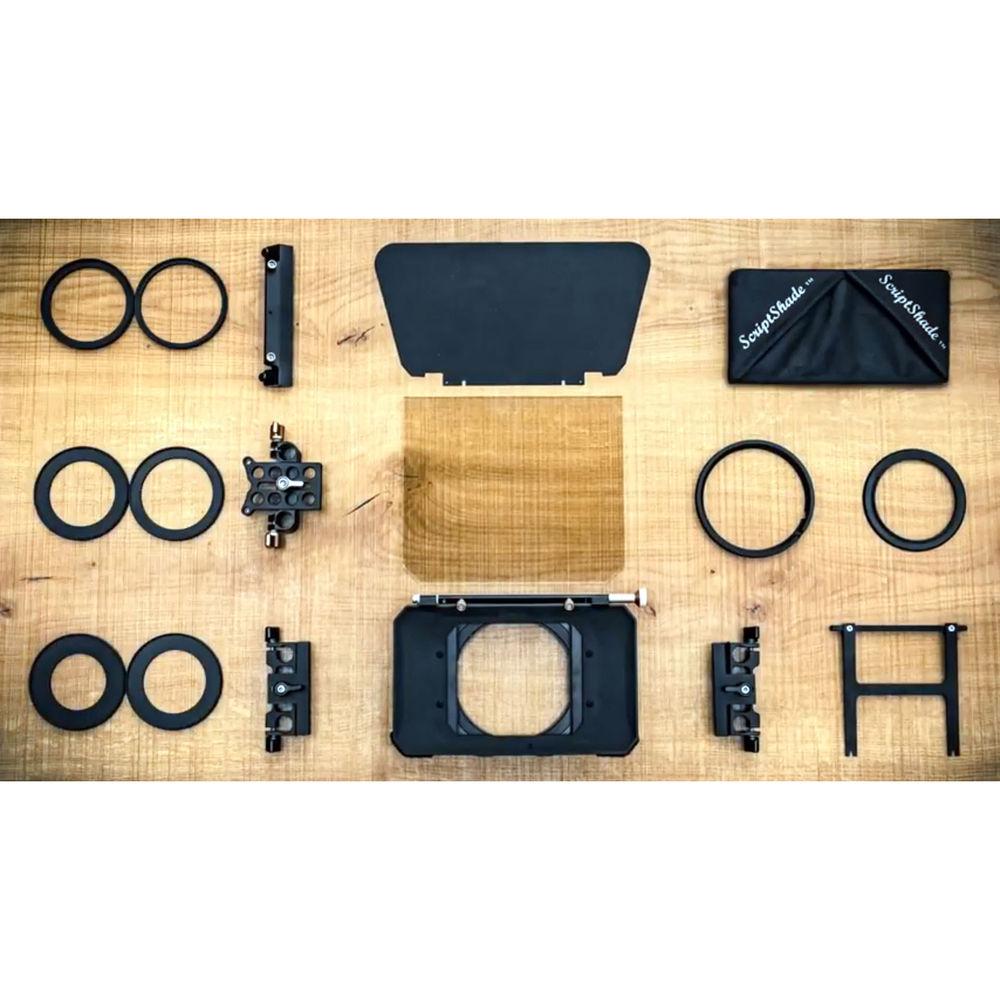

• Wide-Angle Matte Box with 105mm Diameter Attachment

• 4 x 4" Rotating Filter Tray

• 4 x 4" Fixed Filter Tray

• Wide-Angle Rayshade

• 82mm Adapter Ring

• Limited 1-Year Warranty

• French Flag

• Mounting Hardware

• 1 Year Warranty

• 1 - Year Warranty

• Mirror Pouch for the S-BSG (Black)

• Limited 30-Day Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty on Parts & Labor

Also Includes

• 82mm Adapter Ring
• 82mm Step Up Ring Kit

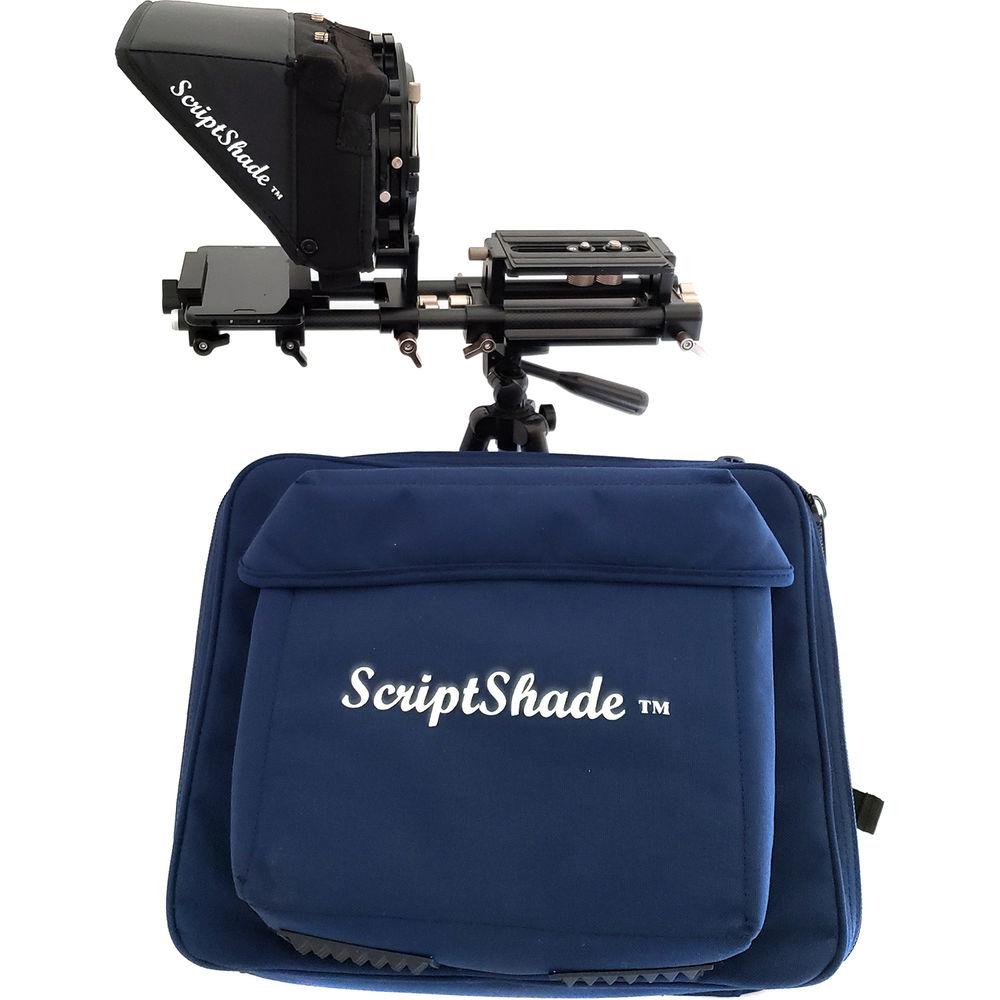

• Carry Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GWMC Wide-Angle Matte Box for 4 x 4" Filters

  Dimensions (LxHxD)	8.1 x 6.7 x 2.8" / 20.5 x 17.0 x 7.0 cm
  Weight	11.9 oz / 340 g

  Box Dimensions (LxWxH)	11.25 x 8.75 x 3.2"

• GFF French Flag Assembly

  Box Dimensions (LxWxH)	10.75 x 6.05 x 1.15"

• Height Extension Bracket

  Box Dimensions (LxWxH)	4.7 x 3.3 x 2.0"

• Beamsplitter Glass for ScriptShade

  Beamsplitter	70/30 Reflectance/transmission
  Dimensions	Top: 7.75" / 19.69 cm Bottom: 6.50" / 16.51 cm Sides: 5.98" / 15.19 cm
  Weight	0.54 lb / 0.24 kg

• Glass Bracket for ScriptShade (Affix to Bottom of Matte Box)

  Weight

  2.11 oz / 59.82 g

• S-HOOD for ScriptShade

  Material	Elastic Nylon
  Weight	3.4 oz / 95 g

• 15mm Carbon Fiber Rods (14")

  Length	14" / 350 mm
  Diameter	15 mm

  Box Dimensions (LxWxH)	14.0 x 1.4 x 0.6"

• Uni-Plate Adaptor Bar System (Without Rods)

  Box Dimensions (LxWxH)	10.0 x 5.9 x 3.1"
