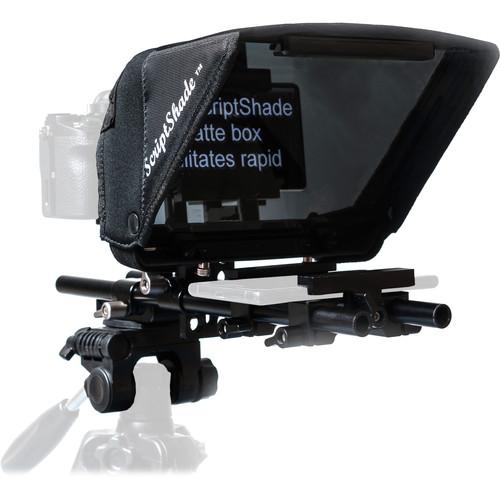

User Manual for Genustech ScriptShade Teleprompter Kit for Users with 15mm Rods and Camera Mount Click to enlarge the picture
Contents of the user manual for the Genustech ScriptShade Teleprompter Kit for Users
- Product category: Teleprompters Genustech
- Brand: Genustech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genustech Teleprompters
 |
User manual for the Genustech ScriptShade Teleprompter Kit for Users contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genustech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genustech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genustech product will considerably shorten its lifespan!
|

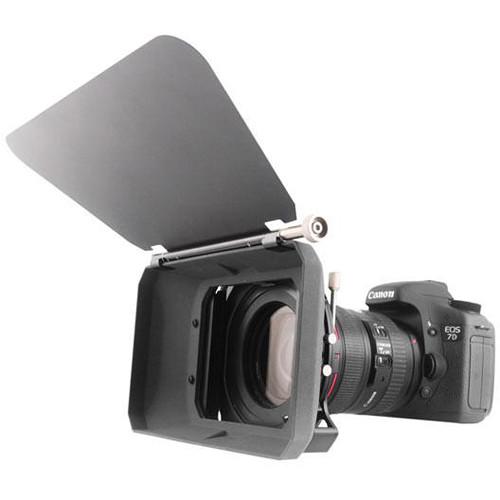

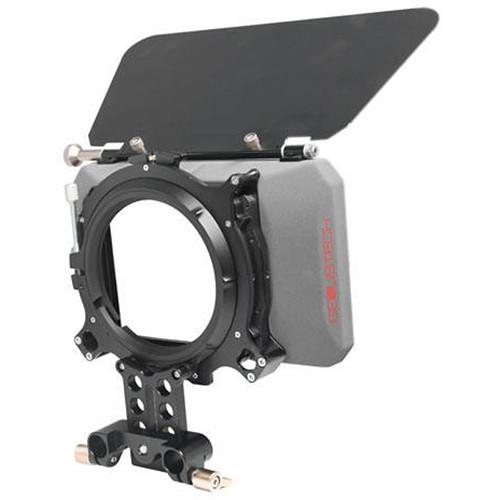

Product description Anatomy of a Teleprompter Read More The ScriptShade Teleprompter Kit for Users with 15mm Rods and Camera Mount is essentially the ScriptShade teleprompter kit, without 15mm rods and a camera mount. This kit contains the components that along with your camera mount and 15mm rods enables you to assemble a ScriptShade teleprompter. - GWMC Wide-Angle Matte Box for 4 x 4" Filters The Genus GWMC Wide-Angle Matte Box for 4 x 4" Filters includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide-angle rayshade. Standard lenses as well as wide-angle lenses can be accommodated using the wide rayshade.Two lockable 4 x 4" filter holders are provided; one fixed and the other 360°-rotatable for graduating filters. Also included is an 82mm adapter ring, as well as a clamp ring that supports lenses and wide-angle adapters with diameters up to 105mm. A GARD donut adapter ring allows you to achieve a secure fit between the lens adapter ring and clamp ring of the matte box. You can use the matte box with 58 to 86mm lenses via screw-in adapter rings.You can use the matte box with 12 or 15mm rods via an optional adapter unit. Weighing just 11.9 ounces, the Wide-Angle Matte Box is portable and provides an ideal solution for location-based shoots. You can use the matte box with camcorders and DSLRs such as the Canon 5D or 7D. Note: Adapter for 12/15mm rods sold separately (GSP-400-038).
- Includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide-angle rayshade
- Wide rayshade accommodates standard as well as wide-angle lenses
- Provides two lockable 4 x 4" filter holders, one fixed and the other 360°-rotatable for graduating filters
- Includes a clamp ring that supports lenses and wide-angle adapters with diameters up to 105mm
- Supports 12 or 15mm rods via an optional adapter unit
- Weighs 11.9 oz, making it portable and ideal for location-based shoots
- Compatible with video cameras and DSLRs such as the Canon 5D or 7D
UPC: 719821319160 - GFF French Flag Assembly The Genus GFF is a French flag for Genus 4x4" matte boxes. This French flag adds more light control to a matte box system. It comes with mounting hardware and is made of hard plastic. UPC: 719821319351
- Height Extension Bracket The Genus Height Extension Bracket allows you to adjust the height of the Genus GWMC Matte Box. Designed to attach to industry standard 15mm rods, the bracket can be easily attached to the GWMC matte box. You can easily adjust the height of the matte box via a single lock-off on the central riser. It has a CNC grade aluminum construction.
- Allows you to adjust the height of the Genus GWMC Matte Box
- Designed to attach to industry standard 15mm rods
- Can be easily attached to the GWMC matte box
- You can adjust the height of the matte box via a single lock-off on the central riser
- CNC grade aluminum construction
UPC: 719821331513 - Beamsplitter Glass for ScriptShade The Genustech Beamsplitter Glass for ScriptShade provides 70/30 transmission/reflectance for maximum light transmission without the prompting text becoming visible to the camera. It has a trapezoidal shape and is designed for the Genustech ScriptShade teleprompter. UPC: 849501001495
- Glass Bracket for ScriptShade (Affix to Bottom of Matte Box) The Genustech Glass Bracket for ScriptShade mounts on the bottom of your GWMC matte box, providing the proper angle for your beamsplitter glass. It features locking screws to hold the mirror in place. UPC: 849501001501
- S-HOOD for ScriptShade The Genustech S-HOOD for ScriptShade is a folding hood that mounts onto your matte box and stretches to hold the S-BSG mirror and S-HB Hood Bracket. UPC: 849501001518
- Hood Bracket for ScriptShade The Genustech Hood Bracket for ScriptShade attaches to the top of your matte box and allows you to mount your S-BSG mirror to your hood. UPC: 849501001525
- Monitor Bracket for ScriptShade (Set of 2) The Genustech Monitor Bracket for ScriptShade consists of two brackets that mount onto 15mm LWS rods and enables mounting a smartphone, tablet, or thin monitor with your ScriptShade prompter. Each bracket features an adjustable clamp arrangement that allows you to use devices up to 0.55" thick. UPC: 849501001532

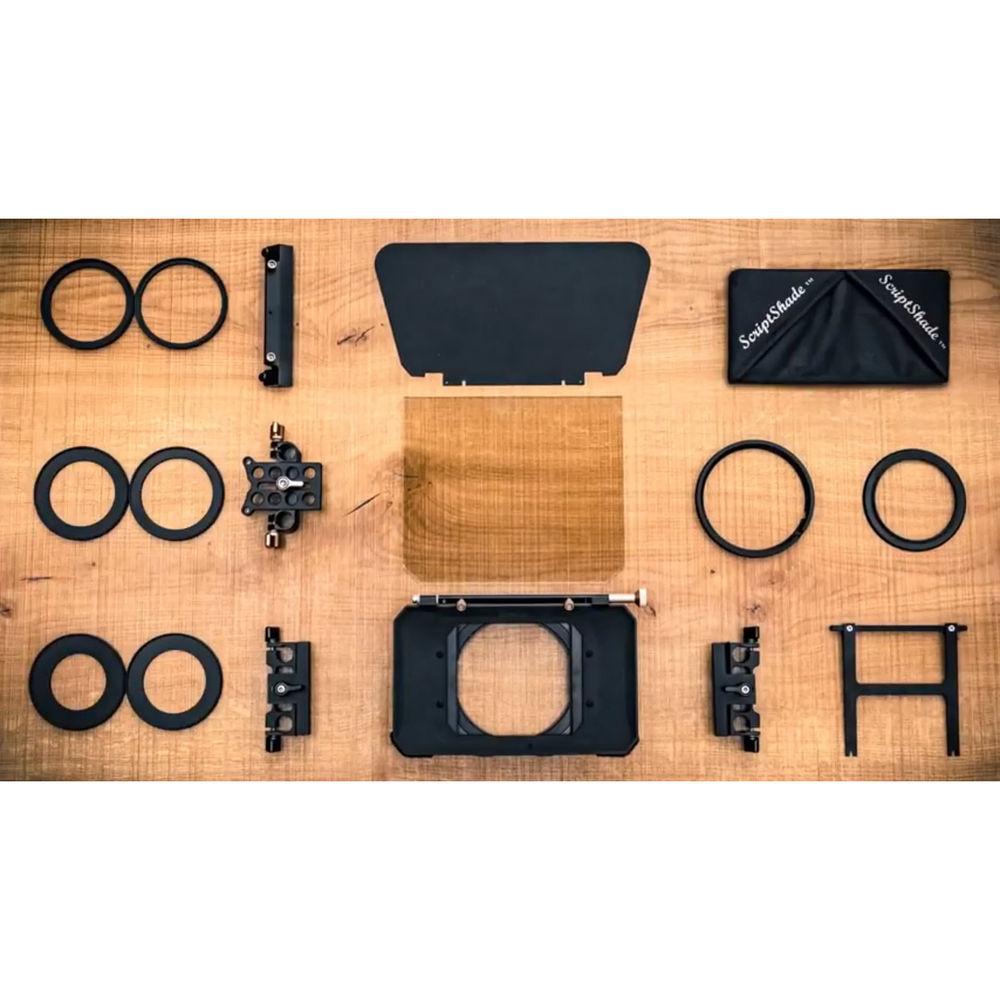

In the Box Bundle Items GWMC Wide-Angle Matte Box for 4 x 4" Filters - Wide-Angle Matte Box with 105mm Diameter Attachment
- 4 x 4" Rotating Filter Tray
GFF French Flag Assembly Height Extension Bracket Beamsplitter Glass for ScriptShade - Mirror Pouch for the S-BSG (Black)
Glass Bracket for ScriptShade (Affix to Bottom of Matte Box) S-HOOD for ScriptShade Hood Bracket for ScriptShade Monitor Bracket for ScriptShade (Set of 2)
Also Includes - 82mm Adapter Ring
- 82mm Step Up Ring Kit
- Carry Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genustech ScriptShade Teleprompter Kit for Users with 15mm Rods and Camera Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GWMC Wide-Angle Matte Box for 4 x 4" Filters
| Dimensions (LxHxD) | 8.1 x 6.7 x 2.8" / 20.5 x 17.0 x 7.0 cm | | Weight | 11.9 oz / 340 g | | | | Box Dimensions (LxWxH) | 11.25 x 8.75 x 3.2" | - GFF French Flag Assembly
| | | Box Dimensions (LxWxH) | 10.75 x 6.05 x 1.15" | - Height Extension Bracket
| | | Box Dimensions (LxWxH) | 4.7 x 3.3 x 2.0" | - Beamsplitter Glass for ScriptShade
| Beamsplitter | 70/30 Reflectance/transmission | | Dimensions | Top: 7.75" / 19.69 cm
Bottom: 6.50" / 16.51 cm
Sides: 5.98" / 15.19 cm | | Weight | 0.54 lb / 0.24 kg | - Glass Bracket for ScriptShade (Affix to Bottom of Matte Box)
- S-HOOD for ScriptShade
| Material | Elastic Nylon | | Weight | 3.4 oz / 95 g | - Hood Bracket for ScriptShade
| Material of Construction | Aluminum | | Weight | 1.7 oz / 48.5 g | - Monitor Bracket for ScriptShade (Set of 2)
| Material of Construction | Aluminum | | Dimensions | Length: 4.35" / 11.05 cm
Height Closed: 1.37" / 3.48 cm
Width: 1.61" / 4.09 cm | | Weight | 7.4 oz / 209.8 g |
