User Manual for Genustech Universal Adapter Bar System with 15mm Rods Click to enlarge the picture
Contents of the user manual for the Genustech Universal Adapter Bar System with
- Product category: Camcorder Supports & Rigs Genustech
- Brand: Genustech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genustech Camcorder Supports & Rigs
 |
User manual for the Genustech Universal Adapter Bar System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genustech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genustech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genustech product will considerably shorten its lifespan!
|

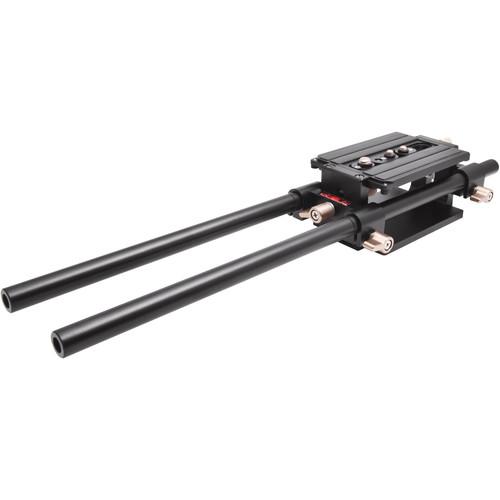

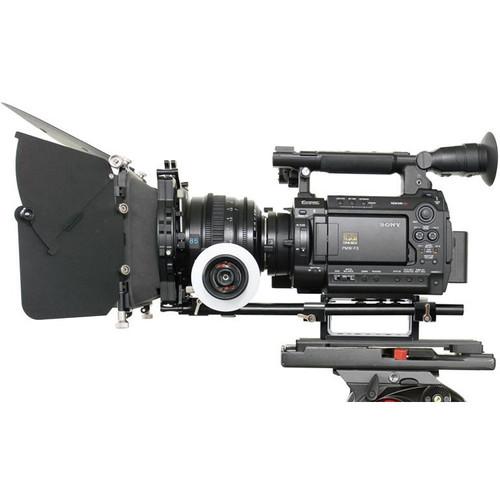

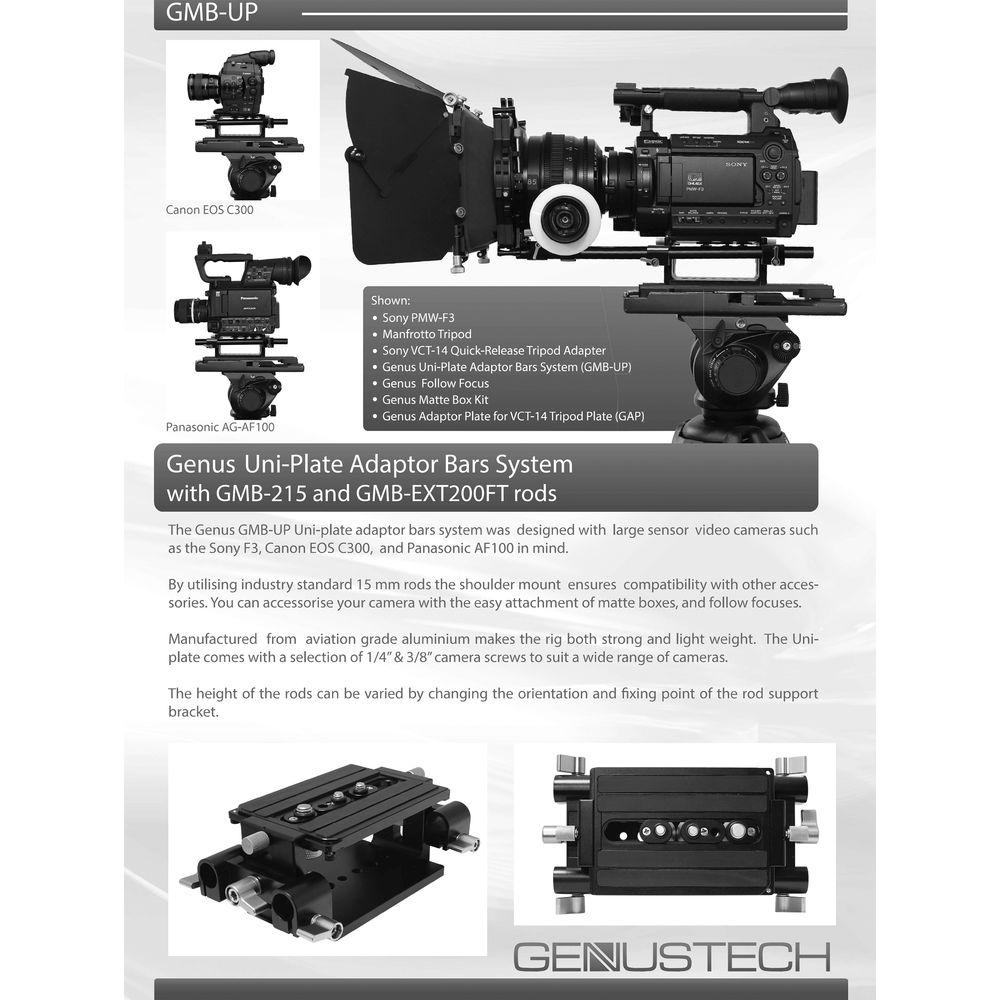

Product description The Genustech Universal Adapter Bar System is designed for use with Sony F3, Canon C300, and AF100 Cameras. The Universal baseplate comes with two 15mm carbon fiber rods for mounting accessories on the front or back side of the plate. It mounts to the camera with two 1/4" and one 3/8" camera screws, and a pin to suit wide range of cameras. The camera is fixed onto the rods on all four corners to ensure stability.

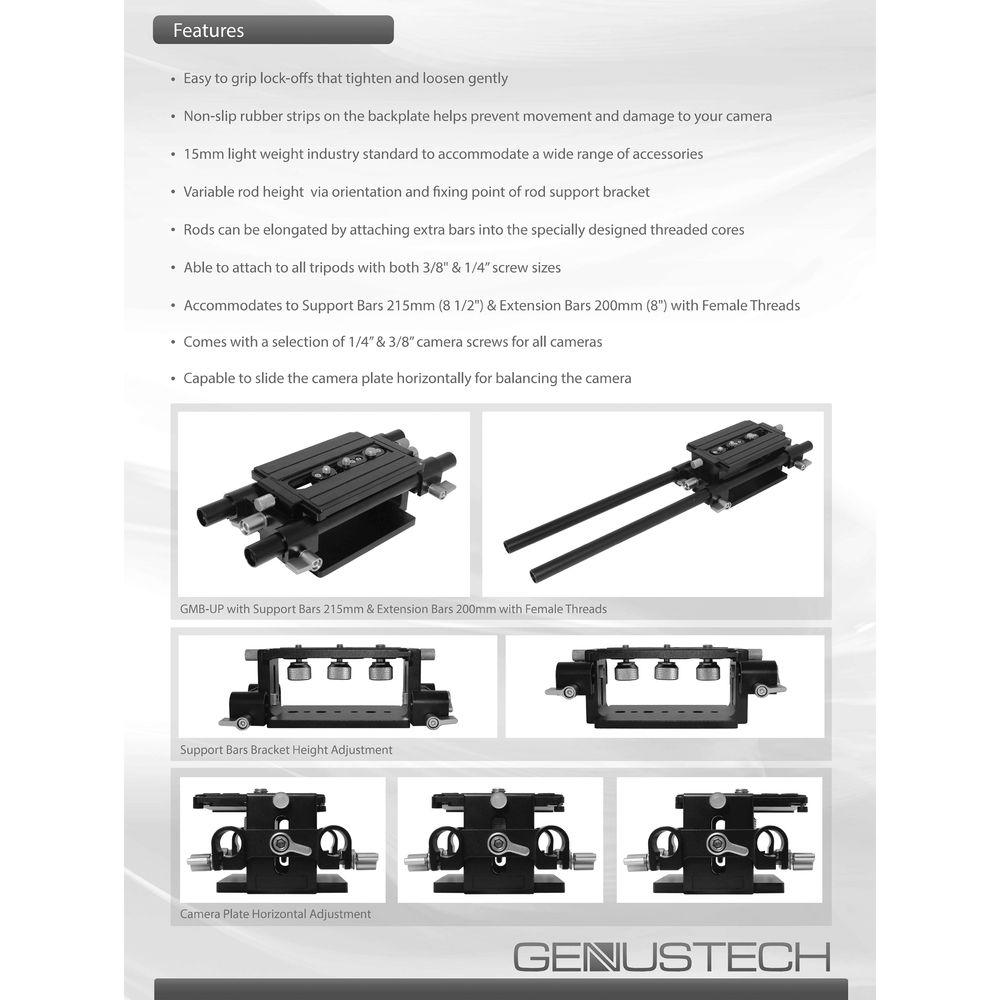

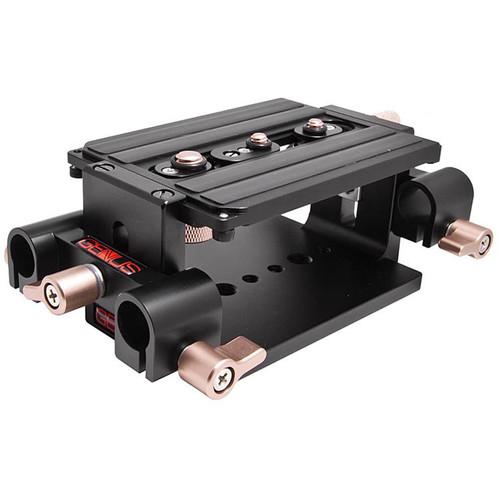

With adjustable-height rods and horizontal movement of the top plate, you can easily align the camera and other accessories like matte boxes and follow focus systems. The top plate can also slide off, making camera fixing easy — it acts as a quick release plate and slide on the horizontal plane for fine balance adjustment. Two end stops are supplied to ensure the top plate is held in position. Non-slip rubber strips on the back plate help prevent camera wobbling and scratches to the camera body. - 1/4" and 3/8" camera screws
- Non-slip rubber strips on the backplate

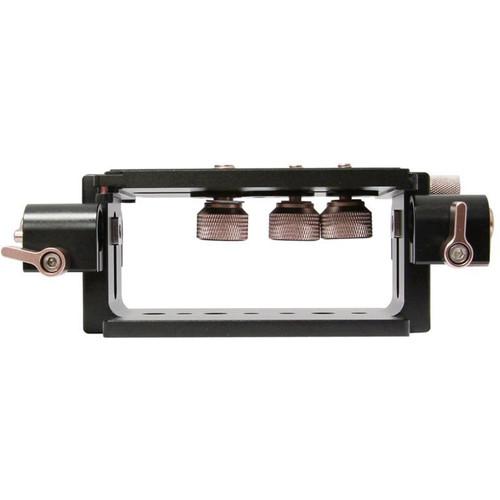

- Two 15mm rods height extension bracket
UPC: 849501001358 In the Box Genustech Universal Adapter Bar System with 15mm Rods 2 x 15mm Carbon Fiber Rod Height Extension Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genustech Universal Adapter Bar System with 15mm Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenustech GMB-UP/CF250 Specs | Material | Aluminum
Rods: Carbon fiber | | Camera Screw(s) | 2 x 1/4"
3/8" | | 15mm Rod Length | 9.8" (250 mm) | | Dimensions | 10.2 x 7 x 2.3" (26 x 18 x 6 cm) | | Weight | 22.9 oz (650 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.8 x 5.8 x 3.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
