Product description The Genustech Wide Matte Box includes the GWMC Wide Angle Matte Box, GFF French Flag Assembly, Matte Box Adapter, 82mm Lens Adapter Ring, and 82mm Filter Step Up Ring Set.

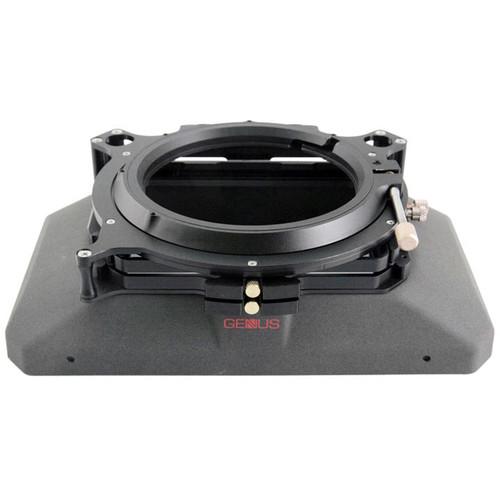

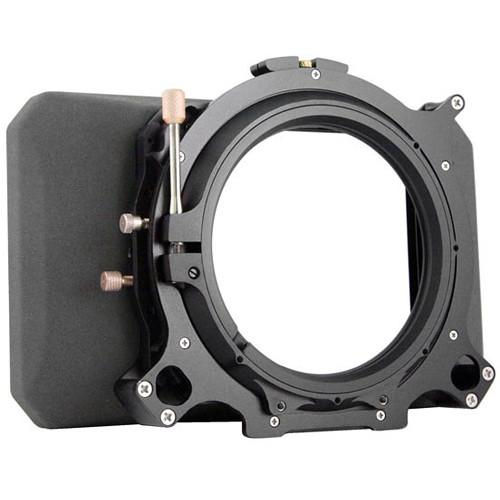

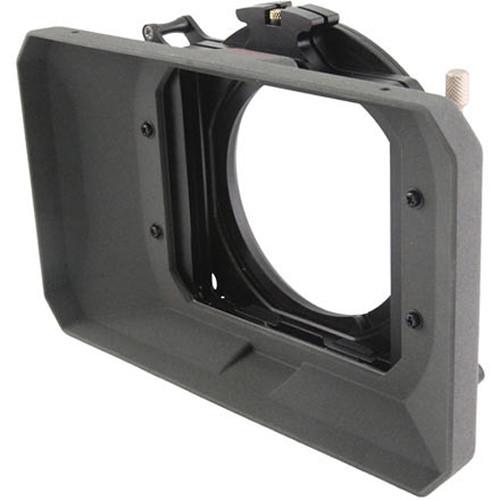

The GWMC Wide Angle Matte Box for 4 x 4" Filters includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide angle rayshade. Standard lenses as well as wide angle lenses can be accommodated using the wide rayshade. It comes with mounting hardware and is made of hard plastic. The aluminum GFF French flag for Genus 4 x 4" matte boxes adds more light control to a matte box system. The GL GSP-400-038 Matte Box Adapter is designed for use with 12mm and 15mm bars.

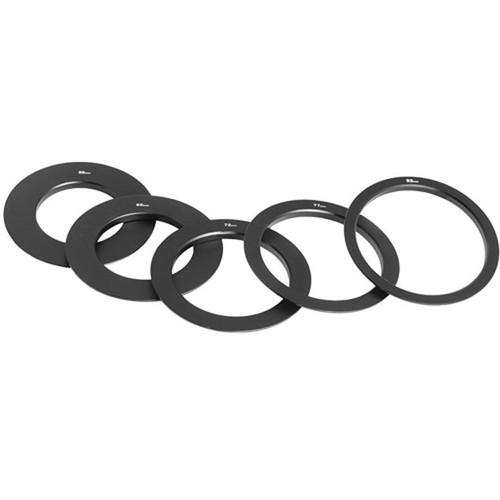

The Adapter Ring for Select Clip-On Matte Boxes threads into lenses with 82mm threaded front, providing a 105mm diameter clamping surface for your Genus Matte Box Lite or Genus Wide Matte Box. It is designed to mate your lens with a Genus Matte Box Lite or Genus Wide Clip-On Matte Box. The 82mm Filter Step Up Ring Set is a set of six different 82 mm step up rings. It allows the usage of 82mm filters and accessories on lenses with 52mm, 58mm, 62mm, 67mm, 72mm, and 77m filter threads. - GWMC Wide-Angle Matte Box for 4 x 4" Filters The Genus GWMC Wide-Angle Matte Box for 4 x 4" Filters includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide-angle rayshade. Standard lenses as well as wide-angle lenses can be accommodated using the wide rayshade.Two lockable 4 x 4" filter holders are provided; one fixed and the other 360°-rotatable for graduating filters. Also included is an 82mm adapter ring, as well as a clamp ring that supports lenses and wide-angle adapters with diameters up to 105mm. A GARD donut adapter ring allows you to achieve a secure fit between the lens adapter ring and clamp ring of the matte box. You can use the matte box with 58 to 86mm lenses via screw-in adapter rings.You can use the matte box with 12 or 15mm rods via an optional adapter unit. Weighing just 11.9 ounces, the Wide-Angle Matte Box is portable and provides an ideal solution for location-based shoots. You can use the matte box with camcorders and DSLRs such as the Canon 5D or 7D. Note: Adapter for 12/15mm rods sold separately (GSP-400-038).
- Includes a wide-angle matte box with a 105mm attachment, a 4 x 4" rotating filter tray, a 4 x 4" fixed filter tray, and a wide-angle rayshade
- Wide rayshade accommodates standard as well as wide-angle lenses
- Provides two lockable 4 x 4" filter holders, one fixed and the other 360°-rotatable for graduating filters
- Includes a clamp ring that supports lenses and wide-angle adapters with diameters up to 105mm
- Supports 12 or 15mm rods via an optional adapter unit
- Weighs 11.9 oz, making it portable and ideal for location-based shoots
- Compatible with video cameras and DSLRs such as the Canon 5D or 7D

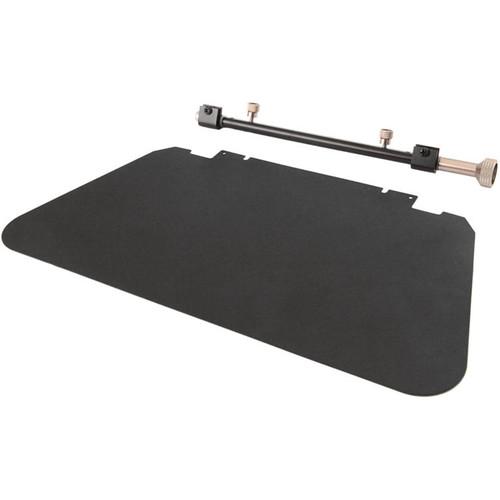

UPC: 719821319160 - GFF French Flag Assembly The Genus GFF is a French flag for Genus 4x4" matte boxes. This French flag adds more light control to a matte box system. It comes with mounting hardware and is made of hard plastic. UPC: 719821319351
- GL GSP-400-038 Matte Box Adaptor The Genus GL GSP-400-038 Matte Box Adaptor is designed for use with 12mm and 15mm bars. UPC: 719821320296
- Adapter Ring for Select Clip-On Matte Boxes (82mm) This Genus Adapter Ring for Select Clip-On Matte Boxes threads into lenses with 82mm threaded front, providing a 93mm diameter clamping surface for your Genus Matte Box Lite or Genus Wide Matte Box. Please note that this is not a filter-retaining ring. It is designed to mate your lens with a Genus Matte Box Lite or Genus Wide Clip-On Matte Box. It is made from anodized aluminum for strength and durability, and recommended for use with a lens that does not have a rotating front.
- 82mm threaded adapter ring features a 93mm outside diameter.
- For use with either Matte Box Lite or Genus Wide matte boxes.
- Use with lenses that have non-rotating fronts, otherwise your clip-on matte box will rotate as you change focus.
UPC: 719821319429 In the Box Bundle Items GWMC Wide-Angle Matte Box for 4 x 4" Filters uxryvxxwuwtxtvauuzfusbceczrxyz - Wide-Angle Matte Box with 105mm Diameter Attachment
- 4 x 4" Rotating Filter Tray
GFF French Flag Assembly GL GSP-400-038 Matte Box Adaptor Adapter Ring for Select Clip-On Matte Boxes (82mm)
Also Includes - 82mm Filter Step Up Ring Set
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genustech Wide Matte Box Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GWMC Wide-Angle Matte Box for 4 x 4" Filters
| Dimensions (LxHxD) | 8.1 x 6.7 x 2.8" / 20.5 x 17.0 x 7.0 cm | | Weight | 11.9 oz / 340 g | | | | Box Dimensions (LxWxH) | 11.25 x 8.75 x 3.2" | - GFF French Flag Assembly
| | | Box Dimensions (LxWxH) | 10.75 x 6.05 x 1.15" | - GL GSP-400-038 Matte Box Adaptor
| Designed for | Designed for use with 12 mm and 15 mm bars | | | | Box Dimensions (LxWxH) | 3.4 x 2.1 x 1.4" | - Adapter Ring for Select Clip-On Matte Boxes (82mm)
| Compatibility | Genus Matte Box Lite
Genus Wide | | Material of Construction | Anodized aluminum | | Diameter | Outside: 93 mm
Inside: 82 mm | | | | Box Dimensions (LxWxH) | 4.2 x 3.65 x 1.0" |
