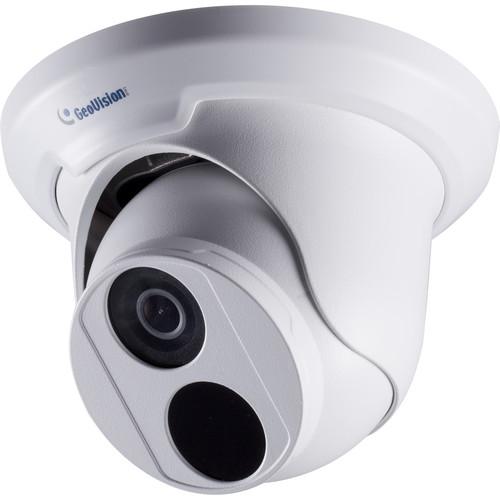

User Manual for GEOVISION GV-EBD4700 4MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the GEOVISION GV-EBD4700 4MP Outdoor Network Dome
- Product category: Wired IP Cameras GEOVISION
- Brand: GEOVISION
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GEOVISION Wired IP Cameras
|
User manual for the GEOVISION GV-EBD4700 4MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GEOVISION product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GEOVISION user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GEOVISION product will considerably shorten its lifespan!
|
Product description The GV-EBD4700 4MP Outdoor Network Dome Camera from GEOVISION can simultaneously deliver three video streams in resolutions up to 2592 x 1520 at 20 fps. The camera's built-in high-power LEDs allow for an effective IR night vision range of up to 98'. The GV-EBD4700 uses WDR Pro to process scenes with contrasting light intensities. H.264, H.265, and MJPEG compression standards are used to maintain video quality while using reduced network bandwidth. - Up to 2592 x 1520 Resolution at 20 fps
- Up to 2560 x 1440 Resolution at 25 fps
- Up to 2048 x 1520 Resolution at 30 fps
- WDR Pro wide dynamic range
- Automatic/manual white balance
- Triple streams in H.264, H.265, and MJPEG
- One IR illuminator for night vision up to 98'
- 1/3" progressive scan low-lux CMOS sensor
- Color vision down to 0.05 lux
- B&W vision down to 0.03 lux with IR illuminator off or 0 lux with IR illuminator on
- Removable IR cut filter for day and night vision
- ONVIF Profile S compliant
- IP66 rated for outdoor use
In the Box GEOVISION GV-EBD4700 4MP Outdoor Network Dome Camera with Night Vision Waterproof Rubber Set 3 x Screws 3 x Screw Anchors Drill Template Paster Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GEOVISION GV-EBD4700 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGEOVISION GV-EBD4700 Specs | | | Sensor | 4 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/1.8 | | Lens Field of View | Horizontal: 100° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | Shutter Speed | 1/8000 to 1/6 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 77° | | | | Streaming Resolution | 2592 x 1520 at 20 fps
2560 x 1440 at 25 fps
2048 x 1520 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Audio Formats | G.711 | | External Audio Input | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | DHCP, FTP, HTTP, ICMP, IPv4/v6, L2TP, NTP, ONVIF Profile S, RTP, RTSP, SIP (SIPS), SMTP, TCP, UDP | | | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Alarm | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 98.43' / 30 m | | Video Management Software | GV-DVR / NVR, GV-VMS, GV-Control Center, GV-Recording Server V1.3.0.0, and GV-Redundant / Failover Server | | Supported Languages | English | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5.5 W | | Operating Temperature | -31 to 140°F / -35 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | Dimensions |
