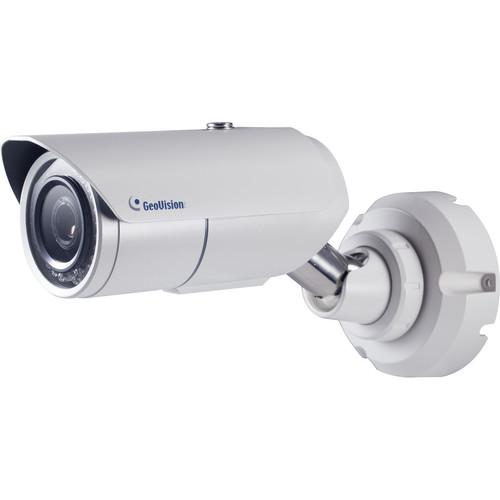

User Manual for GEOVISION GV-EBL2111 2MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the GEOVISION GV-EBL2111 2MP Outdoor Network Bullet
- Product category: Wired IP Cameras GEOVISION
- Brand: GEOVISION
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GEOVISION Wired IP Cameras
|
User manual for the GEOVISION GV-EBL2111 2MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GEOVISION product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GEOVISION user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GEOVISION product will considerably shorten its lifespan!
|
Product description The GV-EBL2111 2MP Outdoor Network Bullet Camera from GEOVISION can simultaneously deliver two video streams in resolutions up to 1920 x 1080 at 30 fps. The camera's built-in high-power LEDs allow for an effective IR night vision range of up to 246'. The GV-EBL3101 is equipped with a P-iris lens for automatic exposure control and uses WDR Pro to process scenes with contrasting light intensities. H.264 and MJPEG compression standards are used to maintain video quality while using reduced network bandwidth. - Motorized varifocal lens for remote focus/zoom adjustment
- Up to 1920 x 1080 resolution at 30 fps
- WDR Pro wide dynamic range
- Automatic/manual white balance
- Dual streams in H.264 and MJPEG
- Recording assigned by GV-Edge Recording Manager for Windows/Mac
- GV-Eye iOS and Android apps available
- 24 IR illuminators for night vision up to 246'
- 1/2.8" progressive scan super-low-lux CMOS sensor
- Color vision down to 0.005 lux
- B&W vision down to 0 lux with IR illuminators on
- Removable IR cut filter for day and night vision
- ONVIF Profile S compliant
- IP67 rated for outdoor use
- IK10 rated for vandal resistance
- P-iris lens for auto iris control
In the Box GEOVISION GV-EBL2111 2MP Outdoor Network Bullet Camera with Night Vision Sunshield Cover 2 x Screws for Sunshield Covers 3 x Screws for Supporting Rack 3 x Screw Anchors 2 x Silica Gel Bags 2 x Washers Terminal Block 3 x Screws for Mounting Kit 3 x Nuts for Mounting Kit Hex Key Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GEOVISION GV-EBL2111 2MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGEOVISION GV-EBL2111 Specs | | | Sensor | 2 MP | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.7 | | Zoom | Optical: 4.3x
Digital | | Lens Field of View | Horizontal: 40 to 102° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/6000 to 1/30 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90° | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IP Address Filtering | | Supported Protocols | DHCP, DynDNS, FTP, HTTP, NTP, ONVIF Profile S, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Event Trigger | Yes | | Event Action | Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x 2-Pin Terminal Block | | IR Range | 246.06' / 75 m | | Video Management Software | GV-Edge Recording Manager | | Supported Languages | Arabic
Bulgarian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Indonesian
Italian
Japanese
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Slovak
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | PoE: 12.3 W | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 90% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
