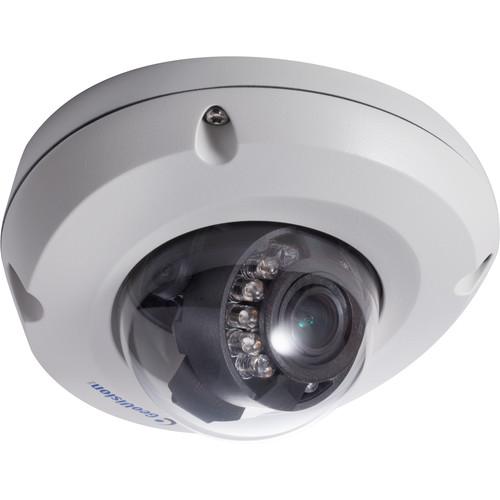

User Manual for GEOVISION GV-EDR4700-0F 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the GEOVISION GV-EDR4700-0F 4MP Outdoor Network Mini
- Product category: Wired IP Cameras GEOVISION
- Brand: GEOVISION
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GEOVISION Wired IP Cameras
|
User manual for the GEOVISION GV-EDR4700-0F 4MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GEOVISION product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GEOVISION user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GEOVISION product will considerably shorten its lifespan!
|
Product description The GV-EDR4700-0F 4MP Outdoor Network Mini Dome Camera from GEOVISION is an outdoor camera equipped with an IR cut filter and IR LEDs for day and night surveillance. It is adjustable along two axes and supports H.265, H.264, and MJPEG video compression to maintain video quality while using reduced network bandwidth. With its super low lux CMOS image sensor, the camera can provide a live color view in near darkness, down to 0.03 lux. The GV-EDR4700-0F uses WDR Pro to process scenes with contrasting light intensities and produce clear images in challenging environments. The camera is rated IK10 for vandal resistance and IP67 for outdoor use. - Up to 2592 x 1520 resolution at 20 fps
- Up to 2048 x 1520 resolution at 30 fps
- WDR Pro wide dynamic range
- Automatic/manual white balance 2800 to 8500K
- Wall mountable (mounting accessories available separately)
- Two-axis camera adjustment (horizontal/vertical)
- Triple streams in H.265, H.264, and MJPEG
- Recording assigned by GV-Edge Recording Manager for Windows/Mac
- Supports iPhone, iPad, Android, 3GPP
- GV-Eye iOS and Android apps available
- 31 languages on web interface
- 12 IR illuminators for night vision up to 50'
- 1/3" progressive scan super low lux CMOS sensor
- Color vision down to 0.03 lux
- B&W vision down to 0.02 lux with IR illuminators off or 0 lux with IR illuminators on
- Removable IR cut filter for day and night vision
- Wide Dynamic Range Pro (WDR Pro)
- ONVIF Profile S compliant
- IP67 rated for outdoor use & IK10 rated for vandal resistance
In the Box GEOVISION GV-EDR4700-0F 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens 2 x Screws 2 x Screw Anchors Focus Adjustment Ring Installation Sticker Conduit Converter RJ45 Connector Waterproof Rubber Sets Torx Wrench 2 x Silica Gel Bags 2 x Adhesive Tape for Silica Gel Bags Concave Hexagon Wrench Ruler 2 x Screws for Conduit Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GEOVISION GV-EDR4700-0F 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGEOVISION 125-EDR4700-0F0 Specs | | | Sensor | 4 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Zoom | Digital | | Lens Field of View | Horizontal: 96° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.03 Lux
B&W: 0 Lux | | Shutter Speed | 1/16,000 to 1/5 Seconds | | Camera Angle Adjustment | Horizontal: -45 to 45°
Vertical: 0 to 63° | | | | Streaming Resolution | 2592 x 1520 at 20 fps
2560 x 1440 at 25 fps
2560 x 1440 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IP Address Filtering | | Supported Protocols | DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x 2-Pin Terminal Block | | IR Range | 49.21' / 15 m | | Video Management Software | GV-Edge Recording Manager | | Supported Languages | Arabic
Bulgarian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Indonesian
Italian
Japanese
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Slovak
Swedish
Traditional Chinese
Turkish | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 6.07 W | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
