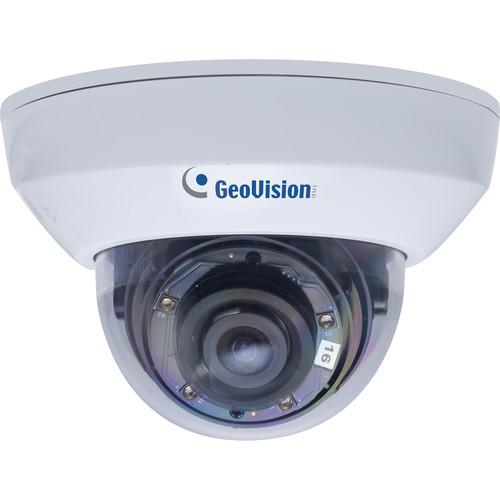

User Manual for GEOVISION GV-MFD2700-0F 2MP Network Mini Dome Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the GEOVISION GV-MFD2700-0F 2MP Network Mini Dome
- Product category: Wired IP Cameras GEOVISION
- Brand: GEOVISION
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GEOVISION Wired IP Cameras
|
User manual for the GEOVISION GV-MFD2700-0F 2MP Network Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GEOVISION product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GEOVISION user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GEOVISION product will considerably shorten its lifespan!
|
Product description The GV-MFD2700-0F 2MP Network Mini Dome Camera from GEOVISION is an indoor camera equipped with an IR cut filter and IR LEDs for day and night surveillance. It is adjustable along three axes and supports H.265, H.264, and MJPEG video compression to maintain video quality while using reduced network bandwidth. With its super low lux CMOS image sensor, the camera can provide a live color view in near darkness, down to 0.005 lux. The GV-MFD2700-0F uses WDR Pro to process scenes with contrasting light intensities and produce clear images in challenging environments. - Up to 1920 x 1080 resolution at 30 fps
- WDR Pro wide dynamic range
- Automatic/manual white balance 2800 to 8500K
- Wall mountable (mounting accessories available separately)
- Three-axis camera adjustment (horizontal/vertical/rotate)
- Triple streams in H.265, H.264, and MJPEG
- Recording assigned by GV-Edge Recording Manager for Windows/Mac
- GV-Eye iOS and Android apps available
- 31 languages on web interface
- Four IR illuminators for night vision up to 66'
- 1/2.8" progressive scan super-low-lux CMOS sensor
- Color vision down to 0.005 lux
- B&W vision down to 0.004 lux with IR illuminators off or 0 lux with IR illuminators on
- Removable IR cut filter for day and night vision
- Wide Dynamic Range Pro (WDR Pro)
- One sensor input and one alarm output
- ONVIF Profile S compliant
- microSD slot supports up to 64GB (microSD card available separately)
In the Box GEOVISION GV-MFD2700-0F 2MP Network Mini Dome Camera with Night Vision & 2.8mm Lens 2 x Screws 2 x Screw Anchors Focus Adjustment Ring Installation Sticker Audio and I/O Extension Cable Torx Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GEOVISION GV-MFD2700-0F 2MP Network Mini Dome Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGEOVISION GV-MFD2700 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Zoom | Digital | | Lens Field of View | Horizontal: 100° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/16,000 to 1/5 Seconds | | Camera Angle Adjustment | Horizontal: -45 to 45°
Vertical: 0 to 70° | | | | Streaming Resolution | 1920 x 1080 at 25/30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IP Address Filtering | | Supported Protocols | DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Analytics | Motion detection | | Event Trigger | Yes | | Event Action | Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45 | | IR Range | 65.62' / 20 m | | Video Management Software | GV-Edge Recording Manager | | Supported Languages | Arabic
Bulgarian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Indonesian
Italian
Japanese
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Slovak
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Internal Storage | None | | External Storage Options | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 6.5 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Dimensions |
