User manual

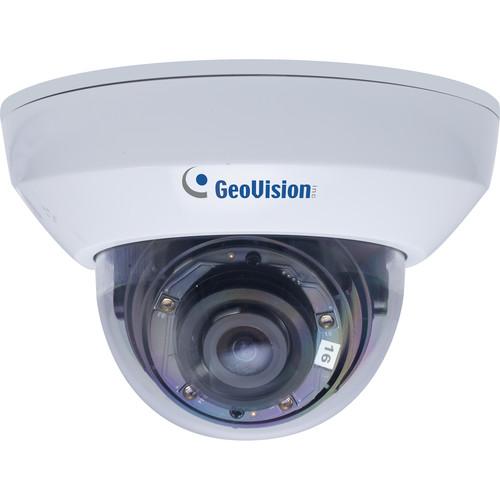

GEOVISION GV-MFD4700-2F 4MP Network Mini Dome

User Manual for GEOVISION GV-MFD4700-2F 4MP Network Mini Dome Camera with Night Vision & 3.8mm Lens

• Product category: Wired IP Cameras GEOVISION
• Brand: GEOVISION
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for GEOVISION Wired IP Cameras

Product description

• 3.8mm fixed lens

• Up to 2592 x 1520 resolution at 20 fps

• Up to 2048 x 1520 resolution at 30 fps

• 3D noise reduction

• WDR Pro wide dynamic range

• Backlight compensation

• Automatic/manual white balance 2800 to 8500K

• Automatic gain control

• Intelligent IR

• Privacy masking

• Motion detection

• Defog functionality

• Wall mountable (mounting accessories available separately)

• Tampering alarm

• Smart streaming

• Text overlay

• Three-axis camera adjustment (horizontal/vertical/rotate)

• Triple streams in H.265, H.264, and MJPEG

• IP address filtering

• Recording assigned by GV-Edge Recording Manager for Windows/Mac

• Supports iPhone, iPad, Android, and 3GPP

• GV-Eye iOS and Android apps available

• 31 languages on web interface

• Four IR illuminators for night vision up to 66'

• 1/3" progressive scan super-low-lux CMOS sensor

• Color vision down to 0.003 lux

• B&W vision down to 0.002 lux with IR illuminators off or 0 lux with IR illuminators on

• Removable IR cut filter for day and night vision

• Two-way audio

• One sensor input and one alarm output

• ONVIF Profile S compliant

• microSD slot supports up to 64GB (microSD card available separately)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

GEOVISION GV-MFD4700 Specs

Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x 2-Pin Terminal Block
IR Range	65.62' / 20 m
Video Management Software	GV-Edge Recording Manager
Supported Languages	Arabic Bulgarian Czech Danish Dutch English Finnish French German Greek Hebrew Hungarian Indonesian Italian Japanese Norwegian Persian Polish Portuguese Romanian Russian Serbian Simplified Chinese Slovak Spanish Swedish Thai Traditional Chinese Turkish
Internal Storage	None
External Storage Options	None
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	7.5 W
Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	10 to 90%
