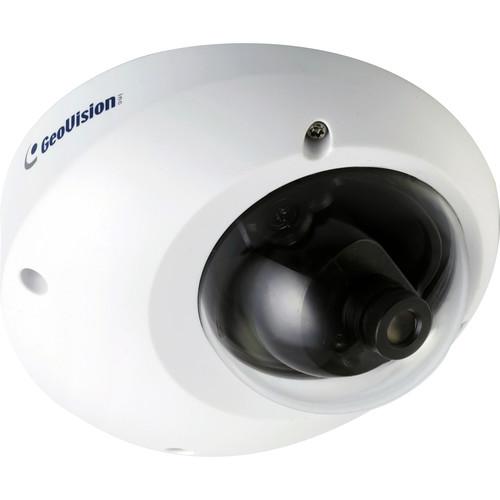

User Manual for GEOVISION GV-MFD5301 5MP Network Dome Camera with 3.8mm Lens Click to enlarge the picture
Contents of the user manual for the GEOVISION GV-MFD5301 5MP Network Dome Camera
- Product category: Wired IP Cameras GEOVISION
- Brand: GEOVISION
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GEOVISION Wired IP Cameras
|
User manual for the GEOVISION GV-MFD5301 5MP Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GEOVISION product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GEOVISION user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GEOVISION product will considerably shorten its lifespan!
|
Product description The GV-MFD5301 5MP Network Dome Camera from GeoVision is equipped with a 5MP 1/2.5" progressive scan CMOS image sensor that allows the camera to capture color video in near darkness. The camera comes with a 2.8mm f/2.0 fixed iris lens and captures videos at a resolution of up to 2560 x 1920. It features electronic day/night functionality, defog, motion detection, an active tampering alarm, and privacy masking.
With WDR (Wide Dynamic Range) the camera can process scenes with contrasting intensity of light and produce clear images. This network camera allows dual streaming of real-time imagery in H.264 and JPEG formats at up to 10 fps. It supports 2-way audio communication and comes with a USB port which supports wireless connection via a GV-WiFi adapter or external storage using a USB hard drive (both available separately). - Up to 10 fps at 2560 x 1920
- 5MP, 1/2.5" progressive scan CMOS
- Electronic day and night functionality
- Minimum illumination of 0.1 lux
- Dual streams in H.264 and MJPEG
- USB slot for GV-WiFi Adapter or USB hard drive (both available separately)
- Built-in microSD card slot (SD/SDHC) for local storage
- Supports iPhone, iPad, Android, and 3GPP
- 31 languages on web interface
In the Box GEOVISION GV-MFD5301 5MP Network Dome Camera with 3.8mm Lens Torx Wrench 2 x Self Tapping Screws 2 x Screw Anchors Cable Stopper Short‐Body RJ45 Plug 2-Pin Terminal Block Power Adapter GV-IPCAM H.264 Software DVD GV-NVR Software DVD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GEOVISION GV-MFD5301 5MP Network Dome Camera with 3.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGEOVISION 110-MFD5301-5F3 Specs | | | Image Sensor | 1/2.5" progressive scan CMOS | | Picture Elements | H x V: 2560 x 1920 | | Minimum Illumination | Color: 0.15 lux
B&W: 0.1 lux | | Shutter Speed | 1/8000 to 1/5 sec (automatic, manual) | | White Balance | 2800 to 8500K (automatic, manual) | | Gain Control | Automatic | | S/N Ratio | 55 dB | | | | Type | Megapixel | | Day/Night | Yes (electronic) | | Focal Length | 3.8mm | | Maximum Aperture | f/1.8 | | Mount | M12, Pitch 0.5 mm | | Image Format | 1/3" | | Horizontal Field-of-View | 76° | | Focus | Fixed | | Zoom | Fixed | | Iris | Fixed | | | | Video Compression | H.264, MJPEG | | Video Streaming | Dual streams from H.264 or MJPEG | | Frame Rate | 10 fps at 2560 x 1920 | | Audio Compression Format | G.711 AAC (optional) | | Audio | Two‐way | | | | Detectors | Temperature detector | | Pan | ‐45 to 45° | | Tilt | 0 to 90° | | Connectors | Audio:
1 x built-in microphone
1 x RCA female for speaker
Power: 2-pin terminal block, PoE
Ethernet (10/100Base-T), RJ45
USB 2.0 | | Local Storage | microSD card slot (SD/SDHC, SD version 2.0 only, Class 10) | | LED Indicators | 4 LEDs: Link, ACT, power, status | | | | Regulatory | CE, FCC, C‐Tick, RoHS compliant | | Power Source | 5 VDC/PoE (IEEE 802.3af) | | Maximum Power Consumption | 6 W | | Environment Temperature | 32 to 122°F / 0 to 50°C | | Humidity | 10 to 90% (no condensation) | | Dimensions (Ø x L) | 4.2 x 2.1" / 106.0 x 53.9 mm | | Weight | 0.62 lb / 0.28 kg |
