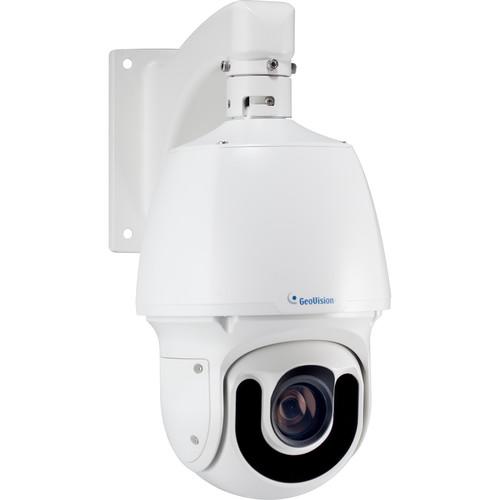

User Manual for GEOVISION GV-SD3732-IR 3MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the GEOVISION GV-SD3732-IR 3MP Outdoor PTZ Network
- Product category: Wired IP Cameras GEOVISION
- Brand: GEOVISION
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GEOVISION Wired IP Cameras
|
User manual for the GEOVISION GV-SD3732-IR 3MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GEOVISION product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GEOVISION user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GEOVISION product will considerably shorten its lifespan!
|
Product description The GV-SD3732-IR 3MP Outdoor PTZ Network Dome Camera from GEOVISION provides 33x optical zoom. This camera can simultaneously deliver three video streams in resolutions up to 2048 x 1536 at 30 fps. Built-in high-power LEDs allow for an effective IR range of up to 492'. The GV-SD3732-IR uses WDR Pro to process scenes with contrasting light intensities and produce clear images in challenging environments. H.265 compression is used to maintain video quality while using less network bandwidth.
Wide surveillance coverage is made possible by the camera's 360° endless panning and -15 to 195° tilting capabilities. Preset, auto pan, and patrol functions can be programmed to run on a schedule. The GV-SD3732-IR supports pan/tilt speeds ranging from a fast patrol of 240° per second to a slow patrol of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking. - 4.5-148.5mm varifocal lens
- Up to 2048 x 1536 resolution at 30 fps
- Up to 1920 x 1080 resolution at 60 fps
- WDR Pro wide dynamic range
- Automatic/manual white balance
- Ceiling and wall mountable (mounting accessories available separately)
- Triple streams in H.265, H.264, and MJPEG
- Recording assigned by GV-Edge Recording Manager for Windows/Mac
- GV-Eye iOS and Android apps available
- Ten IR illuminators for night vision up to 492'
- 1/2.8" progressive scan low-lux CMOS sensor
- Color vision down to 0.05 lux
- B&W vision down to 0.03 lux with IR illuminators off or 0 lux with IR illuminators on
- Removable IR cut filter for day and night vision
- ONVIF Profile S compliant
- microSD slot supports up to 64GB (microSD card available separately)
- 33x optical zoom and unlimited digital zoom
- IP66 rated for outdoor use & IK10 rated for vandal resistance
- Two sensor inputs and one alarm output
- Wide temperature tolerance of -40 to 158°F; heater turns on at 5°F
- PTZ movement (preset, auto pan and patrol)
- Smart settings (cross line, intrusion, auto tracking)
In the Box GEOVISION GV-SD3732-IR 3MP Outdoor PTZ Network Dome Camera with Night Vision 24 VAC Power Adapter M4 Hex Key Waterproof Rubber Set Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GEOVISION GV-SD3732-IR 3MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGEOVISION GV-SD3732-IR Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 4.5 to 148.5mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 33x
Digital | | Lens Field of View | Horizontal: 62.93 to 3.51° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | Shutter Speed | 1/8000 to 1/6 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps
1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | Manual Pan: 360° at 240°/s
Manual Tilt: 210° (-105 to 105°) at 160°/s
Remote Pan: 360° at 300°/s
Remote Tilt: 210° (-105 to 105°) at 240°/s | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x BNC | | IR Range | 492.13' / 150 m | | Video Management Software | GV-VMS, GV-DVR/NVR, GV-Control Center, GV-Recording Server/Video Gateway, GV-Edge Recording Manager, and GV-Redundant/Failover Server | | Supported Languages | Czech
English
French
German
Hungarian
Italian
Japanese
Polish
Portuguese
Russian
Spanish | | Internal Storage | None | | Power Source | AC, DC | | Power Consumption | 52.5 W | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 20 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
