Gepco 500' GA618 Series 4-Pair GEP-FLEX

Search your instruction manual in PDF to download

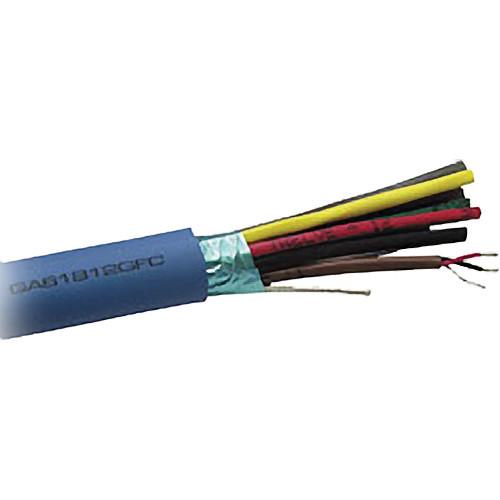

User Manual for Gepco 500' GA618 Series 4-Pair GEP-FLEX 22-Gauge Analog Audio Cable

Click to enlarge the picture
Gepco 500 Contents of the user manual for the Gepco 500' GA618 Series 4-Pair GEP-FLEX
  • Product category: Bulk Audio Cable Gepco
  • Brand: Gepco
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Gepco Bulk Audio Cable

User manual for the Gepco 500' GA618 Series 4-Pair GEP-FLEX contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Gepco product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Gepco user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Gepco product will considerably shorten its lifespan!



Product description

Designed for low noise and attenuation, the 500’ GA618 Series 4-Pair GEP-FLEX 22-Gauge Analog Audio Cable from Gepco is durable, easy to terminate, and UL listed. A high grade polyethylene dielectric is used to minimize high frequency attenuation, while process control and tight pair twisting achieves superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the riser-rated Gep-Flex Master Jacket is both flexible and easy to pull through conduit. The 22-gauge conductors offer the low DCR making this cable suitable for extended distance runs of microphone level signals.
  • Low attenuation and crosstalk
  • Flexible and easy to terminate
  • Polyethylene dielectric
  • Individually shielded and jacketed pairs
  • Color coded and alphanumeric pair identification
  • Additional overall foil shield
  • All-weather GEP-FLEX Master Jacket
  • CMR riser rated
  • Applications:
    Microphone or line level balanced analog audio
    Studio interconnect, portable snakes, or permanent installation
    Suitable for extended distance runs
Table of Contents




Upload User Manual

Have you got an user manual for the Gepco 500' GA618 Series 4-Pair GEP-FLEX 22-Gauge Analog Audio Cable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Gepco GA61804GFC-500 Specs

Pairs No of Pairs: 4 Shield: 100% foil
Drain: 22 AWG (7 x 30) stranded TC
Jacket: PVC 0.14" (3.56 mm)
Color Code: Yellow
Outer Diameter Nominal: 0.4" (10.16 mm)
Conductors 22 AWG (7 x 30) stranded TC
Insulation Type: Polyethylene
Wall Thickness: 0.01" (2.54 mm)
Color Code: Red & Black
Overall Shield Material 100% foil
Drain Wire Overall Common Drain: 16 AWG (19 x 29) stranded TC
Drain DCR: 15.3 Ω/Mft
Overall Common Drain DCR: 4.5 Ω/Mft
Jacket Type Master Jacket: Gep-Flex TPE, blue
Capacitance 26 pF/ft between conductors
48 pF/ft between one conductor and other tied to shield
Conductor DCR 15.3 Ω/Mft
Length 500.0' (152.4 m)
Weight Approximately 95.00 lb/Mft (43.09 lb/304.80 m)
Package Weight 45.0 lb
Box Dimensions (LxWxH) 16.8 x 16.2 x 14.2"
