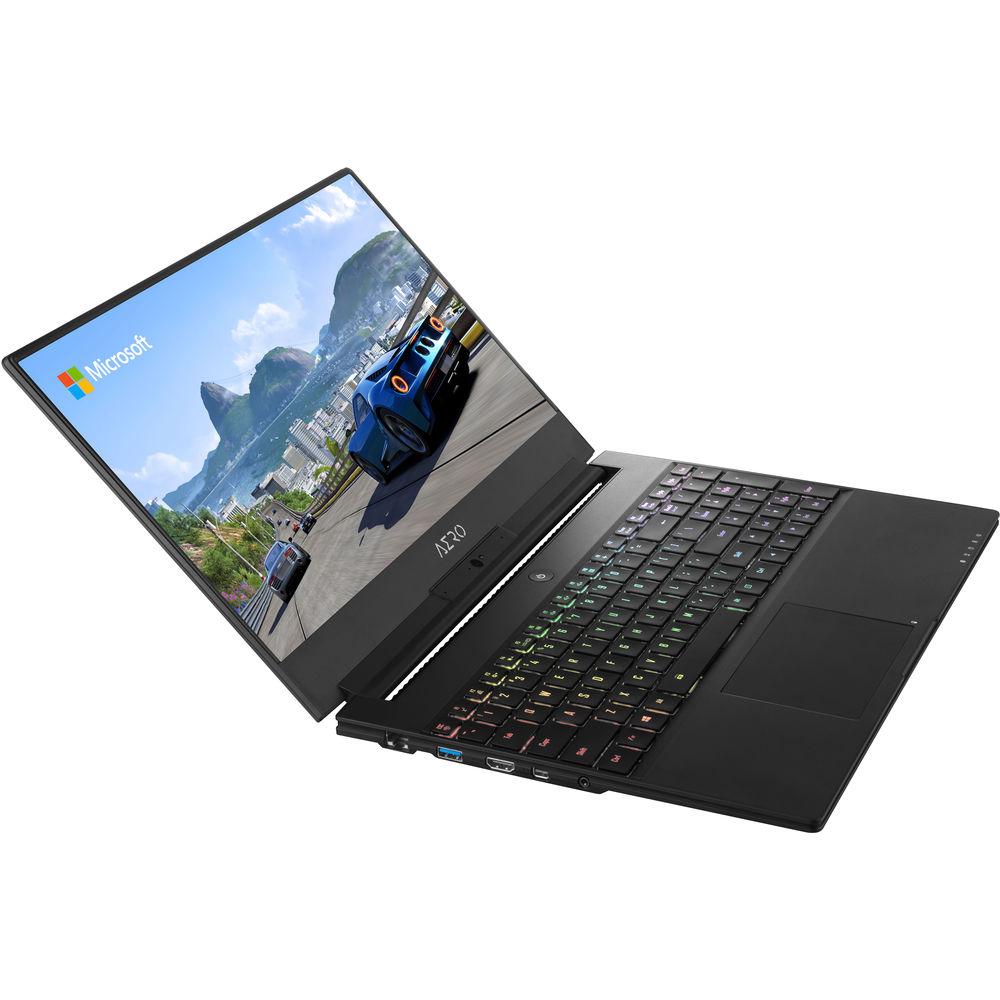

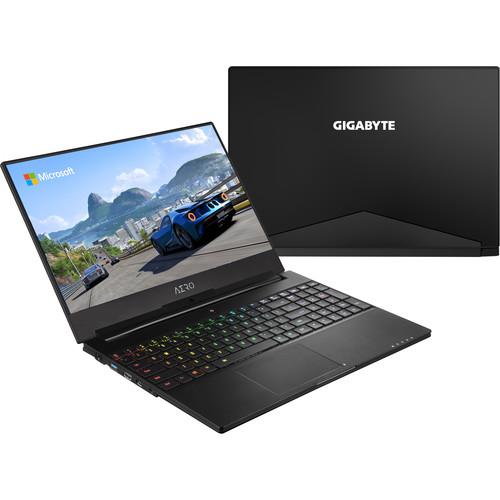

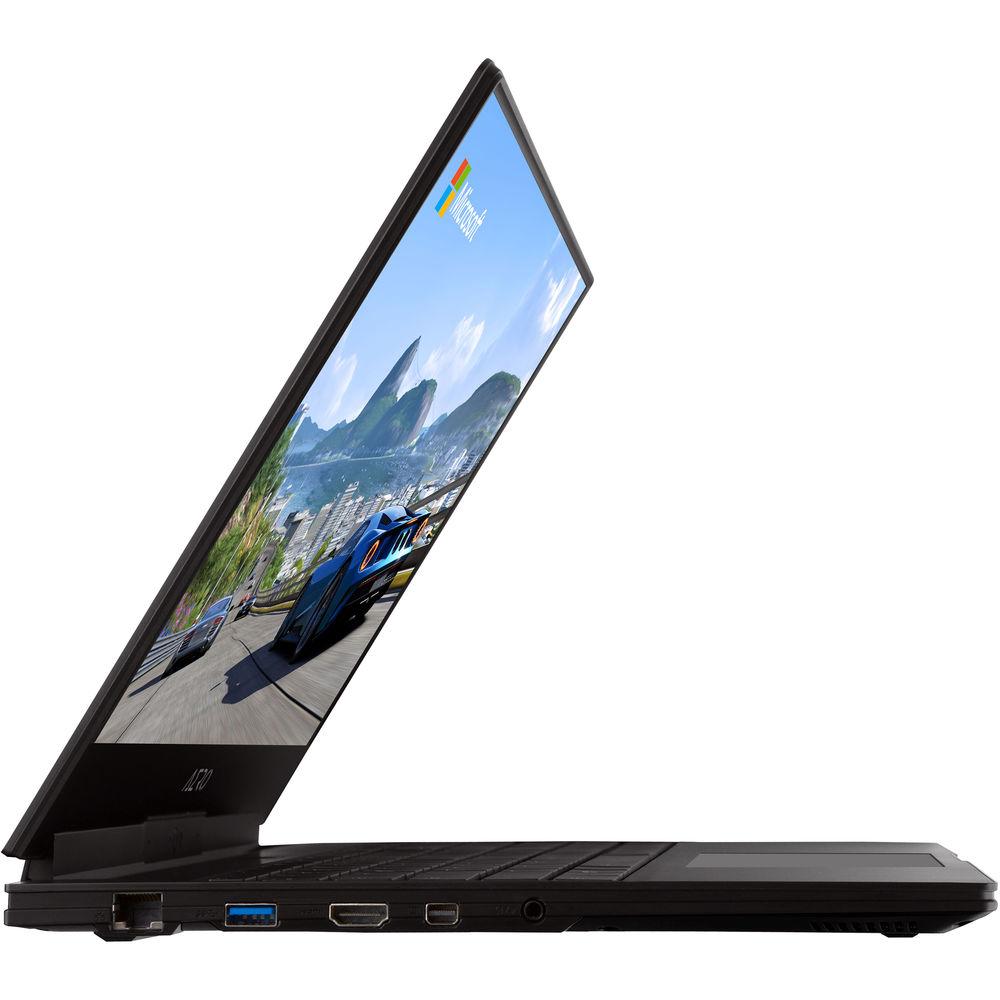

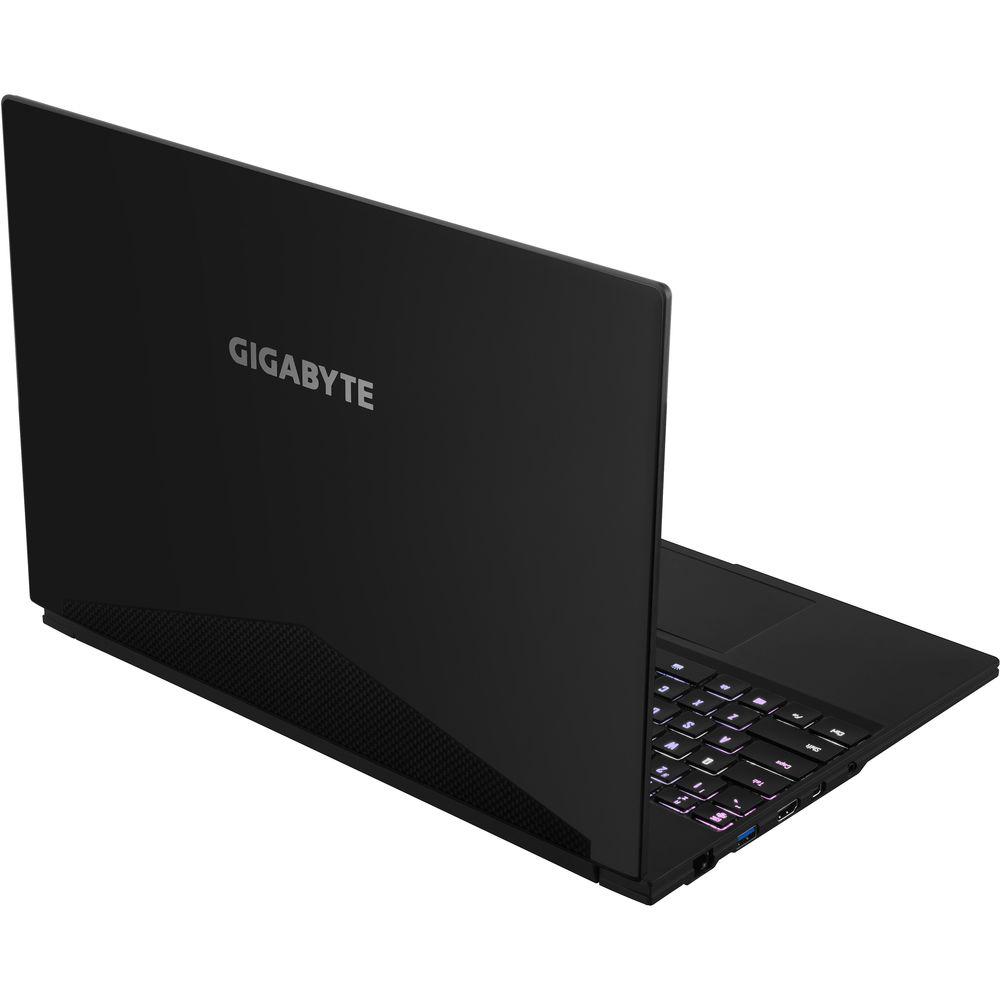

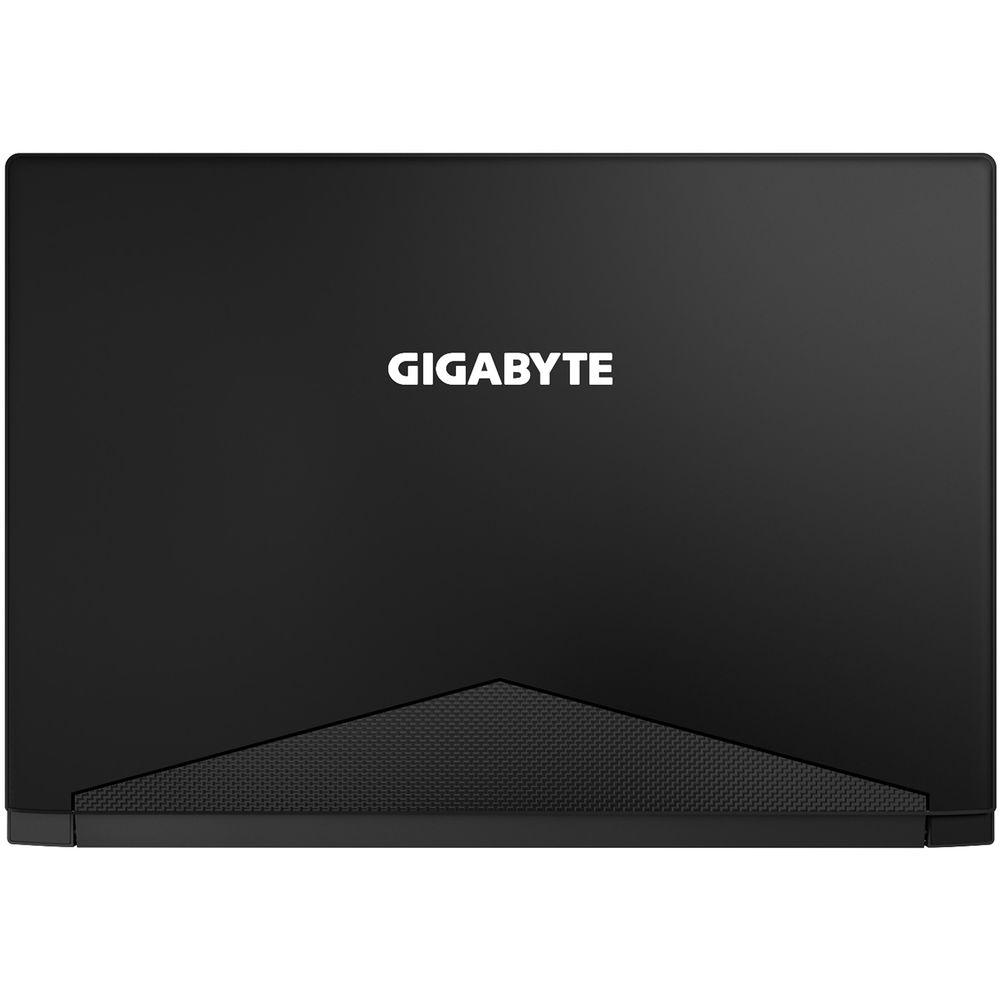

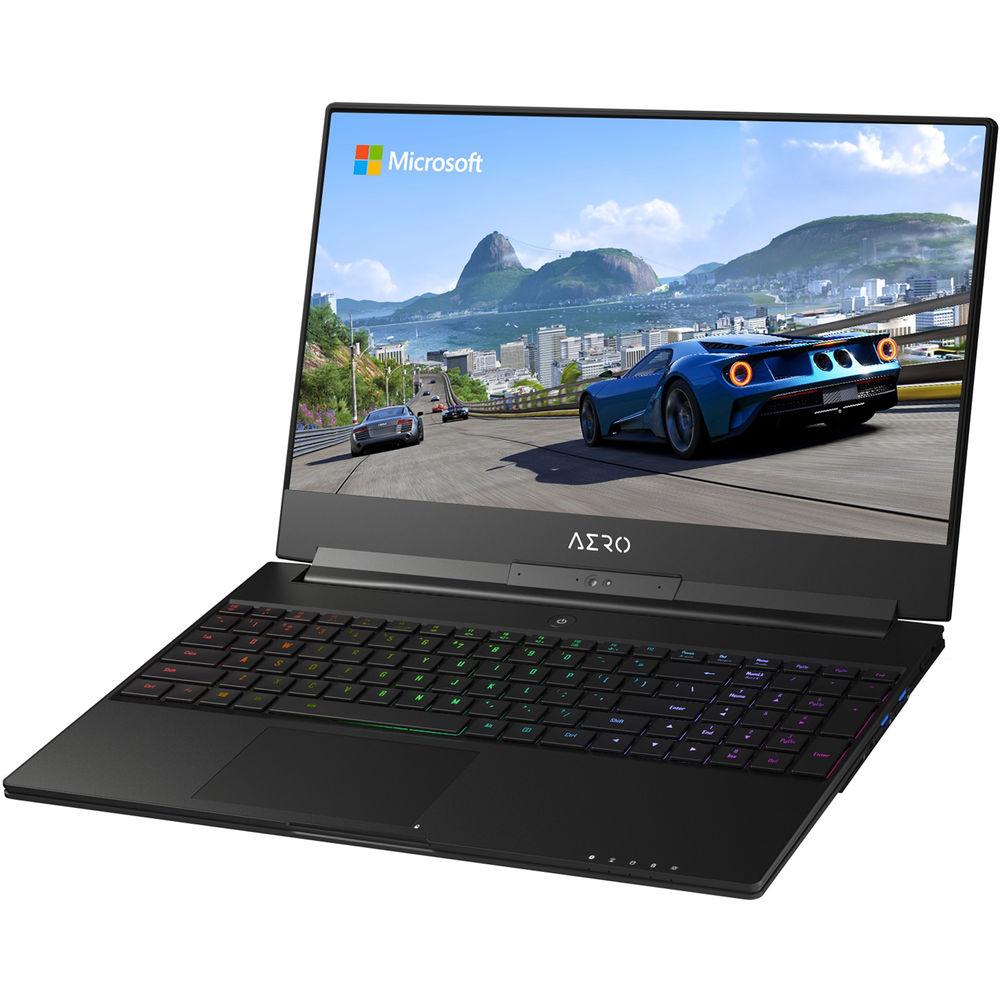

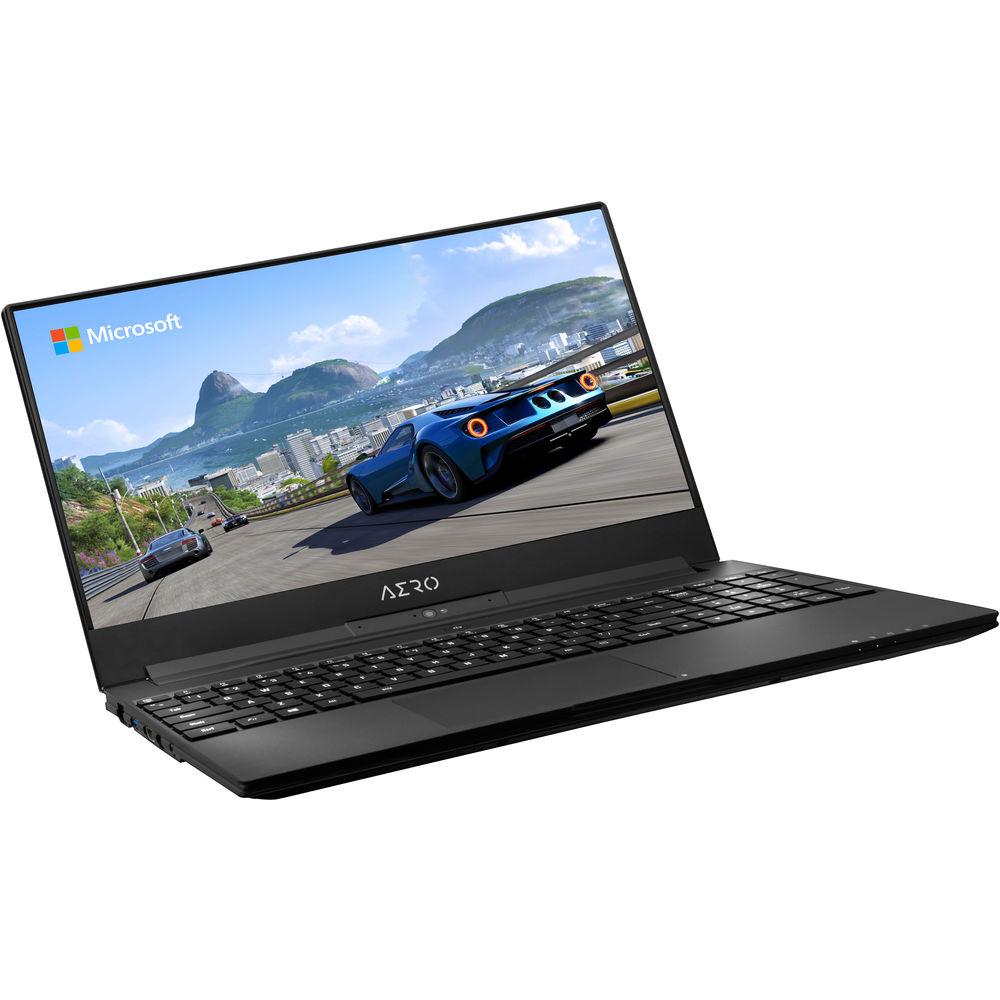

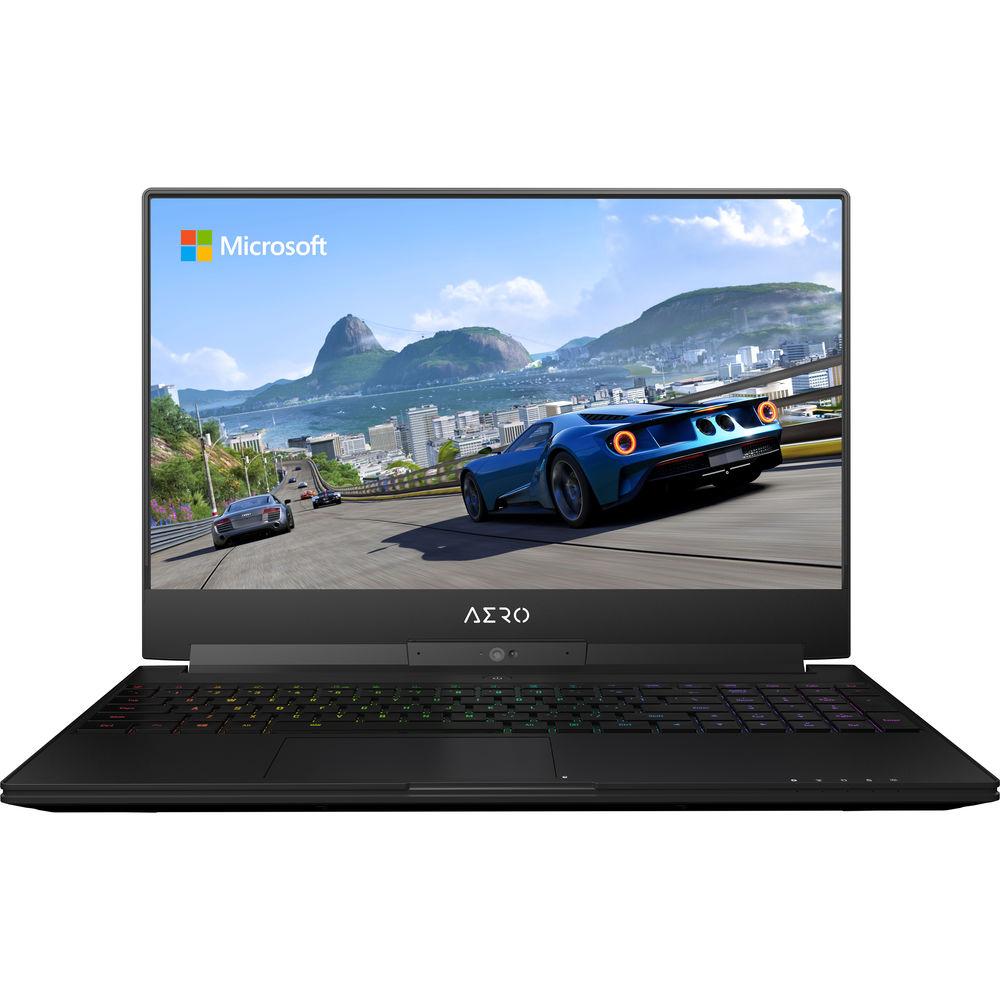

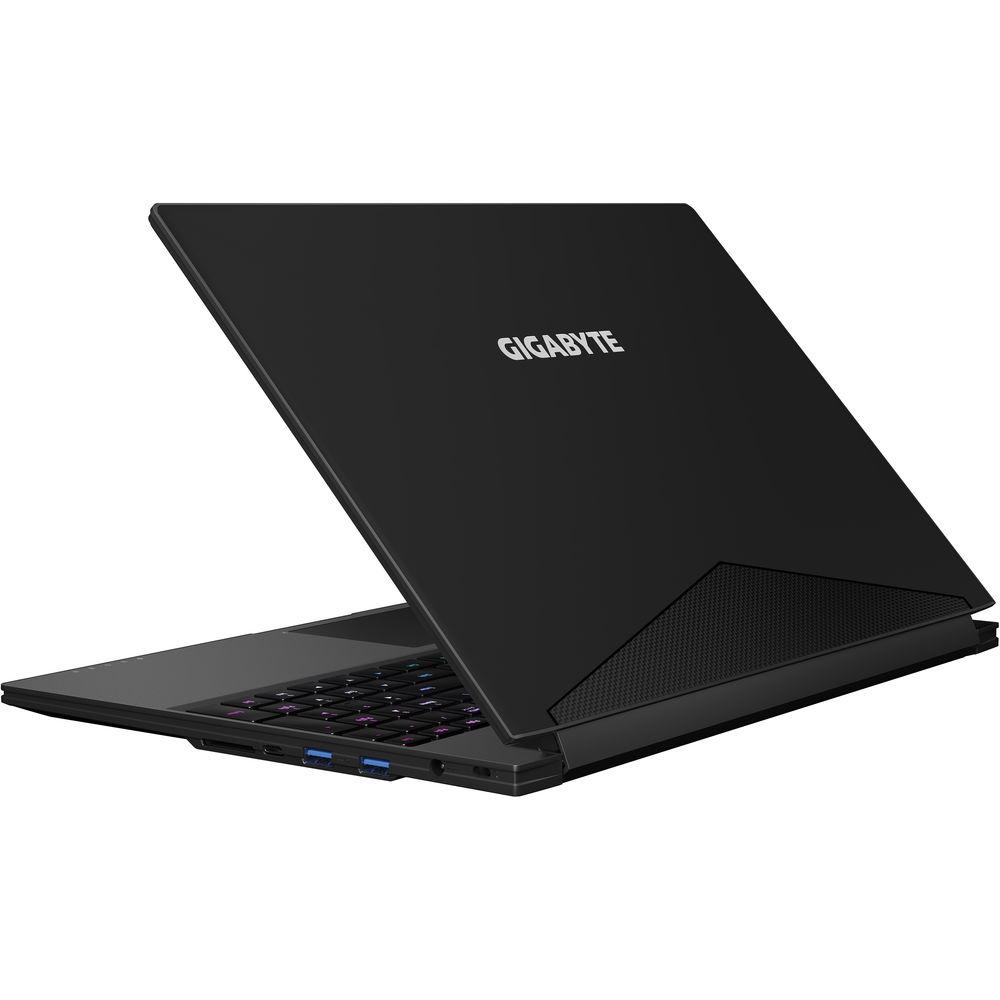

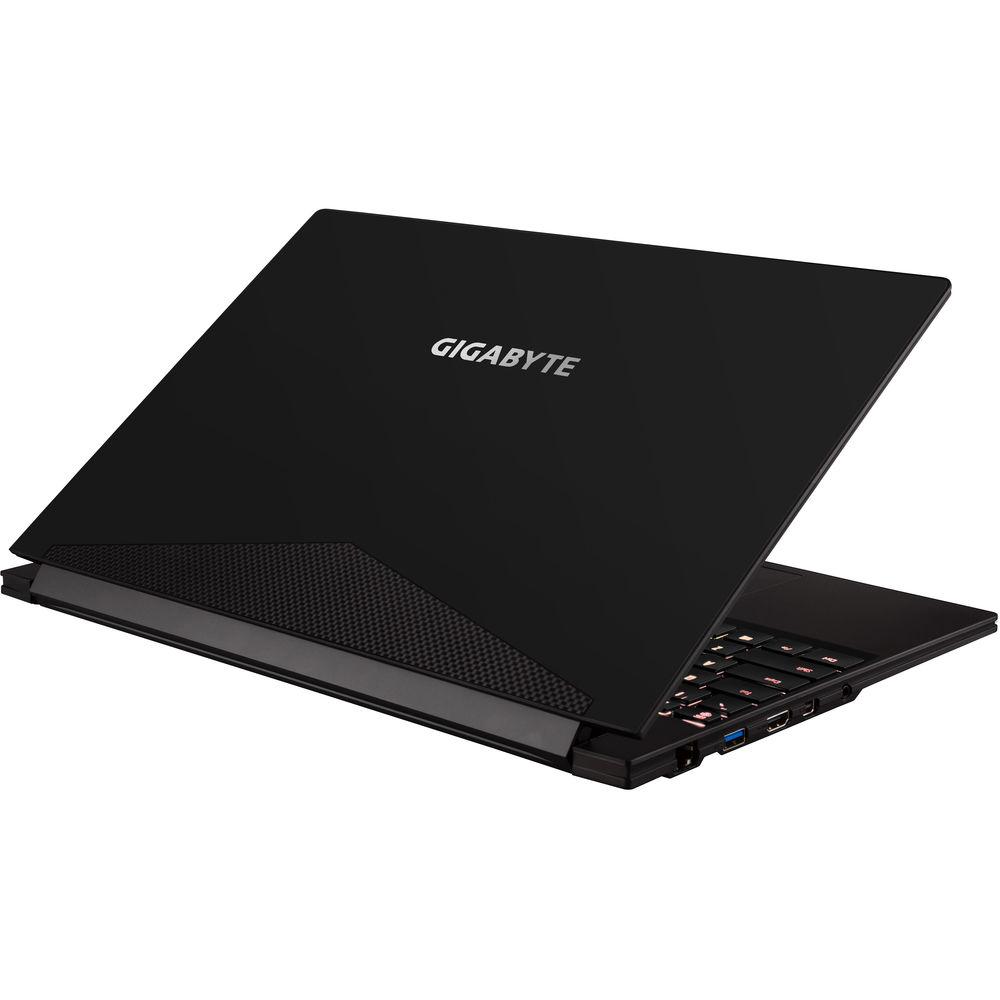

User Manual for Gigabyte 15.6" Aero 15X v8-BK4 Laptop Click to enlarge the picture
Contents of the user manual for the Gigabyte 15.6" Aero 15X v8-BK4 Laptop
- Product category: Notebooks Gigabyte
- Brand: Gigabyte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gigabyte Notebooks
 |
User manual for the Gigabyte 15.6" Aero 15X v8-BK4 Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gigabyte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gigabyte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gigabyte product will considerably shorten its lifespan!
|
Product description Built for gaming and created with a Max-Q design, the aluminum black 15.6" Aero 15X v8-BK4 Laptop from Gigabyte is equipped with an NVIDIA GeForce GTX 1070 graphics card with 8GB of GDDR5 RAM, a 15.6" IPS anti-glare display with a Full HD 1920 x 1080 resolution, a 144 Hz refresh rate, and support for NVIDIA Optimus technology. The core of this system is driven by a 2.2 GHz Intel Core i7-8750H processor, which can be overclocked up to 4.1 GHz, plus 16GB of 2666 MHz DDR4 RAM. Storage is provided by a 512GB PCIe M.2 SSD.
If you want to add external storage, optical drives, memory card readers, and more, the 15X v8-BK4 offers one 40 Gb/s Thunderbolt 3 port that also supports 10 Gb/s USB 3.1 Type-C and DisplayPort 1.2, plus one 10 Gb/s USB 3.1 Gen 2 Type-A port and two 5 Gb/s USB 3.1 Gen 1 Type-A ports. You'll also be able to output video to an external display HDMI 2.0 and mini DisplayPort 1.4 ports.
Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking, and Bluetooth 4.2 LE technology will also allow you to connect additional compatible peripherals. Content from memory cards may be accessed via a built-in SD card reader that supports UHS-II flash media. Other integrated features include a 720p webcam, an internal mic, dual 2W speakers with Dolby Atmos audio, and a Gigabyte Fusion per Key RGB keyboard.
Gigabyte's Aero 15X v8-BK4 operates using a 94.24Wh lithium-ion polymer battery and includes a 180W AC adapter. The installed operating system is Windows 10 Home (64-bit) and protection is provided by a limited 2-year global warranty. General Features - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- 144 Hz Display
- A 144 Hz refresh rate helps to eliminate stuttering and jitters, so you'll be able to enjoy smooth gameplay and react instantly to your game.
- NVIDIA Optimus
- NVIDIA Optimus is a computer GPU switching technology which, depending on the resource load generated by client software applications, will seamlessly switch between integrated and dedicated graphics adapters within a computer system in order to provide either maximum performance or minimum power draw from the system's graphics rendering hardware.
- NVIDIA Max-Q Design
- Thanks to NVIDIA's Max-Q design, GeForce GTX GPUs can be installed in laptops as thin as 0.7". It's all made possible by Max-Q, an innovative approach to designing thin, fast, and quiet gaming laptops. Everything is engineered for the thin gaming laptop experience, including the laptop, chip, drivers, thermal and electrical components, and more.
- Dual M.2 2280 Slots
- The Aero 15X v8-BK4 has two M.2 2280 slots, one of which supports PCIe and SATA SSDs, while the other only supports PCIe SSDs.
- Up to 32GB RAM
- Two DDR4 slots support 32GB of 2666 MHz RAM, or 16GB per slot.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana, can answer your questions with information gleaned from both your device and the Internet at large. You can type or even talk with her, if your system has a microphone. Using her Laptop, Cortana keeps track of your needs and wants, and she learns over time to improve her information-gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 813567025924 In the Box Gigabyte 15.6" Aero 15X v8-BK4 Laptop 180W AC Adapter Limited 2-Year Global Warranty User Manual PDF 23.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte 15.6" Aero 15X v8-BK4 Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte AERO 15X V8-BK4 Specs | Operating System | Windows 10 Home (64-Bit) | | | | CPU | 2.2 GHz Intel Core i7-8750H 6-Core | | Maximum Boost Speed | 4.1 GHz | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Hybrid | | GPU | NVIDIA GeForce GTX 1070 with 8 GB GDDR5 VRAM
Intel UHD Graphics 630 | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | Finish | Matte | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | None | | | | SSD Slots | 1 x M.2 (Available) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x Mini DisplayPort 1.4
1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 1 | | Media Card Slots | 1 x SD (Unspecified Type) | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | GPS | None | | NFC | No | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 94.24 Wh | | | | Keyboard | Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot, Accepts 3rd Party Security Lock Devices | | Power Supply | 180 W | | Dimensions | 14 x 0.8 x 9.8" / 35.6 x 2 x 24.9 cm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 17.4 x 12.2 x 3.6" |
