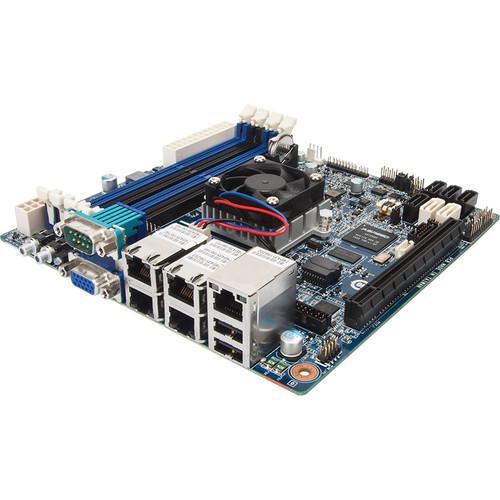

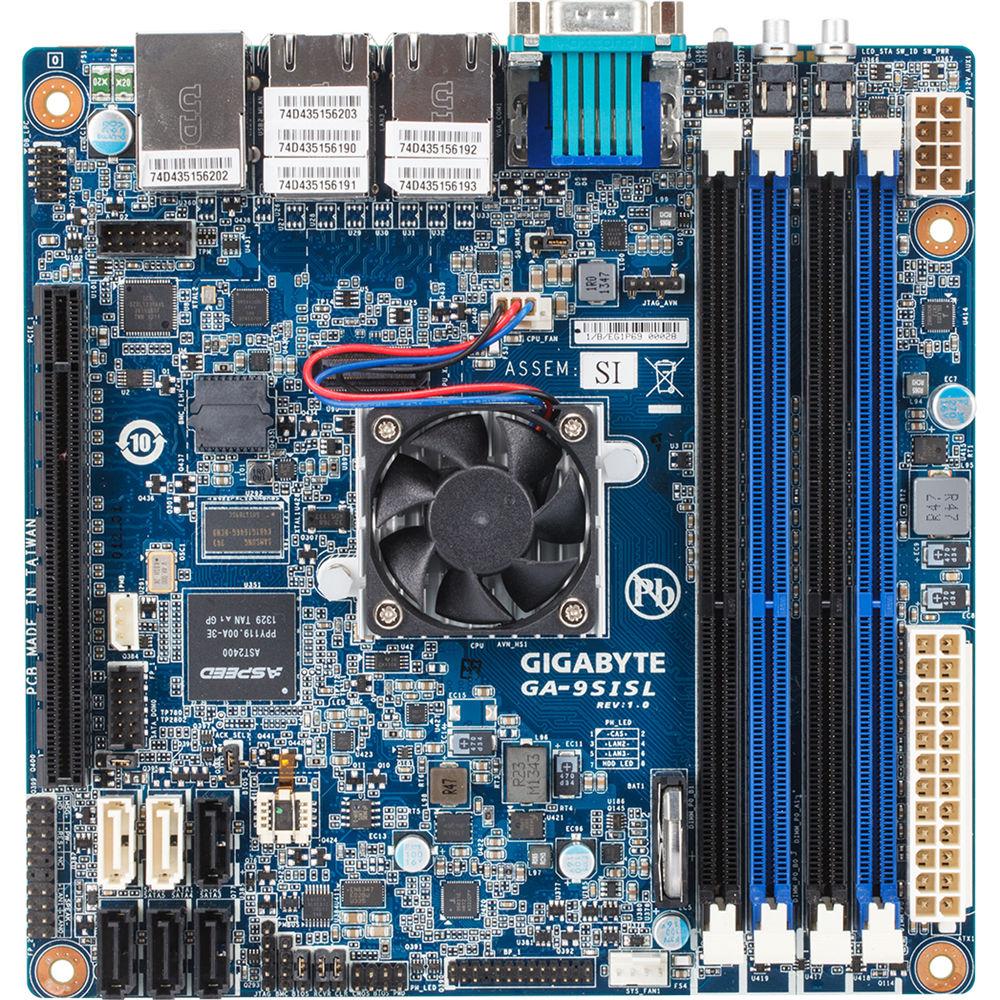

Product description Built for light and scalable applications such as microservers, redundant configurations, web hosting arrays, network appliances, and more, the GA-9SISL Mini-ITX BGA 1283 Server Motherboard (rev. 1.2) from Gigabyte is designed to fit in cases that support the Mini-ITX form factor. The 6.7 x 6.7" GA-9SISL comes equipped with a 2.4 GHz Intel Atom C2750 Eight-Core SoC processor, which has a max boost speed of 2.6 GHz. It also supports the BGA 1283 socket, as well as Windows Server 2012 R2 (64-bit), Server 2008 Enterprise R2 SP1 (64-bit), Red Hat Enterprise Linux 6.4 (64-bit), and SUSE Linux Enterprise Server 11.3 (64-bit).
The Mini-ITX form factor of the GA-9SISL has four DIMM slots that can support up to 64GB of single or dual rank and ECC or non-ECC unbuffered DDR3 or DDR3L RAM at speeds of either 1333 or 1600 MHz. This motherboard also has two SATA III 6 Gb/s ports, four SATA II 3 Gb/s ports, two USB 2.0 ports, and one PCIe Gen2 x16 slot. Graphics support is integrated in the Aspeed AST2400 controller and supports 2D video at a resolution of up to 1920 x 1200 @ 60 Hz and 32bpp, which is output through its VGA port. There are also five Ethernet ports, four of which are Gigabit ports for network connectivity and one additional 10/100 port for LAN management.
Included with this motherboard are two SATA II 3 Gb/s cables and an I/O shield. It is protected by a limited 3-year warranty. - 2.4 GHz Intel Atom C2750 Eight-Core Processor
- In addition to the computing power and energy consumption ratio offered by the Intel Atom C2750 processor, the GA-9SISL features:
- 4 x DIMM slots supporting ECC memory, as compared to the SO-DIMM slots usually found on Mini-ITX products
- 1 x PCIe x16 slot for additional storage or network features
- 4 x Gigabit LAN ports for network configurations
- 1 separate management LAN port to access the board's remote management functions
- Board placement has been optimized for rackmount integration. Also, its rear interface includes buttons and LEDs designed to match the maintenance workflow of such integration
- 6 x storage ports, which can be complemented with a storage PCIe card
In the Box Gigabyte GA-9SISL Mini-ITX BGA 1283 Server Motherboard (rev. 1.2) 2 x SATA II 3 Gb/s Cables I/O Shield Limited 3-Year Warranty User Guide PDF 8.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte GA-9SISL Mini-ITX BGA 1283 Server Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte GA-9SISL Specs | Form Factor | Mini-ITX | | CPU | Intel Atom C2750 Processor
Base Speed: 2.4 GHz
Max Boost Speed: 2.6 GHz
8 cores / 8 threads
L2 Cache: 4 MB
20 W max TDP | | Socket | 1 x BGA 1283 | | Memory | 4 x DIMM slots
Supports unbuffered ECC or non-ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Supports 1.35 and 1.5 V modules
Up to 64 GB
1600/1333 MHz | | LAN | 4 x GbE LAN ports (Intel I354)
1 x 10/100 management LAN port | | Video | Integrated in Aspeed AST2400
2D Video Graphics Adapter with PCIe bus interface
1920 x 1200 @ 60 Hz / 32 bpp | | SATA | 2 x SATA III 6 Gb/s ports
4 x SATA II 3 Gb/s ports | | Expansion Slots | 1 x PCIe Gen2 x16 bus slot | | Internal I/O | 1 x 24-pin ATX main power connector
1 x 8-pin 12V auxiliary power connector
1 x CPU fan header
1 x System fan header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x CMOS battery
1 x HDD back plane board header
1 x LED header
1 x Skip supervisor password jumper
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x BMC jumper
1 x PMBUS header
1 x JTAG header
1 x Front panel header
1 x Front panel header (proprietary)
1 x SATA port DOM support jumper
1 x IPMB connector
1 x TPM header

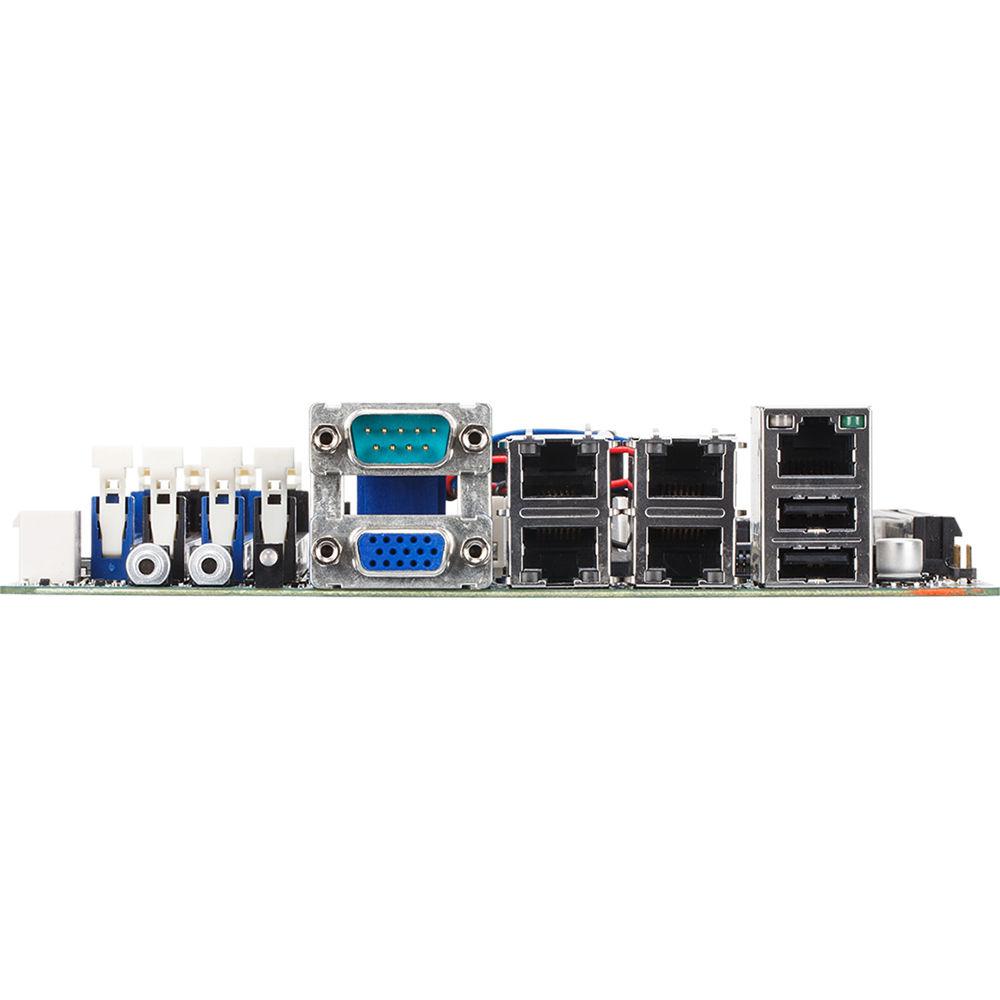

1 x LPC header | | Rear I/O | 1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x Serial
1 x VGA
5 x RJ45
2 x USB 2.0 | | TPM | 1 x TPM header | | OS Supported | Windows Server 2008 Enterprise R2 SP1 (64-bit)
Windows Server 2012 R2 (64-bit)
Red Hat Enterprise Linux 6.4 (x64) SUSE Linux Enterprise Server 11.3 (x64) | | Board Management | Aspeed AST2400 management controller
Avocent MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration) | | PSU Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin 12V auxiliary power connector | | Operating Properties | Operating Temperature: 50 to 95°F / 10 to 35°C
Non-Operating Temperature: -40 to 140°F / -40 to 60°C
Operating Humidity: 8-80% (non-condensing)
Non-Operating Humidity: 20-95% (non-condensing) | | Dimensions | 6.70 x 6.70" / 170.0 x 170.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.4 x 8.6 x 2.8" |
