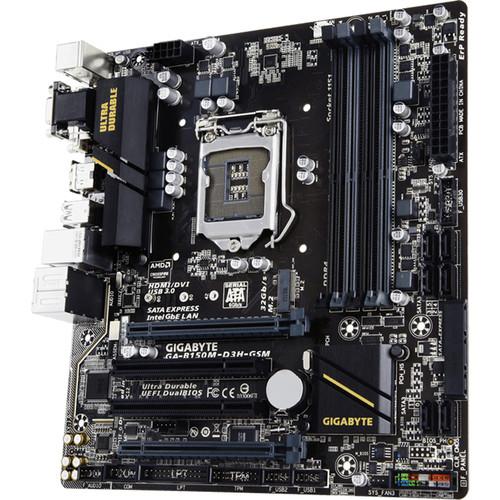

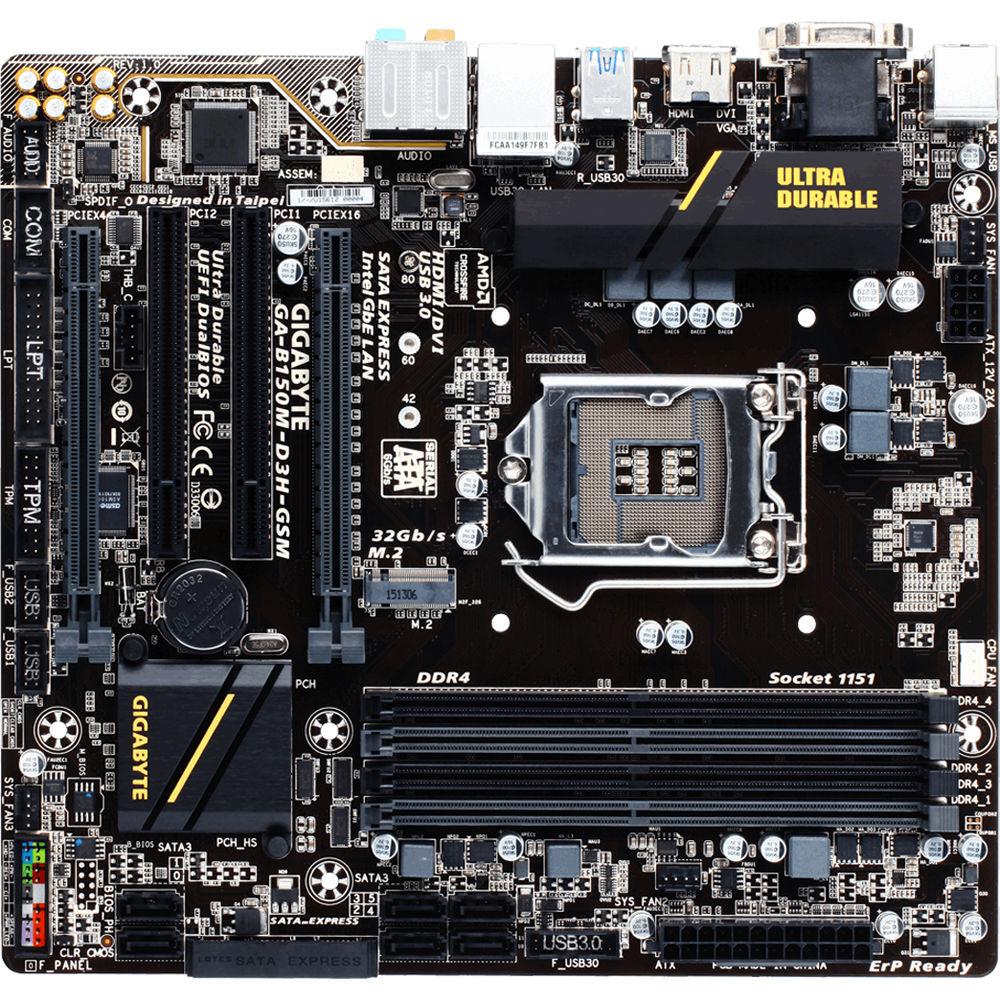

Product description The Gigabyte GA-B150M-D3H GSM Micro-ATX Motherboard comes with an LGA 1511 socket along with Intel's Small Business Advantage technologies so you can build a reliable PC system for productivity. The LGA 1511 socket is compatible with Intel's 6th-generation series of processors, and the four DIMM slots support up to 64GB of DDR4 RAM. For storage, this motherboard lets you install a PCIe-based SSD to the M.2 connector, which utilizes multiple PCIe lanes to offer bandwidths up to 32 Gb/s. Furthermore, it features a dualBIOS design that offers a secondary backup BIOS if the main BIOS becomes corrupt.
Gigabyte has built this motherboard to deliver visuals via integrated Intel graphics along with the VGA, HDMI, and DVI ports or with dedicated graphics cards utilizing the two PCIe 3.0 slots. To complete the multimedia experience, it comes with Realtek ALC892 audio and six audio jacks. You can further expand the potential of your system by connecting external peripherals to its six USB ports. Moreover, an Ethernet LAN jack allows the system to reliably access the network and Internet at Gigabit speeds. Other notable features include six SATA connectors and a single SATA Express connector along with two PCI slots. - Gigabyte Ultra Durable Motherboards
- Gigabyte 100 series motherboards support 6th Generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency, and support for DDR4 memory, bringing enhanced features and performance to your next PC build
- Onboard Storage with 32 Gb/s M.2
- Gigabyte M.2 solutions offers fast storage performance and support for both PCIe Gen 3.0 x4 and SATA interfaces for M.2 SSD devices
- SATA Express
- SATA Express combines the benefits of PCI Express and SATA to provide a higher bandwidth, featuring data transfer rates of up to 16 Gb/s
- 2-Way CrossFire Multi-Graphics
- A multi-graphics configuration offers better graphics performance for gaming enthusiasts who require the high frame rates without compromising on resolution
- Intel GbE LAN with cFosSpeed
- Intel GbE LAN features cFosSpeed, a network traffic management application that helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments
- Onboard Audio
- Audio capacitors deliver high quality sound resolution and sound expansion to create realistic sound effects for gamers. This motherboard has an audio noise guard and LED trace path lighting
- Gigabyte App Center
- Gigabyte's APP Center gives you easy access to a wealth of Gigabyte APPs that help you get the most from your Gigabyte motherboard. Using a simple, unified user interface, Gigabyte APP Center allows you to launch all Gigabyte APPs installed on your system
Easy Tune
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features
Cloud Station
Gigabyte Cloud Station is composed of several Gigabyte apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection - Video Outputs
- The HDMI, DVI-D, and VGA ports can connect to your computer monitor and TV
- Gold Plated CPU Socket Design
- Gigabyte motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy reliability and longevity for the CPU socket over time, while having less concerns about corroded pins or bad contacts
- Gigabyte DualBIOS (UEFI) Design
- Gigabyte Ultra Durable motherboards feature Gigabyte DualBIOS, a technology from Gigabyte that protects one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failures due to virus attacks, hardware malfunctions, improper OC settings, or power failures during the update process
- 4K Ultra HD Support
- 4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, which is more than four times today's standard HD pixel density. Gigabyte motherboards provide native 4K support with integrated Intel HD Graphics via HDMI
- HDMI
- HDMI is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit uncompressed digital video and audio, HDMI helps to ensure crisp rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content
- Intel Small Business Advantage
- With a 6th-generation Intel Core processor, this suite of hardware and software technologies offer enhanced security and productivity solutions for IT environments. It contains a combination of firmware and software in an intuitive customizable UI
File sharing - Instantly share files between 2 or more users
Screen sharing - Share your screen with multiple users and devices
Chat - Instantly message between two or more users
Software monitor - Monitor critical software below the operating system
Data backup and restore - Run after hours—even if the PC is off
USB blocker - Block unwanted USB device classes

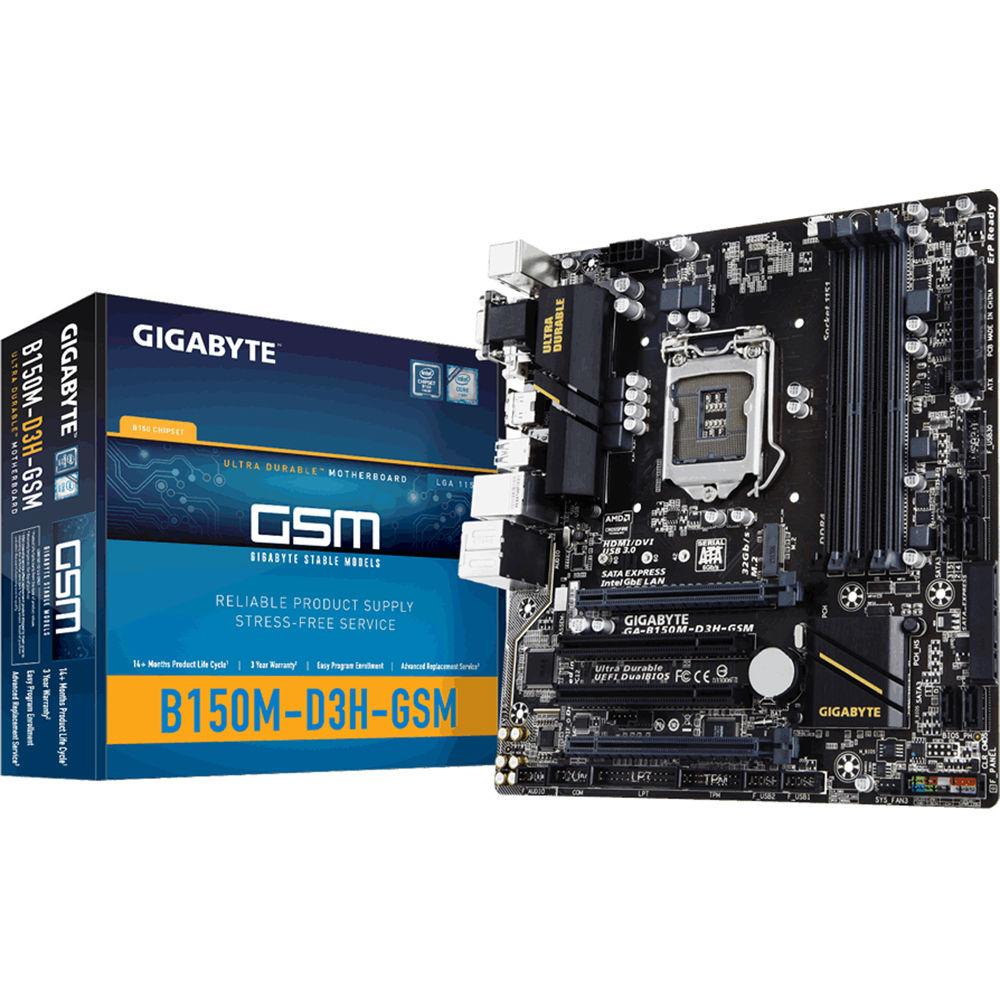

Health center - After-hours maintenance—even if the PC is off UPC: 889523001691 In the Box Gigabyte GA-B150M-D3H GSM Micro-ATX Motherboard Driver Disk 2 x SATA Cables I/O Shield Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte GA-B150M-D3H GSM Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte B150 Specs | Processor Supported | Supports Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors in the LGA1151 package | | Chipset | Intel B150 Express chipset | | Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules | | Onboard Graphics | Integrated Intel HD Graphics supported
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz
1 x HDMI 1.4 port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB | | Audio | Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out | | LAN | Intel GbE LAN chip (10/100/1000 Mbit) | | Expansion Slots | 1 x PCI Express 3.0 x16 slot, running at x16 (PCIEX16)
1 x PCI Express 3.0 x16 slot, running at x4 (PCIEX4)
2 x PCI slots | | Multi-Graphics Technology | Support for 2-Way AMD CrossFire Technology | | Storage Interface | 1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6 Gb/s connectors | | USB | 6 x USB 3.0/2.0 (4 ports on the back panel, 2 ports available through the internal USB headers)
6 x USB 2.0/1.1 (2 ports on the back panel, 4 ports available through the internal USB headers) | | Internal I/O Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6 Gb/s connectors
1 x CPU fan header
3 x System fan headers
1 x Front panel header
1 x Front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt add-in card connector
1 x Serial port header
1 x Parallel port header

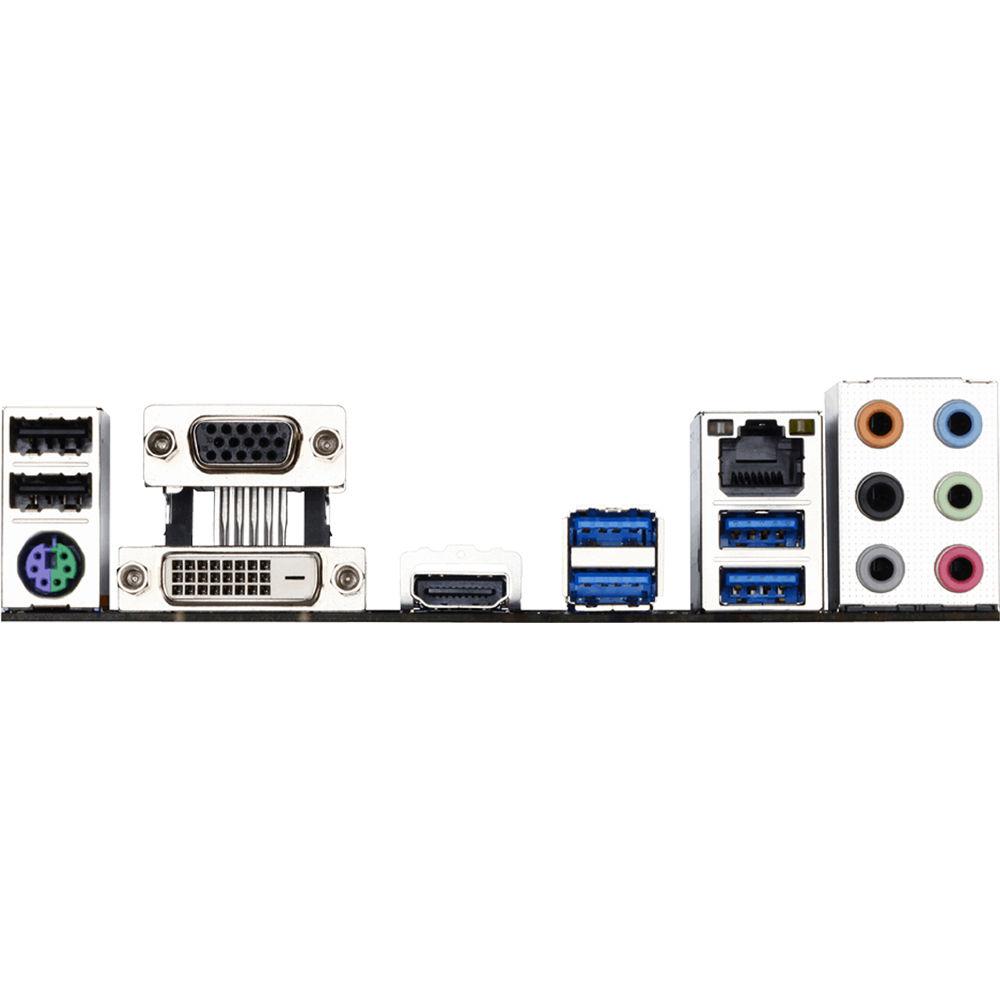

1 x Clear CMOS jumper | | Back Panel Connectors | 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x Audio jacks (center/subwoofer speaker out, rear speaker out, side speaker out, line in, line out, mic in) | | I/O Controller | iTE I/O controller chip | | H/W Monitoring | System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control | | BIOS | 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | | Supported Features | APP Center
Q-Flash
Smart Switch
Xpress Install | | Operating System Supported | Windows 7, 8.1, 10 | | Dimensions | 9.6 x 8.9" / 24.4 x 22.5 cm | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.5 x 10.5 x 2.2" |
