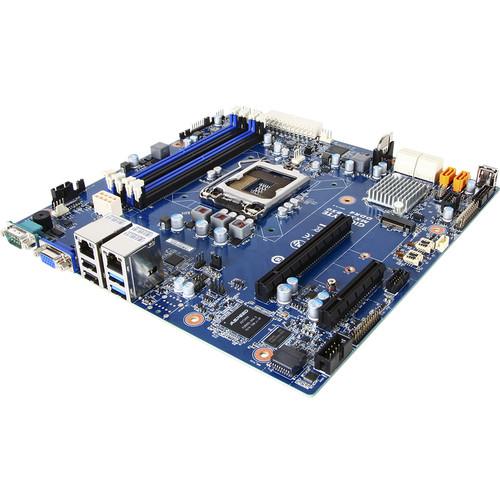

Product description Designed for building server systems, the MX31-BS0 LGA 1151 microATX Motherboard (rev. 1.1) from Gigabyte supports Intel Xeon E3-1200 V6/V5 processors and 7th/6th Gen Intel Core i3, Celeron, and Pentium processors with its LGA 1151 socket. The 9.6 x 9.6" MX31-BS0 motherboard comes equipped with an Intel C232 chipset and supports various Windows Server, Ubuntu, and SUSE Linux Enterprise Server operating systems.
The MX31-BS0 has four DIMM slots that support dual-channel DDR4 memory. This motherboard also has six SATA III 6 Gb/s ports, two USB 3.0 ports, two USB 2.0 ports, a PCIe Gen3 x16 slot, a PCIe Gen3 x8 slot, an M.2 slot, and two GbE LAN ports. Graphics support is integrated in the Aspeed AST2400 controller, which supports 2D video at a resolution of up to 1920 x 1200 at 60 Hz and 32 bits per pixel.
Included with this motherboard are two SATA III 6 Gb/s cables and an I/O shield. It is protected by a limited 3-year warranty. - DDR4 Memory Supported
- This motherboard supports dual-channel 1.2V DDR4 memory and ECC UDIMM modules.
- Intel Processors Supported
- Intel Xeon E3-1200 V6/V5 processors and 6th/7th Gen Intel Core i3 / Celeron / Pentium processors can be used with this motherboard.
- M.2 Slot Onboard
- The onboard M.2 slot provides PCI-Express connectivity for SSD devices with a data transfer speed of up to 10 Gb/s. It supports cards up to 3.1 x 0.8", including M.2 PCIe SSD cards up to 10 Gb/s and M.2 SATA SSD cards up to 6 Gb/s.
- Easy BIOS Update
- This integrated function (no utility to install) lets you update the BIOS of your motherboard without having to install CPUs, memory, drives, and operating system, and without having to power-on the system (a power supply must be connected). One board can be updated at a time via the IPMI 2.0 web interface, and multiple boards can be updated simultaneously via the command line.
- Remote System Management
- This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring and management features, such as remote boot & reset, remote image mounting, full control over network, users & services, and complete system monitoring & diagnostics.
- All IR Power Design
- The board's CPU and memory power delivery is ensured by IR Digital PWM and IR PowIRstage IC controllers. These components promote a stable operating environment and allow the processor and the memory to deliver their maximum performance.
- OS-CON Capacitors
- The server motherboard is built with long-lasting components for reliability and a minimum service life of 50,000 hours.
- High-End Ferrite Core Chokes
- The chokes installed on the board contribute to an ultra-stable power delivery to the CPU and the memory.
In the Box Gigabyte MX31-BS0 LGA 1151 microATX Motherboard (rev. 1.1) I/O Shield 2 x SATA III 6 Gb/s Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte MX31-BS0 LGA 1151 microATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte MX31-BS0 Specs | Form Factor | microATX | | Compatibility | Intel Xeon E3-1200 V6/V5 processor
7th/6th Gen Intel Core i3 processor
7th/6th Gen Intel Celeron processor
7th/6th Gen Intel Pentium processor | | Socket | 1 x LGA 1151 | | Chipset | Intel C232 Express | | Memory | 4 x DIMM slots
Dual-channel memory architecture
Supports 1.2 V DDR4 memory
ECC UDIMM modules supported
Up to 64 GB
Supported Speeds: 2400/2133 MHz | | LAN | 2 x GbE LAN ports (Intel I210) | | Video | Integrated in Aspeed AST2400
2D video graphic adapter with PCIe bus interface
1920 x 1200 at 60 Hz, 32 bpp | | SATA | 6 x SATA III 6 Gb/s ports | | RAID | Intel SATA RAID 0/1/10/5 | | Expansion Slots | 1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen3 x4 bus) slot
1 x M.2 (Gen3 x1 bus) slot
PCIe signal only
M-key
Max Width: 0.9" (2.2 cm)
Max Length: 3.1" (8.0 cm) | | Internal I/O | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
6 x SATA III 6 Gb/s ports
1 x USB 2.0 vertical port
1 x CPU fan header
4 x system fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x S/PDIF-out header
1 x S/PDIF-in header
1 x serial header
1 x TPM header
1 x SATA SGPIO header
2 x SATA DOM headers
1 x front-panel header
1 x JTAG PLD header
1 x JTAG BMC header
1 x chassis intrusion header
1 x Vboot selection jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Force EN jumper
1 x SMBus selection jumper
1 x clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector

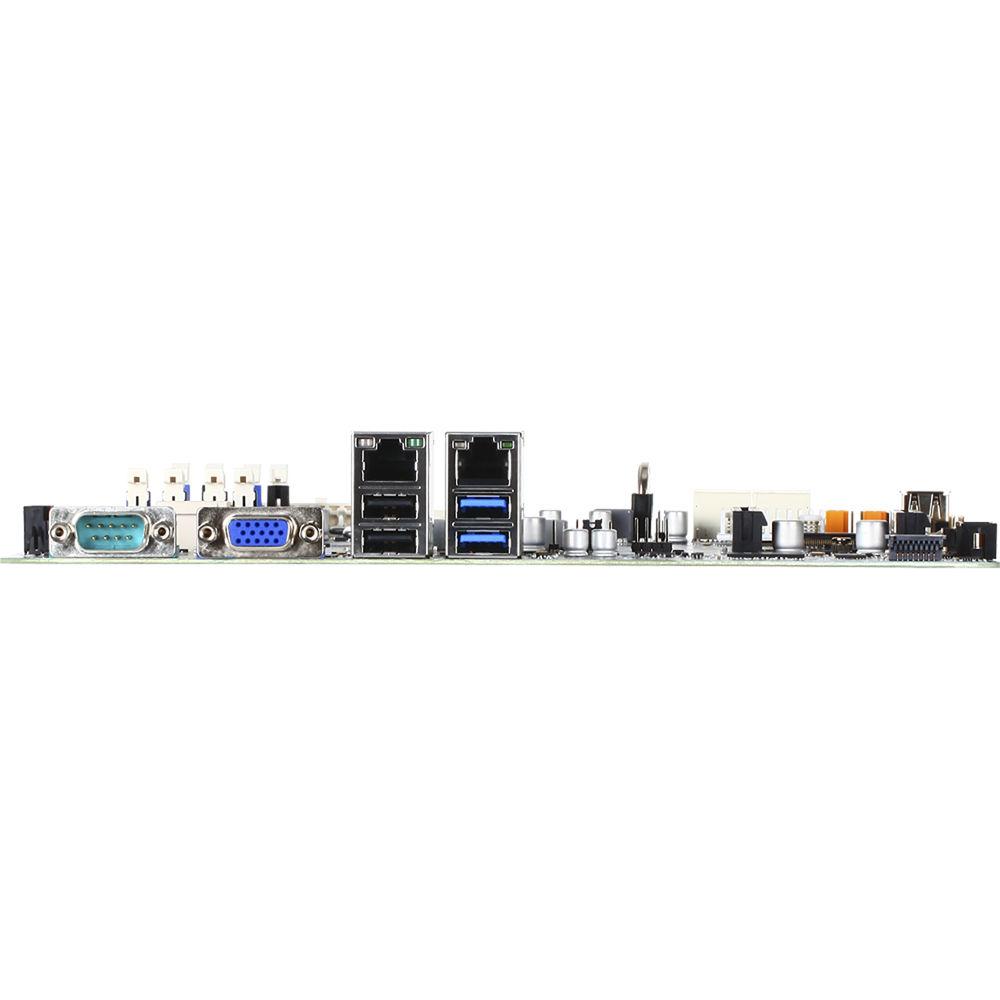

1 x PMBus connector | | Rear I/O | 1 x serial
1 x VGA
2 x RJ45
2 x USB 2.0
2 x USB 3.0 | | TPM | 1 x TPM header | | OS Supported | Windows Server 2012 (x64)
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64) | | Board Management | Aspeed AST2400 management controller
Avocent MergePoint IPMI 2.0 web interface
Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Monitoring of voltages, fans, and temperatures
System event log
Events management (platform events, trap settings, email settings)
Serial over LAN
vKVM & vMedia (launch, configuration) | | PSU Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector | | Operating Properties | Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: 8-80% (non-condensing)
Non-Operating Temperature: -40 to 140°F (-40 to 60°C)
Non-Operating Humidity: 20-95% (non-condensing) | | Dimensions | 9.6 x 9.6" (24.4 x 24.4 cm) | | Weight | Not Specified by Manufacturer |
