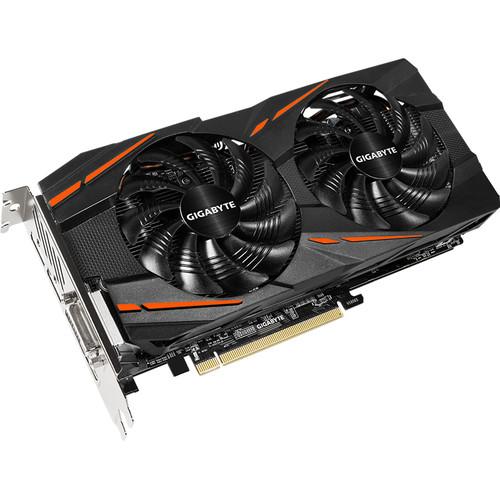

User Manual for Gigabyte Radeon RX 570 4G Graphics Card Click to enlarge the picture
Contents of the user manual for the Gigabyte Radeon RX 570 4G Graphics
- Product category: Graphic Display Cards Gigabyte
- Brand: Gigabyte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gigabyte Graphic Display Cards
 |
User manual for the Gigabyte Radeon RX 570 4G Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gigabyte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gigabyte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gigabyte product will considerably shorten its lifespan!
|

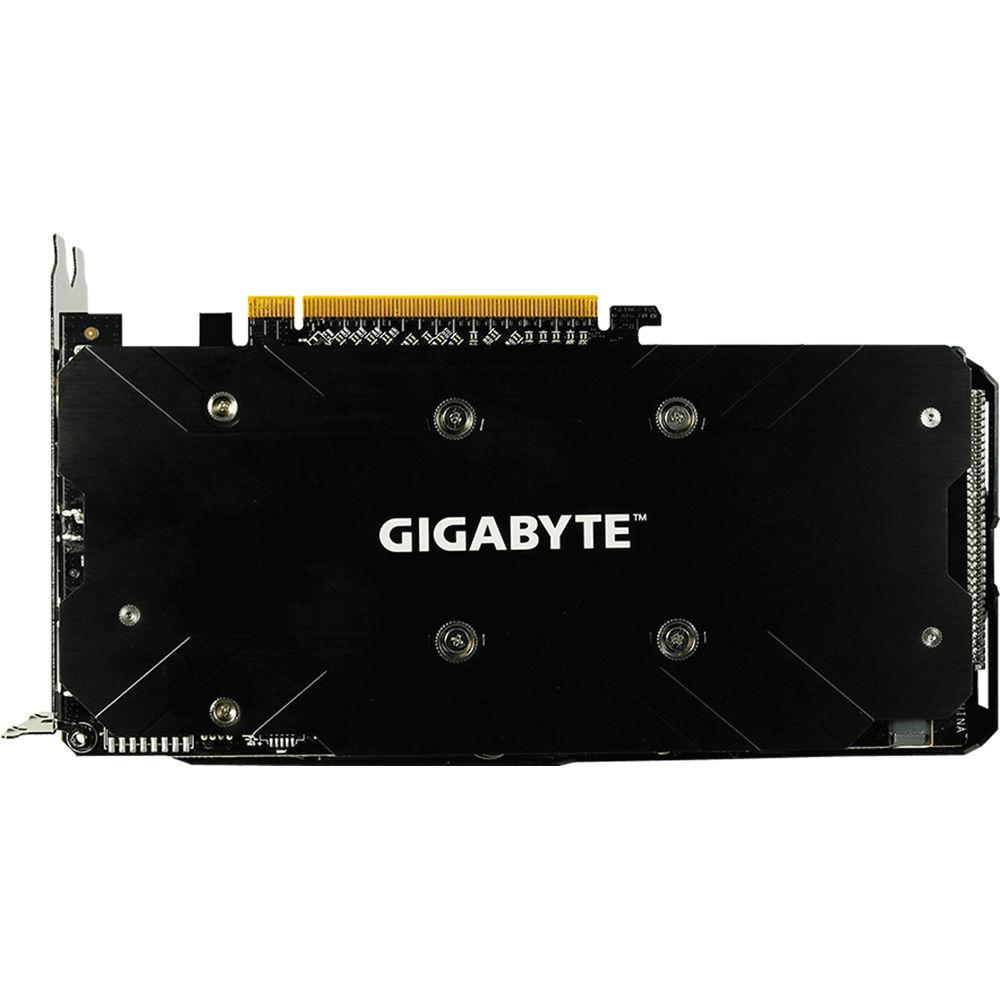

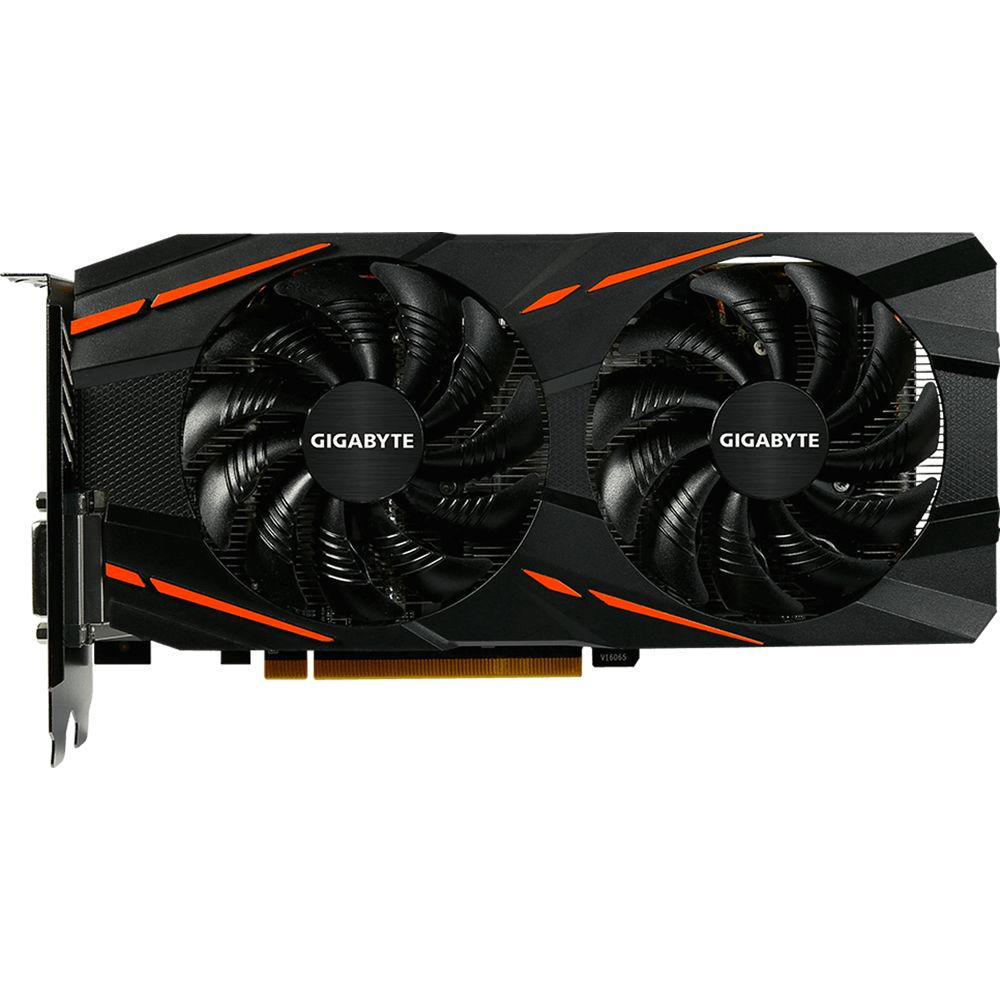

Product description Based on Polaris architecture, the Gigabyte Radeon RX 570 4G Graphics Card provides smooth gameplay at HD resolutions on DirectX 12, Vulkan, and e-Sports titles. The Radeon RX 570 is also compatible with HDR (high dynamic range) content so you can experience enhanced contrast and color. The front panel of the card features a variety of outputs. There are three DisplayPort 1.4 outputs, an HDMI 2.0b output, and a dual link DVI-D outputs. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience on multiple monitors. This card features Gigabyte's WINDFORCE 2X cooling system. The cooling system uses two 90mm fans. The airflow is split by the triangle fan edge and guided smoothly through the 3D stripe curve on the fan surface. The 3D Active Fan feature provides semi-passive cooling, which means the fans will remain off when the GPU is under a set loading or temperature for low power gaming. It also has a metal back plate. - HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync Technology
- Reduce screen tearing with AMD's FreeSync Technology. FreeSync enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts.
- Eyefinity
- With support for multiple monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productivity, but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.

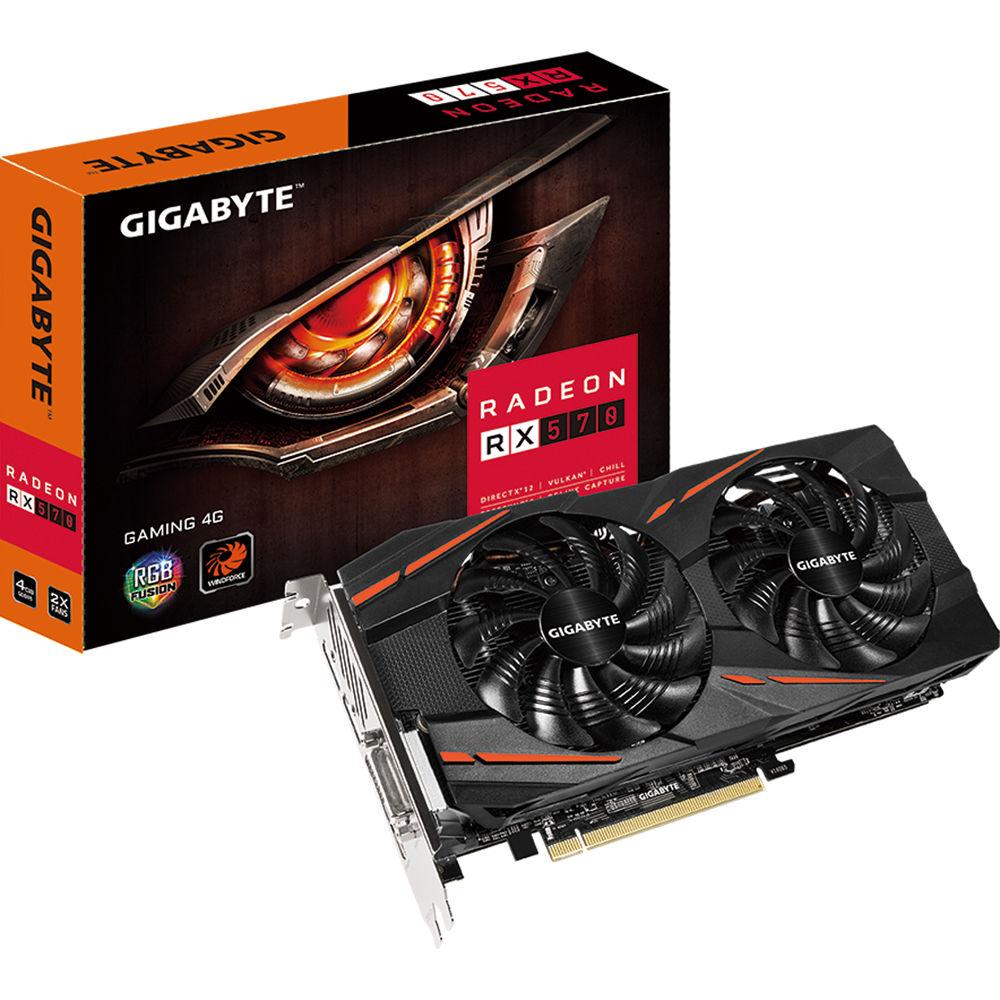

UPC: 889523009659 In the Box Gigabyte Radeon RX 570 4G Graphics Card Driver CD Limited 3-Year Warranty User Manual PDF 1.7mbvutueeavwdfuvfwcbawvdaydcarxyrebreswau Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte Radeon RX 570 4G Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte RX 570 Specs | GPU | AMD Radeon RX 570:
Stream Processors: 2048
Gaming Mode
Core Clock: Not specified by manufacturer
Boost Clock: 1244 MHz
OC Mode
Core Clock: Not specified by manufacturer
Boost Clock: 1255 MHz | | Memory | Speed: 7 Gbps
Configuration: 4 GB
Interface: GDDR5
Interface Width: 256-bit
Bandwidth: 224 GB/s | | Technologies | Microsoft DirectX: 12
OpenGL: 4.5

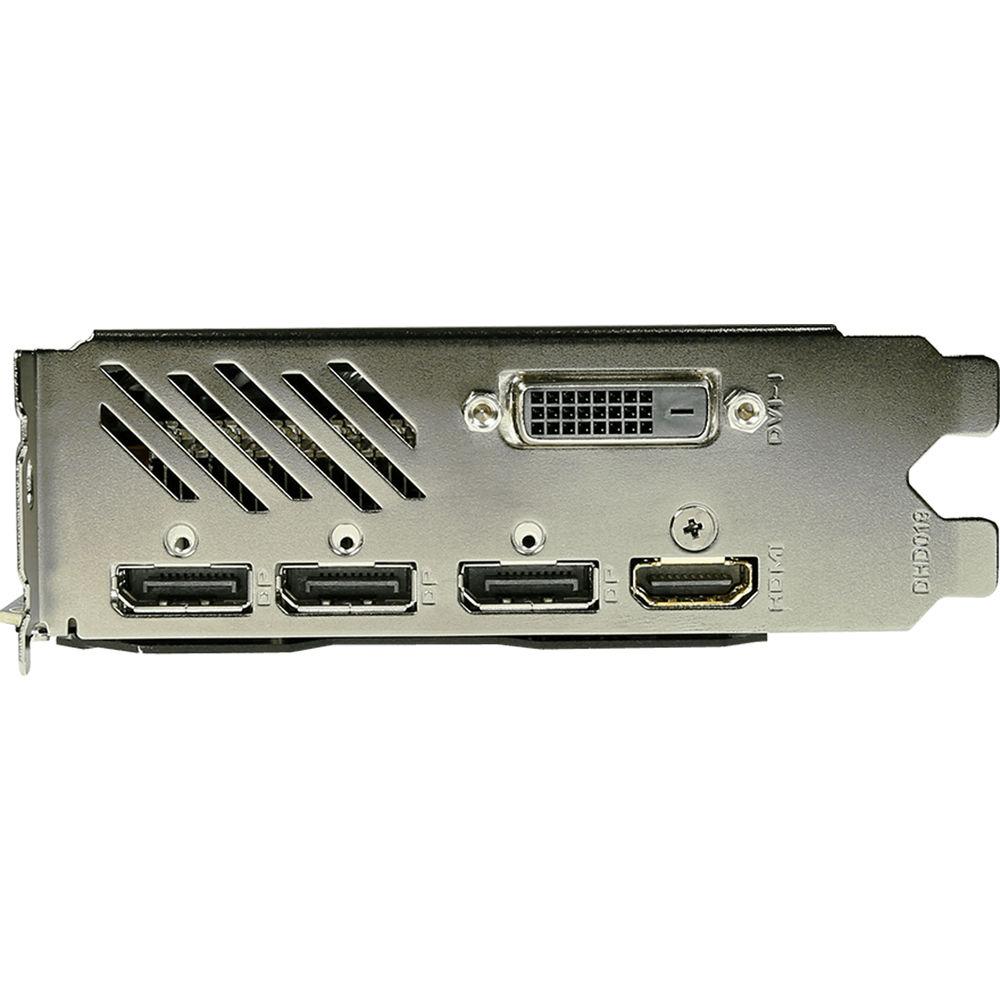

Vulkan: Yes | | Interface | PCI Express 3.0 x16 | | Display Support | Display Connectors:
3 x DisplayPort 1.4
1 x HDMI 2.0b
1 x DVI-D DL
Maximum Digital Resolution: 7680 x 4320
Multi Monitor Support: Yes | | Power Requirements | Power Consumption: Not specified by manufacturer
Recommended System Power Requirement: 450 W

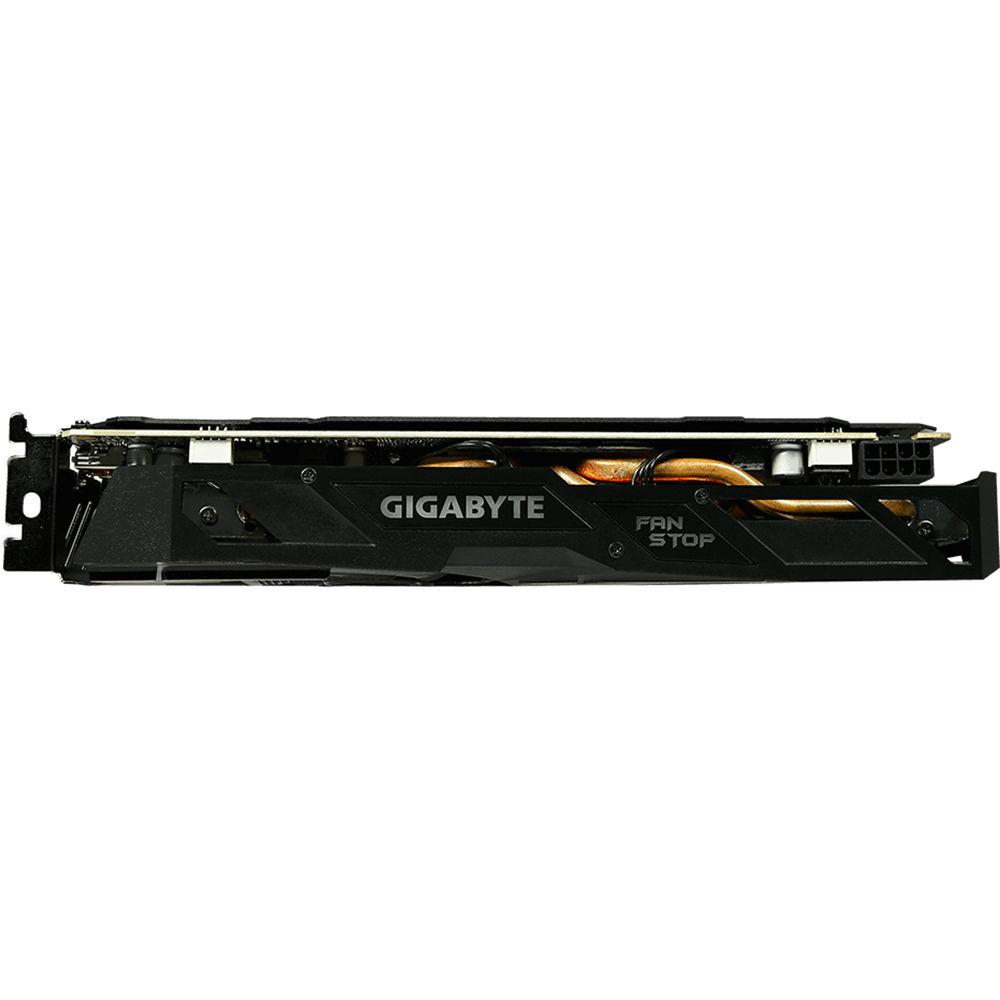

PCI Power Connectors:
1 x 8-pin | | Dimensions | Height: 4.6" / 116 mm
Length: 9.1" / 232 mm
Width: Dual-Slot | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 13.2 x 9.3 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
