User Manual for Gigabyte Radeon RX 580 Gaming 4G Graphics Card Click to enlarge the picture
Contents of the user manual for the Gigabyte Radeon RX 580 Gaming 4G
- Product category: Graphic Display Cards Gigabyte
- Brand: Gigabyte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gigabyte Graphic Display Cards
 |
User manual for the Gigabyte Radeon RX 580 Gaming 4G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gigabyte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gigabyte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gigabyte product will considerably shorten its lifespan!
|

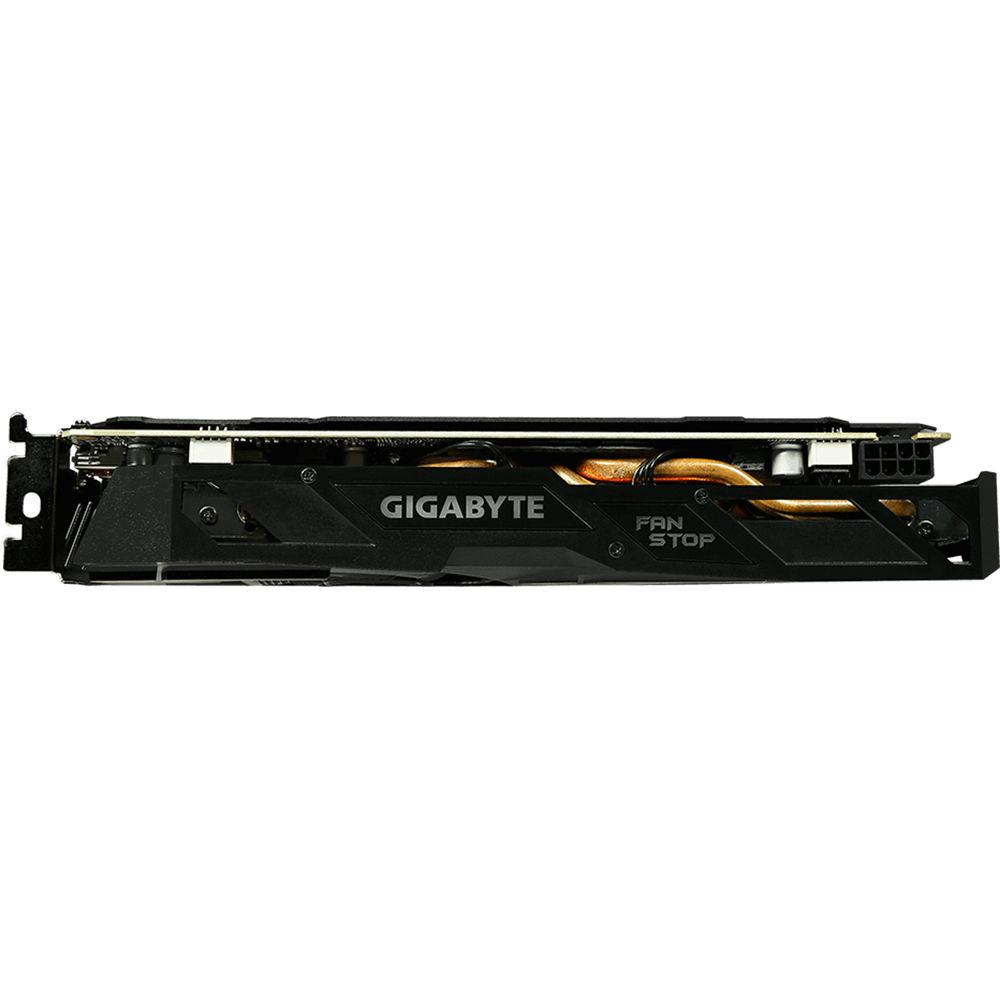

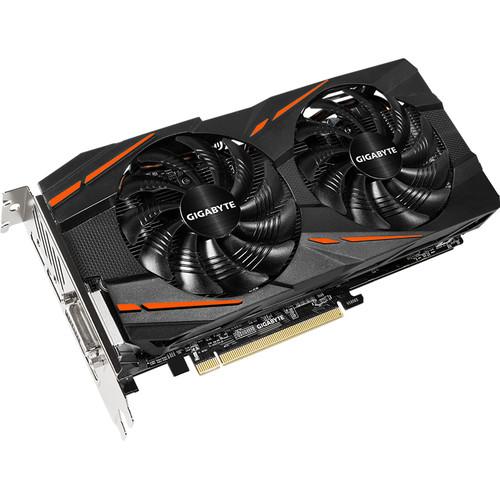

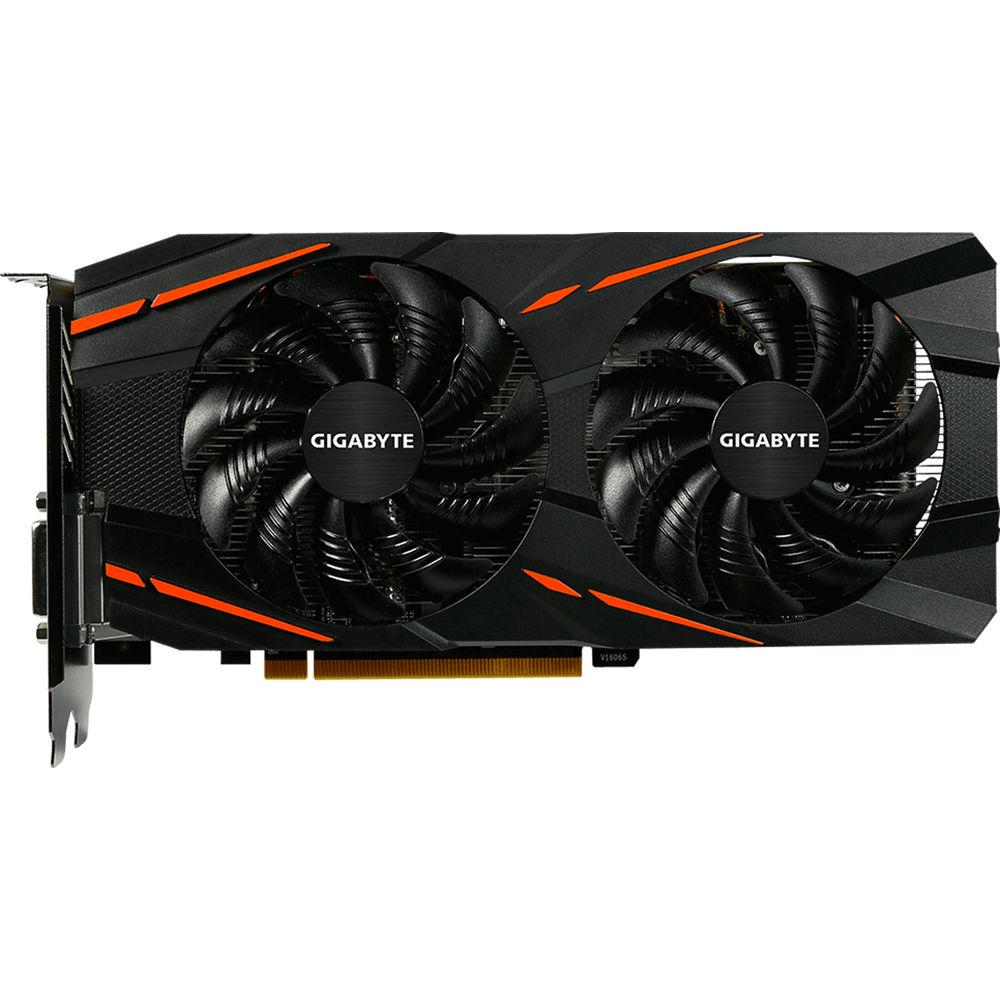

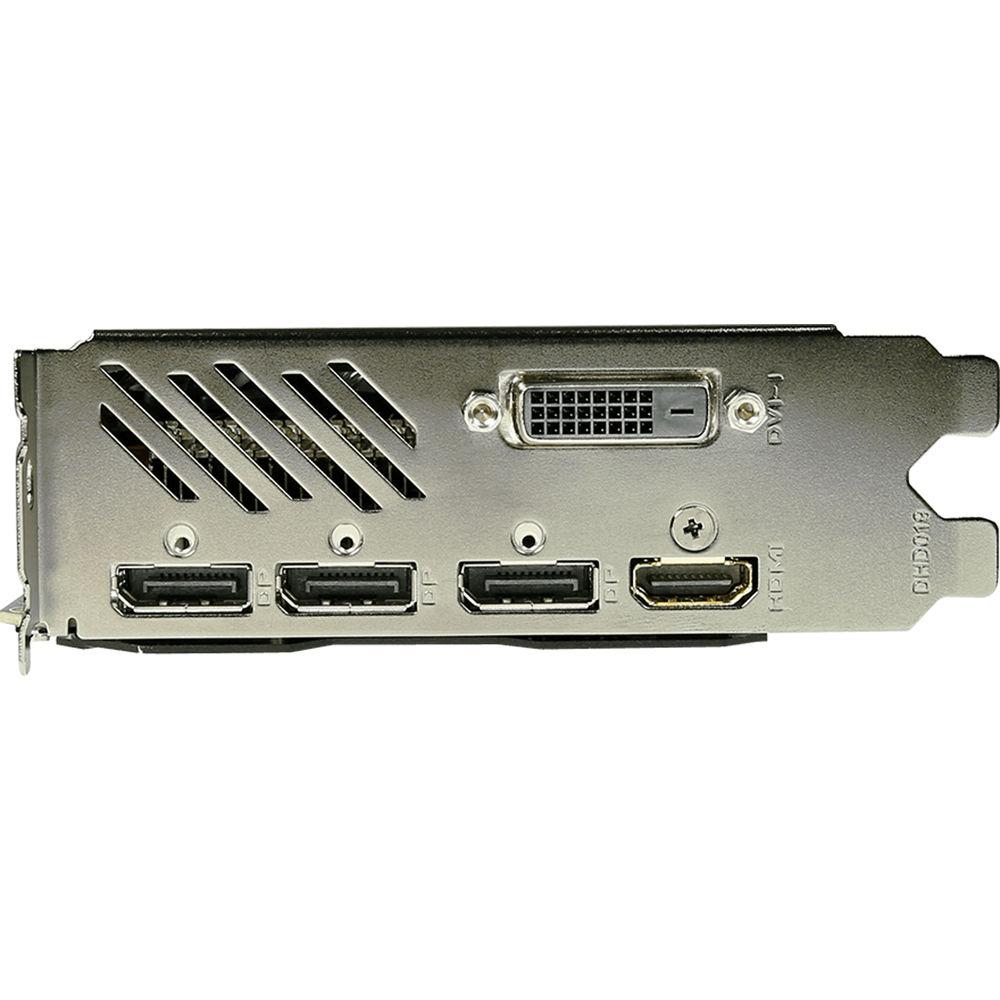

Product description With an overclocked core, based on AMD's Polaris architecture, and AMD LiquidVR ready, the Gigabyte Radeon RX 580 Gaming 4G Graphics Card allows you to have the full virtual reality experience. Not only for gaming, the Radeon RX 580 supports APIs such as OpenCL and OpenGL. These APIs can take advantage of the GPU's 2304 Stream Processors to accelerate parallel computing tasks, taking some of the processing load off of the CPU. The front panel of the card features a variety of outputs. There are three DisplayPort 1.4 outputs, an HDMI 2.0b output, and a dual link DVI-D output. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience using up to four monitors. The card also has RGB Fusion, which supports up to 16.8 million colors. There are numerous lighting options so you can pick the right scheme for your gaming rig through the AORUS graphics Engine utility. This card features Gigabyte's WINDFORCE 2X cooling system. The cooling system uses two 90mm fans. The airflow is split by the triangle fan edge and guided smoothly through the 3D stripe curve on the fan surface. The 3D Active Fan feature provides semi-passive cooling, which means the fans will remain off when the GPU is under a set loading or temperature for low power gaming. - AMD LiquidVR Ready
- Experience the immersive world of VR gaming and entertainment. With Polaris architecture and AMD LiquidVR technology, this GPU is compatible with the Oculus Rift and the HTC Vive.
- HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync Technology
- Reduce screen tearing with AMD's FreeSync Technology. FreeSync enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts.
- Eyefinity
- With support for up to 4 monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productivity, but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.

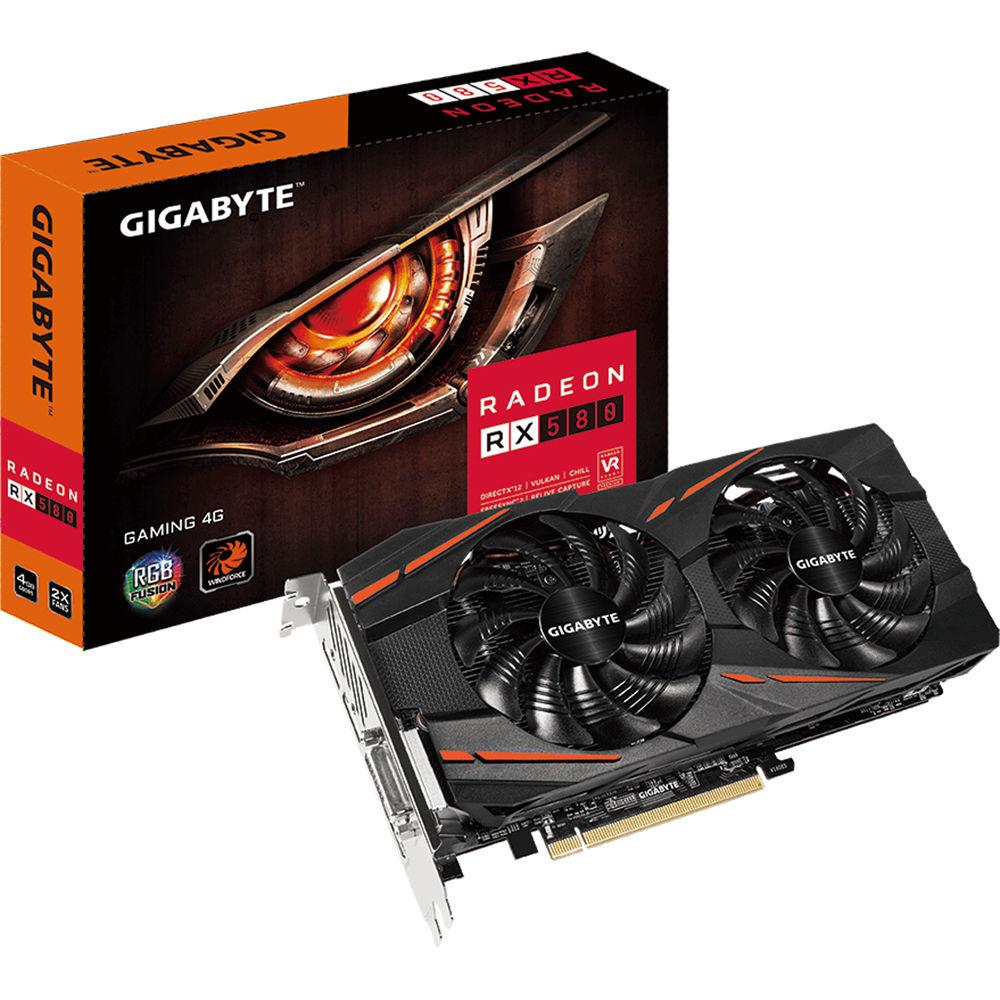

UPC: 889523009840 In the Box Gigabyte Radeon RX 580 Gaming 4G Graphics Card Driver CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte Radeon RX 580 Gaming 4G Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte RX 580 Specs | | | GPU Model | AMD Radeon RX 580 | | Stream Processors | 2304 | | Boost Clock Speed | Gaming Mode: 1340 MHz
OC Mode: 1355 MHz | | Interface | PCI Express 3.0 x16 | | Supported APIs | DirectX: 12
OpenGL: 4.5 | | | | Memory Speed | 7 Gb/s | | Memory Configuration | 4 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 256-Bit | | Memory Bandwidth | 256 GB/s | | | | Display Connectors | 3 x DisplayPort 1.4
1 x HDMI 2.0b
1 x DVI-D DL | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | PCI Power Connectors | 1 x 8-Pin | | Recommended System Power Requirement | 500 W | | | | Height | 4.6" / 116.84 mm | | Length | 9.1" / 231.14 mm | | Width | Dual-Slot | | | | Cooler Type | Open Fansink | | Lighting | RGB LED |
