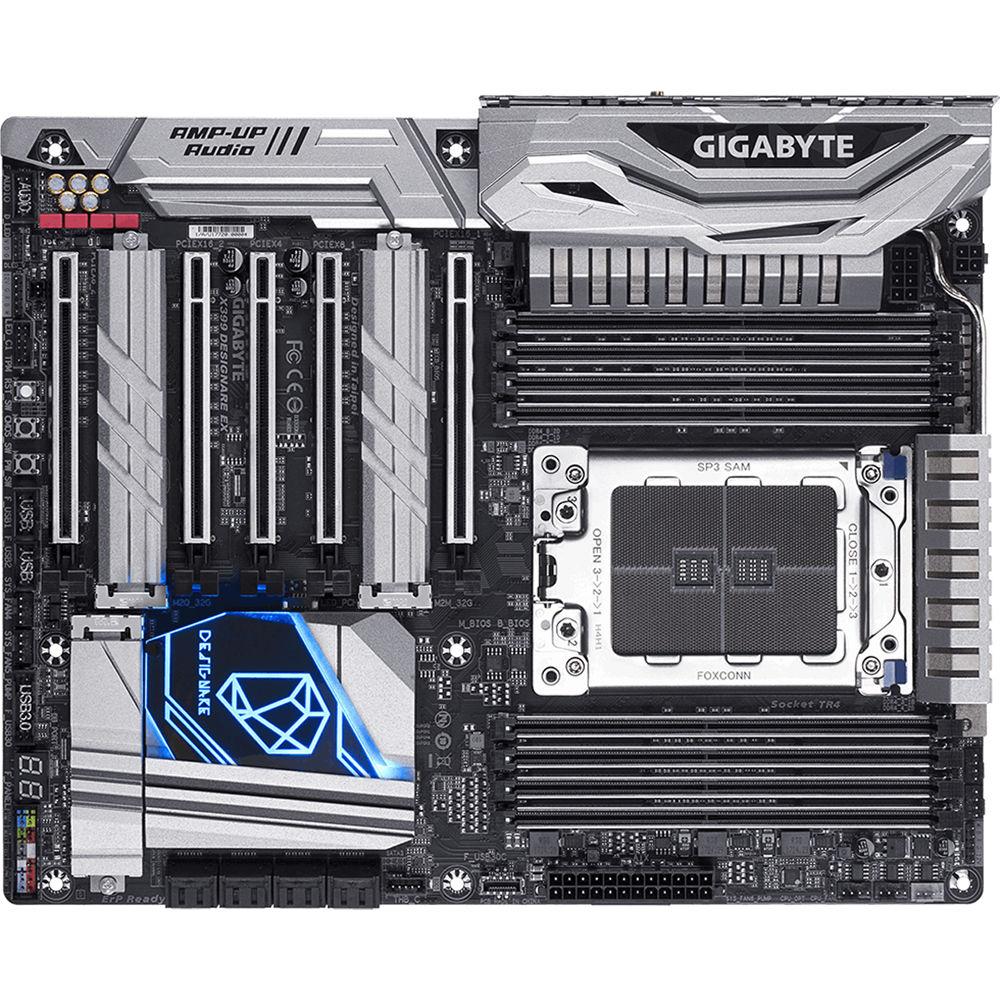

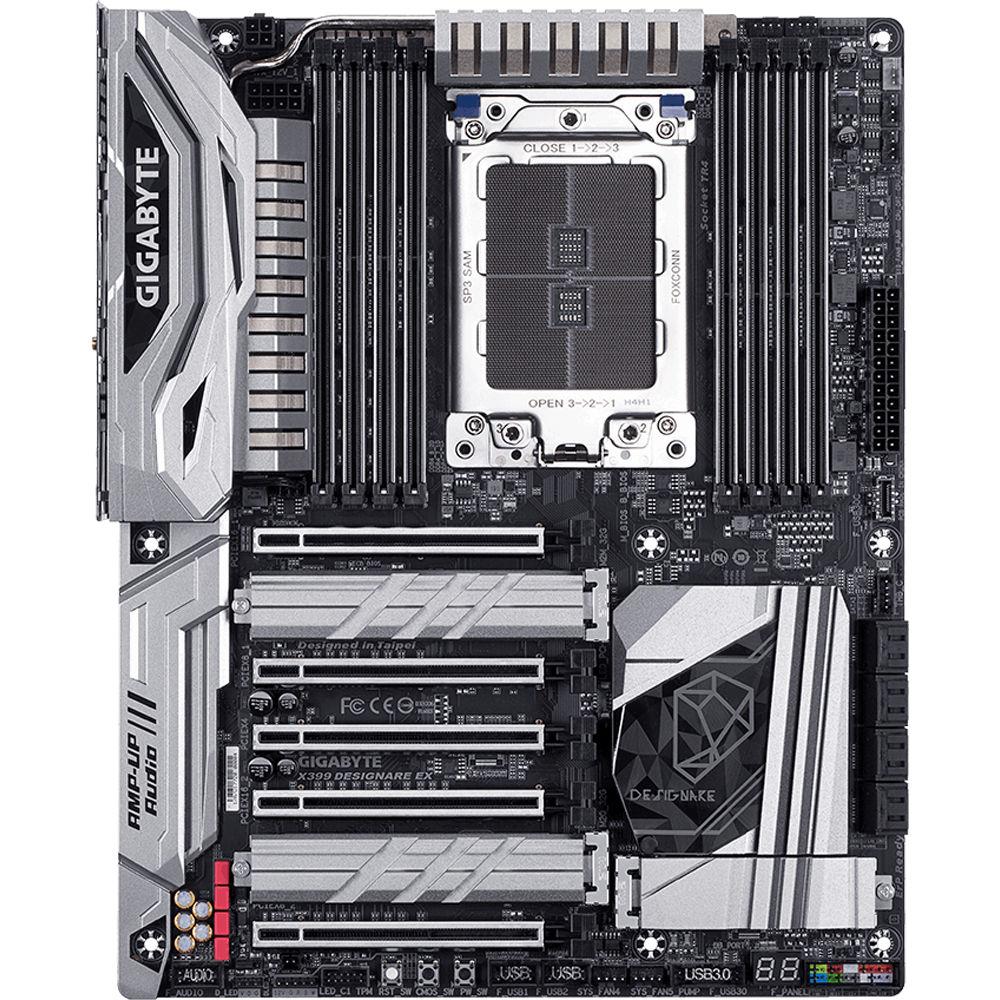

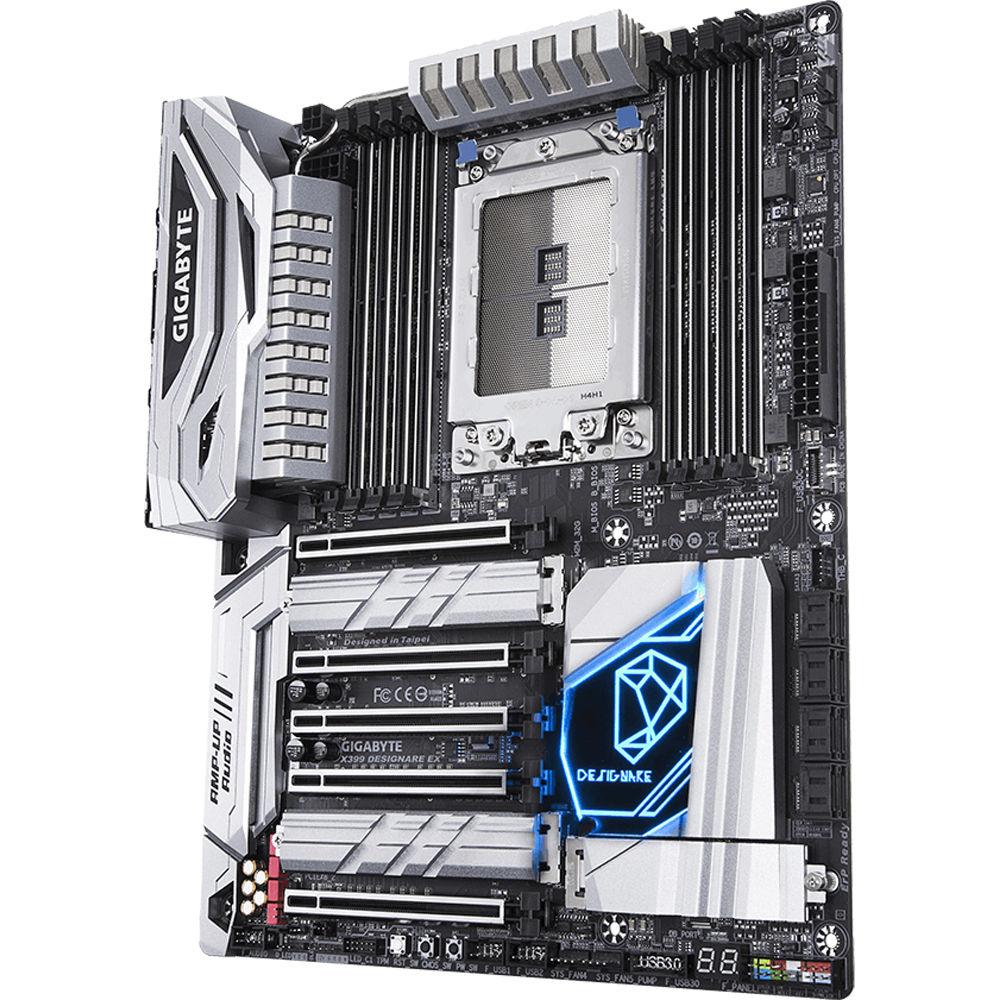

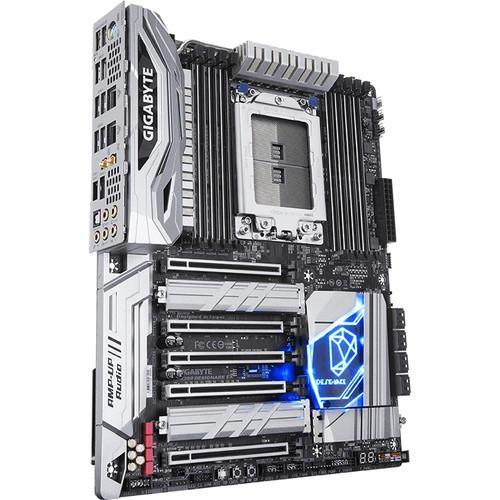

User Manual for Gigabyte X399 Designare EX AMD Ryzen Motherboard Click to enlarge the picture
Contents of the user manual for the Gigabyte X399 Designare EX AMD Ryzen
- Product category: Motherboards Gigabyte
- Brand: Gigabyte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gigabyte Motherboards
 |
User manual for the Gigabyte X399 Designare EX AMD Ryzen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gigabyte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gigabyte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gigabyte product will considerably shorten its lifespan!
|
Product description Use the X399 Designare EX Motherboard from Gigabyte to render, stream, compile, encode, work, and play. Supporting AMD Ryzen Threadripper processor, the motherboard is equipped with Dual Intel GbE LAN, triple M.2 with Thermal Guard, RGB fusion, 120 dB SNR HD audio, Intel Dual Band 802.11ac Wi-Fi, and Bluetooth 4.2. Eight DDR4 DIMM sockets support up to 128GB of system memory at speeds up to 3600 MHz with overclocking. The motherboard also features front and rear USB 3.1 type-C interface, five PCI Express x16 expansion slots, eight SATA III connectors, and two Ethernet ports. Furthermore, it supports AMD quad-GPU CrossFireX with AMD CrossFire technologies and NVIDIA quad-GPU SLI with NVIDIA SLI technologies. - AMD Ryzen Threadripper Processor
- With up to 16 cores, the AMD Ryzen Threadripper processor can command 32 threads. It features 40MB of processor cache, quad-channel DDR4 for memory bandwidth, 64 lanes of incredible PCIe 3.0 connectivity, and native USB 3.1 Gen2 10 Gb/s support on a chipset.
- Free NVMe RAID Support
- NVMe RAID for AMD Ryzen Threadripper platform is supported for free. By combining multiple NVMe SSDs together into a RAID 0, 1, or 10 array, it is possible to greatly enhance disk performance or data integrity. With a single GPU in the system, up to seven NVMe SSD arrays can be supported by the X399 motherboard.
- 4-Way Graphics with Premium 48 PCIe Lanes Bandwidth
- The X399 motherboard features a PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-way or 3-way graphics configuration, providing full graphics bandwidth.
- Triple PCIe Gen3 x4 M.2 Direct from CPU
- The X399 Motherboard focuses on delivering M.2 technology for maximizing the system's potential.
- Triple M.2 Thermal Guard
- The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices, as it helps to reduce and dissipate heat before it becomes an issue.
- Server-Class Digital Power Design
- The X399 motherboard uses an all-digital CPU power design from International Rectifier which includes both 4th generation digital PWM controllers and 3rd generation PowIRstage controllers. These 100% digital controllers offer precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing maximum performance from the AMD Ryzen Threadripper CPU.
- IR Digital PWM & IR PowIRstage ICs
- The IR digital power controllers and PowIRstage ICs feature Isense technology, which provides precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage ICs, preventing the overheating of each individual PowIRstage and resulting in longer lifespan and better reliability.
- Server Level Chokes
- • Server level reliability
• High current capacity
• Reduces heat created by power loss and provides efficient power delivery to CPU VRM area - Gold Plated Solid Power Connectors
- The X399 motherboard features gold plated ATX 24-pin & ATX 12V 8-pin and 4-pin power connectors, offering stable power supply while CPU overloading. Gold provides superior conductivity and signal transmission than standard implementations, with better reliability and stability over time by resistance to metal corrosion caused by frequent use overtime.
- Armor
- The X399 motherboard is designed with an aggressive stance. The armor is created to offer best-in-class performance while still staying cool.

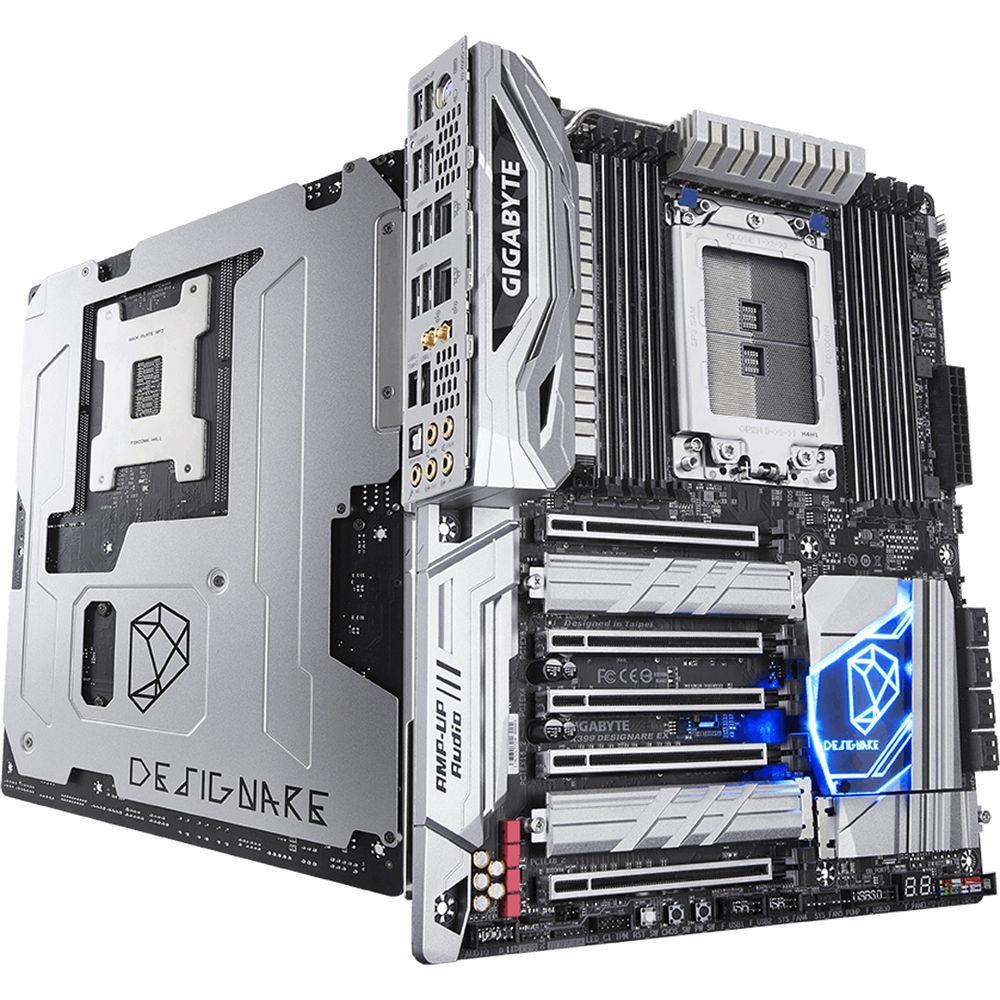

- Base Plate
- With an integrated base plate, the Motherboard gives users a strong foundation to build their gaming PC. With larger and heavier coolers, graphics cards, and memory modules, the GIGABYTE Base Plate supports users' PC build, while reducing cuts and stings from sharp areas of the motherboard.

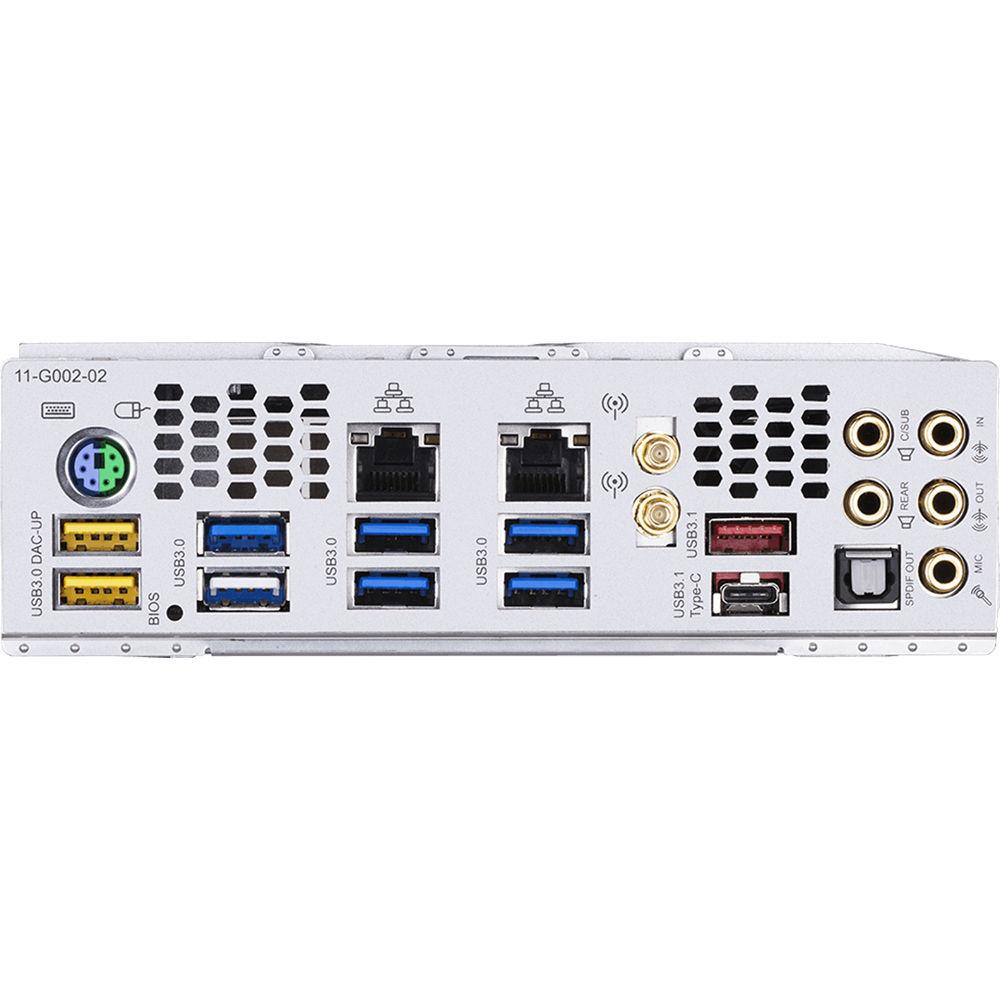

- I/O Shield Armor
- An integrated I/O shield makes building a Gaming PC even easier.
- VR Gaming
- With NVMe support via M.2 or U.2 and a one-piece metal shielding to brace for heavier discrete graphics cards, the X399 motherboard is suitable for building a VR Gaming PC.
- Refreshed BIOS
- The BIOS is essential for users during initial setup to allow optimal settings. With a GUI and easy to use functionalities, the BIOS gives users a good experience while setting up their new system.
- GIGABYTE APP Center
- Using apps from the GIGABYTE APP Center helps you get the most from your GIGABYTE motherboard. With a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
- EasyTune
- The EasyTune is a simple and easy-to-use interface, allowing you to fine-tune your system settings or adjust system clocks, memory clocks, and voltages in a Windows environment. Automatically overclock your system with Smart Quick Boost, for an added performance boost.
- 3D OSD
- 3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.
- Smart Fan 5
- With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows them to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Furthermore, with Smart Fan 5 hybrid fan headers that support both PWM and Voltage mode make the motherboard more liquid cooling friendly.
■ Nine temperature sensors
■ Eight fan/water pump connectors
■ All fan pin headers upgraded to hybrid fan headers
■ Interoperable fans and sensors
■ Intuitive UI for fan control - Hybrid Fan Pin Headers & Temperature Sensors
- Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
- Smart Fan 5 Software
- Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
- USB with Precision Digital Fuse
- Utilizing a digital fuse, the motherboard can avert against over-current damage by reacting faster, with greater precision, and avoid unexpected voltage from external devices.
- Dual Intel GbE LAN with cFosSpeed Internet Accelerator Software + Intel Wi-Fi
- Dual Intel Gigabit LAN features cFosSpeed, a network traffic management application, which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
- USB Type-C Front Panel Connector
- The onboard USB type-C header for USB 3.1 Gen 1 makes access convenient when connecting a USB 3.1 drive or charging your mobile device.
- Fast USB 3.1 Gen 2 Solution
- The USB 3.1 Gen 2 offers 10 Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1, along with backwards compatibility with existing USB devices.
- RGB Fusion with Digital LEDs
- RGB Fusion offers users the option to control onboard and external LED light strips for their PC. Already filled with colors and patterns, the RGB Fusion on the X399 Motherboard includes up to 300 digital LED support. The Motherboards supports either 5V or 12V digital LED strips. RGB Fusion with Digital LEDs comes with nine patterns and various speed settings.
- RGB Fusion
- Multi-light zones are equipped with high brightness RGB LEDs, namely the Accent LED PCH Overlay, Digital LED strips, and RGBW LED strips.
- RGBW & UV Light Strips Support
- Install standard 12V external RGB, RGBW, or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using an RGBW light strip with a dedicated white LED, creates brighter and more vibrant shades of colors. When using RGB/UV LED strips, you can give the system a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint.
- High-Performance EK Monoblock Support
- EK-FB GA X3999 GAMING RGB Monoblock is a complete all-in-one (CPU and motherboard) liquid cooling solution for the X399 motherboard. The monoblock is equipped with a 4-pin RGB LED strip and offers superior aesthetics and performance. The RGB in the monoblock is compatible with GIGABYTE RGB Fusion, thus offering full lighting customization.
- ALC 1220 120 dB SNR HD Audio with Smart Headphone Amp
- The ALC1220 is a high-performance, multi-channel, and High-Definition Audio Codec with up to 120 dB SNR for crystal clear audio. It features Smart Headphone Amp, 114 dB SNR recording for precise voice chats, and hardware decoding of DSD128, ensuring great audio quality from the PC. The Smart Headphone AMP detects impedance of your head-worn audio device to provide optimal audio dynamics, preventing issues such as low volume and distortion.
- WIMA & Nichicon Audio Capacitors
- The X399 motherboard features a combination of Hi-Fi grade WIMA FKP2 capacitors and Nichicon audio grade Fine Gold capacitors. While the Nichicon Fine Gold capacitors are suited for high-grade audio equipment for providing rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the GIGABYTE AMP-UP Audio technology makes for the ideal on-board sound solution for the most demanding audiophiles.
- Gold Plated Audio Jacks
- The X399 motherboard features gold-plated audio connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use.
- USB DAC-UP 2
- An adjustable voltage USB port with dedicated power design is embedded in the X399 motherboard. The USB DAC-UP 2 provides clean, isolated, and low-noise power while adding the ability to compensate for voltage drop.
- Creative SoundBlasterX 720°
- Creative's audio engine enhances your PC's audio. These comprehensive tools backed by leading technology and algorithms in audio enriches your experience, whether it's streaming, gaming, listening to music, or other entertainment needs.
- GIGABYTE Patented Double Locking Bracket
- First lock - inserted from the top for better retention.
Second lock - soldered for a stronger bond. - Ultra Durable PCIe Armor
- The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
- Ultra Durable Memory Armor
- GIGABYTE's one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference
- Start Sulfurization Protection
- Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design, the Ultra Durable Motherboard is protected from the damage.
UPC: 889523011539 In the Box Gigabyte X399 Designare EX AMD Ryzen Motherboard (rev. 1.0) 6 x SATA Cables Wi-Fi Antenna GC-SLI23PL SLI Bridge Connector GC-M2-U2 Card G Connector 2 x RGB (RGBW) LED Strip Extension Cables 2 x Hook and Loop Cable Ties 2 x Thermistor Cables M.2 Screw Kit T20 Star Wrench Limited 3-Year Warranty User Manual PDF 51.1mbxyfzcqdqwaeueddzxbatdzvfss Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigabyte X399 Designare EX AMD Ryzen Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigabyte X399 DESIGNARE EX Specs | | | Chipset | AMD X399 | | CPU Socket | TR4 | | | | USB | 8 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 2 Type-C
1 x USB 3.1 Gen 2 Type-A | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 2 x Intel i211AT Gigabit | | PS/2 | 1 x PS/2 | | Wi-Fi Antenna | 2 x Connector | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 3333, 3466, 3600 MHz | | Maximum Capacity | 128 GB | | Channel Architecture | Quad Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 8 x SATA III | | M.2 | 2 x M Key 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified)) | | U.2 | None | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 2 x PCIe 3.0 x16
2 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 2.0 x16 (x4 mode) | | USB | 1 x USB 3.1 Gen 1 Header (Supports 1 USB Type-C Ports)
1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way, 3-Way, 4-Way, Quad-GPU AMD CrossFireX
2-Way, 3-Way, 4-Way, Quad-GPU NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 3 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | Security | TPM Module | | LED Header | 2 x RGB | | Audio | 1 x S/PDIF | | Diagnostics | Clear CMOS, Power, Reset | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC1220 (8-Channel) | | | | Bluetooth | 4.2 | | Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12.01 x 9.61" / 30.5 x 24.4 cm | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 15.2 x 12.5 x 4.4" |
