User Manual for Gigastone 256GB Prime Series SSD Click to enlarge the picture
Contents of the user manual for the Gigastone 256GB Prime Series SSD
- Product category: Internal Drives Gigastone
- Brand: Gigastone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gigastone Internal Drives
|
User manual for the Gigastone 256GB Prime Series SSD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gigastone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gigastone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gigastone product will considerably shorten its lifespan!
|

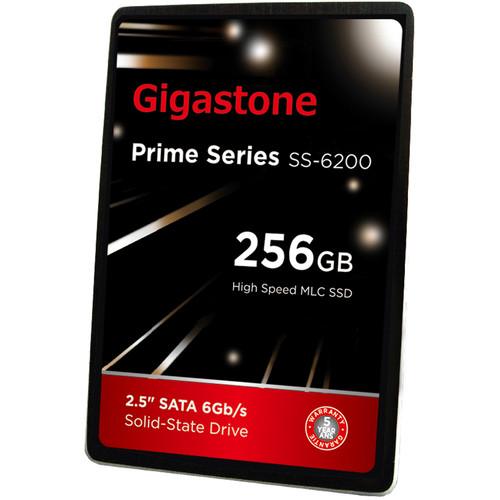

Product description Hard Drives by Application: Which Is Best for You? Read More atvaqvbyeeybtbbfddcybx Built using Intel's MLC flash technology and an SMI 2246EN controller, the 256GB Prime Series SSD from Gigastone delivers fast data access for your notebook or desktop. You connect this internal 2.5" SSD into your Windows, Mac, or Linux system via SATA III. Once installed, it provides a capacity of 256GB along with read speeds up to 560 MB/s and up to 350 MB/s write speeds. Additionally, Gigastone has designed this SSD for reliability with a 2 million hour MTBF. UPC: 804272746167 In the Box Gigastone 256GB Prime Series SSD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gigastone 256GB Prime Series SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGigastone GS-SSD-6200-256GB-R Specs | | | Interface | SATA III (6 Gb/s) | | Random Read Speed | 82,000 IOPS | | Random Write Speed | 70,000 IOPS | | Sequential Read Speed | 560 MB/s | | Sequential Write Speed | 350 MB/s | | Seek Time | 0.1 ms | | | | Drive Type | SSD | | Form Factor | 2.5" (7 mm) | | | | Flash Controller | Silicon Motion 2246EN | | Flash Memory Type | Multi-Level Cell (MLC) | | | | ECC Recovery | 55 Bytes per 512 Bytes | | Mean Time Between Failures (MTBF) | 2.0 Million Hours | | | | Power Draw | 3.3 W (Active)
0.3 W (Idle) | | Supported Voltage | 5 VDC | | | | Operating Shock | 2000 G / 0.3 ms | | Operating Vibration | 20 G / 40 to 2000 Hz | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Operating Humidity | 5 to 95% | | | | Dimensions (W x H x D) | 3.9 x 2.4 x 0.3" / 100.2 x 60.0 x 7.0 mm | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.5 x 4.3 x 0.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
