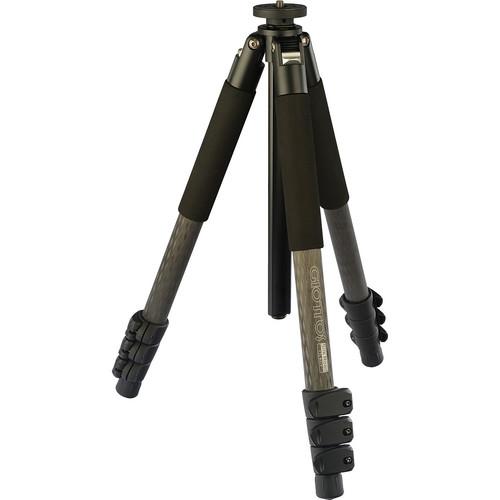

Product description The Giottos Classic Series 8214 Carbon Fiber YTL Silk Road Tripod rises to a maximum height of 73.2" and weighs in at only 3.3 lb while supporting up to 22 lb. Eight layer carbon fiber construction maximizes its strength-to weight ratio. But that's just the basics. It has a reversible center column with a unique triple- beveled, Y-shape that not only defeats torsion but allows the legs to fold down 30% closer to the column for a more compact form factor. It has a ballast hook at the bottom to add stabilizing weights and thanks to the combination of the column and the 8214's 3 position leg spreading feature, you're able to shoot as low as 7.1" from the ground. The 4 leg sections offer a padded first section, quick lever locks, and an option to install spiked feet. The lowest leg has 8 calibration marks at 2.0" intervals to make precise leveling easy. Note: This listing is for tripod legs only. Your choice of tripod head is available for separate purchase. - Features for Pro Series YTL Tripods
-

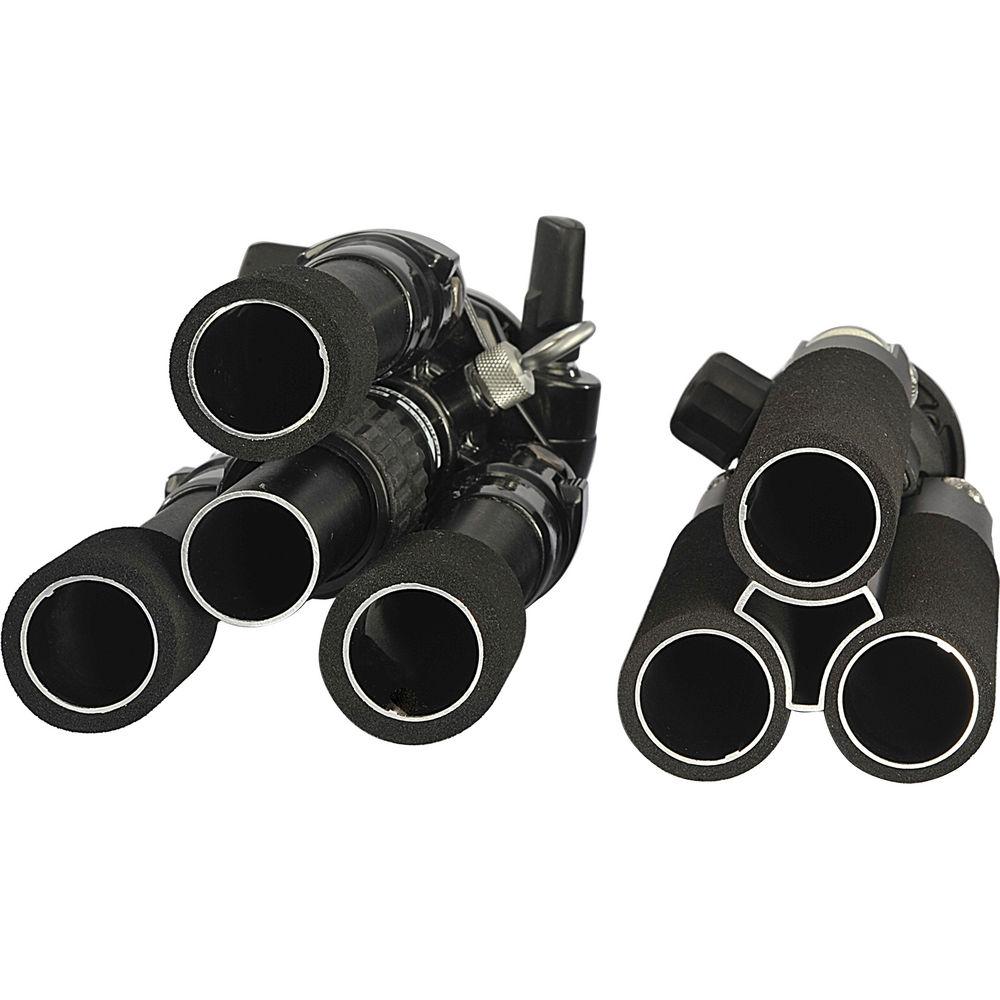

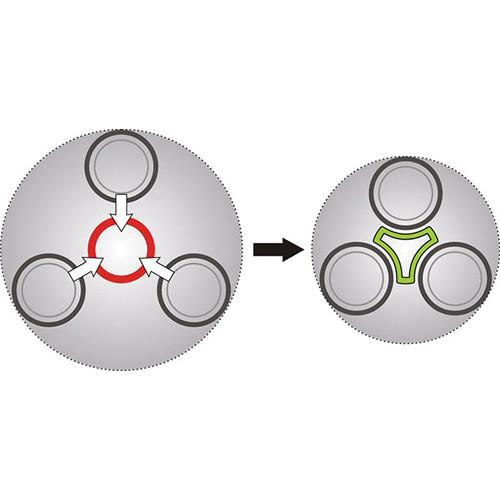

- Y shaped center column makes 30% more compact

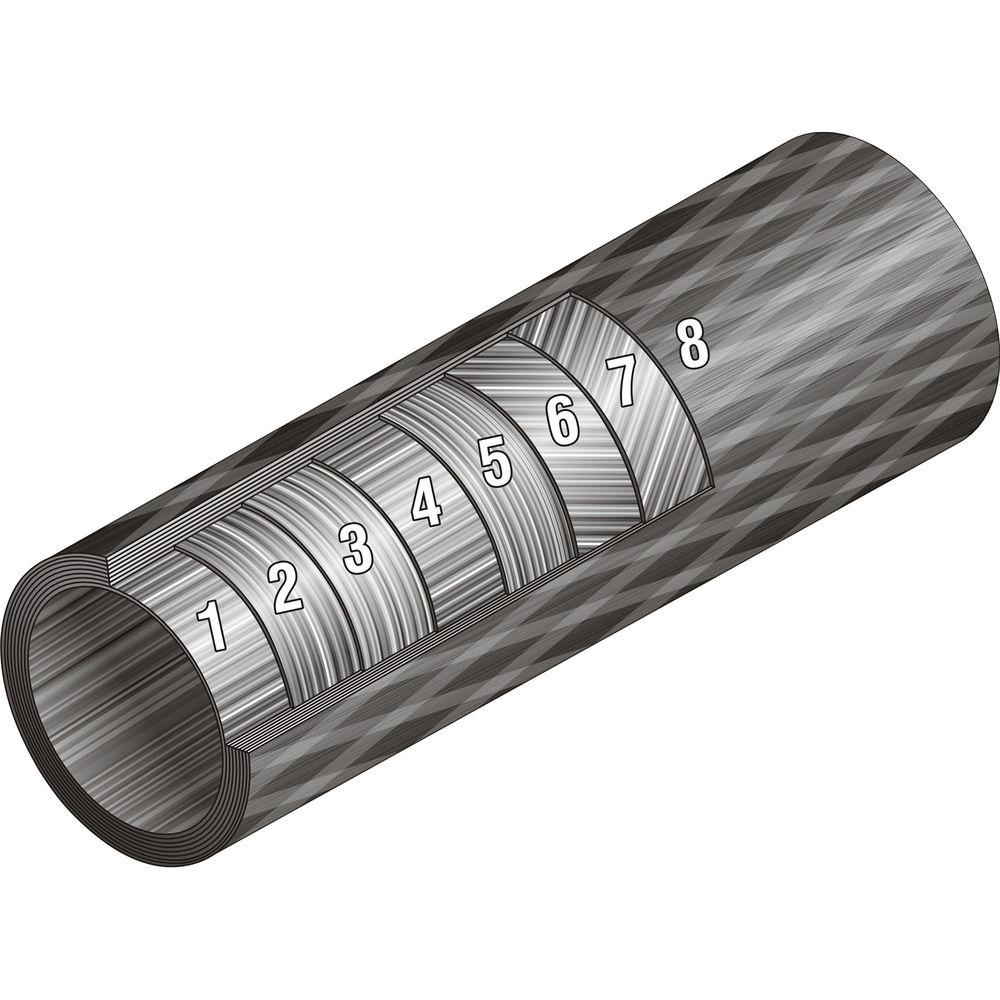

- 8 Crossed carbon fiber layers for maximum strength

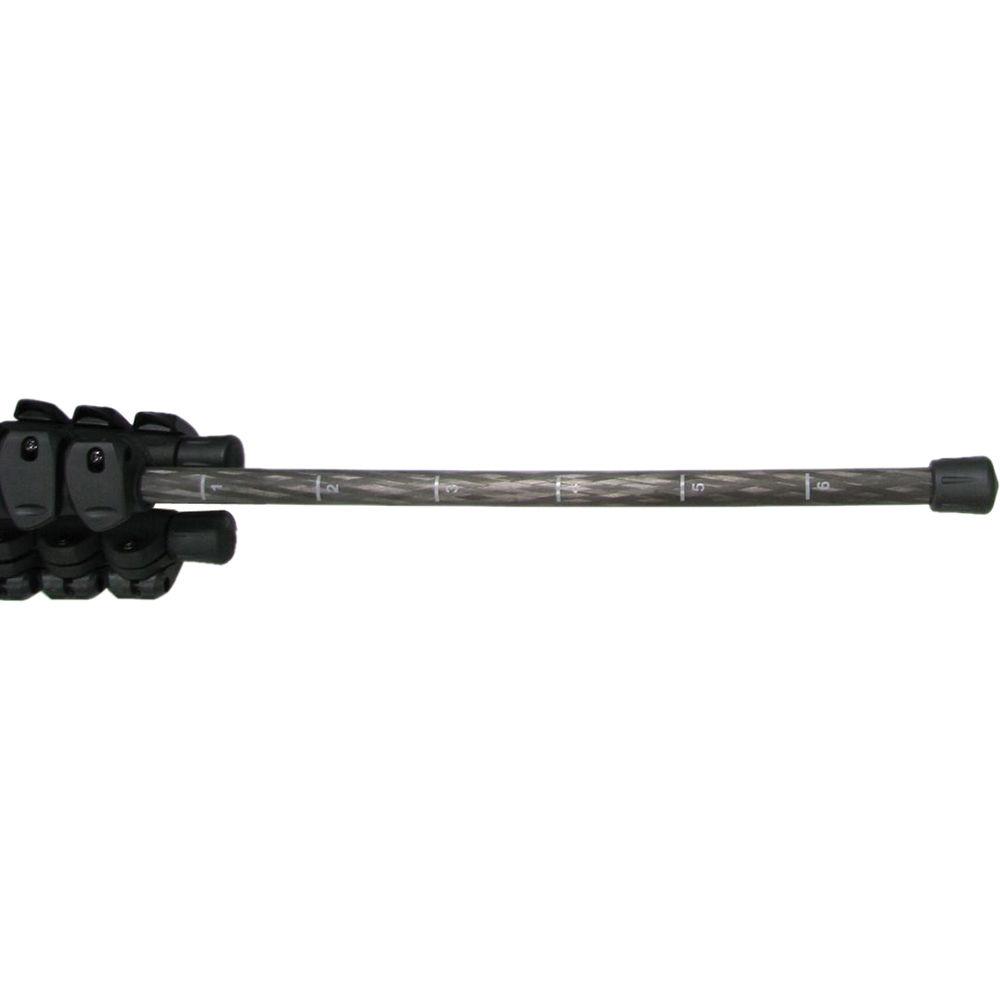

- 4 Leg sections with 8 graduated calibrations, 2.0" apart on each lowest leg section
- 3 Position adjustable leg angles for shooting low to the ground

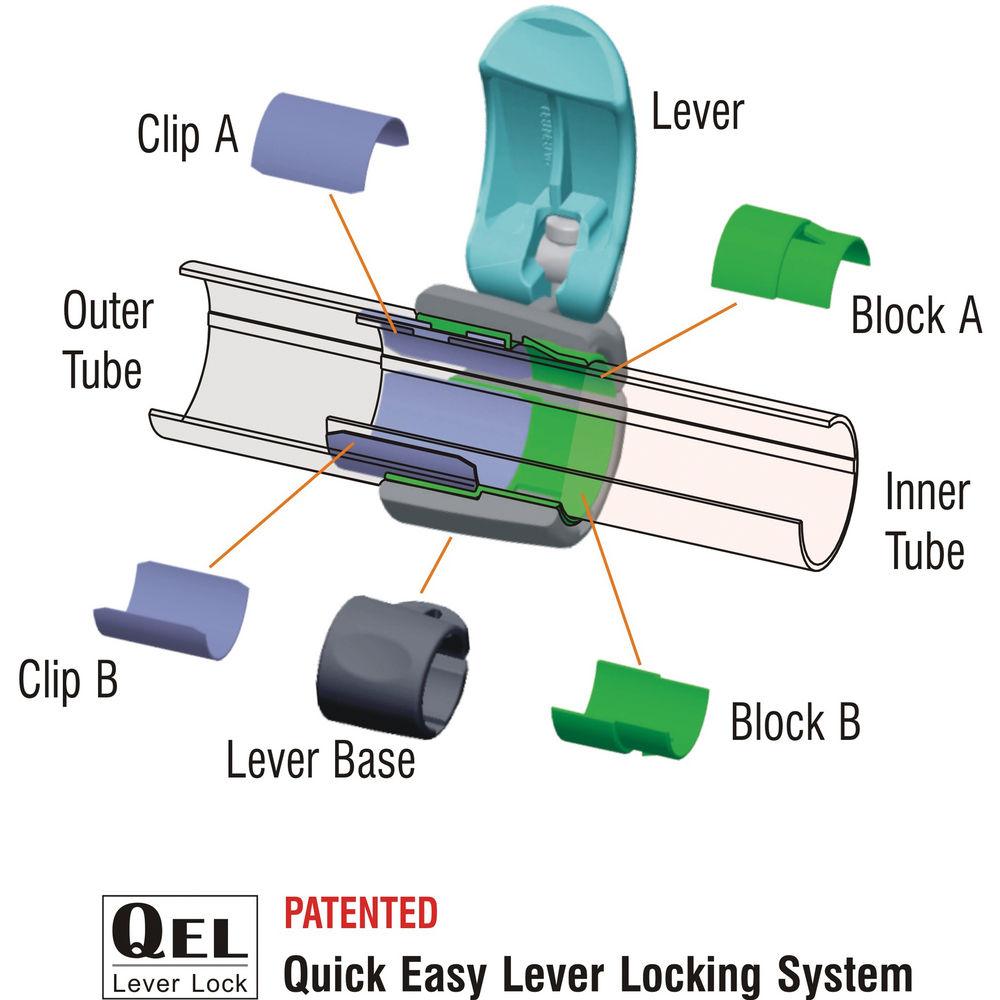

- Quick Lever Leg Locks (QEL System) for easy operation, even with gloves!
- Removable rubber feet to accept optional rubber foot/metal spike (FP1021)
- Reversible 3/8"-16 and 1/4"-20 camera screw locks in place with hex key
- Removable retractable hook on the bottom of the center column
- Includes Allen keys for adjustments and a 12-Year Warranty
- Classic Lift Center Column
-

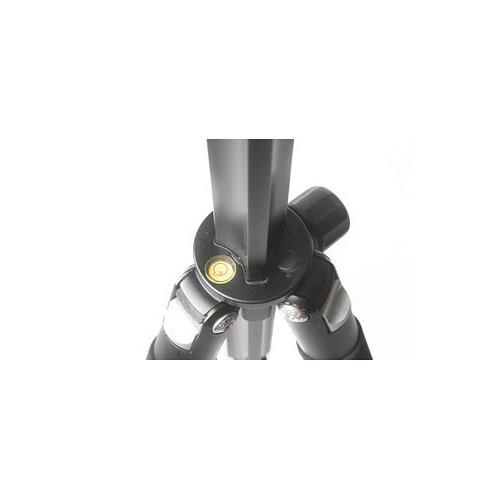

- Bubble level on top plate of center column
In the Box Giottos Classic Series 8214 Carbon Fiber YTL Silk Road Tripod 3 x Allen Keys Limited 2-Year Warranty, Extendable to 12-Year with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Giottos Classic Series 8214 Carbon Fiber YTL Silk Road Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGiottos YTL 8214 Specs | | | Load Capacity | 22 lb / 10 kg | | Maximum Working Height | 73.2" / 185.9 cm | | Max Height without Center Column | 61" / 154.9 cm | | Minimum Working Height | 7.1" / 18 cm | | Folded Length | 21.3" / 54.1 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 3.2 lb / 1.5 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Leg Positions | 3 Positions | | Leg Sections | 4 | | Leg Diameter | 1" / 25.4 mm | | | | Center Column Features | Reversible | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 24.2 x 5.3 x 5.2" |
