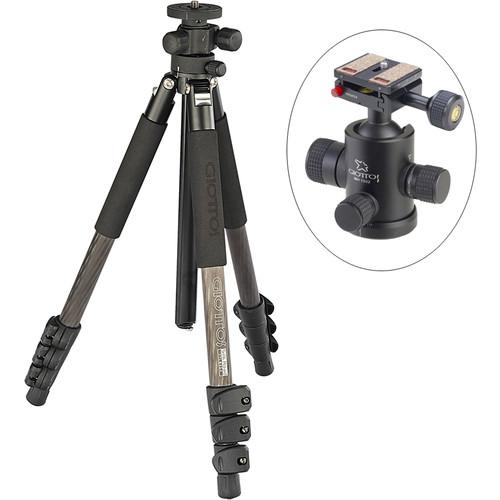

User Manual for Giottos Pro Series 8354 Carbon Fiber YTL Silk Road Tripod with MH-1302 Pro Series II Ball Head Click to enlarge the picture
Contents of the user manual for the Giottos Pro Series 8354 Carbon Fiber
- Product category: Tripods with Heads Giottos
- Brand: Giottos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Giottos Tripods with Heads
|
User manual for the Giottos Pro Series 8354 Carbon Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Giottos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Giottos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Giottos product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More czdfesqrecax The Pro Series 8354 Carbon Fiber YTL Silk Road Tripod with MH-1302 Pro Series II Ball Head from Giottos is a tripod kit consisting of a set of legs and a paired ball head. This kit rises to a maximum height of 71", lowers to a minimum height of 10.7", weighs just 3.9 lb, and supports up to 11.1 lb. - Giottos Pro Series 8354 Carbon Fiber YTL Silk Road Tripod The Giottos Pro Series 8354 Carbon Fiber YTL Silk Road Tripod rises to a maximum height of 67.3" and weighs in at only 3.1 lb while supporting up to 11.1 lb. Eight layer carbon fiber construction maximizes its strength-to weight ratio. But that's just the basics. It has a center column with a unique cantilevered design that allows it to tilt 180 degrees in its yoke and rotate 360 degrees. It has a ballast hook at the bottom to add stabilizing weights. Thanks to the combination of the column and the 8354's 3 position leg spreading feature, you're able to shoot as low as 7.0" from the ground. The 4 leg sections offer a padded first section, quick lever locks, and an option to install spiked feet. The lowest leg has 8 calibration marks at 2.0" intervals to make precise leveling easy. Note: This listing is for tripod legs only. Your choice of tripod head is available for separate purchase. However, the included short column with patented AutoSafety Lock can be used for limited 2-way control even when not using a head.
- Features for Pro Series YTL Tripods
-
- Y shaped center column makes 30% more compact
- 8 Crossed layers for maximum strength
- 4 Leg sections with 8 graduated calibrations, 2.0" apart on each lowest leg section
- 3 Position adjustable leg angles for shooting low to the ground
- Quick Lever Leg Locks (QEL System) for easy operation, even with gloves!
- Removable rubber feet to accept optional rubber foot/metal spike (FP1021)
- Reversible 3/8"-16 and 1/4"-20 camera screw locks in place with hex key
- Removable retractable hook on the bottom of the center column
- Includes Allen keys for adjustments and a 12 Year Warranty
- Transverse Center Column
-
- Cantilevers to tilt 180° and rotate 360°
- Includes short column with patented AutoSafety Lock for 2-way control when not using a head
- Giottos MH-1302 Pro Series II Medium Ballhead with MH-655 Quick Release The Giottos MH-1302 Pro Series II Ballhead with MH-655 Quick Release System is a "socket & ball" head that has been carefully designed and manufactured to precisely position the camera easily and securely. In order to cut back on its weight, this head features a hollowed out heavily anodized aluminum ball. The body shell (socket) follows a slimmer and lighter structure design, yet offers increased hardness. Three separate knobs provide optimal security and convenience. In addition to the main locking knob, it also features a friction control knob, and a separate locking knob for pan control. The attached MH-655 is an ultra-compact clamp style quick release system that is compatible with plates that fit the Arca Swiss standard. It comes with horizontal and vertical bubble levels, and anti-twist reversible tabs on the plate to prevent slippage when using the head in a vertical position.
- Features an independent calibrated pan bed
- Sliding calibrated quick release plate is only 1.6" (40mm) long
In the Box - Pro Series 8354 Carbon Fiber YTL Silk Road Tripod
- 3 x Allen Keys
- Short Column
- Limited 2-Year Warranty, Extendable to 12-Year with Product Registration
- MH-1302 Pro Series II Medium Ballhead with MH-655 Quick Release
Table of Contents
|
Upload User Manual
Have you got an user manual for the Giottos Pro Series 8354 Carbon Fiber YTL Silk Road Tripod with MH-1302 Pro Series II Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Giottos Pro Series 8354 Carbon Fiber YTL Silk Road Tripod
| | | Load Capacity | 11 lb / 5 kg | | Maximum Working Height | 67.3" / 170.9 cm | | Max Height without Center Column | 57.4" / 145.8 cm | | Minimum Working Height | 7" / 17.8 cm | | Folded Length | 21" / 53.3 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 3 lb / 1.4 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Flip Lock | | Leg Positions | 3 Positions | | Leg Sections | 4 | | Leg Diameter | 1" / 25.4 mm | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | Center Column Rotation | 60° | | | | Box Dimensions (LxWxH) | 24.2 x 5.3 x 5.2" | - Giottos MH-1302 Pro Series II Medium Ballhead with MH-655 Quick Release
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Load Capacity | 13.2 lb / 6 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Dimensions | H: 3.7" / H: 9.4 mm | | Weight | 12.5 oz / 355.0 g | | | | Box Dimensions (LxWxH) | 5.2 x 4.4 x 3.2" |
