Gitzo GT1545T Series 1 Traveler Carbon

Search your instruction manual in PDF to download

User Manual for Gitzo GT1545T Series 1 Traveler Carbon Fiber Tripod with Center Ball Head

Click to enlarge the picture
Gitzo GT1545T Series 1 Traveler Carbon Fiber Tripod with Center Ball Head Contents of the user manual for the Gitzo GT1545T Series 1 Traveler Carbon
  • Product category: Tripods with Heads Gitzo
  • Brand: Gitzo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Gitzo Tripods with Heads

Gitzo GT1545T Series 1 Traveler Carbon Fiber Tripod with Center Ball Head Gitzo GT1545T Series 1 Traveler Carbon Fiber Tripod with Center Ball Head
User manual for the Gitzo GT1545T Series 1 Traveler Carbon contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Gitzo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Gitzo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Gitzo product will considerably shorten its lifespan!



Product description

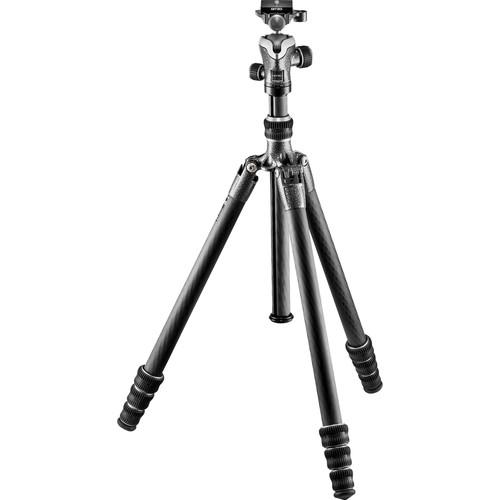

Time-Lapse Tips and Tools Read More Enjoy a lightweight, stable, and smooth support system with this GT1545T Series 1 Traveler Carbon Fiber Tripod with Center Ball Head Kit from Gitzo. The setup offers a 3.2 lb 4-section tripod system with an Arca-type compatible ball head, a load capacity of 22 lb, and a height range of 12.6 to 64.4". Also, thanks to a reverse-leg design, the addition of the ball head does not add to the folded length of 16.7".

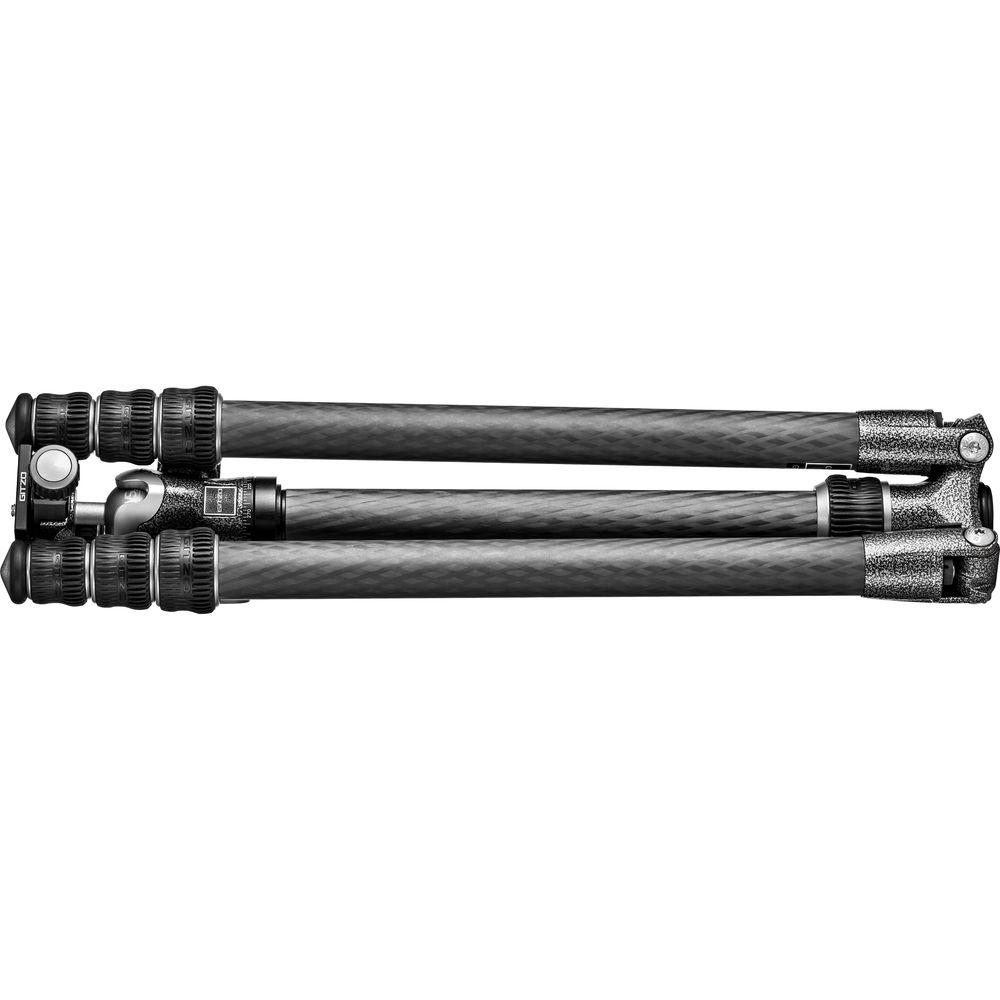

  • GIGT1545T Traveler Series 1 Carbon Fiber Tripod The Gitzo GIGT1545T Traveler Series 1 Carbon Fiber Tripod is a compact support system with legs that fold around the center column and optional head. These reverse-folding legs contribute to the tripod's folded length of just 16.7". It extends to 60.2" high and can hold up to 22 lb worth of gear. With the included short center column installed, the tripod can get down to 8.6" for macro or low-angle shooting.

    The tripod employs Carbon eXact tubing for added strength and stiffness compared to the Carbon 6X tubes. Traveler G-lock is a pared-down version of Gitzo's G-lock, specifically designed for the Traveler tripods to reduce overall size. These legs feature space-saving feet that fit the Traveler series' compact design. A shoulder strap is included for easy carrying. UPC: 719821384113
  • GH1382TQD Series 1 Traveler Center Ball Head The Gitzo GH1382TQD Series 1 Traveler Center Ball Head is an Arca-type compatible head that is an ideal match for Traveler Series 0 and 1 tripods. It stands 4.1" high, holds up to 24 lb, and weighs 0.9 lb. The head has a separate lock for the 360° panning and another to control the movement of the ball. A tungsten disulfide coating on the ball helps keep the ball movement smooth and minimizes stick-slip. A screw-knob lock tightens down on the included quick-release plate and a bubble level helps you maintain straight horizons in your images. UPC: 719821383987
In the Box Bundle Items GIGT1545T Traveler Series 1 Carbon Fiber Tripod wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • Short Column
  • Shoulder Strap
  • Limited 6-Month Warranty, Extendable to 10 Years with Online Product Registration
GH1382TQD Series 1 Traveler Center Ball Head
  • GS5370SD QR Plate
  • Limited 6-Month Warranty, Extendable to 10 Years with online Product Registration
User Manual PDF 1.8mb Table of Contents




Upload User Manual

Have you got an user manual for the Gitzo GT1545T Series 1 Traveler Carbon Fiber Tripod with Center Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • GIGT1545T Traveler Series 1 Carbon Fiber Tripod
    Load Capacity 22.05 lb / 10 kg
    Maximum Working Height 60.2" / 153 cm
    Max Height without Center Column 51.18" / 130 cm
    Minimum Working Height 8.7" / 22 cm
    Folded Length 16.73" / 42.5 cm
    Head Mount Type 1/4"-20 Screw, 3/8"-16 Screw
    Weight 2.34 lb / 1.06 kg
    Materials Carbon Fiber
    Leg Lock Type Twist Lock
    Independent Leg Spread Yes
    Leg Sections 4
    Leg Diameter 1.00" / 25.3 mm
    Feet Features Rubber
    Center Column Features Removable
    Center Column Shape Round
    Center Column Sections 1
    Center Column Extension Type Rapid
    Lateral / 90-Degree Center Column No
    Box Dimensions (LxWxH) 20.9 x 5.0 x 4.5"
  • GH1382TQD Series 1 Traveler Center Ball Head
    Head Type Ball Head
    Base Mount 3/8"-16 Thread
    Camera Mounting Screw 1/4"-20 Male
    Load Capacity 24 lb / 11 kg
    Number of Bubble Levels 1
    Friction Control No
    Independent Pan Lock Yes
    Dimensions H: 4.1" / H: 10.4 cm
    Weight 0.9 lb / 0.4 kg
    Box Dimensions (LxWxH) 5.1 x 4.3 x 3.7"
