User Manual for Gitzo GT2545T Series 2 Traveler Carbon Fiber Tripod with Center Ball Head Click to enlarge the picture
Contents of the user manual for the Gitzo GT2545T Series 2 Traveler Carbon
- Product category: Tripods with Heads Gitzo
- Brand: Gitzo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gitzo Tripods with Heads
 |
User manual for the Gitzo GT2545T Series 2 Traveler Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gitzo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gitzo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gitzo product will considerably shorten its lifespan!
|

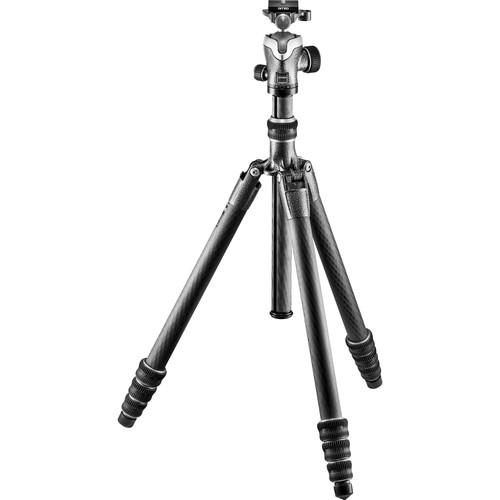

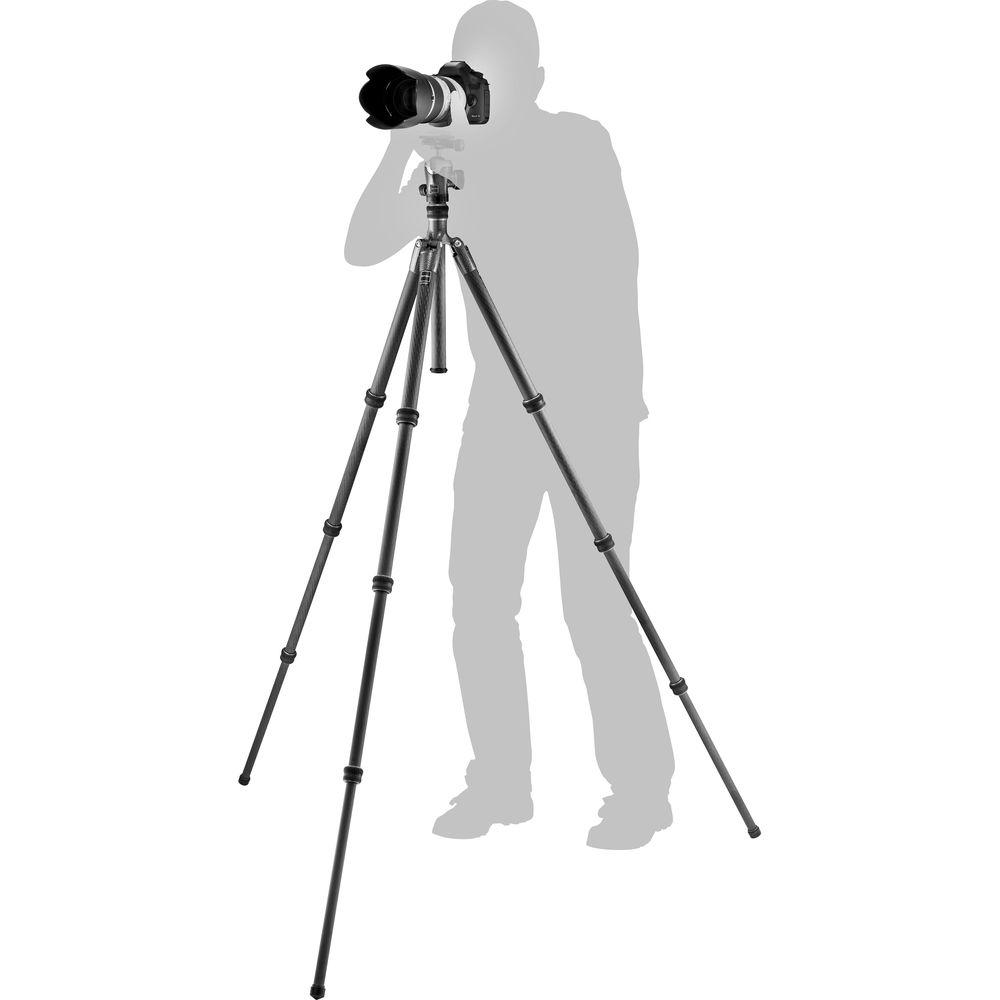

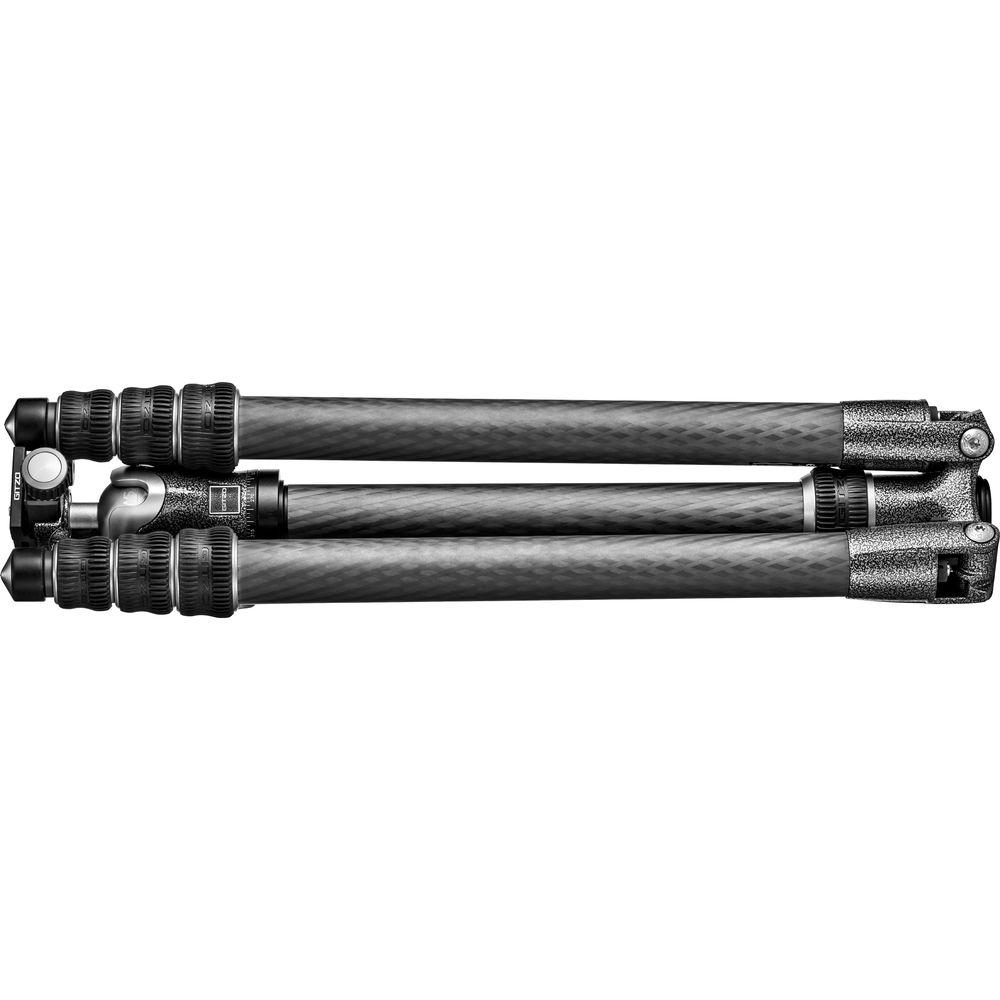

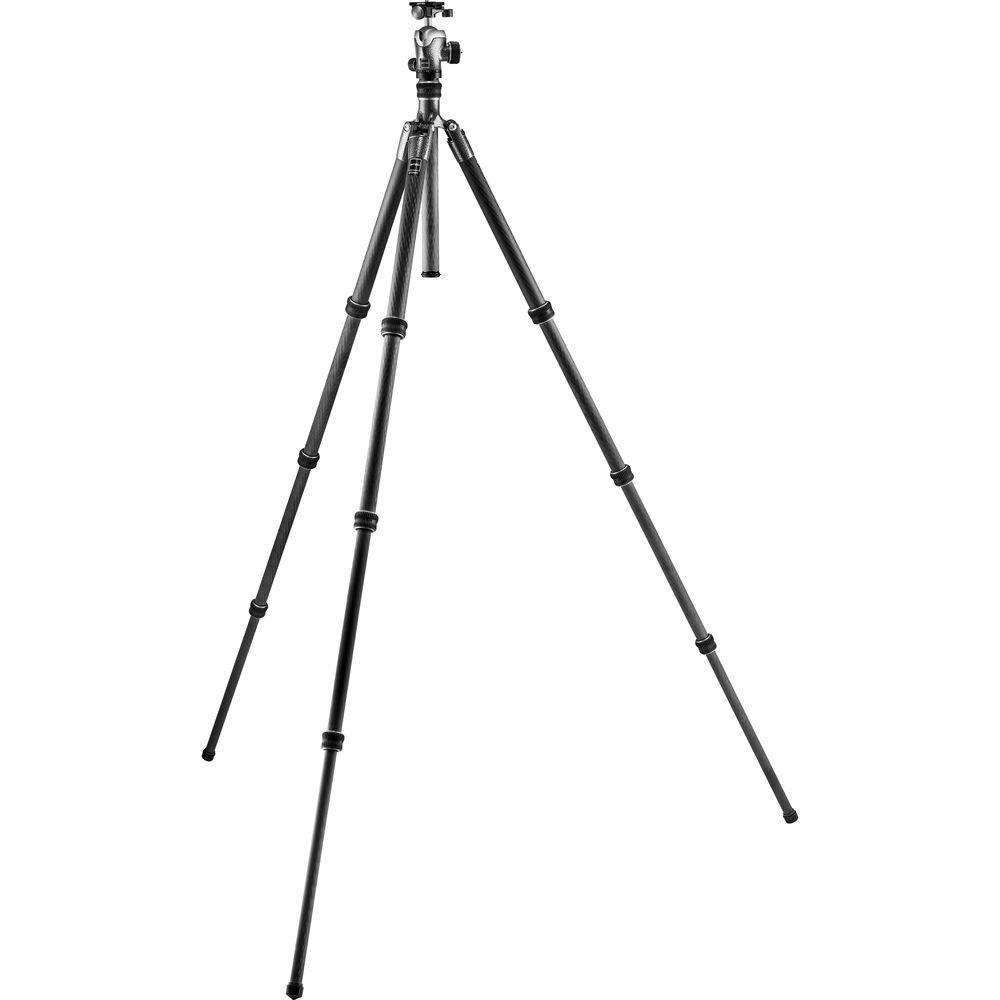

Product description Time-Lapse Tips and Tools Read More Enjoy a lightweight, stable, and smooth support system with this GT2545T Series 2 Traveler Carbon Fiber Tripod with Center Ball Head Kit from Gitzo. The setup offers a 4 lb 4-section tripod system with an Arca-type compatible ball head, a load capacity of 26 lb, and a height range of 13 to 65.2". Also, thanks to a reverse-leg design, the addition of the ball head does not add to the folded length of 17.5". - GIGT2545T Traveler Series 2 Carbon Fiber Tripod The Gitzo GIGT2545T Traveler Series 2 Carbon Fiber Tripod is a compact support system with legs that fold around the center column and optional head. These reverse-folding legs contribute to the tripod's folded length of just 17.5". It extends to 60.8" high and can hold up to 26 lb worth of gear. With the included short center column installed, the tripod can get down to 8.7" for macro or low-angle shooting.

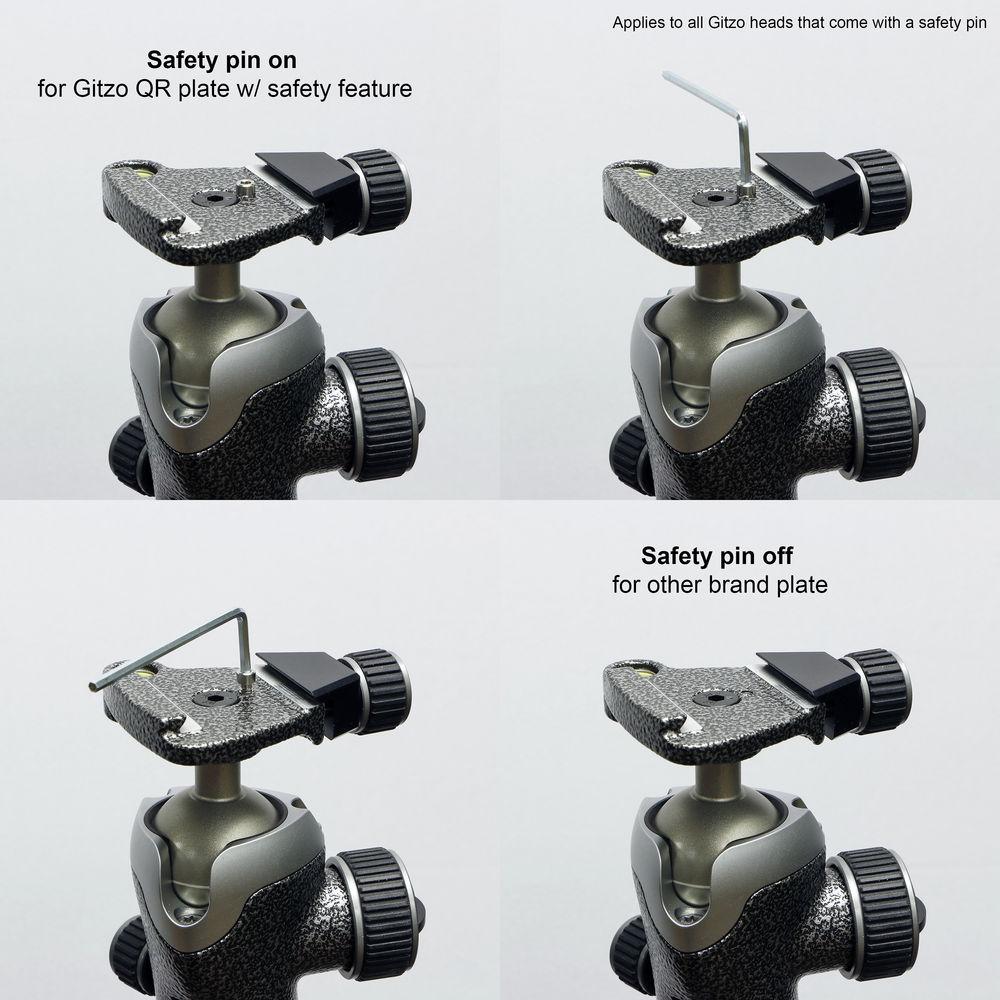

The tripod employs Carbon eXact tubing for added strength and stiffness compared to the Carbon 6X tubes. Traveler G-lock is a pared-down version of Gitzo's G-lock, specifically designed for the Traveler tripods to reduce overall size. These Series 2 legs will accept a variety of interchangeable feet and come with removable rubber feet. A shoulder strap is included for easy carrying. UPC: 719821384120 - GH1382QD Series 1 Center Ball Head The Gitzo GH1382QD Series 1 Center Ball Head is an Arca-type compatible head that is an ideal match for Traveler Series 2 and Mountaineer Series 0 and 1 tripods. It stands 4.4" high, holds up to 31 lb, and weighs 1.1 lb. The head has a separate lock for the 360° panning and another to control the movement of the ball. A tungsten disulfide coating on the ball helps keep the ball movement smooth and minimizes stick-slip. A screw-knob lock tightens down on the included quick-release plate and a bubble level helps you maintain straight horizons in your images. To allow for precise adjustments, a friction control dial is integrated into the large locking knob. UPC: 719821383994
In the Box Bundle Items GIGT2545T Traveler Series 2 Carbon Fiber Tripod wyuzsczsxycrfqteurtfurwxxd - Set of 3 Replacement Rubber Leg-Tips
- Limited 6-Month Warranty, Extendable to 10 Years with Online Product Registration
GH1382QD Series 1 Center Ball Head wyuzsczsxycrfqteurtfurwxxd - Limited 6-Month Warranty, Extendable to 10 Years with online Product Registration
Guides & Manuals wyuzsczsxycrfqteurtfurwxxd Table of Contents
|
Upload User Manual
Have you got an user manual for the Gitzo GT2545T Series 2 Traveler Carbon Fiber Tripod with Center Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Gitzo GT2545T Series 2 Traveler Carbon Fiber Tripod with Center Ball Head can be downloaded in PDF format at the link stated below.
Technical parameters - GIGT2545T Traveler Series 2 Carbon Fiber Tripod
| | | Load Capacity | 26.46 lb / 12 kg | | Maximum Working Height | 60.8" / 154.5 cm | | Max Height without Center Column | 51.57" / 131 cm | | Minimum Working Height | 8.7" / 22 cm | | Folded Length | 17.52" / 44.5 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 2.95 lb / 1.34 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1.14" / 29.0 mm | | Feet Features | Rubber, Removable | | | | Center Column Features | Removable | | Center Column Shape | Round | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 20.5 x 4.5 x 4.5" | - GH1382QD Series 1 Center Ball Head
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 31 lb / 14 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Dimensions | H: 4.4" / H: 11.2 cm | | Weight | 1.1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 5.1 x 4.3 x 3.6" |
