User Manual for Glide Gear 8' Portable Quick Jib & Wireless Monitor System Click to enlarge the picture
Contents of the user manual for the Glide Gear 8' Portable Quick Jib
- Product category: Cranes & Jibs Glide Gear
- Brand: Glide Gear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glide Gear Cranes & Jibs
 |
User manual for the Glide Gear 8' Portable Quick Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glide Gear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glide Gear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glide Gear product will considerably shorten its lifespan!
|

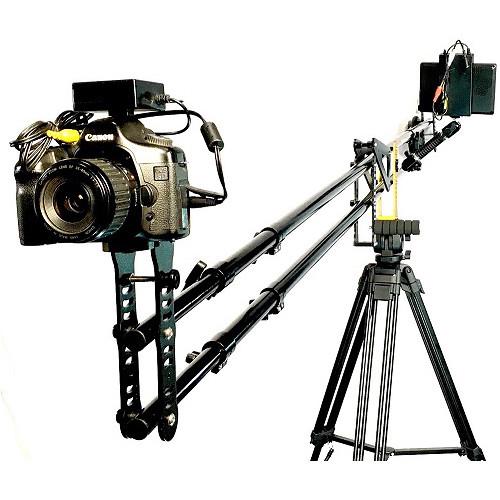

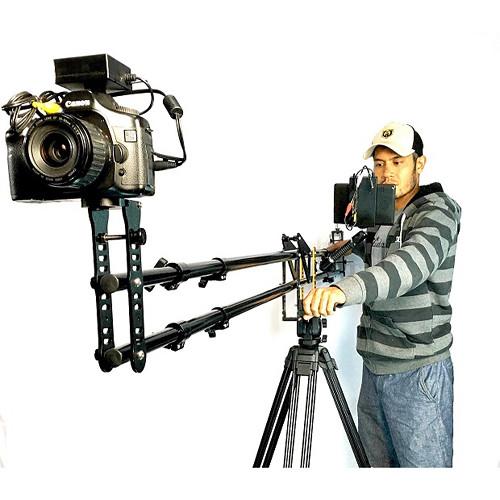

Product description The Glide Gear 8’ Portable Quick Jib System is comprised of the 8' Quick Jib and a wireless monitor. The wireless monitor includes a 2.4 GHz transmitter and receiver, and a 7" RGB LCD monitor (800 x 480). The Quick Jib is made from lightweight 6061 CNC machined aluminum, with tight tolerances, and a sleek black scratch-resistant coating for smooth operation. It is easy to set up and supports DSLR cameras weighing up to 7 lb. The wireless monitor allows for a wire-free POV shot. - 8' Portable Quick Jib
- Glide Gear 8ft Portable Quick Jib Crane JB8

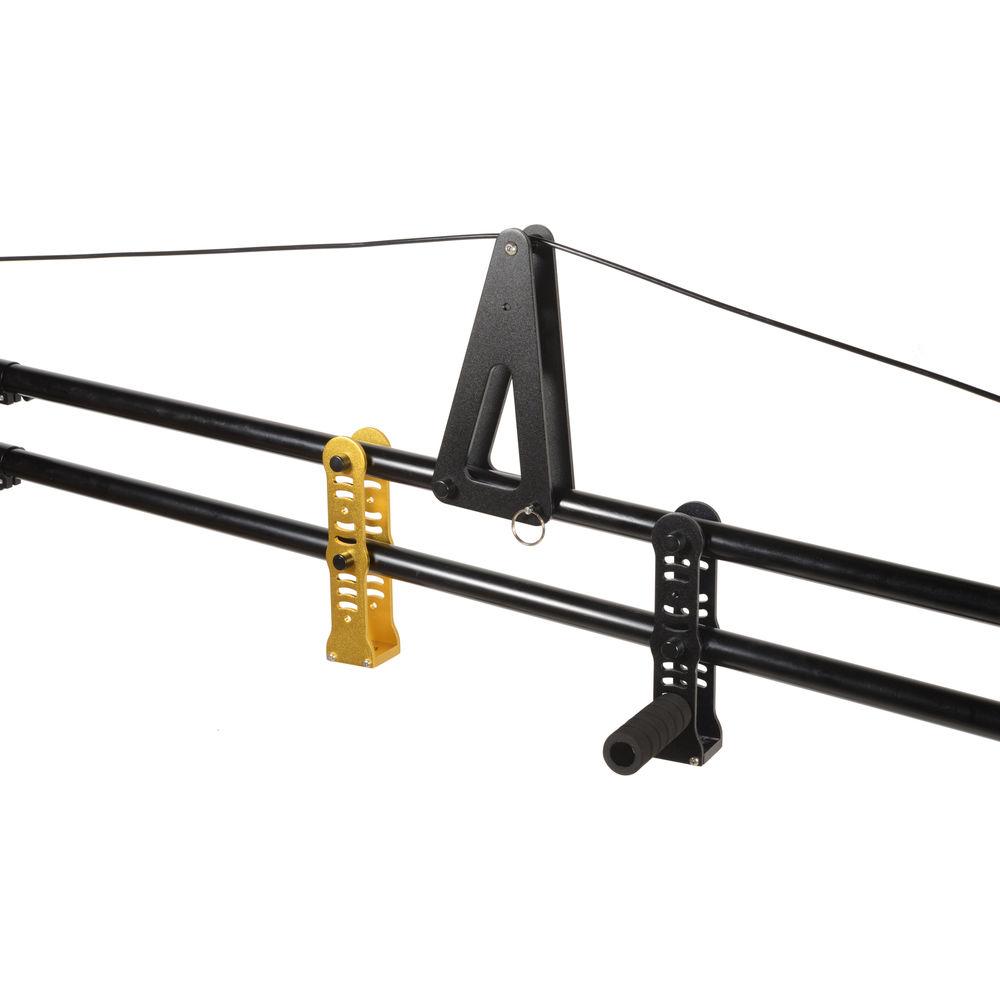

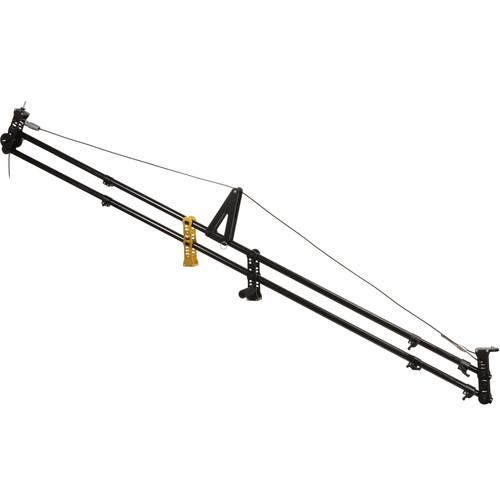

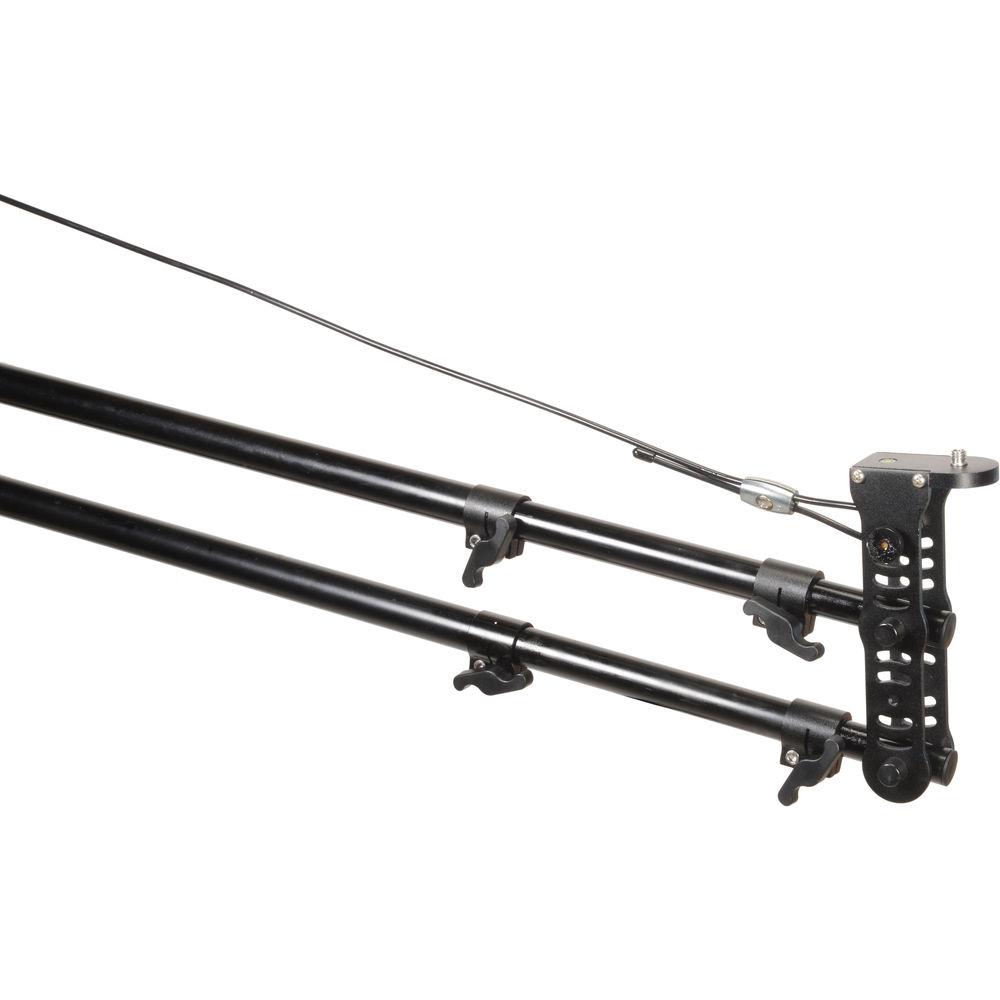

This 8' Portable Quick Jib from Glide Gear is designed for use with DSLRs or other cameras weighing up to seven pounds. It telescopes from 4 to 8' and is 12 feet in total length. No need to purchase special weights; this portable jib uses standard barbell weights or sandbags as counterweights. It offers a quick and easy setup, and weighs in at 11 pounds (without weights). Other features include an adjustable tension cable for added stability, a foam rubber–padded guide handle, both 1/4"-20 and 3/8"-16 camera-mounting screws, and a scratch-resistant black finish to minimize visibility on set. - Designed for DSLRs and other cameras weighing up to 7 lb
- Three posts accept standard barbell weights for counterbalance
- Telescoping jib with 4 to 8' range (12' total length)

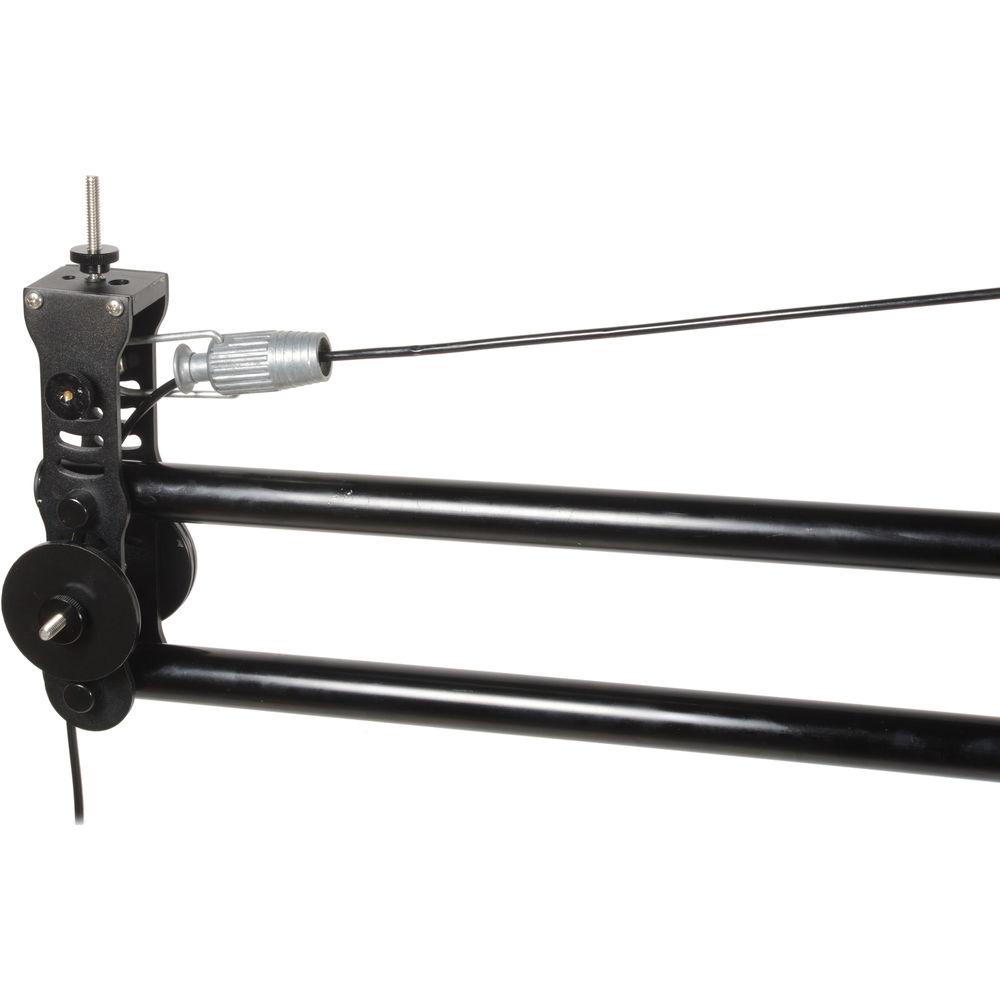

- Tension cable provides extra stability
- Lightweight machined-aluminum construction
- Scratch-resistant black finish

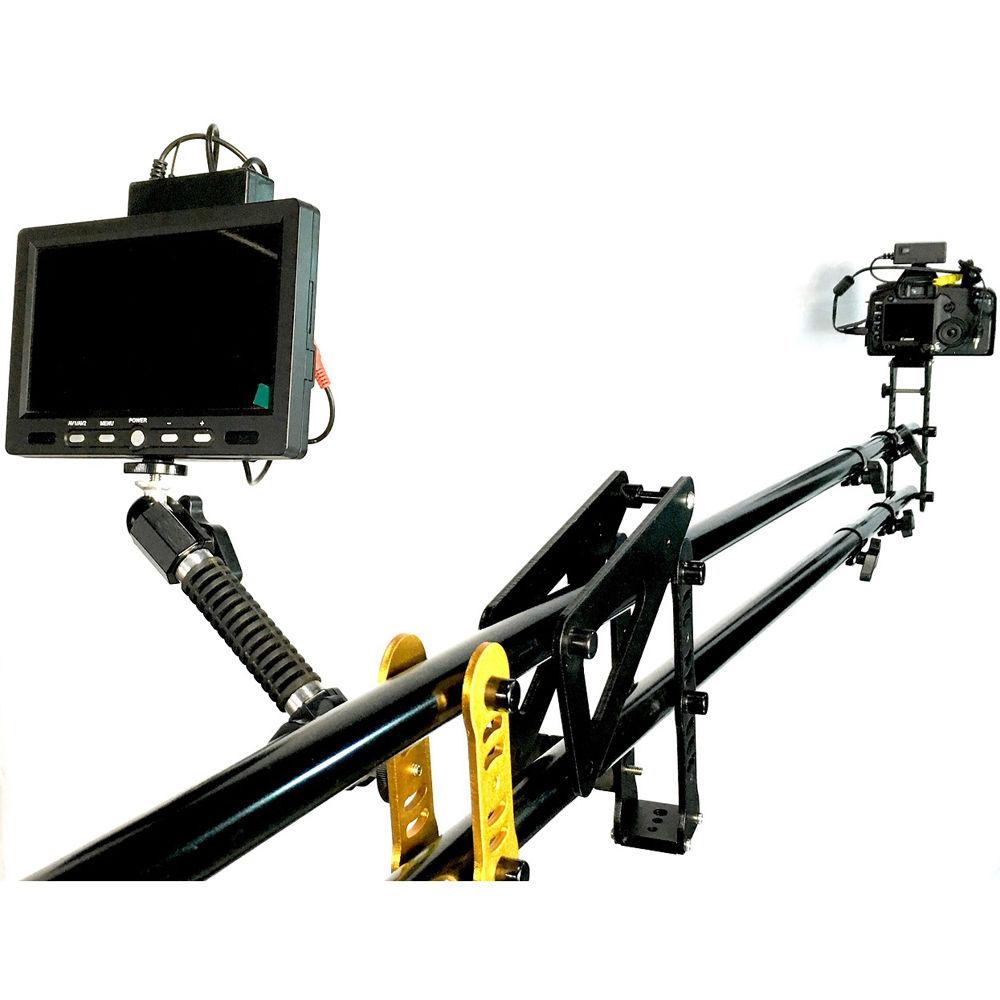

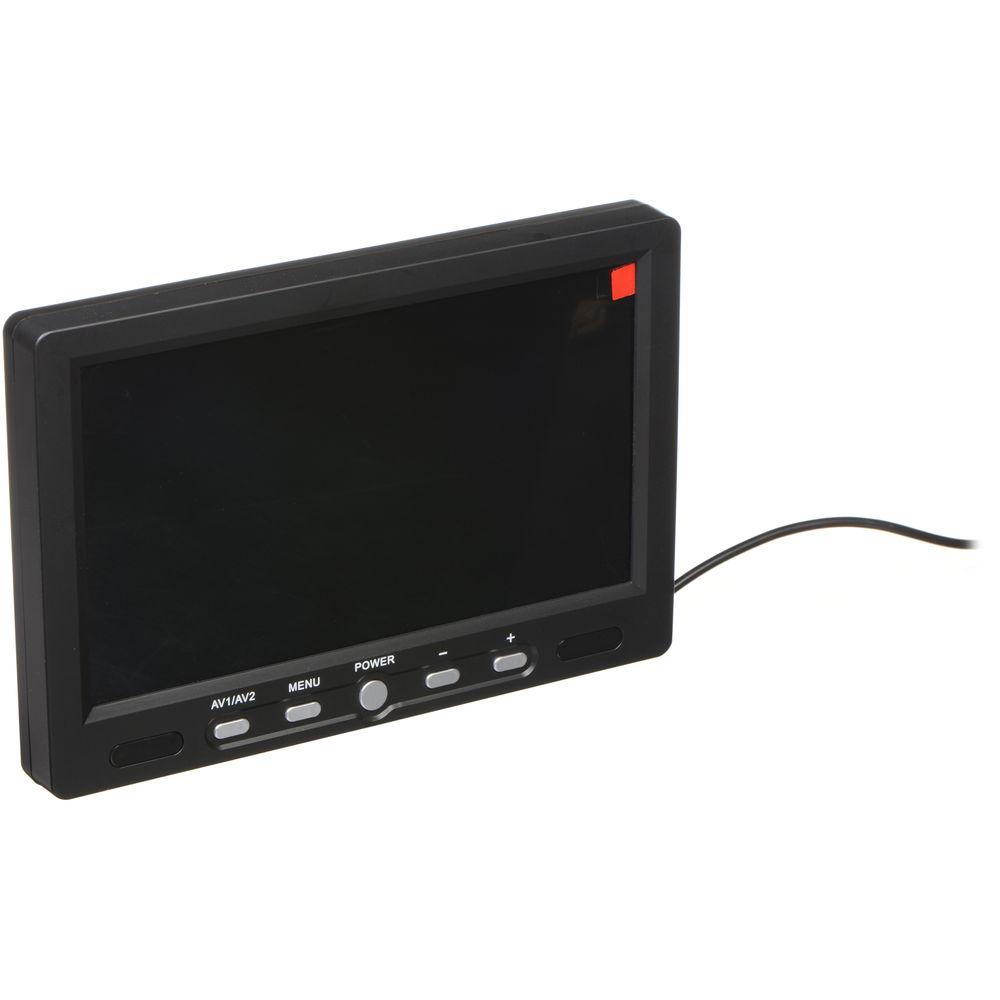

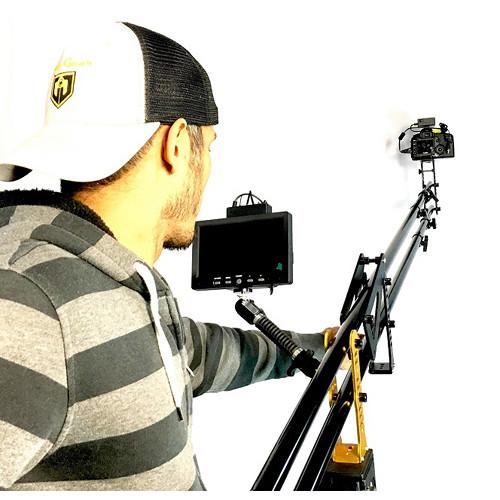

UPC: 646437457743 - Wireless Monitor Transmitter/Receiver Kit Wirelessly monitor what your camera is recording with this Glide Gear Wireless Monitor Transmitter/Receiver Kit. The kit is comprised of a 7", 800x480 resolution, TFT LCD monitor, a transmitter, a receiver, and all the necessary cabling to connect to a composite video source. An RCA female to female barrel connector is also included in case your, like some DSLRs, requires an A/V breakout cable. Wireless monitoring comes in handy when the camera can't be reached or interfered with. For example, when it's up on a jib or a crane or when it's being flown on a stabilizer or motorized gimbal. In optimal conditions, this kit has a maximum operating range of 82'. The transmitter requires a 9V battery for operation while the receiver has a built-in rechargeable battery, which also powers the monitor itself. Alternatively, the receiver can be powered directly off of the included AC adapter. UPC: 646437349970
In the Box Bundle Items 8' Portable Quick Jib razrrzbyf - Limited Lifetime Warranty
Wireless Monitor Transmitter/Receiver Kit - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Glide Gear 8' Portable Quick Jib & Wireless Monitor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 8' Portable Quick Jib
| Material of Construction | Machined 6061 aluminum | | Payload Capacity | 7 lb (3.2 kg) | | Mounting Screw | Camera Plate:
1/4"-20
3/8"-16
Tripod Base Mount:
1/4"-20 | | Counterbalance Weights | Standard barbell weights | | Telescoping Range | 4-8 ft (1.2-2.4 m) | | Total Length | 12 ft (3.7 m) | | Weight | 11 lb (4.9 kg) | | | | Box Dimensions (LxWxH) | 61.0 x 10.25 x 5.0" | - Wireless Monitor Transmitter/Receiver Kit
| Monitor | 7" / 178 mm | | Panel | TFT-LCD panel 800 x 480 | | Operating Range | 82' / 25 m | | On-Screen Display Languages | Chinese, English, German, Spanish, Portuguese, Italian, French, Russian | | Color System | PAL, NTSC, SECAM, PAL | | Power Supply | 12 VDC | | Consumption | 6 W | | | | Box Dimensions (LxWxH) | 9.9 x 9.2 x 3.95" |
