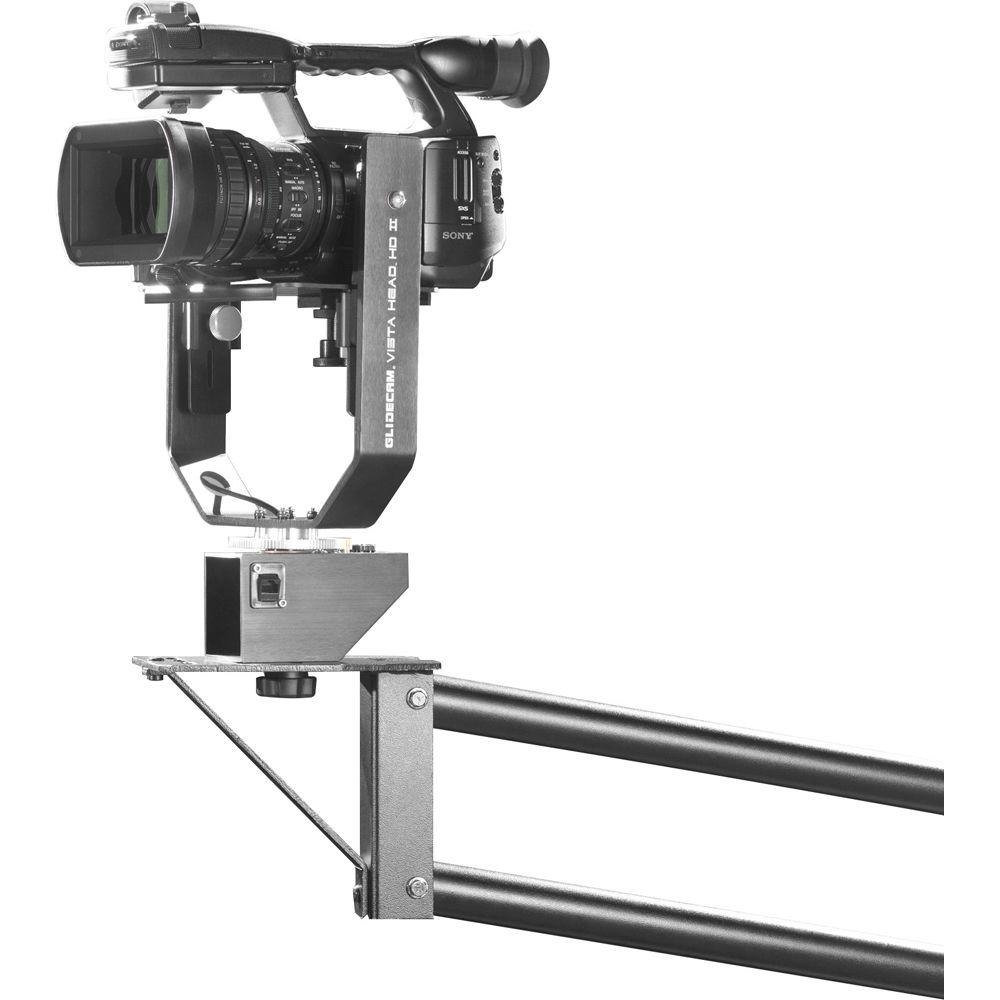

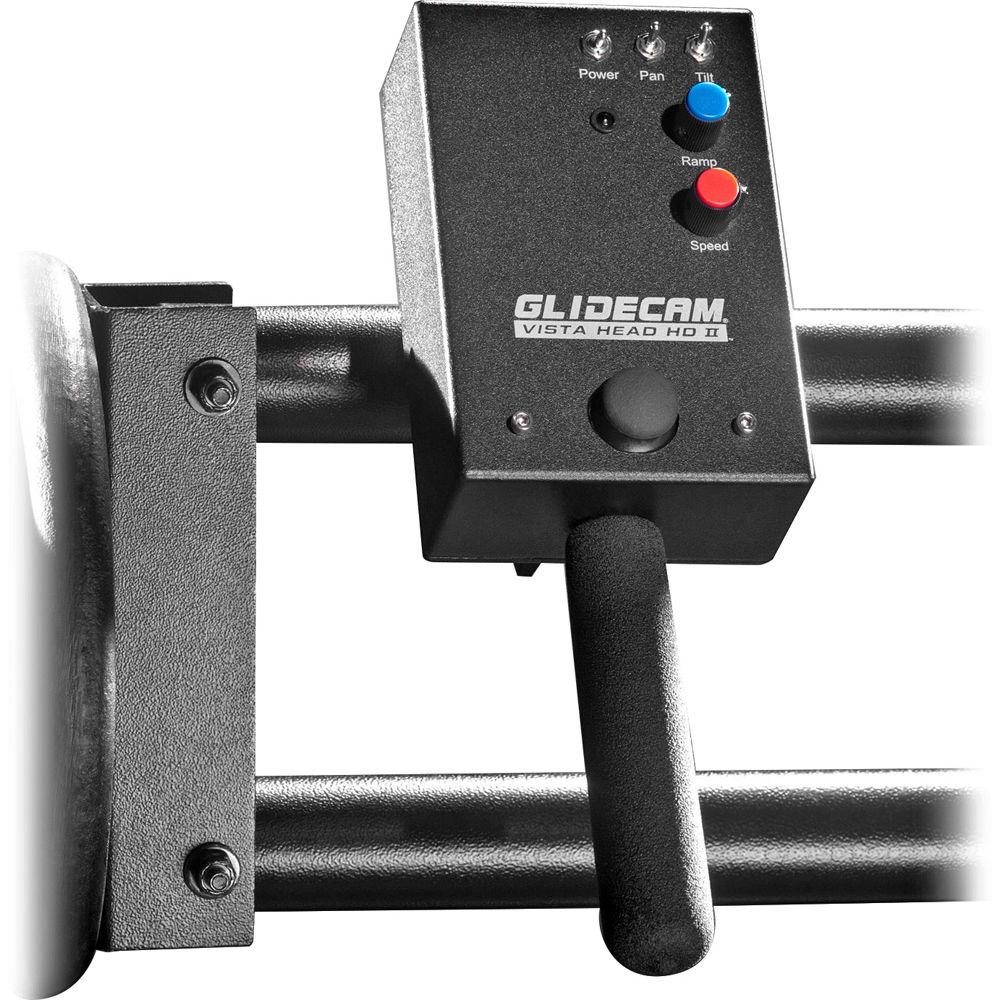

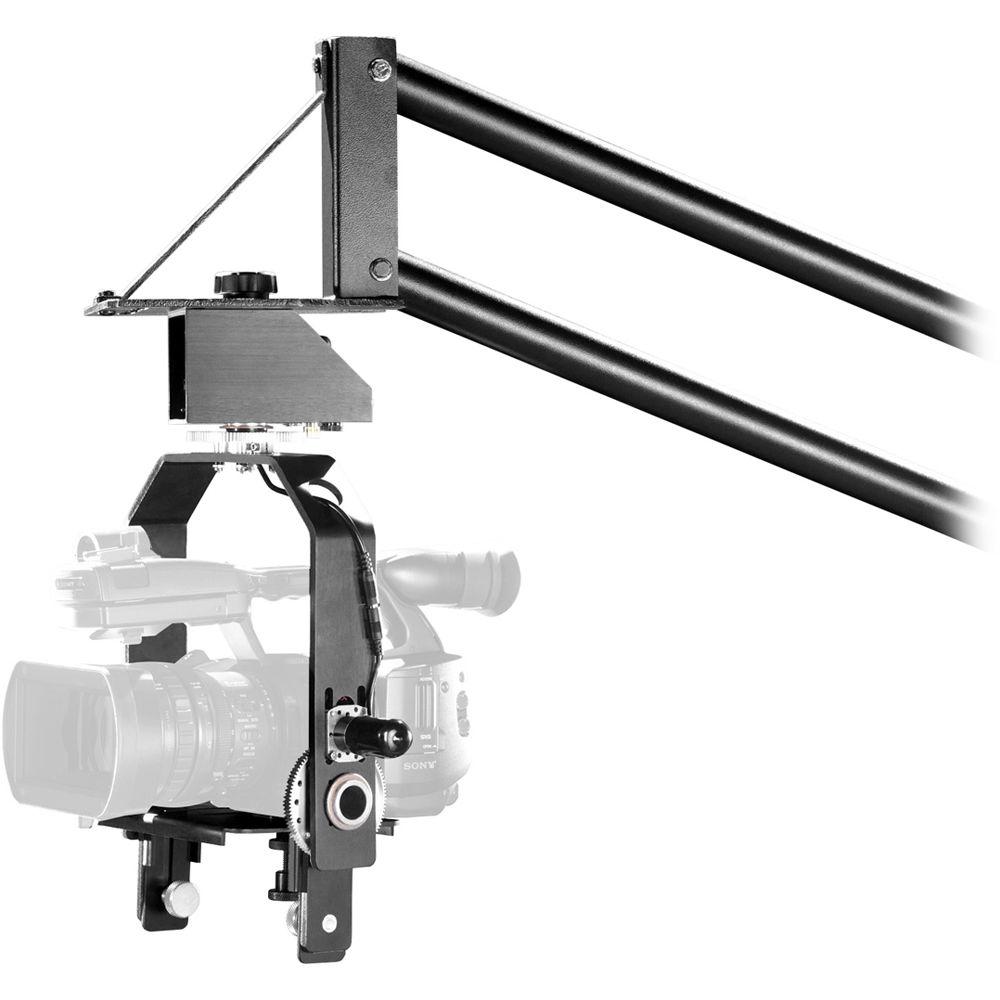

Product description The Glidecam VistaHead HD II is a motorized, remotely controlled pan and tilt head. This lightweight unit supports cameras weighing up to 10 lb. It can be mounted to cranes and jib arms, and it is compatible with the Camcrane 200 from Glidecam.The VistaHead HD II offers full 360° camera movement and can be mounted in both the over-slung or under-slung positions. It features smooth, high-torque motors with 12V power requirement. It is constructed from black anodized aluminum. The head unit connects to the control box via the included 25' cable.The control box features a two-axis proportional joystick speed controller providing smooth and accurate camera movement. It also features two adjustment knobs that control the joystick movement. It is powered using a 12 VDC adapter that connects via the 2.1mm coaxial-type power connector. - Supports camera weighing up to 10 lb
- Made with integral black anodized aluminum
- Mounts to the camera crane or jib arms using a 1/4-20 knob bolt
- Control box features two-axis proportional joystick speed controllers
UPC: 674330730151 In the Box Glidecam VistaHead HD II Motorized Pan & Tilt Head Control Box 12 VDC Power Adapter Mounting Hardware Control Cable (25') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Glidecam VistaHead HD II Motorized Pan & Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlidecam GLVH-HD2 Specs | Support Type | U-style | | Capacity | 10 lb (4.54 kg) | | Platform Width | Camera Platform Width: 6.5" (165 mm) | | Pan | 360° | | Tilt | 360° | | Clearance | Tilt Clearance Radius: 8" (203 mm) | | Voltage | 12 VDC | | Operational Voltage Range | 10 to 24 VDC | | Power Connector | 2.1 mm coaxial-type | | Controls | Via joystick
Offers ramp & speed control | | Mounting | 1 x 1/4" screw | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 18.3 x 12.4 x 7.0" |
