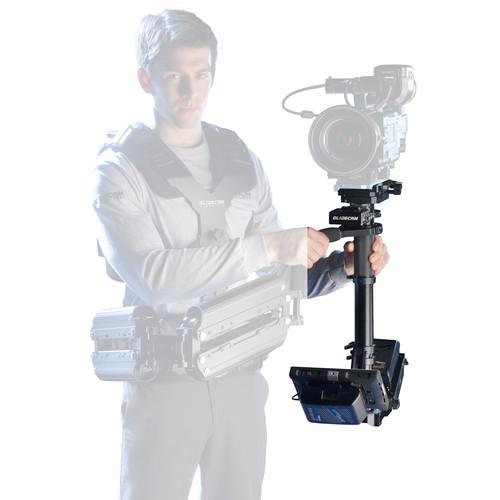

User Manual for Glidecam X-30 Sled with 7.7" HD Monitor Click to enlarge the picture
Contents of the user manual for the Glidecam X-30 Sled with 7.7" HD
- Product category: Stabilizer Systems Glidecam
- Brand: Glidecam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glidecam Stabilizer Systems
|
User manual for the Glidecam X-30 Sled with 7.7" HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glidecam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glidecam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glidecam product will considerably shorten its lifespan!
|
Product description The X-30 Sled for V-mount batteries, from Glidecam, is designed to hold cameras weighing up to 45 lb. The X-30 Sled incorporates engineering and precision machining, making it both lightweight and strong. It is comprised of the Camera Balance Platform, the 3-Axis Gimbal, the Dynamic Base Platform, and the Telescoping Center Post. It also includes a Glidecam 7.7" HD monitor, a custom battery plate, and a BNC cable.
The Camera Balance Platform incorporates a quick release, drop-in dovetail camera plate that allows you to quickly attach or remove your camera. Ergonomic, fine-tuning control knobs allow quick and precise adjustment of the Platform's front-to-back and side-to-side movement. These controls allow you to quickly adjust the system's horizontal balance.
The 3-Axis Gimbal incorporates several adjustable, axis convergence controls. This allows all three axes to intersect for proper operational alignment. By changing the location of the gimbal on the central post, you can quickly adjust the system's vertical balance. For improved operator control, a very tight knurling has been machined onto the gimbal tube.
The Dynamic Base Platform is designed to manually expand or contract. This allows you to easily adjust the system's dynamic balance, or to increase or decrease the system's rotational pan inertia. The X-30's Dynamic Base Platform can be set up with up to three V-mount batteries.
The X-30 has a lightweight and rigid, no-tools, 1.75" diameter Telescoping Center Post. This allows you to easily adjust the sled's length and the position of the LCD monitor and battery. In the Box Glidecam X-30 Sled with 7.7" HD Monitor (V-Mount) X-30 Camera Mounting Plate 3-Axis No-Tool Precision Gimbal Articulating Monitor Bracket Docking & Balancing Bracket HD Monitor (7.7") T-Handle Wrench Set (5/32" & 3/8") 2 x BNC Cable 2 x Power Cable Mounting Hardware Limited 1-Year Warranty aqvxtuqz Table of Contents
|
Upload User Manual
Have you got an user manual for the Glidecam X-30 Sled with 7.7" HD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlidecam X-30 Specs | Load Capacity | 45 lb / 20 kg | | Material of Construction | Aircraft aluminum | | Mounting Threads | 10 x 1/4"-20
10 x 3/8"-16 | | Tilt Range | 90° | | Connectors | 6 x Video
4 x Power | | Battery Mount | V-mount | | Dimensions | Diameter: 1.75" / 4.4 cm
Expansion Length: 15 to 27.5" / 38.1 to 69.9 cm | | Weight | 6 lb / 2.7 kg |
