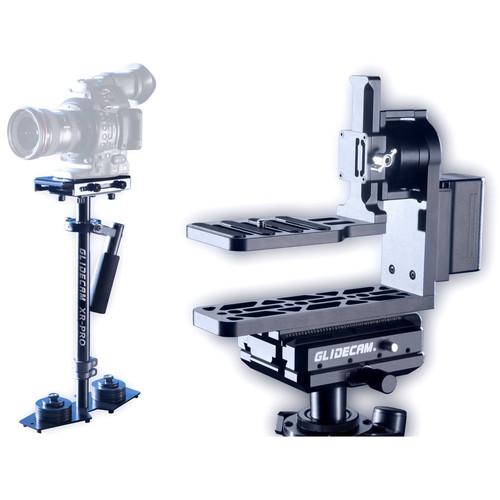

User Manual for Glidecam XR-PRO Handheld Stabilizer Kit with Tru-Horizon Gimbal Click to enlarge the picture
Contents of the user manual for the Glidecam XR-PRO Handheld Stabilizer Kit with
- Product category: Stabilizer Systems Glidecam
- Brand: Glidecam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glidecam Stabilizer Systems
|
User manual for the Glidecam XR-PRO Handheld Stabilizer Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glidecam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glidecam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glidecam product will considerably shorten its lifespan!
|
Product description The Glidecam XR-PRO Handheld Stabilizer Kit with Tru-Horizon from B&H combines motorized roll-axis stabilization with a handheld camera stabilizer. The detachable Tru-Horizon gimbal unit also enables you to glide your 1-5 lb camera from low-to-high or vice versa in one smooth move while keeping your camera level. - Glidecam XR-PRO Handheld Camera Stabilizer Capture smooth, steady footage with a variety of cameras up to 10 lb with the XR-PRO Handheld Camera Stabilizer from Glidecam. Featuring a three-axis gimbal and foam handgrip, this stabilizer will make it easy to capture professional-looking handheld footage. It has a dynamic camera balance platform and a toolless 14-25" telescopic center post for balancing most cameras and can easily be used for panning, tilting, booming, or running. The plate has 1/4"-20 and 3/8"-16 threads for working with a variety of cameras and the base platform has a 1/4"-20 thread for connecting an additional accessory, such as a monitor. Additionally, the aluminum stabilizer comes with an assortment of counter weights to ensure a perfect balance. UPC: 674330112155
- Glidecam Tru-Horizon The Glidecam Tru-Horizon is a motorized gimbal designed to attach to handheld stabilizers, such as the Glidecam Devin Graham Signature Series or a Steadicam, and to keep the camera horizontal no matter how you move the stabilizer.
The Tru-Horizon controls your camera's roll axis. For example, swing the stabilizer to the left or right and the camera will maintain its horizontal position throughout all the motion. You can move the camera from low mode to high mode and back in a single fluid, cinematic shot while keeping it level horizontally. You can even rotate the stabilizer a full 360°, and the camera will keep its position the entire time. A built-in slip-ring allows 360° rotations of the motor without twisting wires.
The Tru-Horizon's motor works with position feedback, encoders, and an IMU sensor to communicate with a custom 32-bit controller. Combining the accuracy of the sensor with the speed of the controller provides for stable video in all three axes with .02° of accuracy. - Key Features
-
- Motorized gimbal designed to attach to handheld stabilizers, such as the Glidecam Devin Graham Signature Series or a Steadicam
- Keeps the camera horizontal no matter how you move the stabilizer
- Move the camera from low mode to high mode while keeping it level horizontally
- Supports 1-5 lb cameras
- Battery operated
UPC: 674330315174 In the Box - XR-PRO Handheld Camera Stabilizer
- Central Post
- Head Plate
- Mid Plate
- Bottom Plate
- Base Platform
- Telescoping Post
- Hardware Set and Bag
- 14 x Large Counter Weight Disc
- 4 x Small Counter Weight Disc
- 4 x Large Camera Platform Weight Plate
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Glidecam XR-PRO Handheld Stabilizer Kit with Tru-Horizon Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Glidecam XR-PRO Handheld Camera Stabilizer
| Stabilizer Type | Single-Grip Handheld | | Load Capacity | 10 lb / 4.5 kg | | Camera Mount | 1/4"-20 Thread, 3/8"-16 Thread | | Additional Mount | 1/4"-20 Thread | | Height | 14 to 25" / 35.6 to 63.5 cm | | Center Column Diameter | 1" / 2.5 cm | | Weight | 33.6 oz / 953.0 g | | Counterweights | 14 x 33.1 oz / 939 g
4 x 4 oz / 113 g
4 x 26.4 oz / 748 g | | Material of Construction | Aluminum | | Camera Platform Dimensions | 6.0 x 3.5 x 0.8" / 15.2 x 8.9 x 1.9 cm | | Base Platform Dimensions | 10.0 x 4.0" / 25.4 x 10.2 cm | | | | Box Dimensions (LxWxH) | 18.2 x 8.9 x 4.0" | - Glidecam Tru-Horizon
| | | Number of Axes | 3-Axis | | Load Capacity | 1 to 5 lb / 0.45 to 2.25 kg | | Stabilization Accuracy |
