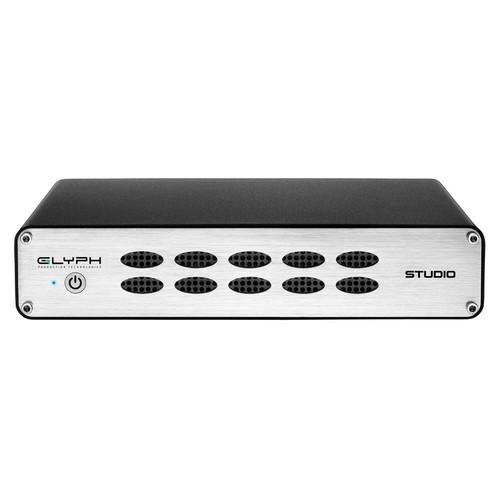

User Manual for Glyph Technologies 10TB Studio 7200 rpm USB 3.0 External Hard Drive Click to enlarge the picture
Contents of the user manual for the Glyph Technologies 10TB Studio 7200 rpm
- Product category: External Drives Glyph Technologies
- Brand: Glyph Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glyph Technologies External Drives
|
User manual for the Glyph Technologies 10TB Studio 7200 rpm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glyph Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glyph Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glyph Technologies product will considerably shorten its lifespan!
|
Product description NAB 2019: G-Tech, SanDisk, and WD Show Off Latest Storage Solutions Read More Designed as production-grade media, the 10TB Studio 7200 rpm USB 3.0 External Hard Drive from Glyph Technologies features a hard drive that spins at 7200 rpm and has a capacity of 10TB for storing data such as videos, images, music, and more. The Studio has one USB 3.0 Type-B port, one eSATA port, and two FireWire 800 ports to connect to either Windows or Mac systems. Using either one of these connections, you can expect data transfer rates of up to 184 MB/s to access your content. Glyph Technologies also supports content creation products such as AVID, Pro Tools, Logic, Nuendo, Cubase, DP, Adobe CC, and more. Included with the Studio is a USB 3.0 cable, a FireWire 800 cable, and an IEC power cable. Protection is provided by a limited 1-year advance replacement warranty, a limited 2-year level 1 data recovery warranty, and a limited 3-year hardware warranty. General Features - Front Panel LED
- The Studio's front panel has a single bi-color LED. The LED will display solid blue when power is on and will flash blue when there is disk activity. The LED will display red if there is a hard drive failure.
- Power Switch
- The power switch must be held for three seconds to power off the Studio. After three seconds the LED will turn off, and releasing the button will power off the unit. This is a safety precaution against unintended power off.
- Internal Power Supply
- Glyph uses efficient, high-quality power supplies, selected specifically for the demands of production environments. The Studio has an auto-switching universal power supply. Its input voltage can range from 100-240V at 50/60 Hz, allowing the Studio to be safely used overseas.
- Disk Health Monitoring
- Each hard drive is continually monitored for temperature changes and if the drive is deteriorating, you can replace it before it fails.
- Internal Temperature-Controlled Fan
- The Studio has an internal temperature-controlled fan. Software inside the Studio sets the fan's rpm to either high or low speeds.
- Rack Mounting
- The Studio can be rack mounted in a standard 19" rack with Glyph's optional rack kits. There is a single kit for mounting one drive, and a dual kit for mounting two Studio drives.
- Content Creation Applications
- Qualified with major audio production packages that support FireWire storage, including Digidesign ProTools, Steinberg Nuendo and Cubase, Apple Logic, MOTU Digital Performer, Cakewalk Sonar, Sony Vegas, and more.
- Warranty with Data Recovery and Replacement
- Glyph Technologies offers you a limited 3-year warranty, but offers different services during the first, second, and third year. During the first year's advance replacement warranty, Glyph Technologies will send you another Studio before they receive the defective model. For up to 2 years, they will provide data recovery, and hardware is covered up to 3 years.
UPC: 691450002982 In the Box Glyph Technologies 10TB Studio 7200 rpm USB 3.0 External Hard Drive USB 3.0 Cable FireWire 800 Cable (9-pin) IEC Power Cable Limited 1-Year Advanced Replacement Warranty Limited 2-Year Level 1 Data Recovery Warranty Limited 3-Year Warranty User Manual PDF 6.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Glyph Technologies 10TB Studio 7200 rpm USB 3.0 External Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlyph Technologies S10000 Specs | Storage Capacity | 10 TB | | Connection Interface | 1 x USB 3.1 Gen 1 (USB Type-B)
1 x SATA II (eSATA)
2 x FireWire 800 (9-Pin FireWire) | | Maximum Read Speed | 184 MB/s | | Maximum Write Speed | 184 MB/s | | Pre-Format | HFS+ | | | | Internal Interface | SATA (Unspecified) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Material | Steel | | Cooling System | Fan | | Dimensions (L x W x H) | 8.6 x 6.5 x 1.7" / 21.8 x 16.5 x 4.3 cm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 11.0 x 10.2 x 2.4" |
