User Manual for Glyph Technologies 500GB Studio mini 7200 rpm USB 3.1 Gen 1 External Hard Drive Click to enlarge the picture
Contents of the user manual for the Glyph Technologies 500GB Studio mini 7200
- Product category: External Drives Glyph Technologies
- Brand: Glyph Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glyph Technologies External Drives
 |
User manual for the Glyph Technologies 500GB Studio mini 7200 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glyph Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glyph Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glyph Technologies product will considerably shorten its lifespan!
|

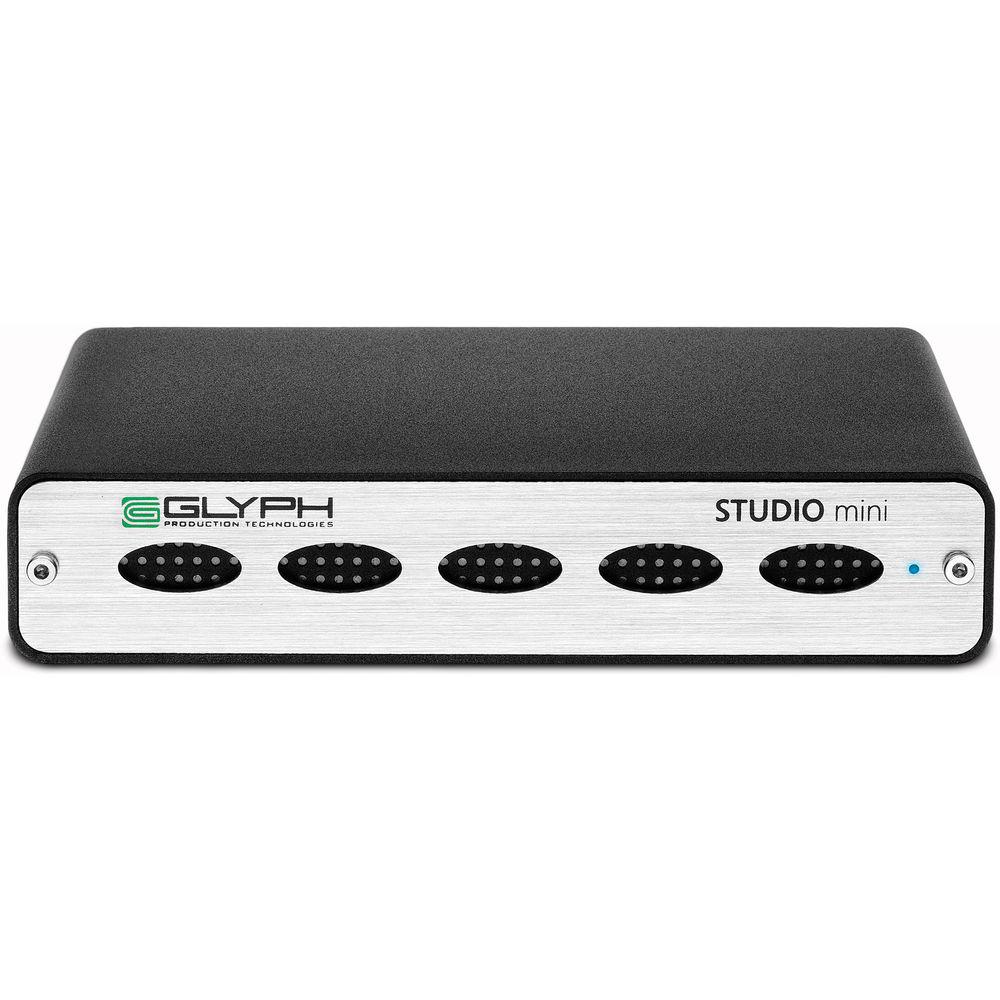

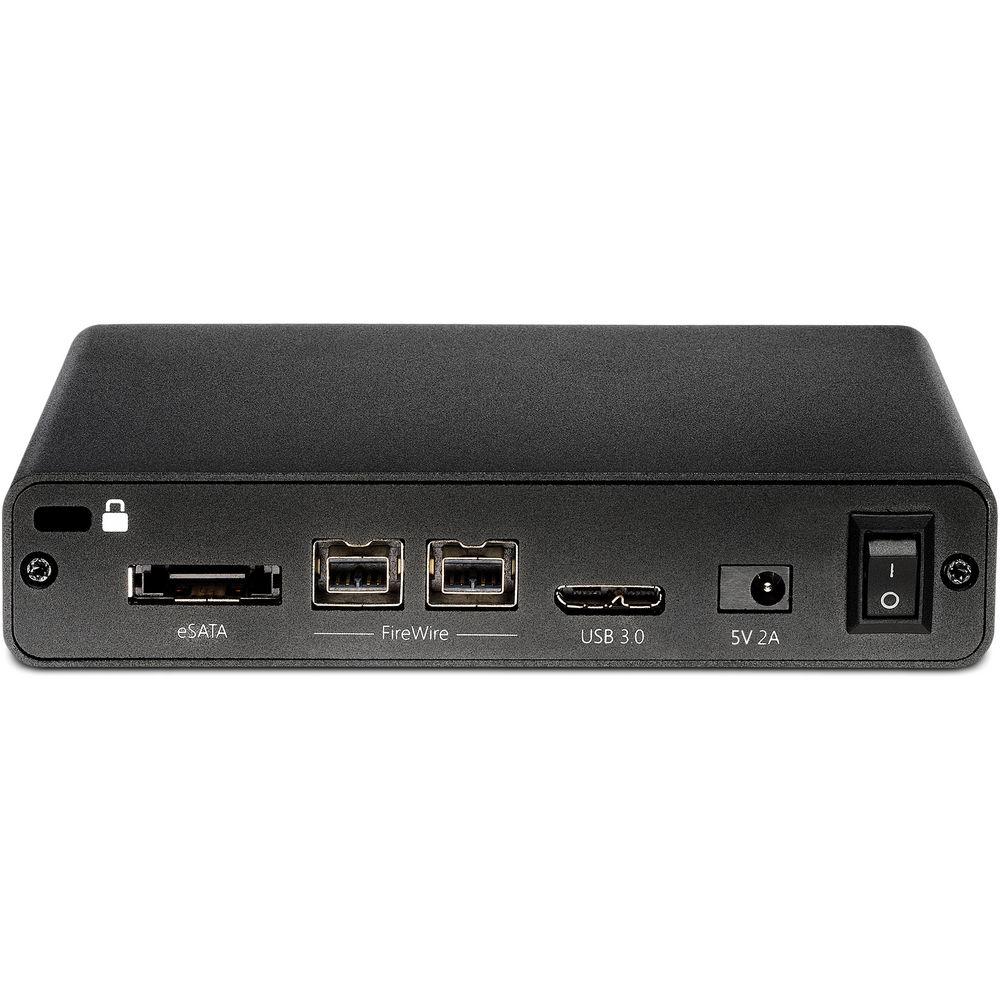

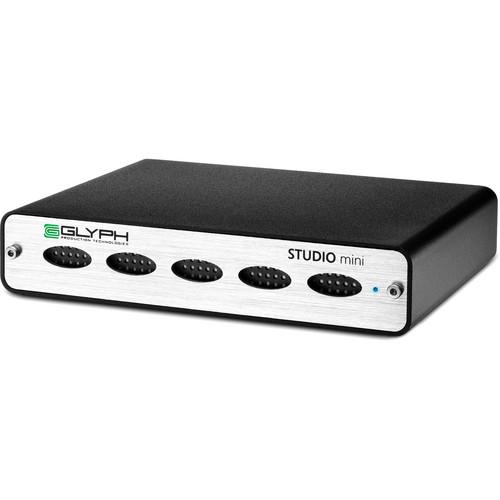

Product description The 500GB Studio mini 7200 rpm USB 3.0 External Hard Drive from Glyph Technologies is small enough to fit in your pocket, yet powerful enough to support high track-count audio sessions with data transfer speeds of up to 140 MB/s. It can also save a variety of files including movies, video, music, photos, and more with its 500GB capacity. With a 7200 rpm rotational speed, data can be transferred to and from the drive quickly and efficiently to greatly enhance workflows. Accompanying the enhanced data transfer capabilities, the Studio mini comes with a plethora of connection options including one micro-USB 3.0 port, two FireWire 800 ports, and one eSATA port, making it easy to connect it to nearly any computer configuration. To eliminate the need for an additional power adapter, both the micro-USB 3.0 and FireWire 800 ports support bus power, drawing the necessary power directly from the port, although a dedicated power supply is available as a separate purchase. The Studio mini comes preformatted HFS+ for Mac, but can easily be reformatted for Windows or Linux. Included is a micro-USB 3.0/2.0 cable and a FireWire 800 cable. Protection is provided by a limited 1-year advanced replacement warranty, a limited 2-year level 1 data recovery warranty, and a limited 3-year hardware warranty. General Features - Time Machine Compatible
- The Glyph Studio mini comes preformatted HFS+ with Journaling for Mac and is Time Machine compatible out of the box. A simple reformat is all it takes for the Studio mini to work with Windows systems.
- Bus Power
- While the Studio mini may be powered using its micro-USB 3.0 or FireWire 800 ports, an external power supply is available as an optional purchase. The Studio mini may not be powered using the eSATA port.
- Front Panel LED
- The Studio mini front panel has a bi-color LED. The LED will display solid blue when power is on and it will flash blue when there is disk activity. The LED will flash or display a solid red color when error conditions exits with the drive or enclosure. Any error that results in the system state "Halted" generates a solid red LED on the front panel of the drive. All other errors result in the blinking red LED.
UPC: 691450001695 In the Box Glyph Technologies 500GB Studio mini 7200 rpm USB 3.1 Gen 1 External Hard Drive USB 3.0/2.0 Micro-B Cable FireWire 800 Cable (9-pin to 9-pin) Limited 1-Year Advanced Replacement Warranty Limited 2-Year Level 1 Data Recovery Warranty Limited 3-Year Warranty User Manual PDF 427.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Glyph Technologies 500GB Studio mini 7200 rpm USB 3.1 Gen 1 External Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlyph Technologies SM500 Specs | Storage Capacity | 500 GB | | Connection Interface | 1 x USB 3.1 Gen 1 (USB Micro-B)
1 x SATA III (eSATA)
2 x FireWire 800 (9-Pin FireWire) | | Maximum Read Speed | 140 MB/s | | Maximum Write Speed | 140 MB/s | | Pre-Format | HFS+ | | | | Internal Interface | SATA (Unspecified) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | | | Bus Power | FireWire, USB | | Material | Aluminum | | Cooling System | Passive | | Dimensions (L x W x H) | 1.0 x 4.9 x 3.6" / 25.4 x 124.5 x 91.4 mm | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.1 x 4.7 x 3.7" |
