User Manual for Glyph Technologies StudioRAID 4TB 2-Bay USB 3.1 Gen 1 RAID Array Click to enlarge the picture
Contents of the user manual for the Glyph Technologies StudioRAID 4TB 2-Bay USB
- Product category: Hard Drive Arrays Glyph Technologies
- Brand: Glyph Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glyph Technologies Hard Drive Arrays
|
User manual for the Glyph Technologies StudioRAID 4TB 2-Bay USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glyph Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glyph Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glyph Technologies product will considerably shorten its lifespan!
|

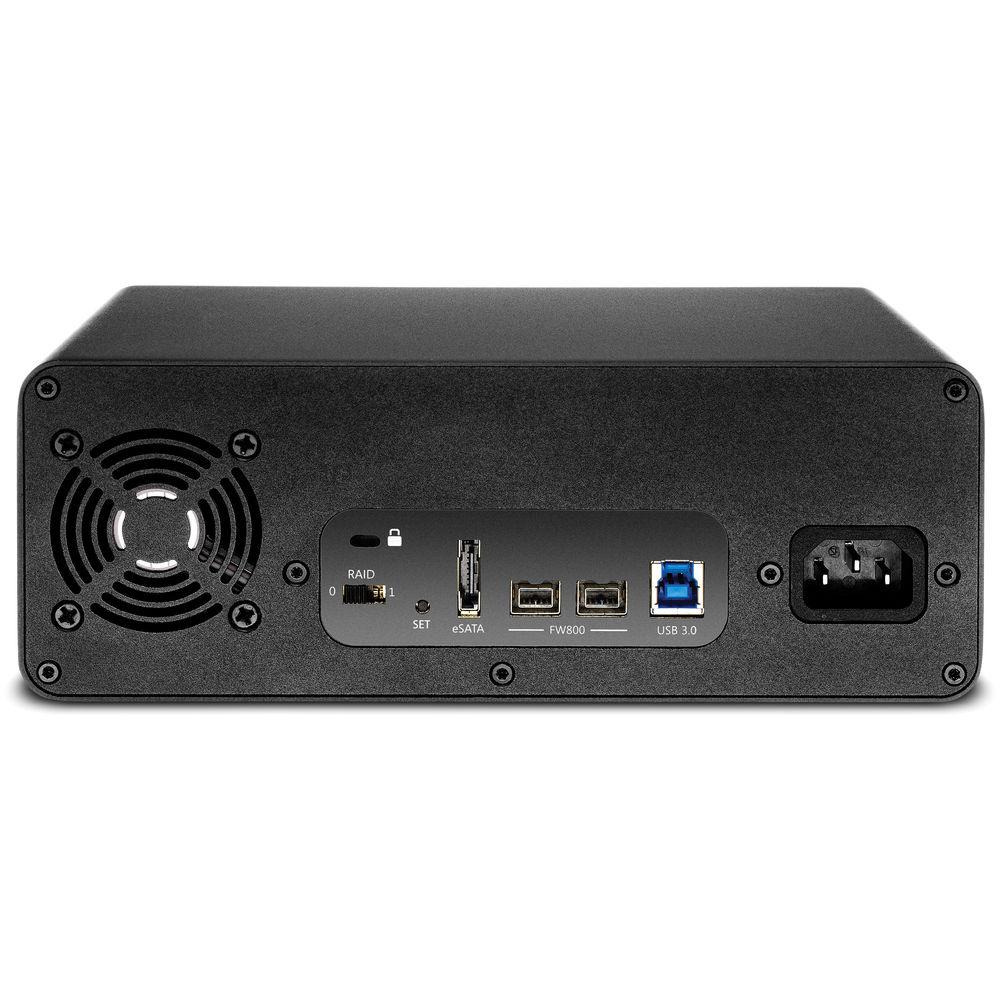

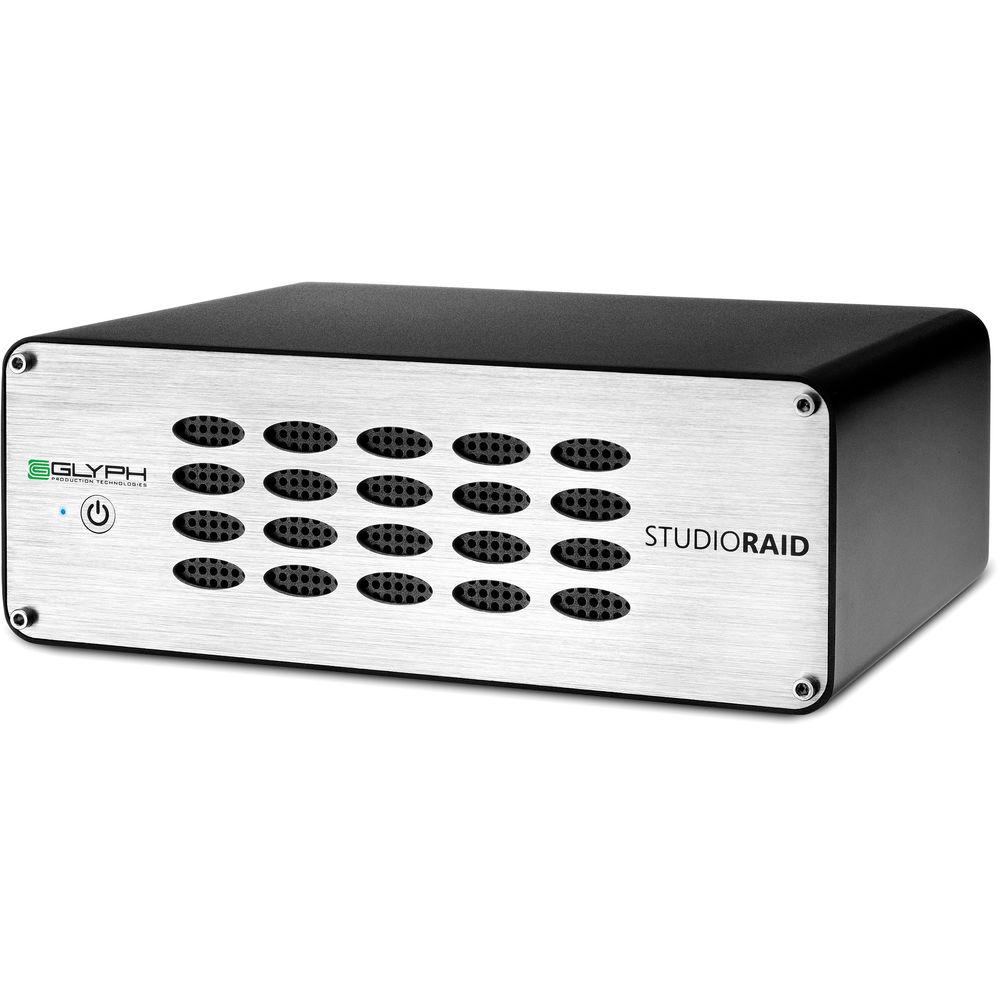

Product description RAID Arrays for Photography and Pro Video Read More Designed with the ability to edit and playback multiple audio and HD video streams, the StudioRAID 4TB 2-Bay USB 3.0 RAID Array (2 x 2TB) from Glyph Technologies is a production-grade external RAID array that connects to your host system using its one micro-USB 3.0 port, two FireWire 800 ports, or one eSATA port at speeds up to 360 MB/s. The StudioRAID is equipped with two 3.5" drive bays and a total capacity of 4TB, which is configured as 2 x 2TB 7200 rpm hard drives. To help facilitate its functionality within a production environment, the StudioRAID comes pre-configured as a RAID 0, which helps enhance performance by spreading data across two drives and is also compatible with RAID 1, which offers data redundancy. For those who do not require a RAID, JBOD and SPAN are also supported. This array is powered by an internal international auto-switching power supply that operates at 100-240 VAC at 50/60 Hz, is cooled with an intelligent quiet fan, uses disk health monitoring, and is constructed from a scratch-resistant black powder-coated aluminum chassis with a brushed stainless steel face plate. While the StudioRAID comes pre-formatted for HFS+ Journaled for Mac, it may also be used with Windows, Linux, Unix, and BSD after a simple reformat. Included is a micro-USB 3.0 cable, a FireWire 800 cable, and a power cable. It is protected by hardware, data recovery, and advance replacement warranties. General Features - Achieve Speeds up to 360 MB/s
- The StudioRAID is a reliable hardware RAID array with USB 3.0, FireWire 800, and eSATA connectivity, supporting RAID 0, 1, JBOD, and SPAN modes. A temperature-controlled intelligent fan complements its auto-sensing power supply for a combination of speed and reliability
- RAID 0 and RAID 1
- RAID 0 (striping) increases the performance of the drive system by spreading the data across two drives. RAID 0 is designed for editing video, working with huge graphics files, sound libraries, and streaming instruments that play hundreds of samples simultaneously. RAID 0 is the default shipping drive mode.
RAID 1 offers data redundancy and real-time backup by writing the same data to the two hard drives at the same time. Should a drive failure happen, data is still available on the remaining drive - Time Machine Compatible
- The Glyph StudioRAID comes pre-formatted as HFS+ with Journaling and is Time Machine compatible out of the box. A simple reformat is all it takes for the StudioRAID to work with Windows systems
- Smart, Quiet, & Efficient Cooling

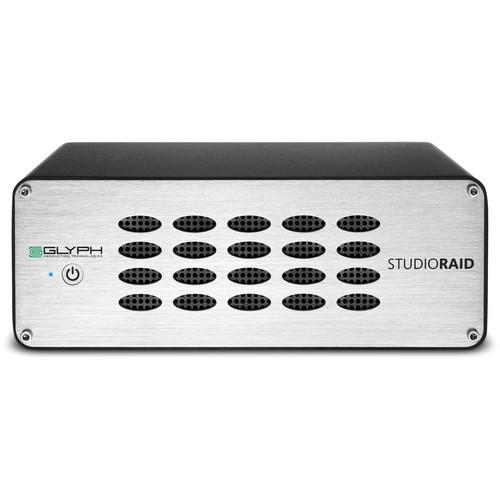

- The StudioRAID uses a temperature-controlled fan that helps keep it quiet while still offering proper cooling. The case is designed with front-panel ventilation holes to draw cool air in, while exhausting warm air out the back
- Universal & Auto-Sensing Internal Power
- External power adapters are easily misplaced, accidentally unplugged, and take up valuable outlet space. The StudioRAID uses an industry-standard power cord and a pro-quality internal power supply for efficient and reliable power. The StudioRAID will also sense when you connect over USB or FireWire, and automatically power on
- Disk Health Monitoring
- The StudioRAID includes disk monitoring features designed to keep your data safe. Should your drive begin to exhibit behavior indicating an imminent drive failure, the multi-function LED will alert you via a red light. Additionally, to safeguard against accidentally powering off your StudioRAID, the intelligent power switch must be held for 3 seconds to power off the drive
- Rackmount Kit Available
- The GPT Rackmount Kit transforms your StudioRAID into a rackmount hard drive. The rackmount kit accessory is capable of mounting one or two Studio-series drives
- Content Creation Applications
- Final Cut Pro
Avid Media Composer Adobe Premiere Digidesign Pro Tools Steinberg Nuendo and Cubase Apple Logic MOTU Digital Performer Cakewalk Sonar Sony Vegas UPC: 691450001657 In the Box Glyph Technologies StudioRAID 4TB 2-Bay USB 3.1 Gen 1 RAID Array (2 x 2TB) USB 3.0 Micro-B Cable FireWire 800 Cable IEC Power Cable Limited 1-Year Warranty Limited 2-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Glyph Technologies StudioRAID 4TB 2-Bay USB 3.1 Gen 1 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlyph Technologies SR4000 Specs | Number of Bays | 2 x 3.5" | Connections | 1 x eSATA (SATA II (3 Gb/s)) 2 x 9-Pin FireWire (FireWire 800) 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | Form Factor | Desktop | Maximum RAID Transfer Rate | 360 MB/s | RAID Modes | RAID 0, 1, JBOD, SPAN | OS Compatibility | Windows XP or Later macOS 10.4 or Later Linux | | Total Raw Capacity | 4 TB (2 x 2 TB) | Type | Hard Disk Drive | Rotational Speed | 7200 rpm | Initial RAID Configuration | None | Pre-Format | HFS+ | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Cooling | 1 x Fan | Dimensions (W x H x D) | 8.6 x 6.5 x 3.1" / 218.4 x 165.1 x 80.0 mm | Weight | 8.0 lb / 3.6 kg | | Package Weight | 8.9 lb | Box Dimensions (LxWxH) | 11.7 x 11.4 x 6.1" |
