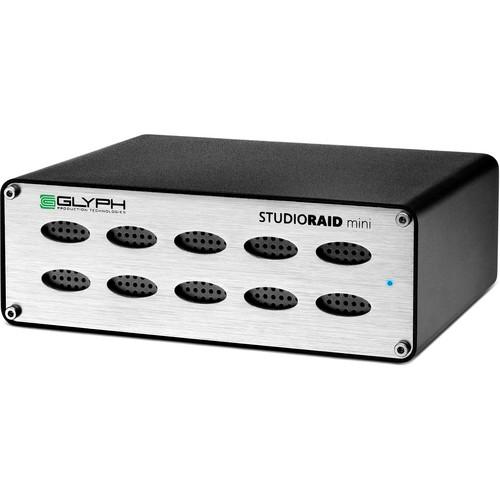

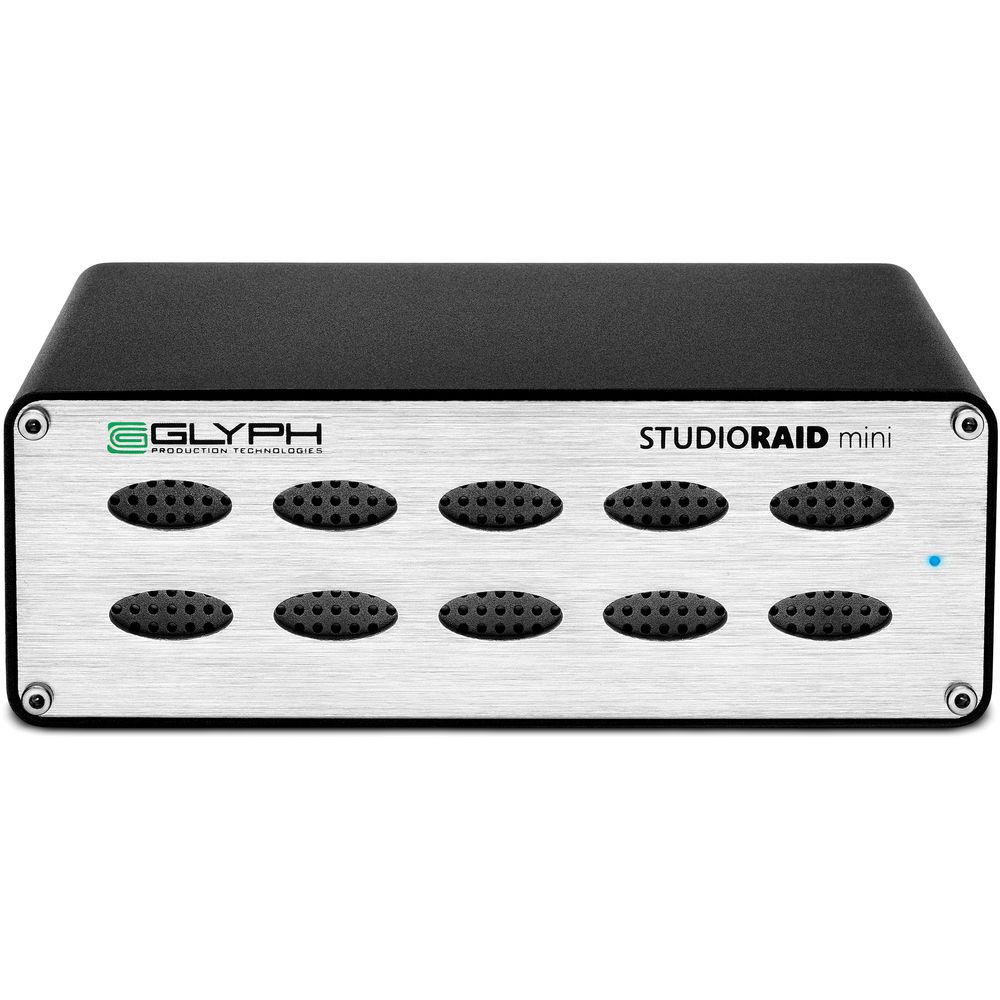

User Manual for Glyph Technologies StudioRAID mini 4TB 2-Bay USB 3.0 RAID Array Click to enlarge the picture
Contents of the user manual for the Glyph Technologies StudioRAID mini 4TB 2-Bay
- Product category: Hard Drive Arrays Glyph Technologies
- Brand: Glyph Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glyph Technologies Hard Drive Arrays
 |
User manual for the Glyph Technologies StudioRAID mini 4TB 2-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glyph Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glyph Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glyph Technologies product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More Record music, edit video, or work with files while staying mobile using the StudioRAID mini 4TB 2-Bay USB 3.0 RAID Array (2 x 2TB HDD) from Glyph Technologies. Pre-configured as HFS+ for Mac but also compatible with Windows via a simple reformat, this array connects to your system using its one micro-USB 3.0 port, two FireWire 800 ports, or one eSATA port with data transfer speeds up to 250 MB/s. The StudioRAID mini is equipped with two 2.5" SATA drive bays and a total capacity of 4TB, which is configured as 2 x 2TB 5400 rpm hard drives.
To help facilitate its functionality within a production environment, the StudioRAID comes pre-configured as a RAID 0, which helps enhance performance by spreading data across two drives and is also compatible with RAID 1, which offers data redundancy. Cooling is accomplished using a temperature-controlled quiet fan and while this RAID array is bus-powered via its FireWire 800 port, an international AC adapter, compatible with US, UK, and EU power sockets, is included. Also included is a USB 3.0 cable and a FireWire cable. The StudioRAID mini is protected by hardware, data recovery, and overnight replacement warranties. General Features - Mobile RAID
- The StudioRAID mini supports RAID 0 and RAID 1 modes using a hardware controller that can be configured using a switch on the back of the array, as well as fast transfer rates over USB 3.0, FireWire 800, and eSATA. It is bus-power-capable so you can work almost anywhere and with intelligent fan cooling and automatic health monitoring, you'll spend more time creating and less time worrying.
RAID 0 is an operating mode designed for fast transfer rates by striping the data across two drives, while RAID 1 is used for redundancy, as it instantly and automatically mirrors your data - Four Times Faster than FireWire
- With transfer speeds up to 250 MB/s, the StudioRAID mini offers USB 3.0 performance. This means faster editing, quick rendering, more tracks, more samples, and a more efficient workflow
- Disk Health Monitoring
- Custom sensors monitor the health of your StudioRAID mini, warning you of activity patterns that indicate potential problems with your drive. An LED on the front panel will display solid blue when power is on and flash blue when there is disk activity. The LED will flash or display a solid red color when error conditions exits with the drive or enclosure. Any error that results in the system state "Halted" generates a solid red LED on the front panel of the drive. All other errors result in the blinking red LED.
- Intelligent Fan Cooling
- The StudioRAID mini uses a temperature-controlled quiet fan for maximum airflow and proper cooling. The enclosure has been designed with front-panel ventilation to draw cool air in, while exhausting warm air out the back. This helps to ensure the performance and reliability of critical components
- Content Creation Applications
- Qualified with Final Cut Pro, Avid Media Composer, Adobe Premiere, and major audio production packages that support FireWire storage, including Digidesign Pro Tools, Steinberg Nuendo and Cubase, Apple Logic, MOTU Digital Performer, Cakewalk Sonar, Sony Vegas, and more.
- Plug-and-Play
- The StudioRAID mini comes ready for use with Mac so you can plug in and begin storing your files immediately. It's also Time Machine compatible and can be used to back up your files. If you're a Windows user, a simple reformat will configure your StudioRAID mini for use with a PC
UPC: 691450001749 In the Box Glyph Technologies StudioRAID mini 4TB 2-Bay USB 3.0 RAID Array (2 x 2TB HDD) Micro-USB 3.0 Cable FireWire 800 Cable (9-pin to 9-pin) AC Power Adapter Limited 1-Year Advanced Replacement (Continental USA Only) Limited 2-Year Warranty Limited 3-Year Warranty User Manual PDF 411.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Glyph Technologies StudioRAID mini 4TB 2-Bay USB 3.0 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

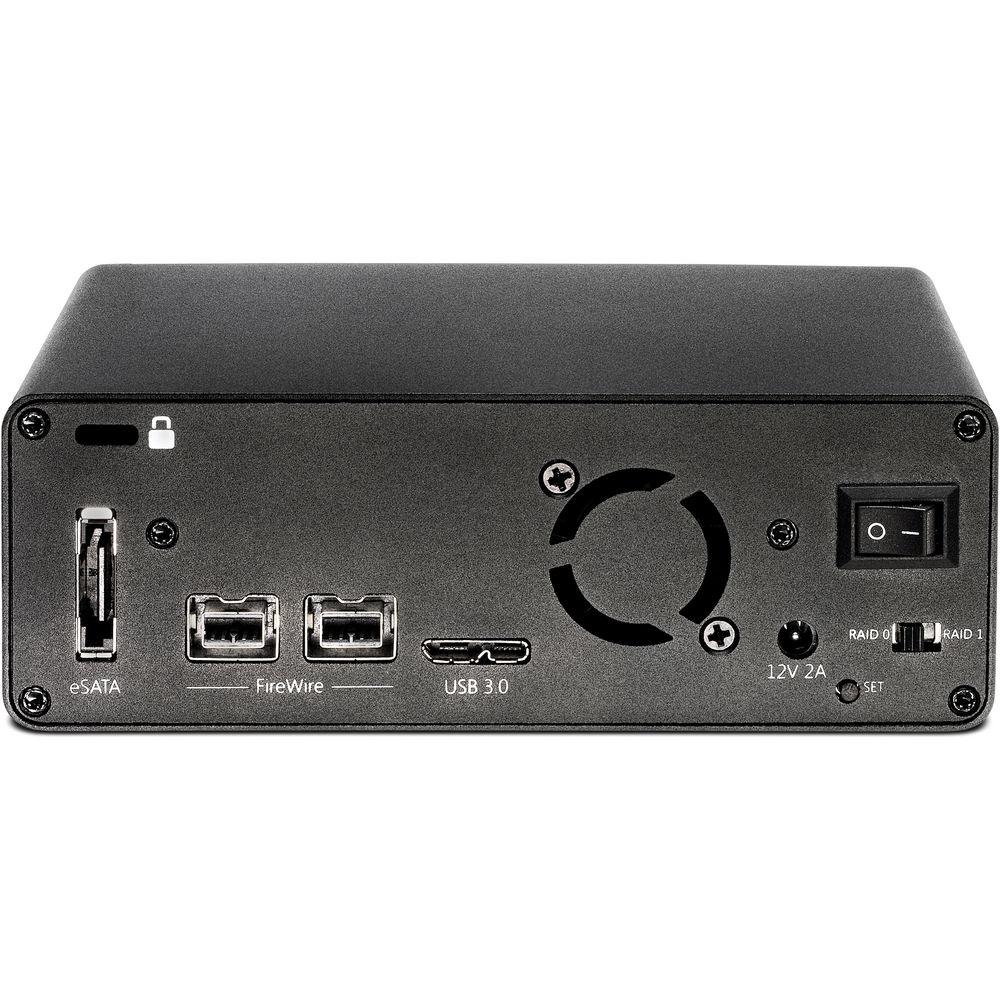

Technical parametersGlyph Technologies SRM4000B Specs | | | Number of Bays | 2 x 2.5" | | Connections | 1 x USB Micro-B (USB 3.1 Gen 1 (5 Gb/s))
2 x 9-Pin FireWire (FireWire 800)
1 x eSATA (SATA III (6 Gb/s)) | | Form Factor | Desktop | | RAID Modes | RAID 0, 1 | | OS Compatibility | Windows 2000 or Later
macOS 10.4 or Later | | | | Total Raw Capacity | 4 TB (2 x 2 TB) | | Type | Hard Disk Drive | | Rotational Speed | 5400 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | AC Adapter, FireWire | | | | Dimensions (W x H x D) | 1.7 x 4.8 x 3.6" / 43.2 x 121.9 x 91.4 mm | | Weight | 1.2 lb / 0.5 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 7.5 x 5.3 x 4.8" |
