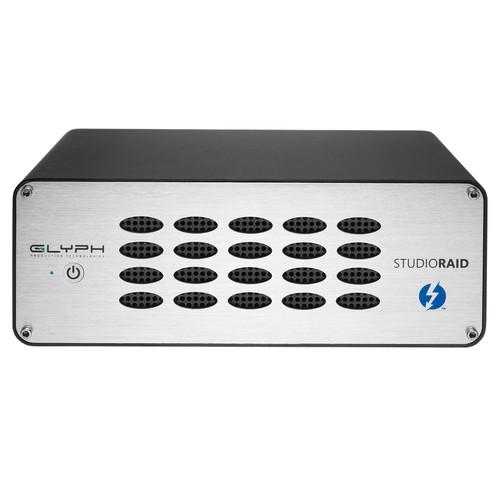

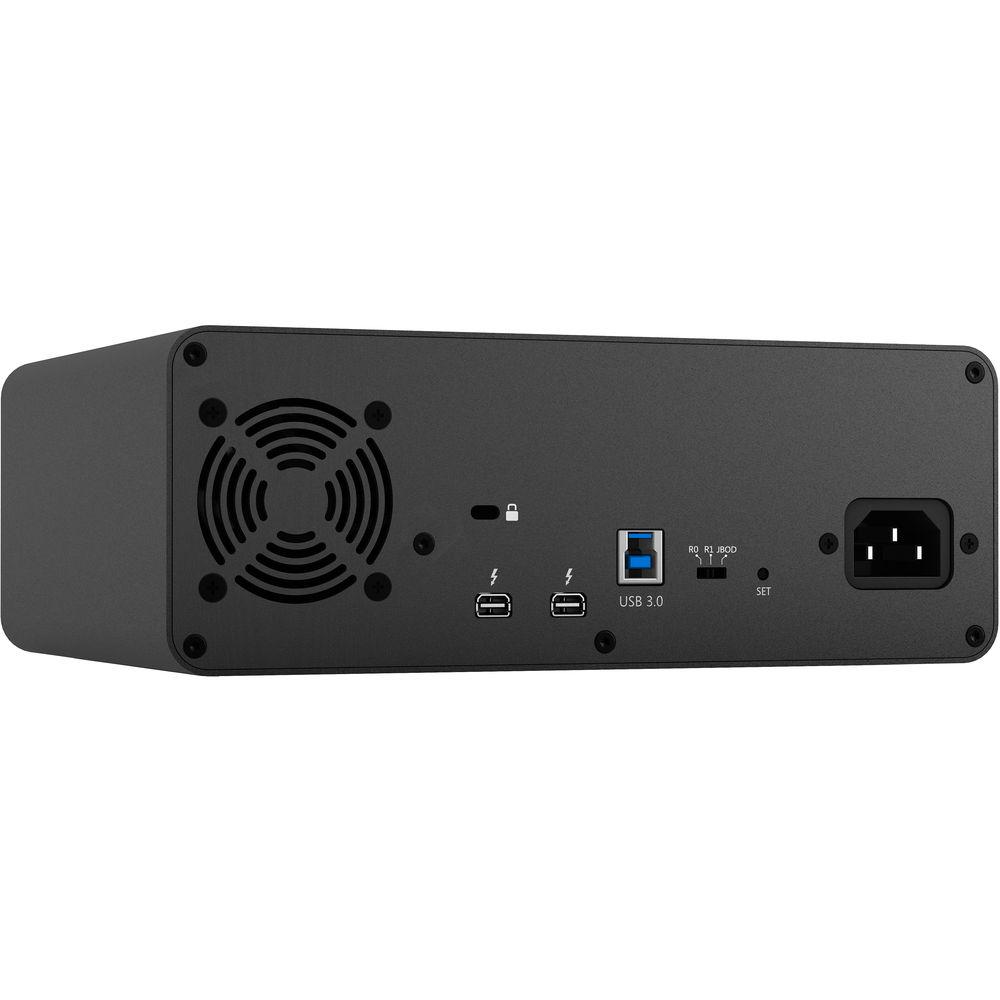

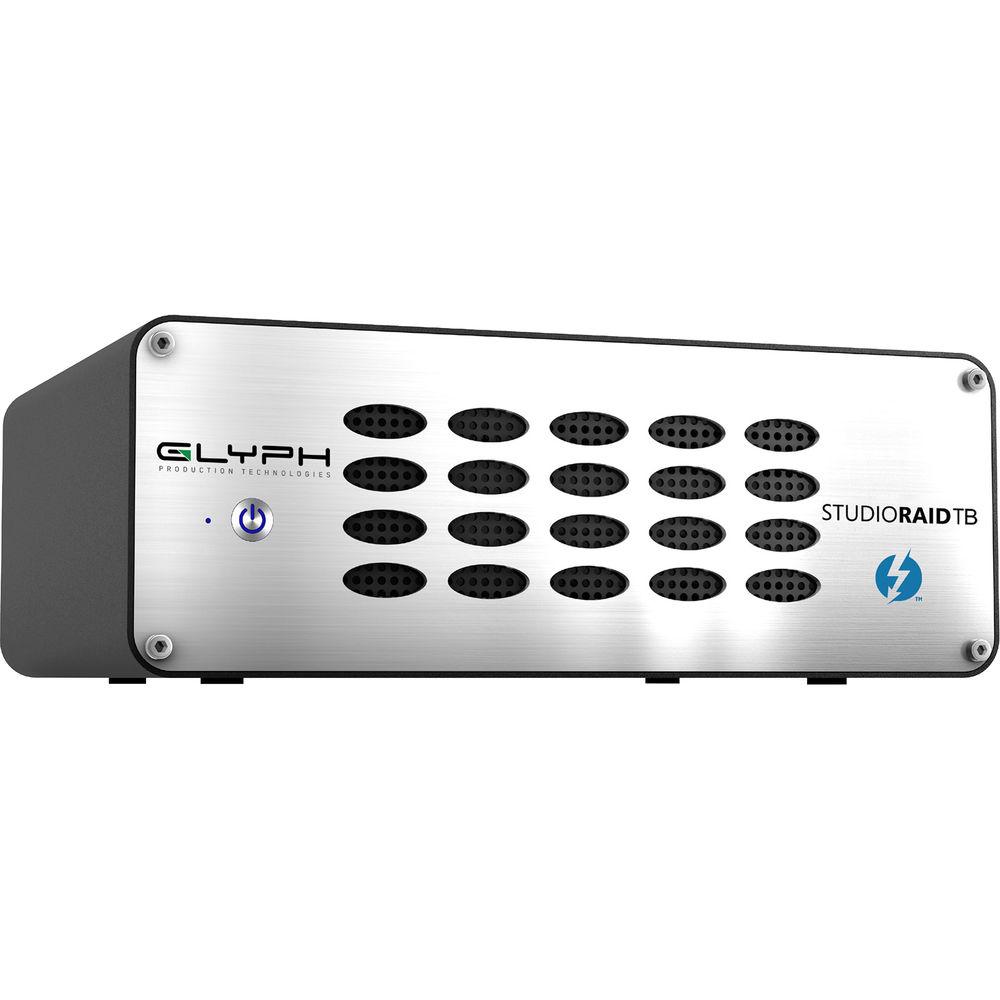

Product description RAID Arrays for Photography and Pro Video Read More Designed with the ability to edit and playback multiple HD video streams, as well as access digital libraries the StudioRAID TB 6TB 2-Bay Thunderbolt 2 RAID Array (2 x 3TB) from Glyph Technologies is a production-grade external hardware controlled RAID array that connects to your Windows or Mac system using its its two Thunderbolt 2 ports or one USB 3.0 Type-B port at speeds up to 360 MB/s. While one of the Thunderbolt 2 ports is used to connect this RAID to your host system, the other may be used for daisy-chaining additional Thunderbolt-compatible peripherals.
The StudioRAID TB is equipped with two 3.5" drive bays and a total capacity of 6TB, which is configured as 2 x 3TB 7200 rpm hard drives. To help facilitate its functionality within a production environment, the StudioRAID comes pre-configured as a RAID 0, which helps enhance performance by spreading data across two drives and is also compatible with RAID 1, which offers data redundancy. For those who do not require a RAID, JBOD and SPAN modes are also supported. This array is powered by an internal international auto-switching power supply that operates at 100-240 VAC at 50/60 Hz, is cooled with an intelligent quiet fan, uses disk health monitoring, and is constructed from an all-metal enclosure. While the StudioRAID TB comes pre-formatted as HFS+ Journaled for Mac, it may also be used with Windows after a simple reformat. Included is a Thunderbolt 2 cable, USB 3.0 cable, and an IEC power cable. It is protected by hardware, data recovery, and advanced replacement warranties. General Features - Achieve Speeds up to 360 MB/s
- The StudioRAID TB is a reliable hardware RAID array with Thunderbolt 2 and USB 3.0 (backwards compatible with USB 2.0) connectivity, supporting RAID 0, 1, JBOD, and SPAN modes. A temperature-controlled intelligent fan complements its auto-sensing power supply for a combination of speed and reliability.
- RAID 0 and RAID 1
- RAID 0 (striping) increases the performance of the drive system by spreading the data across two drives. RAID 0 is designed for editing video, working with huge graphics files, sound libraries, and streaming instruments that play hundreds of samples simultaneously. RAID 0 is the default shipping drive mode.
RAID 1 offers data redundancy and real-time backup by writing the same data to the two hard drives at the same time. Should a drive failure happen, data is still available on the remaining drive. - Time Machine Compatible
- The Glyph StudioRAID TB comes pre-formatted as HFS+ with Journaling and is Time Machine compatible out of the box. A simple reformat is all it takes for the StudioRAID TB to work with Windows systems.
- Smart, Quiet, & Efficient Cooling
- The StudioRAID TB uses a temperature-controlled fan that helps keep it quiet while still offering proper cooling. The case is designed with front-panel ventilation holes to draw cool air in, while exhausting warm air out the back.
- Universal & Auto-Sensing Internal Power
- External power adapters are easily misplaced, accidentally unplugged, and take up valuable outlet space. The StudioRAID TBuses an industry-standard power cord and a pro-quality internal power supply for efficient and reliable power. The StudioRAID TB will also sense when you connect over USB or Thunderbolt, and automatically power on.
- Disk Health Monitoring
- The StudioRAID TB includes disk monitoring features designed to keep your data safe. Should your drive begin to exhibit behavior indicating an imminent drive failure, the multi-function LED will alert you via a red light. Additionally, to safeguard against accidentally powering off your StudioRAID TB, the intelligent power switch must be held for 3 seconds to power off the drive.
- Rackmount Kit Available
- The GPT Rackmount Kit transforms your StudioRAID TB into a rackmount hard drive. The rackmount kit accessory is capable of mounting one or two Studio-series drives.
UPC: 691450002241 In the Box Glyph Technologies StudioRAID TB 6TB 2-Bay Thunderbolt 2 RAID Array (2 x 3TB) 1 x Thunderbolt 2 Cable 1 x USB 3.0 Cable IEC Power Cable Limited 3-Year Warranty Limited 2-Year Level 1 Data Recovery Limited 1-Year Advanced Replacement Table of Contents
|
Upload User Manual
Have you got an user manual for the Glyph Technologies StudioRAID TB 6TB 2-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlyph Technologies SRTB6000 Specs | | | Number of Bays | 2 x 3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s))
1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 360 MB/s | | RAID Modes | RAID 0, 1, JBOD | | OS Compatibility | macOS 10.4 or Later
Windows 7 or Later | | | | Total Raw Capacity | 6 TB (2 x 3 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | HFS+ | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Cooling | 1 x Fan | | Dimensions (W x H x D) | 8.6 x 6.5 x 3.1" / 218.4 x 165.1 x 80.0 mm | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 11.8 x 11.1 x 3.8" |
