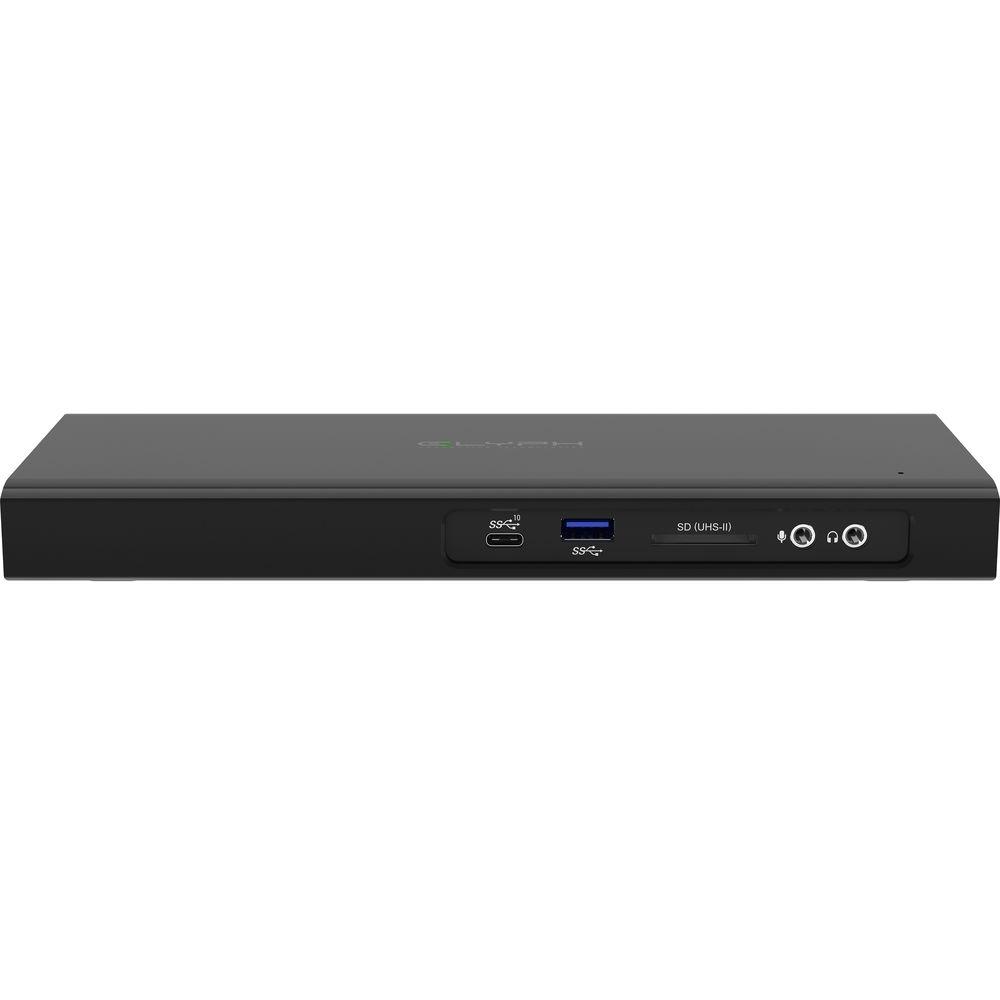

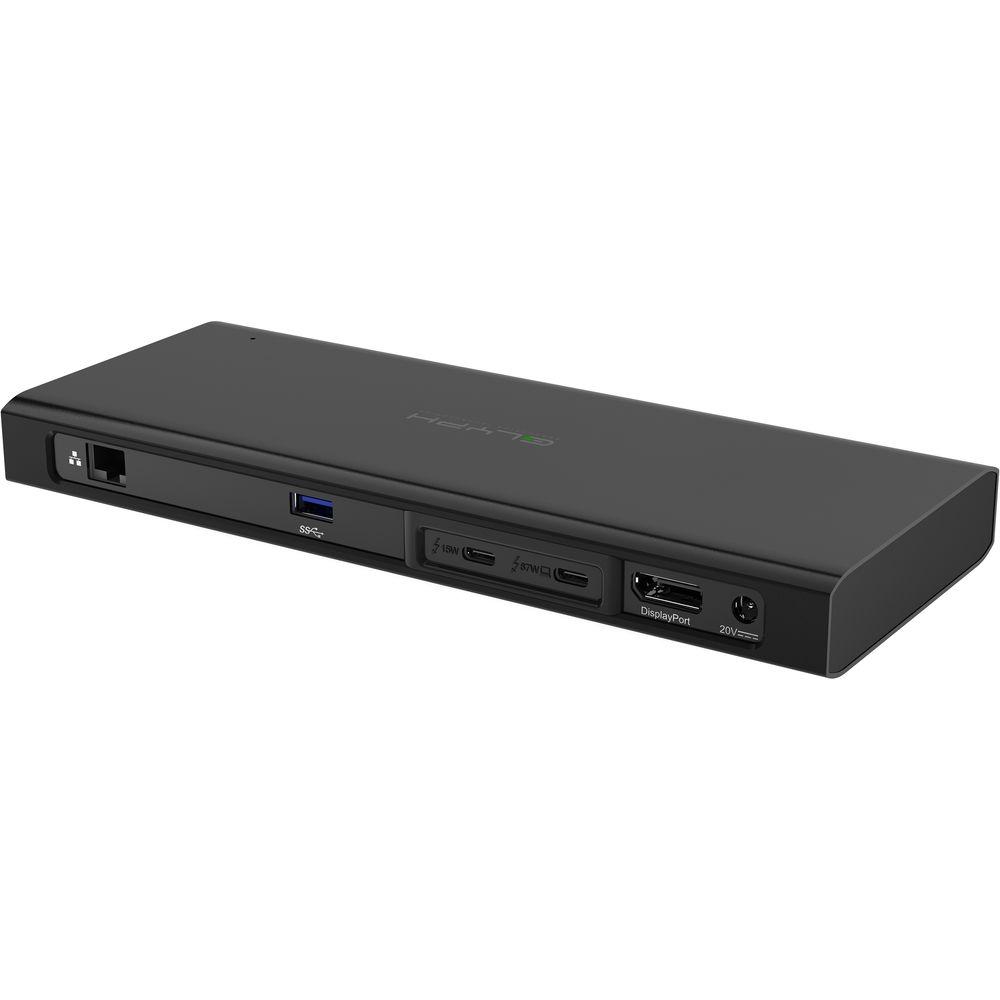

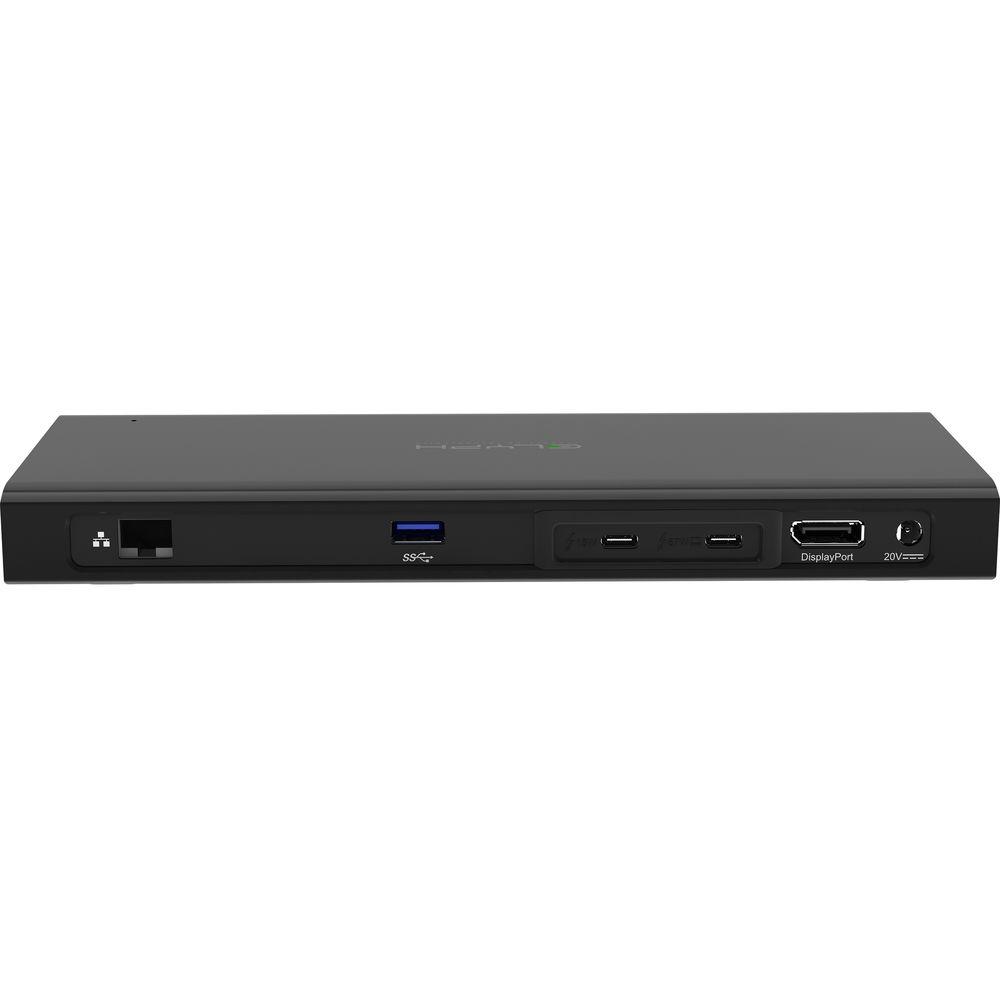

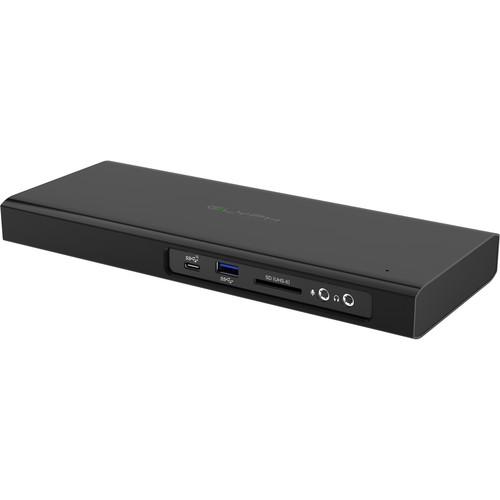

User Manual for Glyph Technologies Thunderbolt 3 Dock with 500GB NVMe M.2 SSD Click to enlarge the picture
Contents of the user manual for the Glyph Technologies Thunderbolt 3 Dock with
- Product category: Docking Stations & Port Replicators Glyph Technologies
- Brand: Glyph Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Glyph Technologies Docking Stations & Port Replicators
 |
User manual for the Glyph Technologies Thunderbolt 3 Dock with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Glyph Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Glyph Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Glyph Technologies product will considerably shorten its lifespan!
|
Product description WPPI 2019: New from Glyph Technologies Read More Whether you're looking to simplify your workstation setup or streamline your DIT cat, the Thunderbolt 3 Dock from Glyph provides a wide range of ports, plus a 500GB NVMe PCIe M.2 SSD that delivers transfer speeds of up to 1500 MB/s. The SSD is preformatted HFS+ with Journaling for Mac OS 10.X and above. It can also be used with Windows 10 and later via a simple reformat.
Glyph built this dock with two 40 Gb/s Thunderbolt 3 ports. One of these ports can be used to connect a single peripheral or daisy-chain up to five additional devices, while the other is used to interface with your host system and provides up to 87W of power for device charging. Other integrated ports include one 10 Gb/s USB 3.1 Gen 2 Type-C port with 5V / 3A of power, two 5 Gb/s USB 3.1 Gen 1 Type-A ports with 5V / 1.2A of power, one DisplayPort 1.2 port, a Gigabit Ethernet port, a UHS-II SD card reader with speeds of up to 270 MB/s, a 3.5mm headphone jack, and a 3.5mm microphone jack. This dock also supports one 5K display at resolutions up to 5120 x 2880 @ 60 Hz, or dual 4K displays @ 60 Hz. General Features - Expand Your Capabilities
- Connect all your peripherals and charge your Thunderbolt 3 (USB Type-C) enabled MacBook Pro with a single cable. Glyph's Thunderbolt 3 Dock has up to 40 Gb/s of throughput for data and video, and the ability to daisy-chain up to five additional devices.
- Solid State of Mind
- Glyph's Thunderbolt 3 Dock integrates the power of NVMe SSDs and includes a 500GB NVMe PCIe 3.0 x2 M.2 SSD. With speeds up to 1500 MB/s, you can increase capacity without sacrificing performance. Preformatted HFS+ with Journaling, this is compatible with Time Machine right out of the box. A simple reformat is all it takes to work with Windows systems.
UPC: 691450003668 In the Box Glyph Technologies Thunderbolt 3 Dock with 500GB NVMe M.2 SSD Thunderbolt 3 Cable 87W External Power Supply Limited 3-Year Hardware Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Glyph Technologies Thunderbolt 3 Dock with 500GB NVMe M.2 SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGlyph Technologies GLTB3DOCK500 Specs | | | USB | 1 x USB 3.1 Gen 2 Type-C (3 A)
2 x USB 3.1 Gen 1 Type-A (1.2 A) | | Thunderbolt | 1 x Thunderbolt 3 (87 W) | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | 1 x SD (Unspecified Type) (UHS-II [312 MB/s]) | | | | System Connection | 1 x Thunderbolt 3 Female | | Connection Type | Detachable Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display) | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Power Source | AC Adapter | | Power Port | Barrel Connector (Unspecified Diameter) (Input) | | | | Enclosure Material | Aluminum | | Lock Slot | No | | Dimensions | 9.4 x 3.75 x 0.9" / 23.88 x 9.53 x 2.29 cm | | | | Package Weight | 4.26 lb | | Box Dimensions (LxWxH) | 11.9 x 6.2 x 3.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
