User Manual for GOAL ZERO Guide 10 Plus and Nomad 7 Plus Solar Kit Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Guide 10 Plus and
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
 |
User manual for the GOAL ZERO Guide 10 Plus and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|
Product description Capture solar energy and store it to power devices with this Guide 10 Plus and Nomad 7 Plus Solar Panel Kit from Goal Zero. The Guide 10 Plus power pack can be charged by the Nomad 7 Plus solar panel, and in turn used to charge phones or other small electronics. It features four AA batteries that can be removed and used in devices like flashlights or remotes. The power pack also has a built-in flashlight. The folding Nomad 7 Plus solar panels generate up to 7 watts of power under peak conditions. - Guide 10 Plus Power Pack Kit With AA Batteries
- Unboxing the Nomad 7 Plus Solar Panel

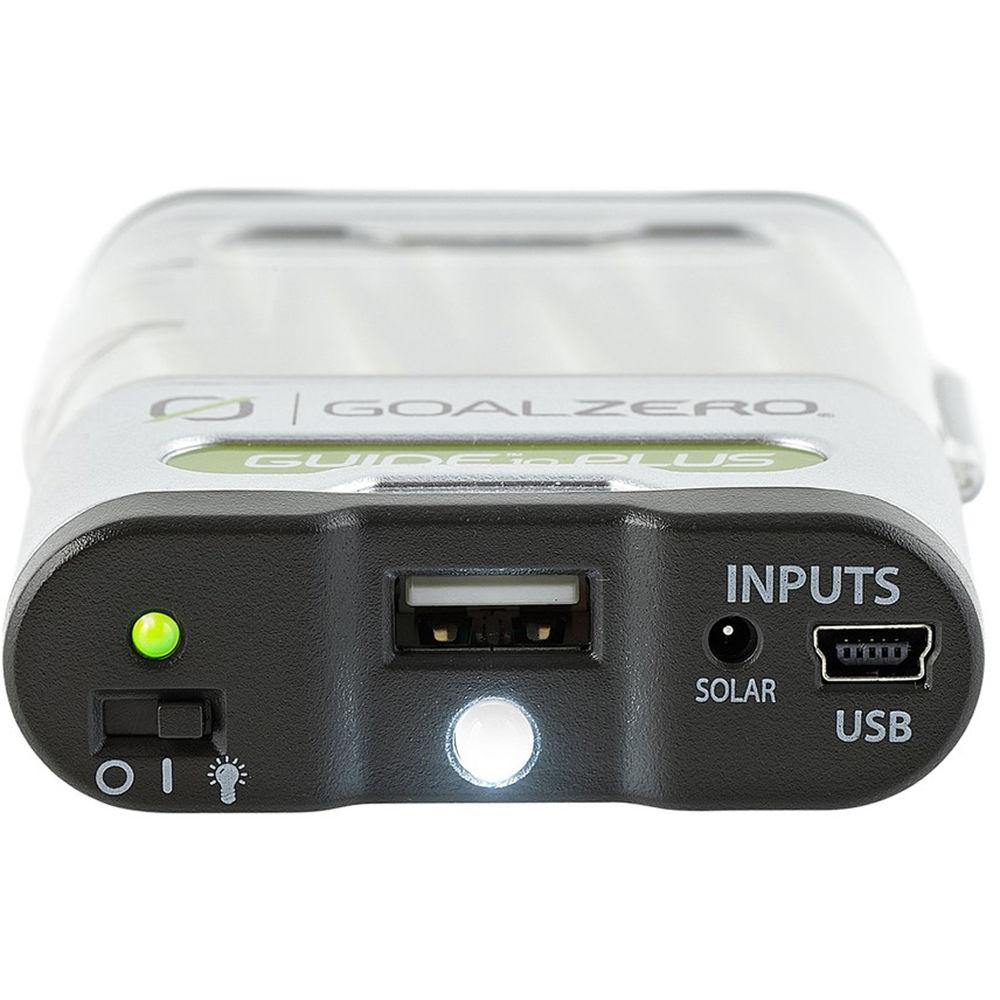

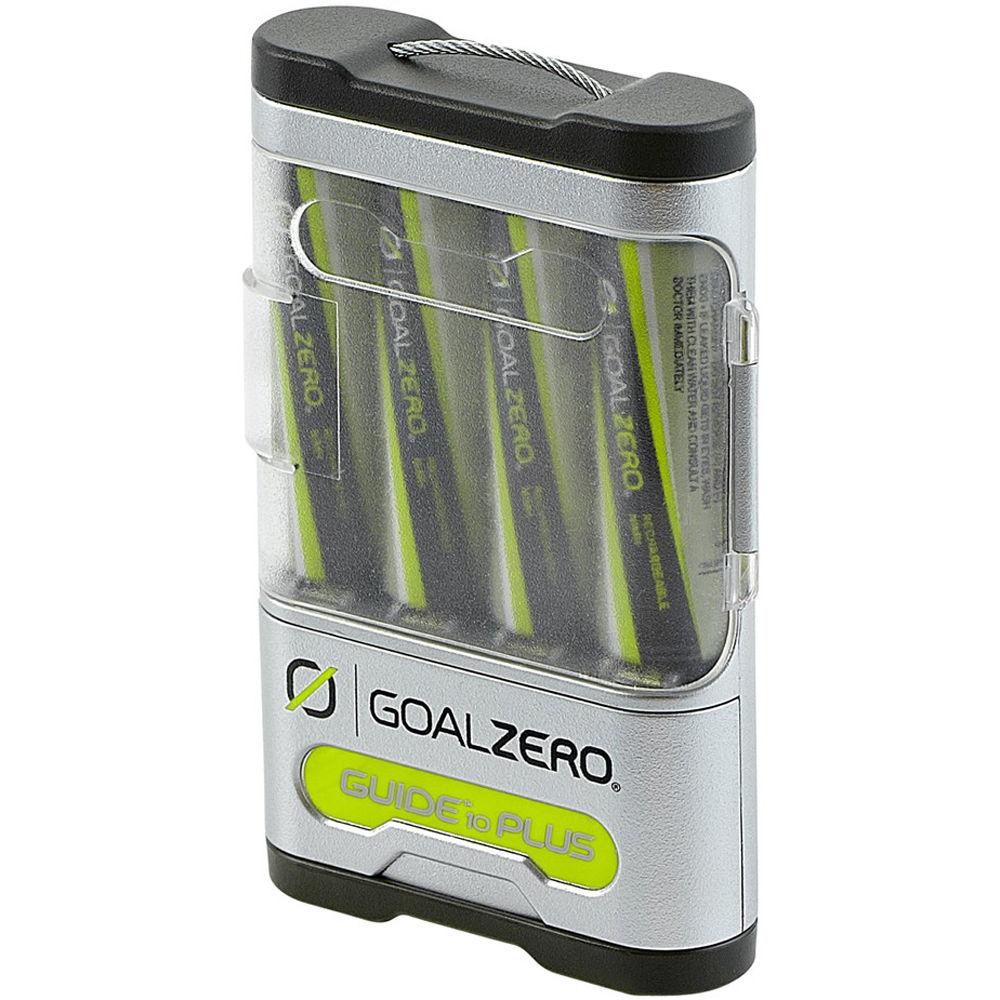

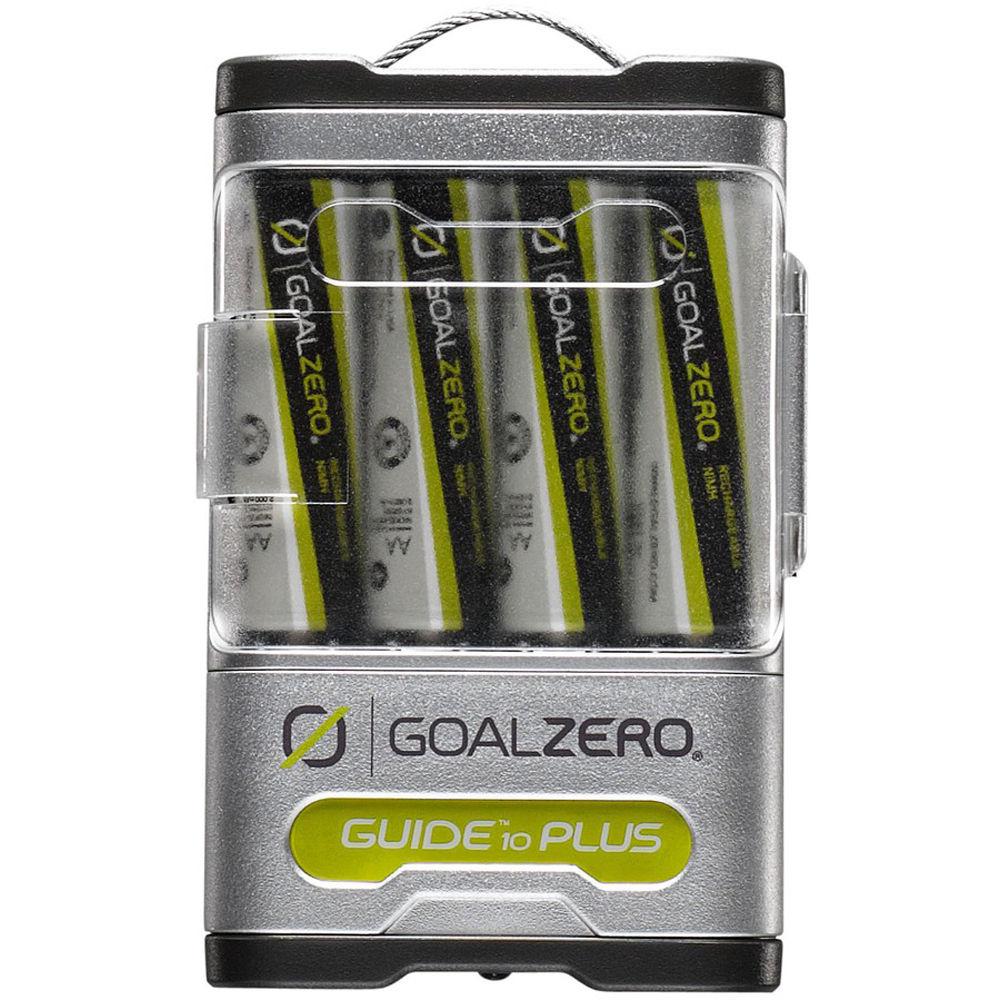

The Guide 10 Plus Power Pack from Goal Zero is a versatile portable charger designed to power devices using AA or AAA NiMH rechargeable batteries and that have a USB input. The kit includes an adapter to enable use of AAA batteries. A USB 2.0 to mini USB cable is also included. The Guide 10 Plus accommodates 4 NiMH batteries, which it can charge using its USB mini input or the input for a compatible solar panel. Anyone traveling and away from a reliable electrical source will find a use for the Guide 10 Plus, as back-up power for our essential communication and navigation devices. The Guide 10 Plus also features an incorporated LED flashlight. - LED Lamp
- 100mW output white LED
- Charging Protection
- Over-charge and low-battery protection built-in

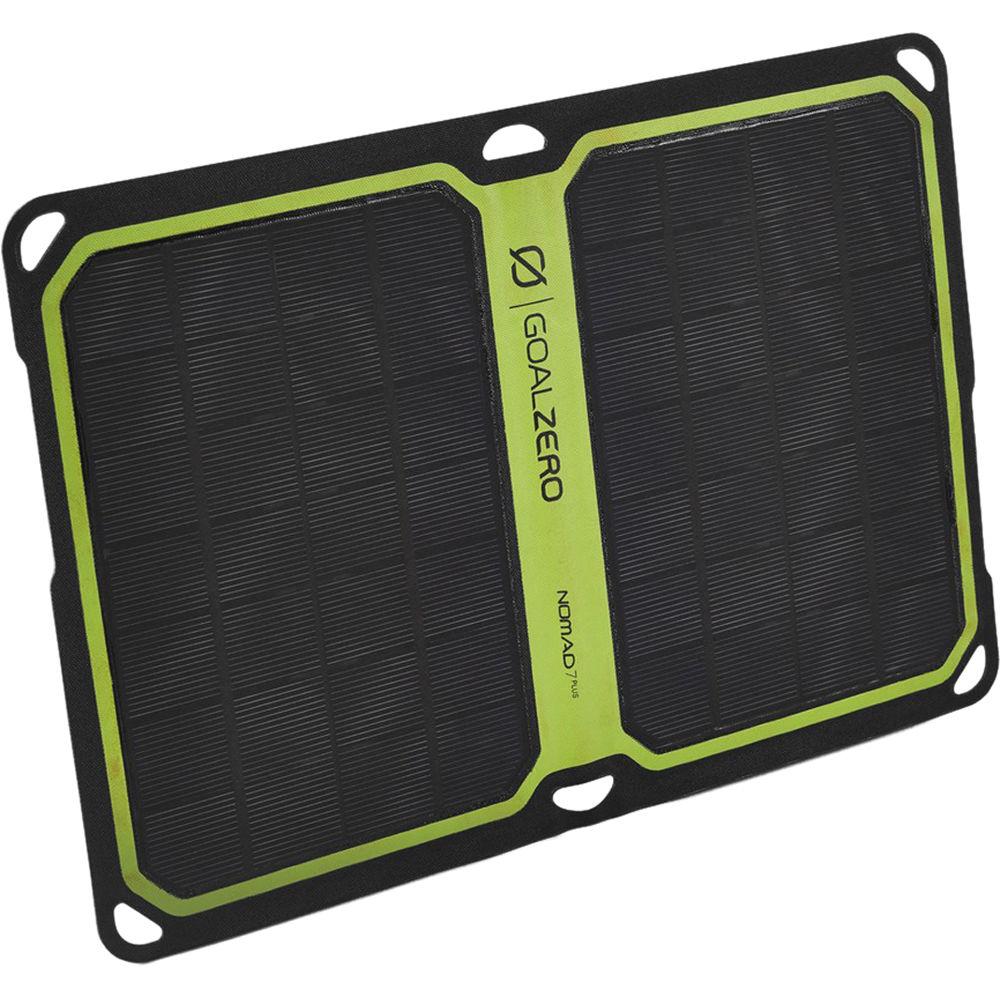

UPC: 847974002001 - Nomad 7 Plus Solar Panel (Black) The black Nomad 7 Plus Solar Panel from Goal Zero is a portable and foldable solar panel that will directly charge small electronics like smart phones and GPS units, or Goal Zero battery packs. This unit puts out 7W of power, and you can chain multiple Nomad units together to increase wattage output for added versatility. The solar panel features a standard USB port for directly charging devices, and an 8mm port for power packs. A removable kickstand helps aim the panel for optimum energy production, and features a handy zippered pocket to stow the charging cables. The weather-resistant design has loops to secure it to surfaces like tents for catching optimal sunlight, or backpacks to catch a charge during a hike.
- Charge Times
-
- Goal Zero Switch 10/Flip 10: 2.5 - 5 hours
- Flip 20: 5 - 10 hours
- Venture 30: 8 - 16 hours
UPC: 847974004463 In the Box Bundle Items Guide 10 Plus Power Pack Kit With AA Batteries rqwycfeduxezuwacrcfcvwssq - 4 x AA NiMH Rechargeable Batteries
Nomad 7 Plus Solar Panel (Black) rqwycfeduxezuwacrcfcvwssq - 12 VDC Car/Vehicle Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Guide 10 Plus and Nomad 7 Plus Solar Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Guide 10 Plus Power Pack Kit With AA Batteries
| | | Battery Type | 4 x AA | | Battery Chemistry | NiMH | | Battery Voltage | 4.8 V | | Capacity (mAh) | 2300 mAh | | Capacity (Wh) | 11 Wh | | Battery Weight | 6.4 oz / 181 g | | | | Power Consumption | <7 W | | Charging Bays | 4 x AA, AAA | | Charging Voltage | 5.0 VDC | | Charging Amperage | 1000 mA | | DC Input Power | 5 to 6.5 VDC | | | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Box Dimensions (LxWxH) | 6.1 x 4.3 x 1.8" | - Nomad 7 Plus Solar Panel (Black)
| Panel | - Type: Monocrystalline
- Rated Wattage: 7 W
- Open-Circuit Voltage: 8-9 V
| | Output | - USB Port: Regulated 5 V, 1 A, 5 W max
- Solar Port: 9-9 V, up to 0.8 A (7 W max)
- Mini Solar Port: Regulated 6.5 V, 1.1 A, 7 W max
| | Output Ports | - 1 x USB
- 1 x 8 mm solar port, blue
- 1 x 2.5 mm mini solar port
| | Operating temperature | 32 - 104° F (0 - 32° C) | | Dimensions | Folded: 6.50 x 8.75 x 0.75" / 16.51 x 22.23 x 1.91 cm
Open: 13.00 x 8.75 x 0.50" / 33.02 x 22.23 x 1.27 cm | | Weight | 12.8 oz / 363 g | | | | Box Dimensions (LxWxH) | 8.898 x 6.535 x 1.26" |
