User Manual for GOAL ZERO Lighthouse Micro Charge LED Lantern Flashlight Recharger Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Lighthouse Micro Charge LED
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
 |
User manual for the GOAL ZERO Lighthouse Micro Charge LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|

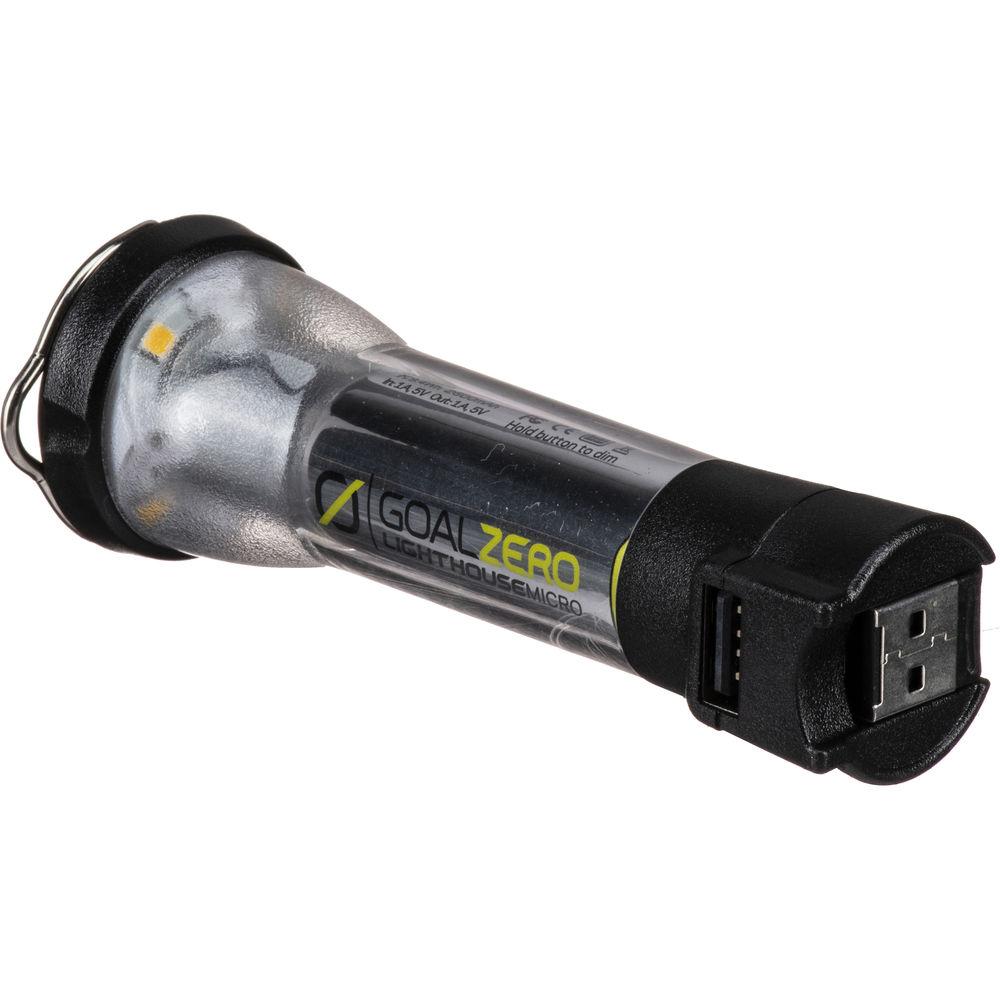

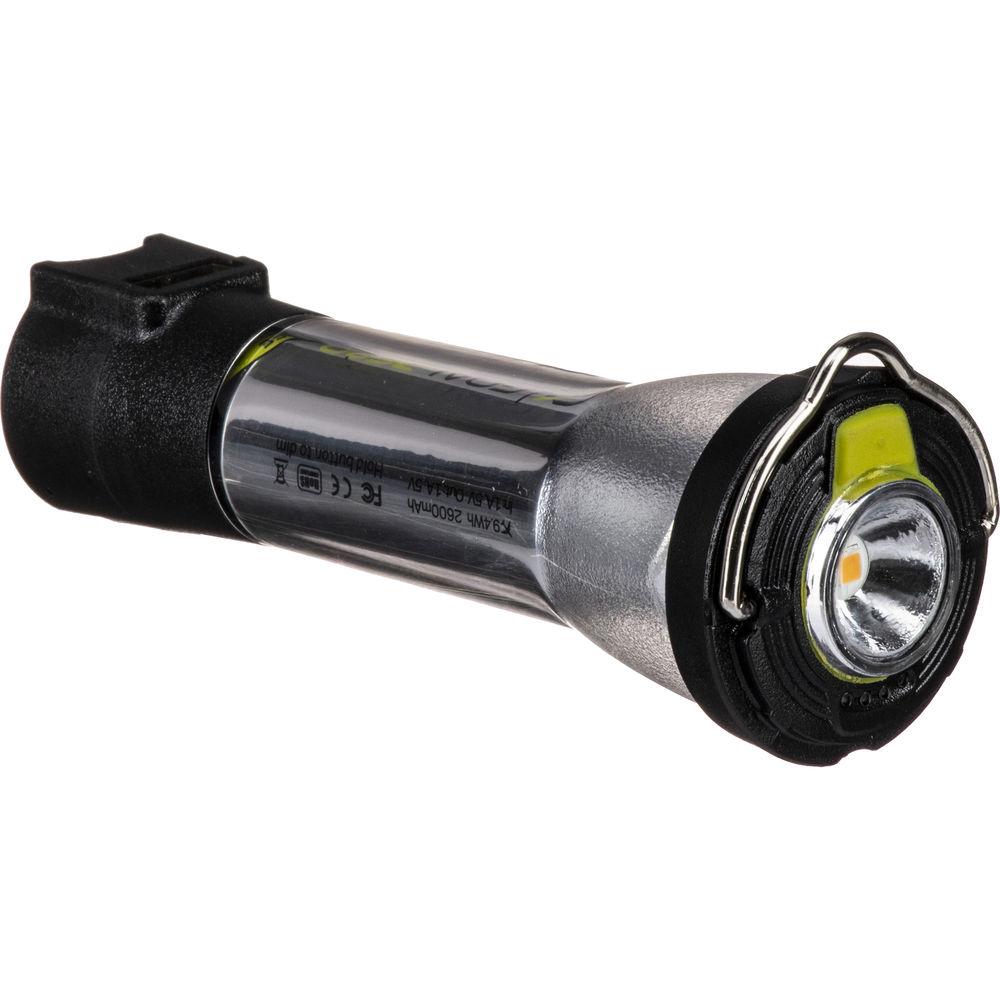

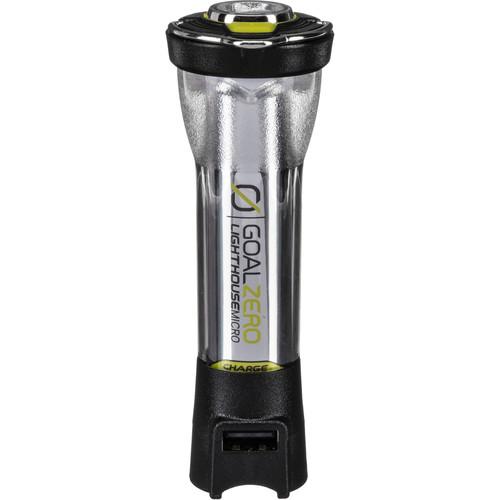

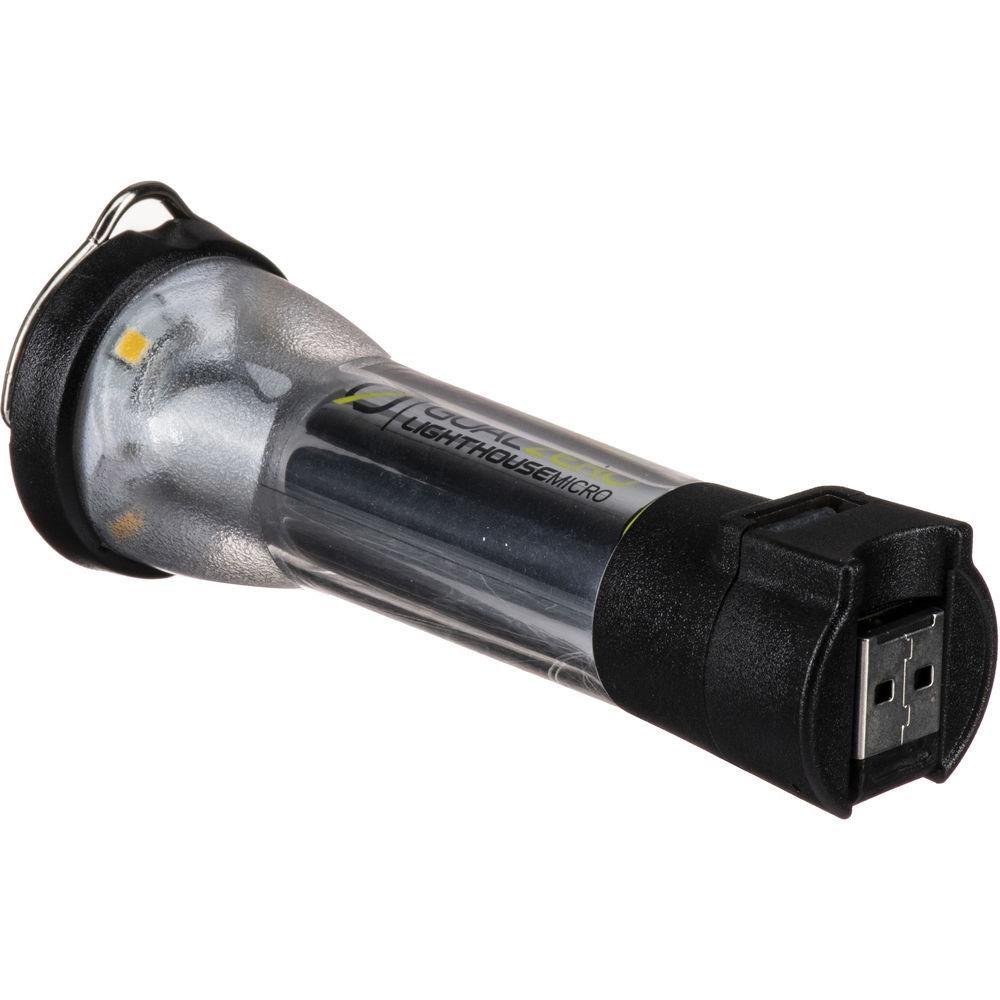

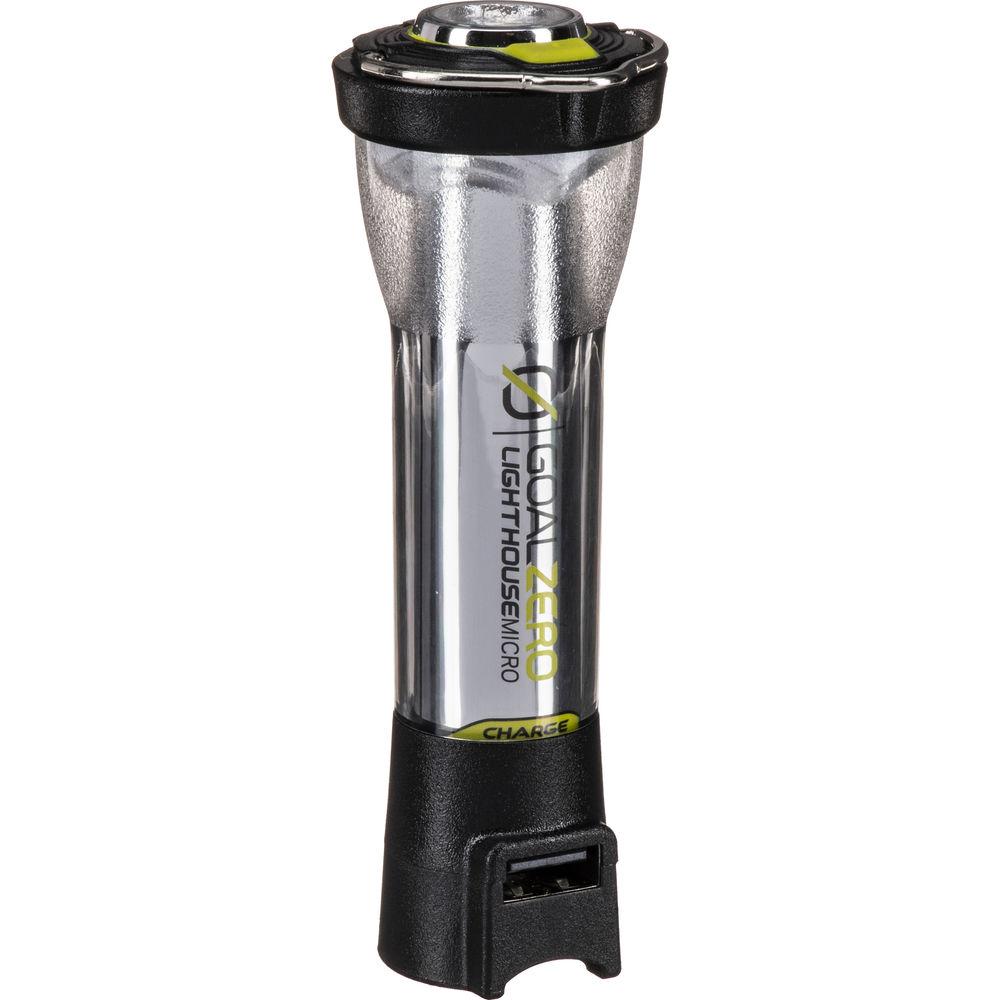

Product description Light your way through a power outage, set up camp after sundown, or illuminate an outdoor nighttime task – the Lighthouse Micro Charge LED Lantern/Flashlight/Recharger from Goal Zero will come in handy in a wide variety of situations. The lantern will put out anywhere from 7 to 150 lumens, and the flashlight will shine at 15 to 115. You can also use the Lighthouse Micro Charge as a power pack to charge or run small electronics; its 9.62 watt-hour 3.7V, 2600mAh lithium-ion NMC battery is capable of recharging a typical smartphone. The unit will accept a full charge in 3.5 hours from a USB port or from a user-supplied solar panel, such as the Goal Zero Nomad 7. At just 4.4 x 1.5" and 3 ounces, it's easy to carry in a pack or pocket, and the hanging loop provides placement options. - Performance
-
- Lantern: adjustable output from 7-150 lumens
- Flashlight: adjustable output from 15-115 lumens
- One flashlight mode, as well as half- and full-power lantern modes
- Switching
-
- Top-mounted push-button
- Press once for flashlight, twice for lantern, three times for half-power lantern
- Hold button to dim either mode
- Construction and Handling
-
- Battery power indicator
- Charges in 3.5 hours via USB or user-supplied solar panel
- Integrated 18650 Li-ion NMC battery, 3.7V / 2600mAh, 9.62Wh
- Capable of one smartphone recharge
- IPX6-rated water-resistant
- USB input & output: 5V, up to 1A (5W max)
UPC: 847974004845 In the Box GOAL ZERO Lighthouse Micro Charge LED Lantern/Flashlight/Recharger - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Lighthouse Micro Charge LED Lantern Flashlight Recharger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGOAL ZERO 32008 Specs | Light Source | LED | | Lumens | Lantern: 7-150
Flashlight: 15-115 | | Runtime | Lantern: 7-170 h
Flashlight: 8.5-100 h | | Charge Time | 3.5 h | | Battery | Integrated lithium-ion NMC, 9.62 Wh, 3.7 V, 2600 mAh | | Dimensions | 4.4 x 1.5" (11.2 x 3.8 cm) | | Weight | 3 oz (87 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.7 x 3.0 x 1.6" |
