Product description

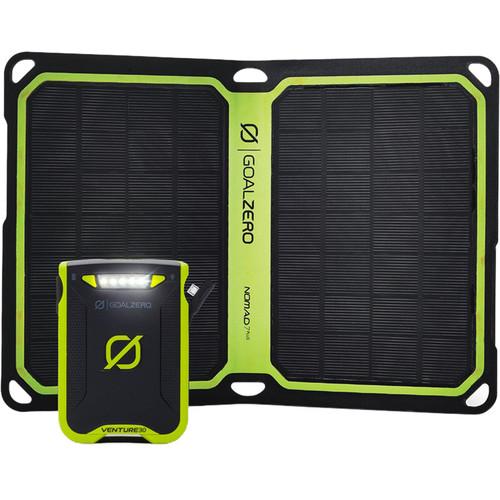

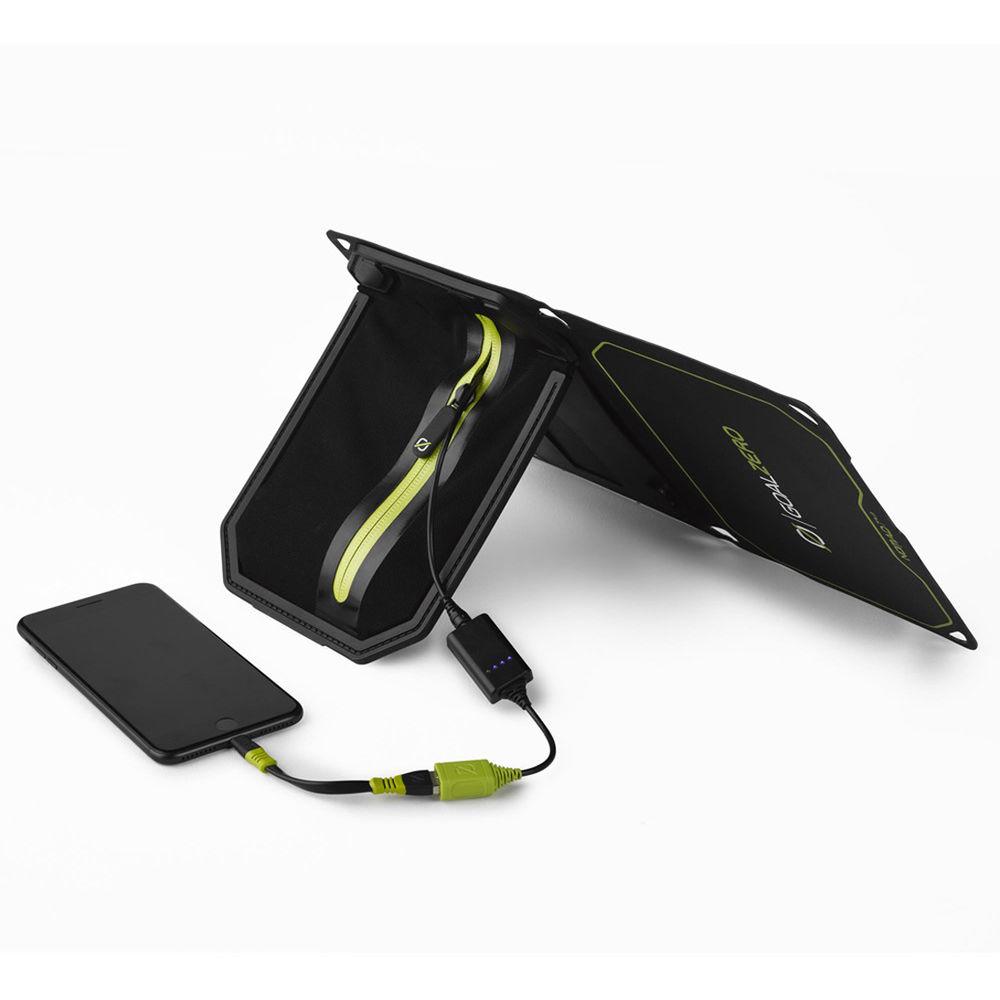

Capture solar energy and store it to charge smartphones, headlamps and other devices with this Venture 30 Power Pack and Nomad 7 Plus Solar Kit from Goal Zero. The Venture 30 power pack can be charged by the Nomad 7 Plus solar panel, and then used to charge phones or other small electronics. On a full charge (from the solar panel or via USB), the Venture 30 holds 2-3 smartphone charges, 5 POV camera charges, 5 to 10 headlamp charges or 1 tablet charge. The Nomad 7 Plus solar panels generate up to 7 watts of power under peak conditions.
Venture 30 Portable Battery Pack (Green)
VENTURE TECH | From The Engineers
VENTURE 30 | Weatherproof
VENTURE 30 | Dustproof
Venture 30 | Phone & Tablet Recharger
Venture30 | Unboxing

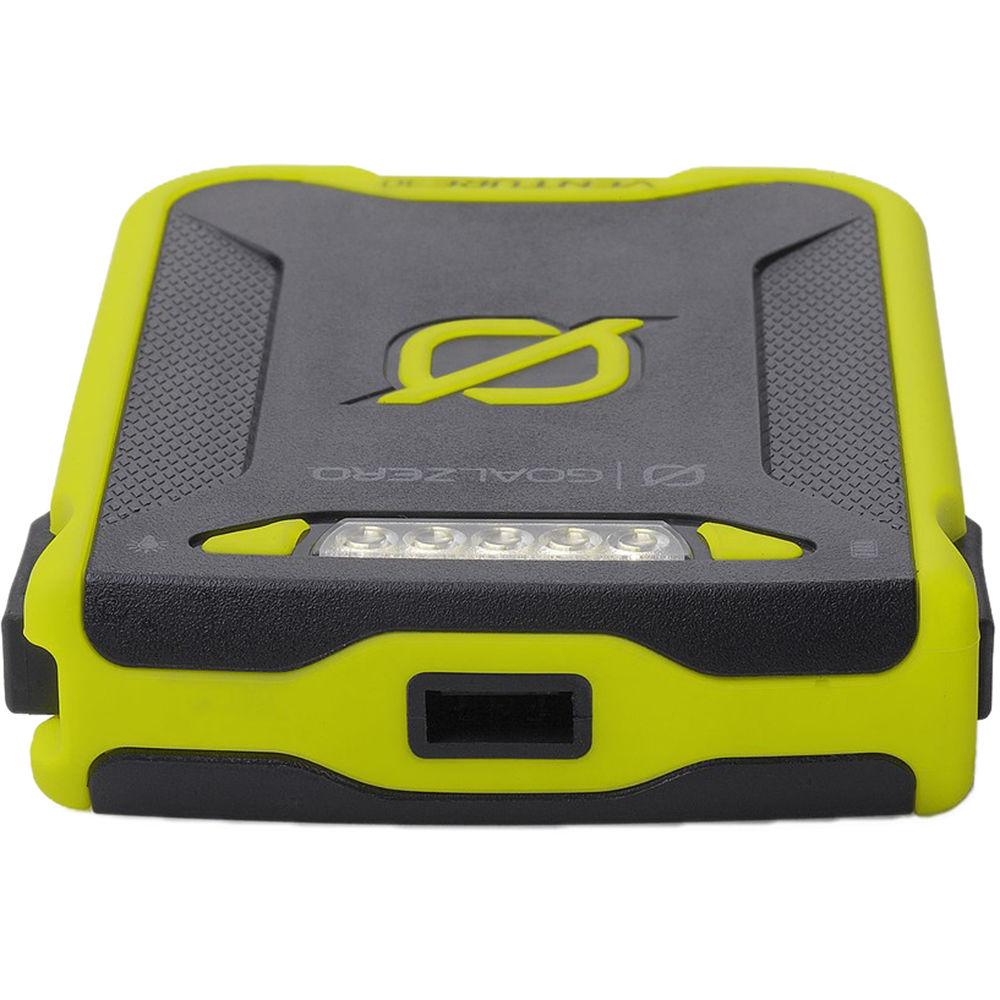

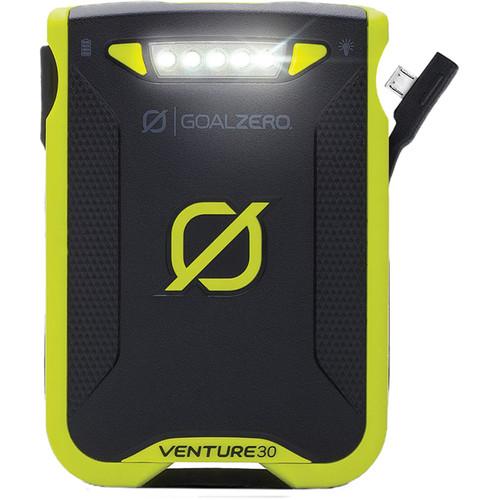

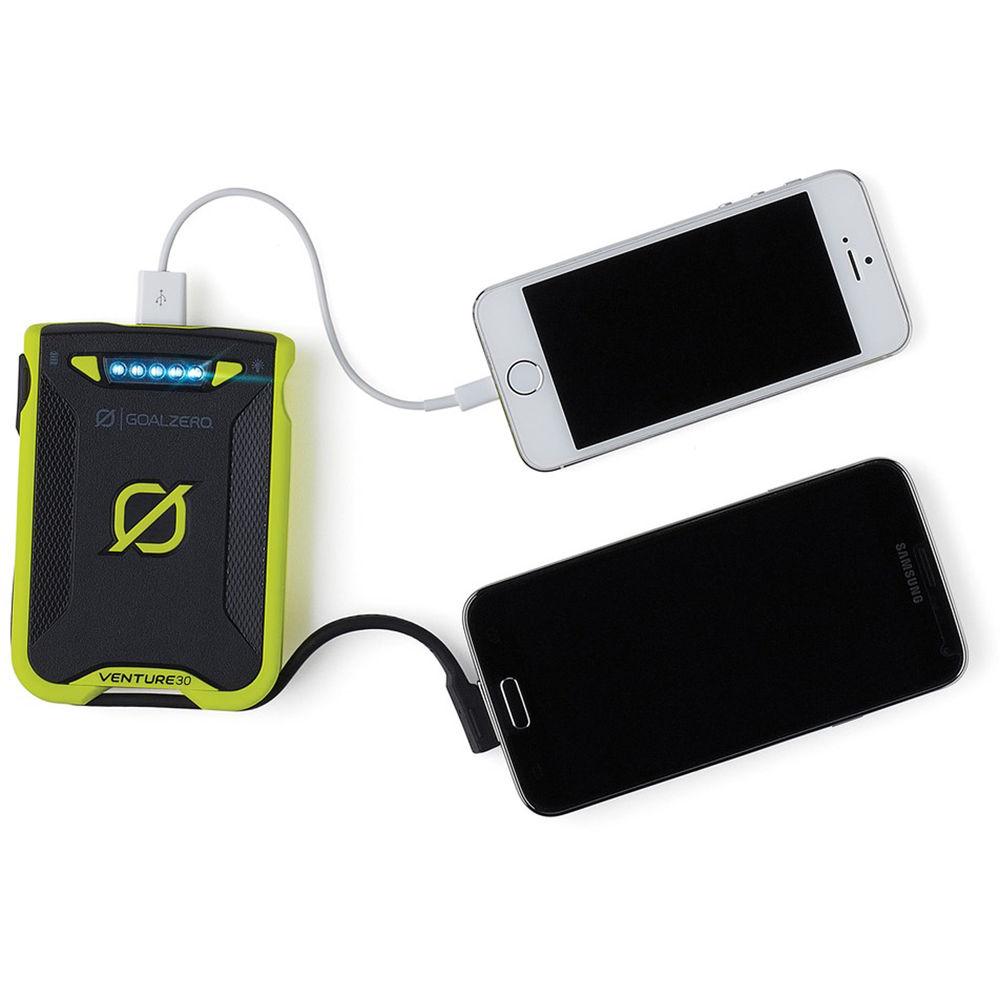

Power up on the go with the green GOAL ZERO Venture 30 Portable Battery Pack. Designed to keep your mobile devices charged in hostile environments, this pack has a built-in 7800mAh, 30Wh battery that delivers its power via a pair of high-speed USB ports. The ports have a combined output of up to 4.8A, enough to charge up to two smartphones, tablets, or accessories at once.

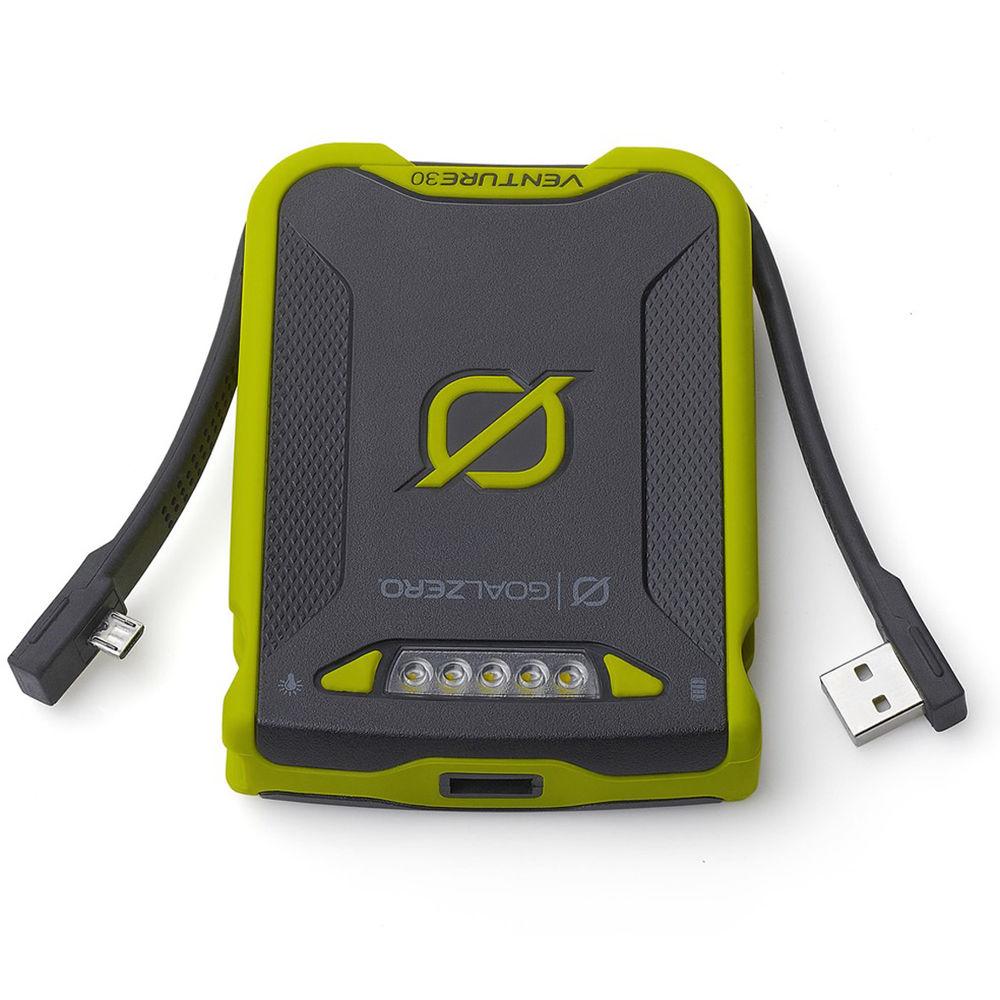

The Venture 30 is IPX6 rated, enabling it to survive rain and even short dunks under water. It charges in as little as five hours via USB and also has a built-in charging tip for connecting to select GOAL ZERO solar chargers. The Venture 30 also comes with an integrated micro-USB cable that can be used to charge the battery itself or micro-USB devices. UPC: 847974003220

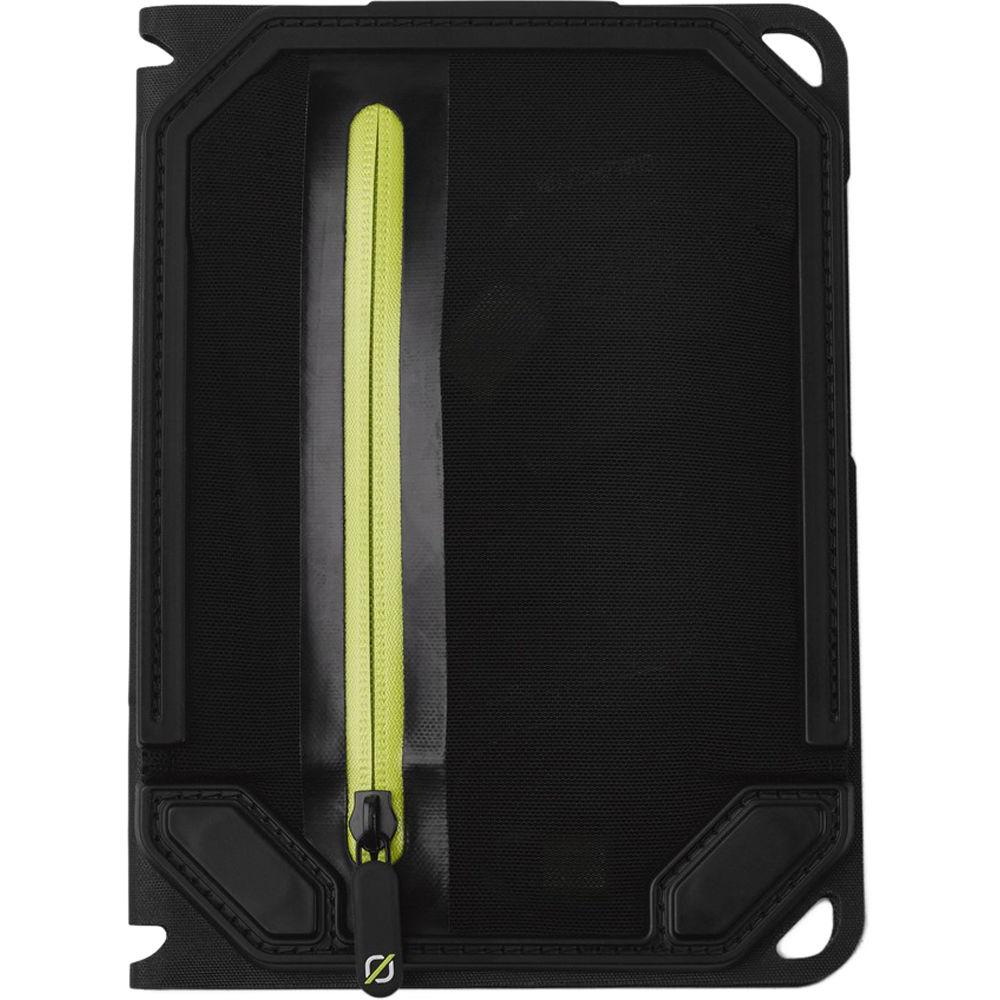

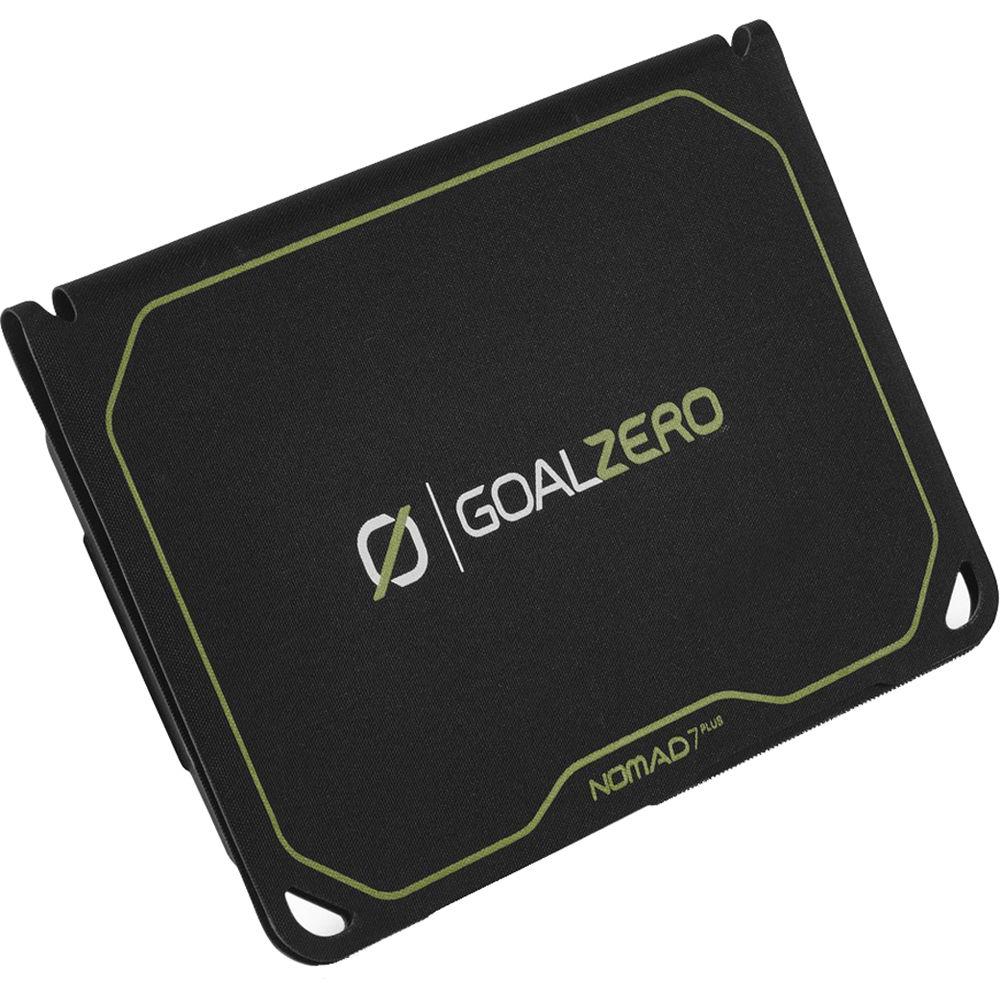

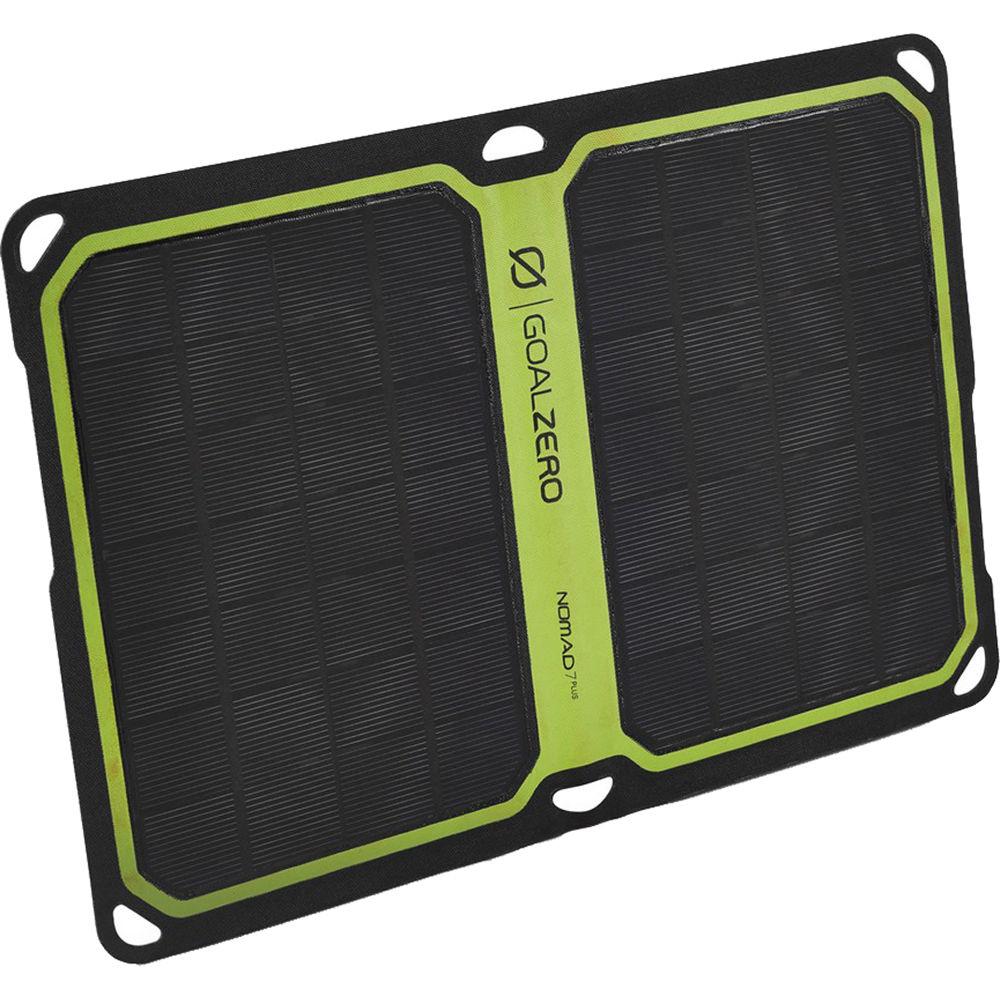

Nomad 7 Plus Solar Panel (Black) The black Nomad 7 Plus Solar Panel from Goal Zero is a portable and foldable solar panel that will directly charge small electronics like smart phones and GPS units, or Goal Zero battery packs. This unit puts out 7W of power, and you can chain multiple Nomad units together to increase wattage output for added versatility. The solar panel features a standard USB port for directly charging devices, and an 8mm port for power packs. A removable kickstand helps aim the panel for optimum energy production, and features a handy zippered pocket to stow the charging cables. The weather-resistant design has loops to secure it to surfaces like tents for catching optimal sunlight, or backpacks to catch a charge during a hike.
Charge Times
Goal Zero Switch 10/Flip 10: 2.5 - 5 hours
Flip 20: 5 - 10 hours
Venture 30: 8 - 16 hours
UPC: 847974004463
In the Box Bundle Items Venture 30 Portable Battery Pack (Green) twzzcfvsttauzsvastztwswxsrxbcvyyad
Limited 6-Month Warranty
Nomad 7 Plus Solar Panel (Black)
12 VDC Car/Vehicle Adapter
Limited 1-Year Warranty
Also Includes
Limited 1-Year Warranty (6 Months on Battery Cells)
Table of Contents
Upload User Manual
Have you got an user manual for the GOAL ZERO Venture 30 Power Pack and Nomad 7 Plus Solar Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Venture 30 Portable Battery Pack (Green)
Input Charging Port
Micro-USB
Output Ports
2 x USB Type-A
Capacity (Wh)
30 Wh
Capacity (mAh)
7800 mAh
Charging Time
5 Hours
Port Output Power
5 V, 2.4 A
Built-In Functionality
Flashlight
IP Rating
IPX6
Weight
8.8 oz / 250.0 g
Box Dimensions (LxWxH)
8.0 x 4.6 x 1.4"
Nomad 7 Plus Solar Panel (Black)
Panel
Type: Monocrystalline
Rated Wattage: 7 W
Open-Circuit Voltage: 8-9 V
Output
USB Port: Regulated 5 V, 1 A, 5 W max
Solar Port: 9-9 V, up to 0.8 A (7 W max)
Mini Solar Port: Regulated 6.5 V, 1.1 A, 7 W max
Output Ports
1 x USB
1 x 8 mm solar port, blue
1 x 2.5 mm mini solar port
Operating temperature
32 - 104° F (0 - 32° C)
Dimensions
Folded: 6.50 x 8.75 x 0.75" / 16.51 x 22.23 x 1.91 cm Open: 13.00 x 8.75 x 0.50" / 33.02 x 22.23 x 1.27 cm
Weight
12.8 oz / 363 g
Box Dimensions (LxWxH)
8.898 x 6.535 x 1.26"
