User Manual for GOAL ZERO Venture 30 Solar USB Recharging Kit

Click to enlarge the picture
GOAL ZERO Venture 30 Solar USB Recharging Kit Contents of the user manual for the GOAL ZERO Venture 30 Solar USB
  • Product category: Solar & Portable Power GOAL ZERO
  • Brand: GOAL ZERO
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for GOAL ZERO Solar & Portable Power

User manual for the GOAL ZERO Venture 30 Solar USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any GOAL ZERO product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!



Product description

The Venture 30 Solar USB Recharging Kit from Goal Zero lets you pack in power for your smartphone, GPS unit, camera or other USB device, and replenish the power off the grid with solar energy. The kit comes with the Venture 30 Portable Battery Pack, which stores power for charging devices, and the Nomad 7 Solar Panel, which can collect enough energy from sunlight to fully recharge the battery pack in 16 hours or less. The battery pack can also be recharged with AC or DC power via USB; this method will fully charge it in 5 hours.The battery pack features integrated cables for phones and devices, so you don't have to worry about packing separate cords. It is rated IPX6 for water resistance, so rain won't do it any harm. Its 7800mAh, 3.6V battery can charge a tablet once, a smartphone up to three times, a GoPro camera five times and a headlamp as many as 10 times. Your devices will charge as quickly from the battery pack as they do when plugged into a wall outlet at home.The solar panel will fully recharge the battery pack in 8-16 hours. It puts out 7W of power, and you can chain multiple Nomad units together to increase wattage output for added versatility. You can use it to recharge the battery pack, or plug smaller USB devices directly into it for a recharge straight from the sun.
  • Venture 30 Portable Battery Pack (Green)
    • VENTURE TECH | From The Engineers
    • VENTURE 30 | Weatherproof
    • VENTURE 30 | Dustproof
    • Venture 30 | Phone & Tablet Recharger
    • Venture30 | Unboxing

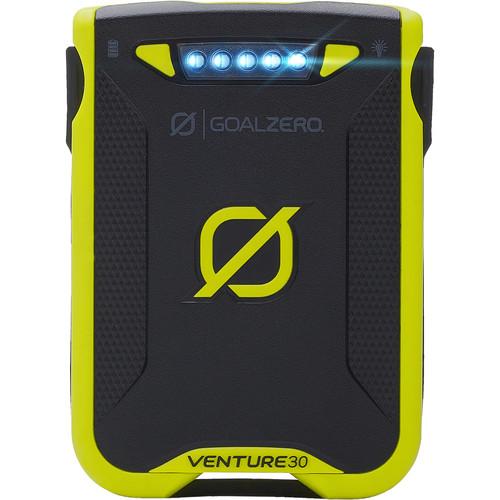

    Power up on the go with the green GOAL ZERO Venture 30 Portable Battery Pack. Designed to keep your mobile devices charged in hostile environments, this pack has a built-in 7800mAh, 30Wh battery that delivers its power via a pair of high-speed USB ports. The ports have a combined output of up to 4.8A, enough to charge up to two smartphones, tablets, or accessories at once.

    The Venture 30 is IPX6 rated, enabling it to survive rain and even short dunks under water. It charges in as little as five hours via USB and also has a built-in charging tip for connecting to select GOAL ZERO solar chargers. The Venture 30 also comes with an integrated micro-USB cable that can be used to charge the battery itself or micro-USB devices. UPC: 847974003220
  • Nomad 7 Solar Panel (Black) The black Nomad 7 Solar Panel from Goal Zero is a portable and foldable solar panel that will directly charge small electronics like smart phones and GPS units, or Goal Zero battery packs. This unit puts out 7W of power, and you can chain multiple Nomad units together to increase wattage output for added versatility. The solar panel features a standard USB port for directly charging devices, and an 8mm port for power packs. A removable kickstand helps aim the panel for optimum energy production, and features a handy zippered pocket to stow the charging cables. The weather-resistant design has loops to secure it to surfaces like tents for catching optimal sunlight, or backpacks to catch a charge during a hike.
      Charge Times
      • Goal Zero Switch 8 & 10: 4 - 8 hours
      • Guide 10 Plus: 3 - 6 hours
      • Flip 10: 2.5 - 5 hours
      • Venture 30: 8 - 16 hours
      Compatibility
    • Guide 10 Plus
    • Switch 8 & 10 Recharger
    • Flip 10 & 20
    • Venture 30
    • Rock Out Portable Speakers
    • Lighthouse Lanterns
UPC: 847974001981 In the Box Bundle Items Venture 30 Portable Battery Pack (Green) cbesbeeaczwqevcsywzrubazswtxtwfsbwzb
  • Limited 6-Month Warranty
Nomad 7 Solar Panel (Black)
  • 12 VDC Car/Vehicle Adapter
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the GOAL ZERO Venture 30 Solar USB Recharging Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Venture 30 Portable Battery Pack (Green)
    Input Charging Port Micro-USB
    Output Ports 2 x USB Type-A
    Capacity (Wh) 30 Wh
    Capacity (mAh) 7800 mAh
    Charging Time 5 Hours
    Port Output Power 5 V, 2.4 A
    Built-In Functionality Flashlight
    IP Rating IPX6
    Weight 8.8 oz / 250.0 g
    Box Dimensions (LxWxH) 8.0 x 4.6 x 1.4"
  • Nomad 7 Solar Panel (Black)
    Panel
    Type: Monocrystalline
    Rated Wattage: 7 W
    Open-Circuit Voltage: 8-9 V
    Output
    USB Port: Regulated 5 V, 1 A, 5 W max
    Solar Port: 15 V, up to 0.3 A, (5 W max)
    Mini Solar Port: Regulated 6.5 V, 1.1 A, 7 W max
    Output Ports
    1 x USB
    1 x 8 mm solar port, blue
    1 x 2.5 mm mini solar port
    Operating temperature 32 - 104° F (0 - 32° C)
    Dimensions Folded: 9.0 x 1.5 x 6.5 in / 22.9 x 3.8 x 16.5 cm
    Open: 9.0 x 1.5 x 17.0 in / 22.9 x 3.8 x 43.2 cm
    Weight 16.2 oz / 459.3 g
    Box Dimensions (LxWxH) 9.528 x 6.614 x 2.047"

Rating

90% users recommend this product to others. And what about you?
Rating: 4.5 of 5

This product has already been rated by 13 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to GOAL ZERO Venture 30 Solar USB Recharging Kit

Subject: Venture 30 cable
Date: 14.05.2021 05:57:50Name: Neil Razdan
I bought the Venture 30 and the Nomad 7 together 6-7 years ago. Couple of things I am trying to figure out. I somehow, packed the Venture30 away and forgot where I put it. For 3-4 years. One day I found it once again, and tried to charge it. It took couple of days to charge of the wall outlet. But... it seems like the USB cable that wraps around the Venture, seems to not making a tight connection. I tried to use a longer cable with similar connectors. That too didn't seem to make tight connection. While charging if the Venture moves a bit, it wakes up with its blue lights coming on, and it takes awfully long time to charge. Secondly, how do I know when the Venture is fully charged, and ready to travel with me.
So, do I need a new cable? How much would it cost?
