User Manual for GOAL ZERO Yeti 1400 Lithium Power Station with Wi-Fi Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Yeti 1400 Lithium Power
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
 |
User manual for the GOAL ZERO Yeti 1400 Lithium Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|

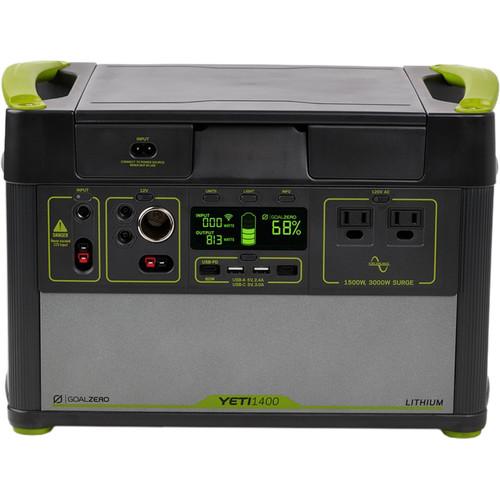

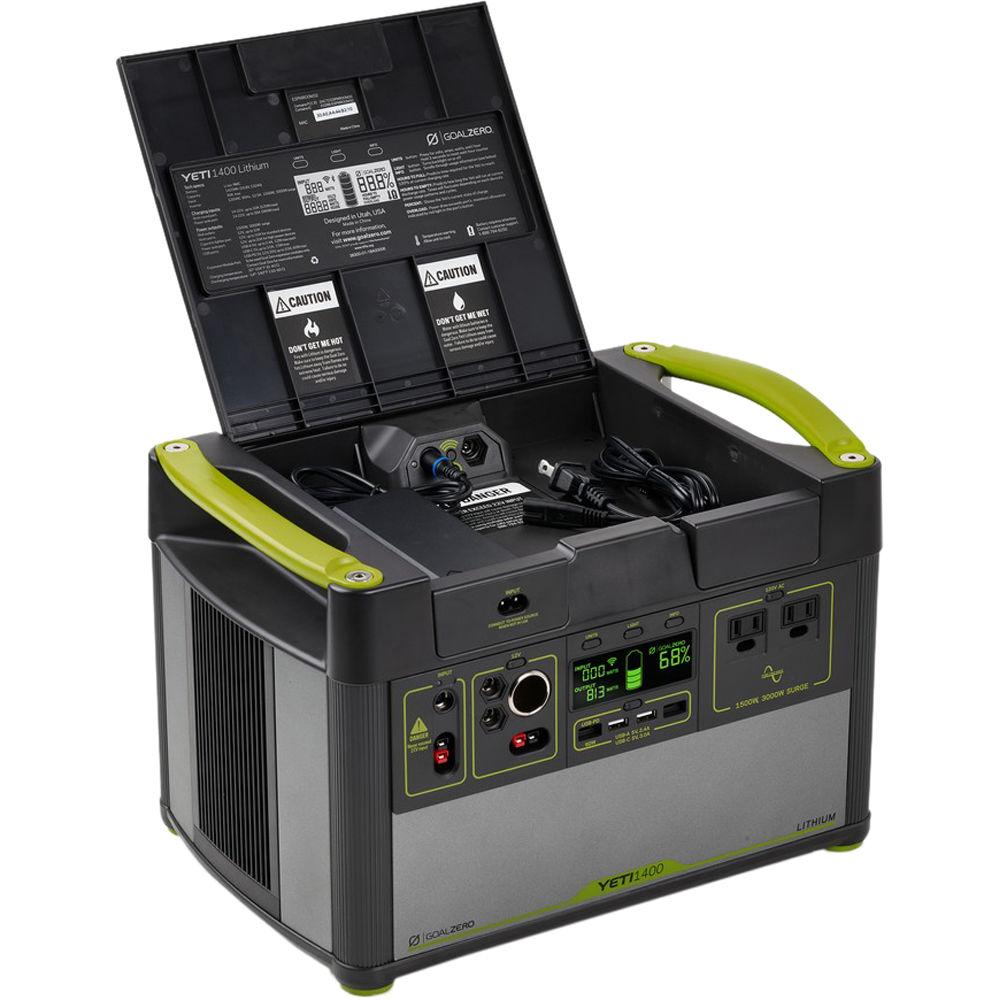

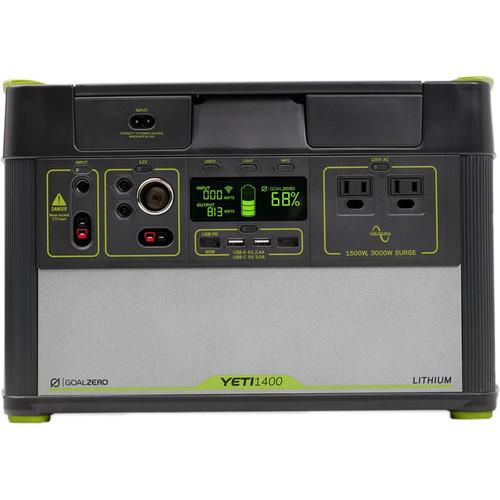

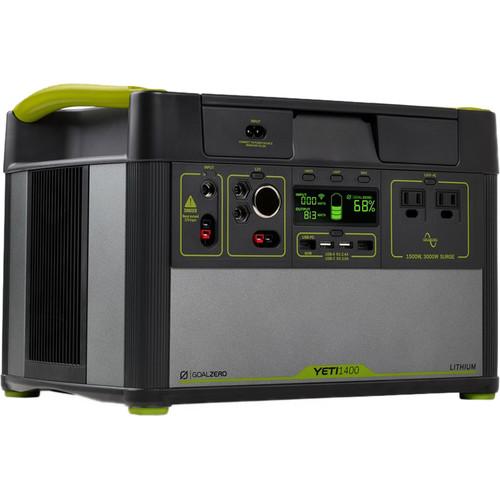

Product description Power laptops, tablets, lights, TVs, tools, or medical devices, and control outputs and monitor usage from your phone, with the Yeti 1400 Lithium Power Station with Wi-Fi from Goal Zero. An alternative to the noise, fumes and hassle of traditional backup generators, the Yeti uses a 1425Wh lithium-ion battery that can be charged from 110 VAC house current or solar panels. It connects via your Wi-Fi to the Yeti App, which can monitor the battery level and incoming/outgoing power and turn ports on and off, as well as update firmware.The front display panel provides readouts of incoming and outgoing power, and battery status in 20% increments. This real-time feedback enables precise power management. The Yeti provides an array of output options for any energy need. It has two standard 110 VAC grounded wall plugs, four standard USB ports, a 12 VDC vehicle cigarette lighter-style socket, and a 6mm 12 VDC port. The battery is easily replaced at the end of its 500-charge life cycle.The pure sine AC outlets have a maximum surge capability of 3000 watts. The Yeti recharges on AC power in 25 hours, and on solar panels, anywhere from 4.5 hours (with a 360W panel) to 112 hours (with the 50W Boulder 50). -
- 1425Wh capacity
- Control from phone or device via Wi-Fi and Yeti App
- App can monitor incoming and outgoing power, turn ports on and off, update firmware
- Two 1500W (3000W surge) three-prong AC outlets
- Two USB 5V/2.4A (12W) USB ports
- USB-C port: 5V, 3A (15W)
- USB-PD port: 5/12/20V, up to 3A (60W)
- One car cigarette-lighter style 12 VDC socket, one Anderson Power Pole socket, two 6mm DC sockets
- Charge by AC or solar power
- Real-time usage display
- Portable at 10.1 x 15.3 x 10.4" and 45.6 pounds
UPC: 847974005415 In the Box GOAL ZERO Yeti 1400 Lithium Power Station with Wi-Fi Limited 1-Year Warranty (6 Months on Battery Cells) Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Yeti 1400 Lithium Power Station with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGOAL ZERO 38300 Specs | Battery Type | Lithium-ion NMC | | Capacity | 1425 Wh (10.8 V, 132 Ah)
Single cell equivalent capacity: 396 Ah @ 3.6 VDC | | Life Cycles | 500 to 80% | | Management system | PWM charge controller, low battery protection | | Input | Charging port (8 mm): 14-22V, up to 10A (120W max)
Power Pole charging port: 14-22V, up to 30A (360W max)
Port for Goal Zero expansion modules | | Outputs | 110 VAC 60 Hz pure sine wave, 10 A, 1500 W max total continuous, 3000 W surge
230 VAC pure sine wave, 50Hz, 6.5A (1500 W, 3000 W surge) (Universal or Australia (Type 1) AC plugs)
2 x USB-A port: 5V, up to 2.4A (12W max), regulated
USB-C port: 5V, up to 3.0A (15W max), regulated
USB-PD port: 5V, 12V, 20V, up to 3.0A (60W max), regulated
6 mm, 12 VDC port, 10 A (120 W max),
Female 12 VDC port, 10 A (120 W max)
1 x Power Pole port, 12 V, 10 A (120 W max) | | Charging Time | 110 VAC Wall Charger: 25 hours
Goal Zero Boulder 50: 56-112 hours
Goal Zero Boulder 100: 28-56 hours
Goal Zero Boulder 200 Briefcase: 14-28 hours | | Wi-Fi Protocols | 802.11 b/g/n (802.11n up to 150 Mbps) | | Frequency Range | 2.4~2.5 GHz | | Operating Temperature Range | 32-104° F / 0 - 40° C | | Dimensions | 10.1 x 15.3 x 10.4" / 25.7 x 38.8 x 26.4 cm | | Weight | 43.7 lb / 19.8 kg |
