User Manual for GOAL ZERO Yeti 3000 Lithium Portable Power Station with Wi-Fi Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Yeti 3000 Lithium Portable
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
 |
User manual for the GOAL ZERO Yeti 3000 Lithium Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|

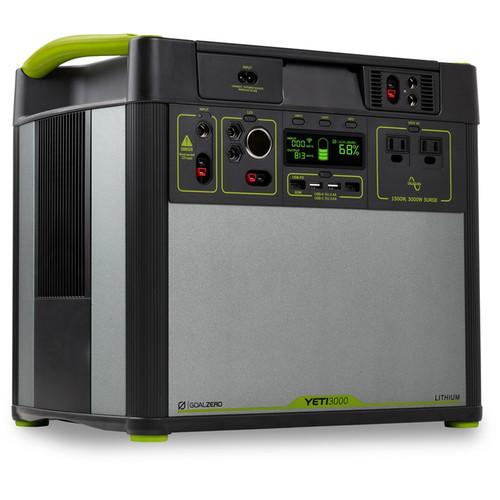

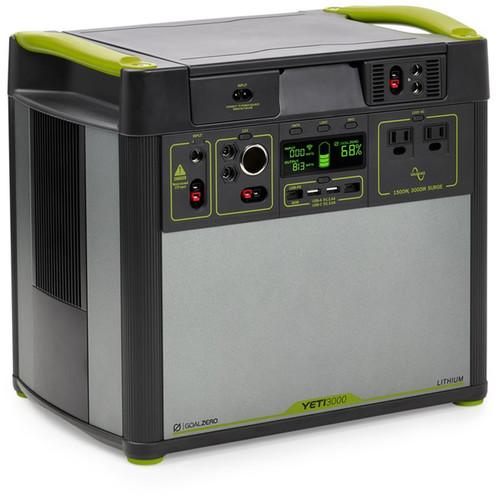

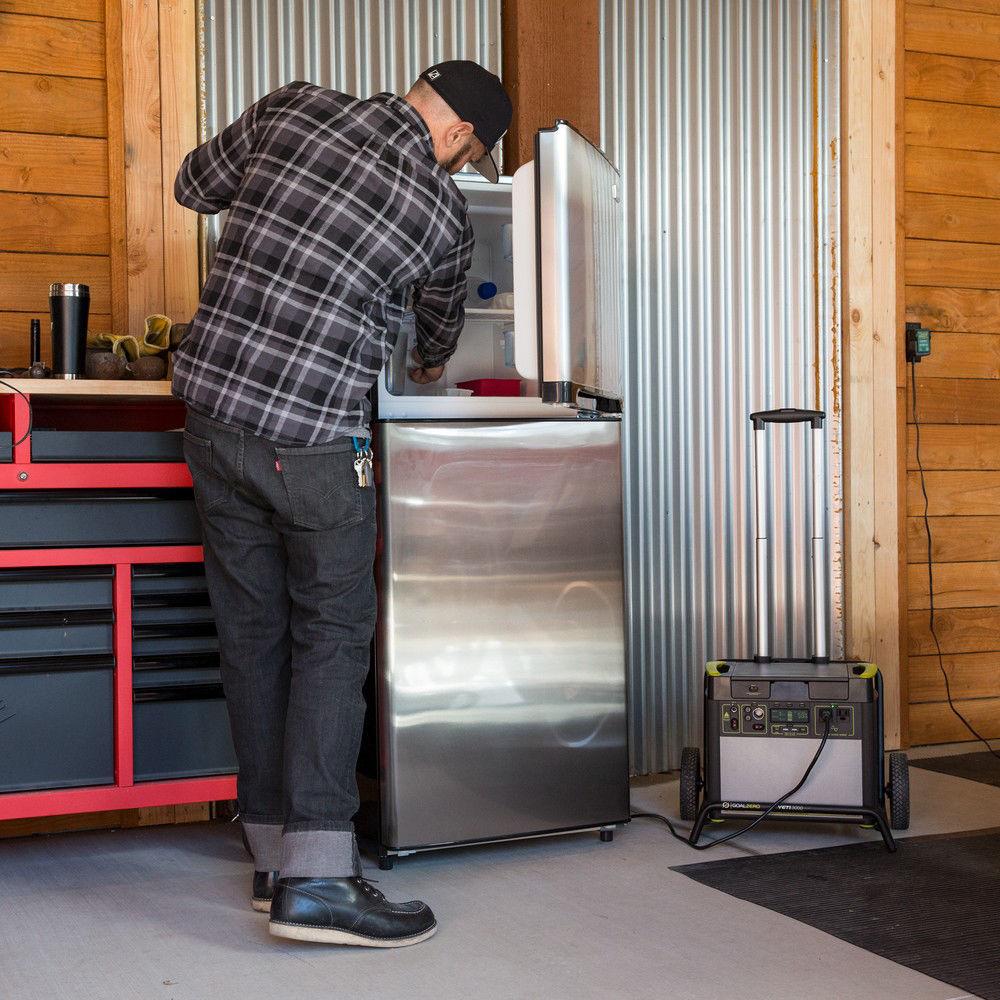

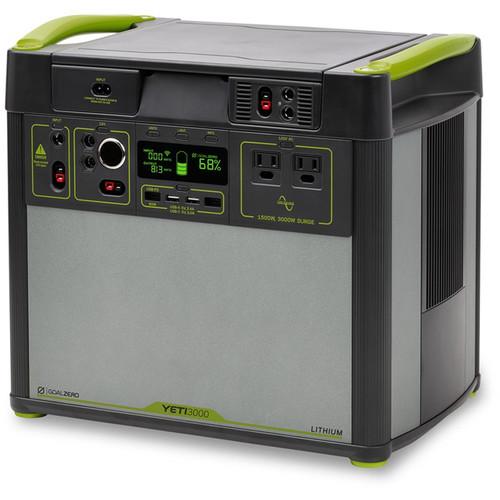

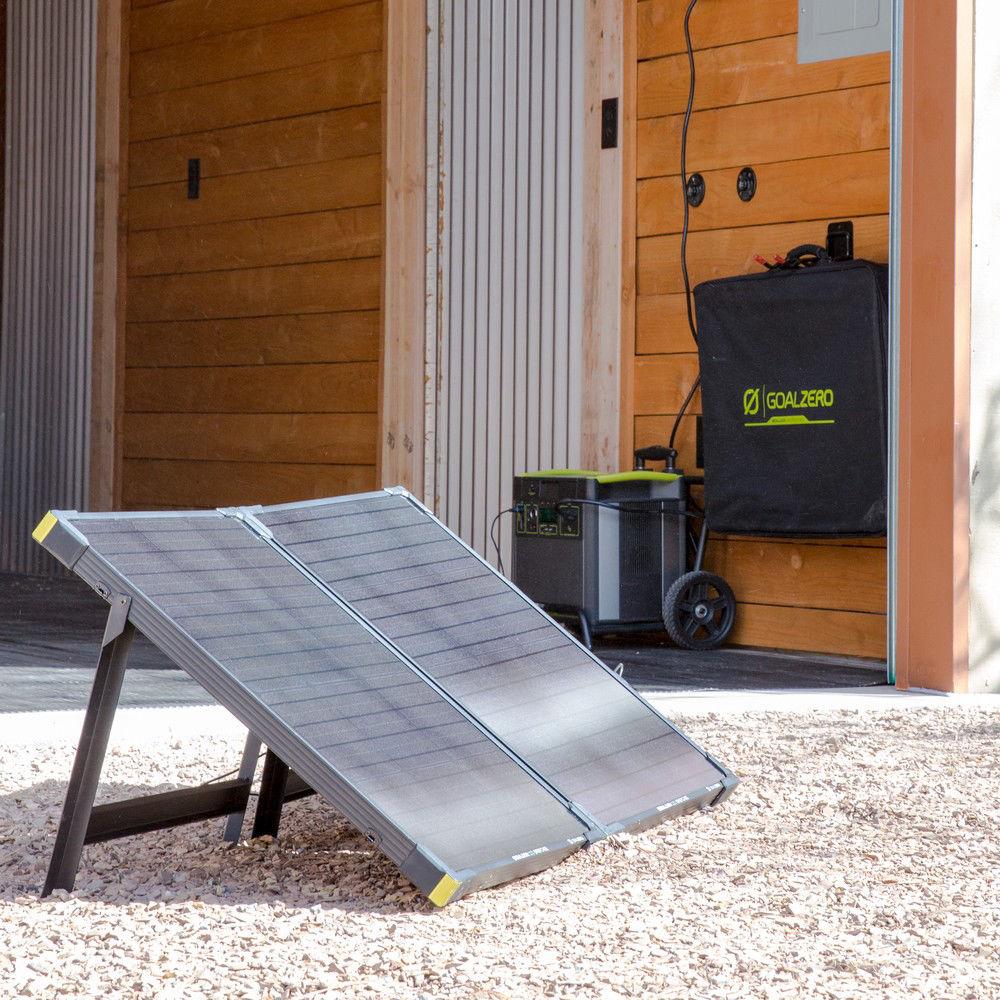

Product description Whether you need extra power for your home, garage, or outdoors, you can rely on the Yeti 3000 Lithium Power Station with Wi-Fi from Goal Zero to light up your laptops, tablets, lights, TVs, or tools. To provide a great alternative to the noise, fumes, and hassle of gas backup generators, this station uses a 280.8Ah lithium-ion battery with 3075Wh power capacity that will keep multiple devices running or charging for hours or days. This versatile device can be recharged from any 110 VAC outlet in 25 hours, and from solar panels in as little as six hours. It connects via your Wi-Fi to the Yeti App on your phone or device, allowing you to monitor the battery level and incoming/outgoing power, turn ports on and off, and update firmware.

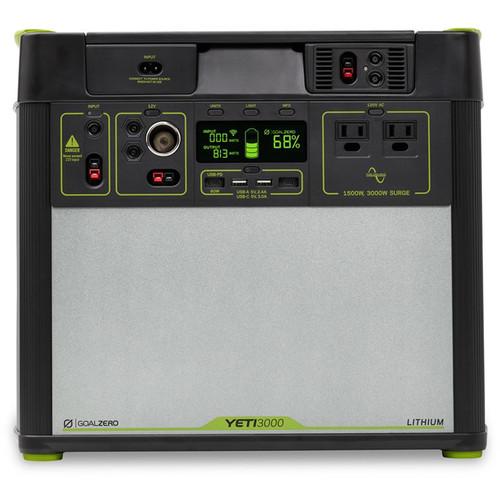

To accommodate most of your electronics and gadgets, the Yeti 3000 provides an array of output ports: two 110 VAC outputs (with 1500W and 3000W surges), four regulated USB ports, a 12V car cigarette lighter socket, and two 6mm 12V ports. To keep you informed of the stations' status, the front panel offers a display with readouts and indicators. To transport this heavy-duty power station, a Yeti Lithium Roll Cart is included. -
- 3075Wh power capacity

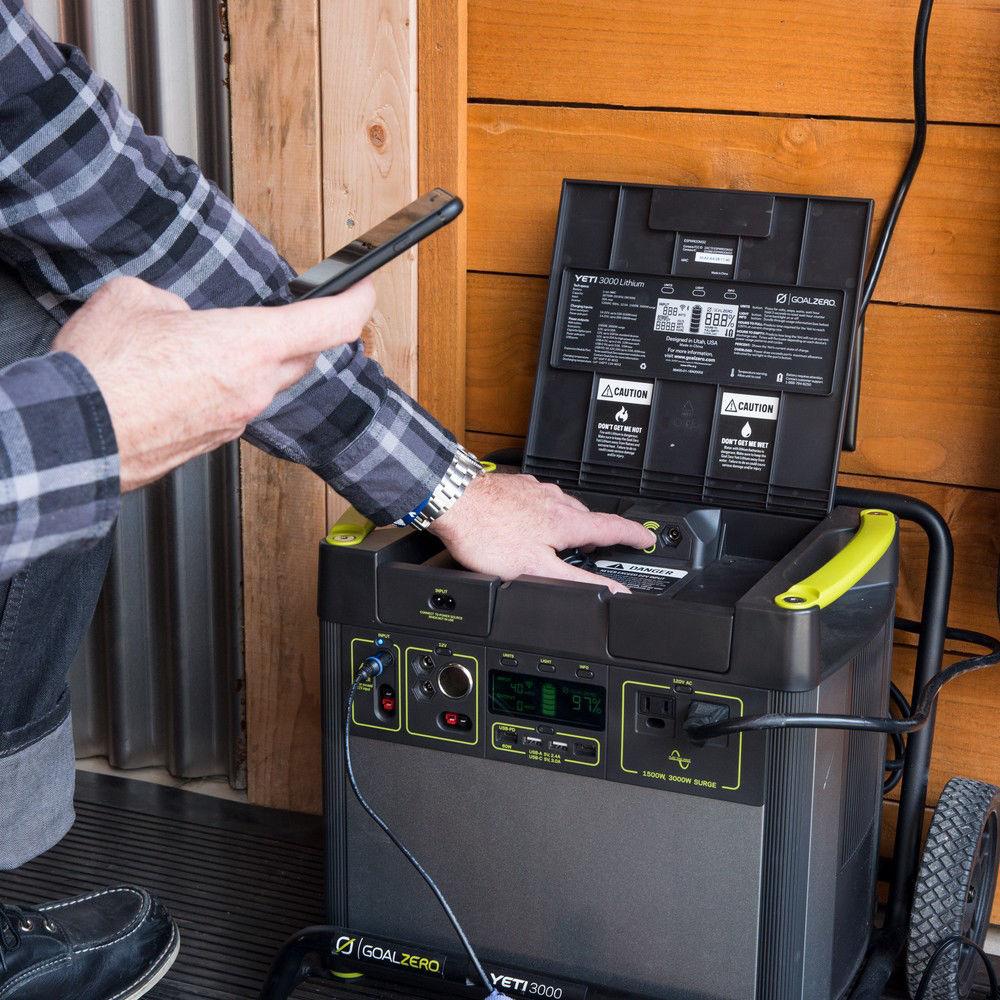

- Control from phone or device via Wi-Fi and Yeti App
- App can monitor incoming and outgoing power, turn ports on and off, update firmware
- Pre-installed MPPT (maximum power point tracker): Charges 40% faster from solar panels
- Smart and Safe Protection: Lithium-ion battery intelligent management systems ensure maximum safety
- Two 120V AC outlets (1500W and 3000W surges)
- Two USB 5V/2.4A (12W) USB ports
- USB-C port: 5V, 3A (15W)
- USB-PD port: 5/12/20V, up to 3A (60W)
- One car cigarette lighter 12 VDC socket
- Two 6mm 12 VDC ports
- AC power charging time is 25 hours
- Charging time form a Goal Zero Boulder 200 Solar Briefcase is 18-36 hours
- Accessories storage compartment on the top
- Built-in display with status indicators
- Two built-in carry handles

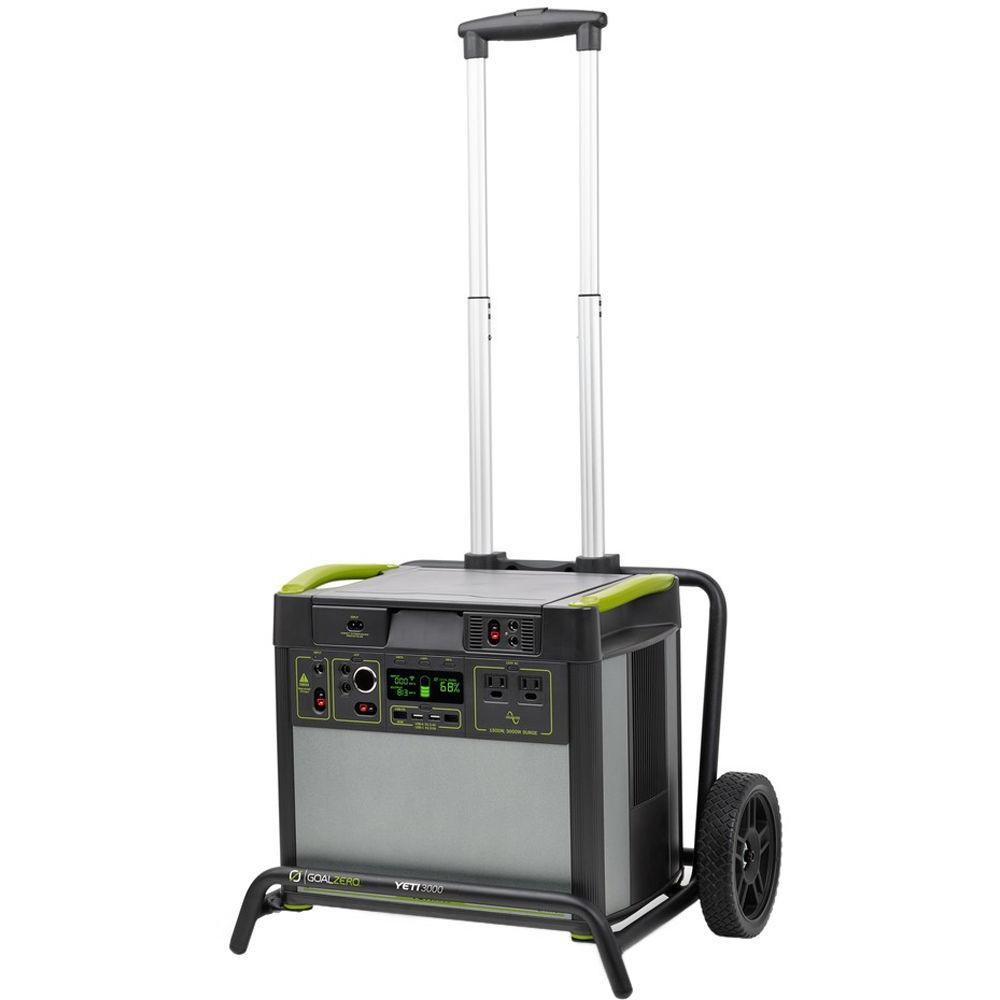

- One telescopic handle

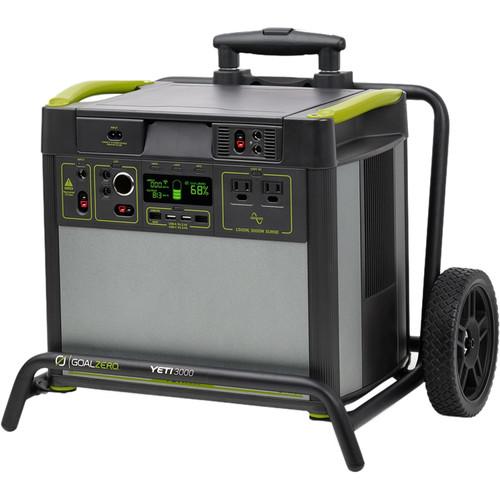

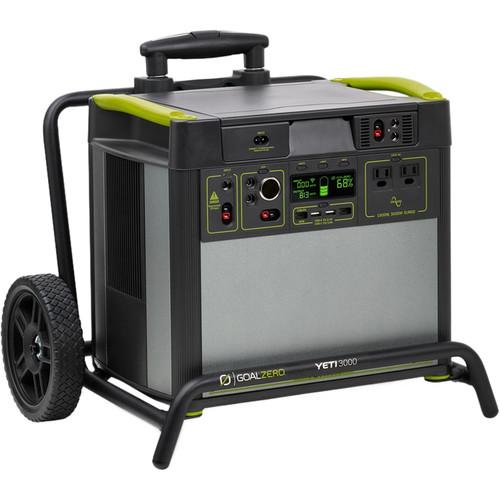

- Includes Yeti Roll Cart
UPC: 847974005460 In the Box GOAL ZERO Yeti 3000 Lithium Portable Power Station with Wi-Fi 2 x Wall Charger Limited 1-Year Warranty (6 Months on Battery Cells) Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Yeti 3000 Lithium Portable Power Station with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGOAL ZERO 38400 Specs | Battery Type | Lithium-Ion NMC | | Power Capacity | 3075 Wh | | Battery Capacity | 280.8 Ah (10.95 V)
Single Cell Equivalent Capacity: 842.0 Ah (3.65 V) | | Input | Charging Port (8 mm): 14-22V, up to 10A (120W max)
Power Pole Charging Port: 14-22V, up to 30A (360W max)
Port for Goal Zero Expansion Modules | | Outputs | 110 VAC 60 Hz Pure Sine Wave, 12.5 A (1500 W, 3000 W Surge)
230 VAC Pure Sine Wave, 50Hz, 6.5A (1500 W, 3000 W Surge)
Universal or Australia (Type 1) AC Plugs
2 x USB-A Port: 5V, up to 2.4A (12W Max), Regulated
USB-C Port: 5V, up to 3.0A (15W Max), Regulated
USB-PD Port: 5V, 12V, 20V, up to 3.0A (60W Max), Regulated
6 mm, 12 VDC Port: 10 A (120 W Max)
Female 12 VDC Port: 10 A (120 W Max)
1 x Power Pole Port: 12 V, 10 A (120 W Max) | | Charging Time | 110 VAC Wall Charger (2x 5 A): 25 Hours
Goal Zero Boulder 100 Solar Panels: 60-120 Hours
Goal Zero Boulder 200 Solar Briefcase: 30-60 Hours
Standard Input Max: 9 Hours
Combined Input Max (Standard and MPPT): 6 Hours | | Battery Life | 500 Cycles to 80% Capacity (1 C Discharge Rate, 25C Full Charge/Discharge Temp) | | Operating Temperature Range | 32 - 104°F / 0 - 40°C | | Wi-Fi Protocols | 802.11 b/g/n (802.11n up to 150 Mbps) | | Frequency Range | 2.4~2.5 GHz | | Dimensions | 15.3 x 13.1 x 10.1" / 38.9 x 33.3 x 25.7 cm | | Weight | Yeti 3000 and MPPT Charger: 68.6 lb / 31.1 kg
Yeti Roll Cart: 8.9 lb / 4.0 kg |
