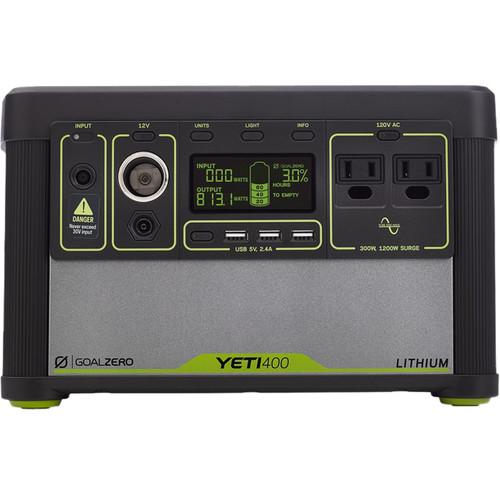

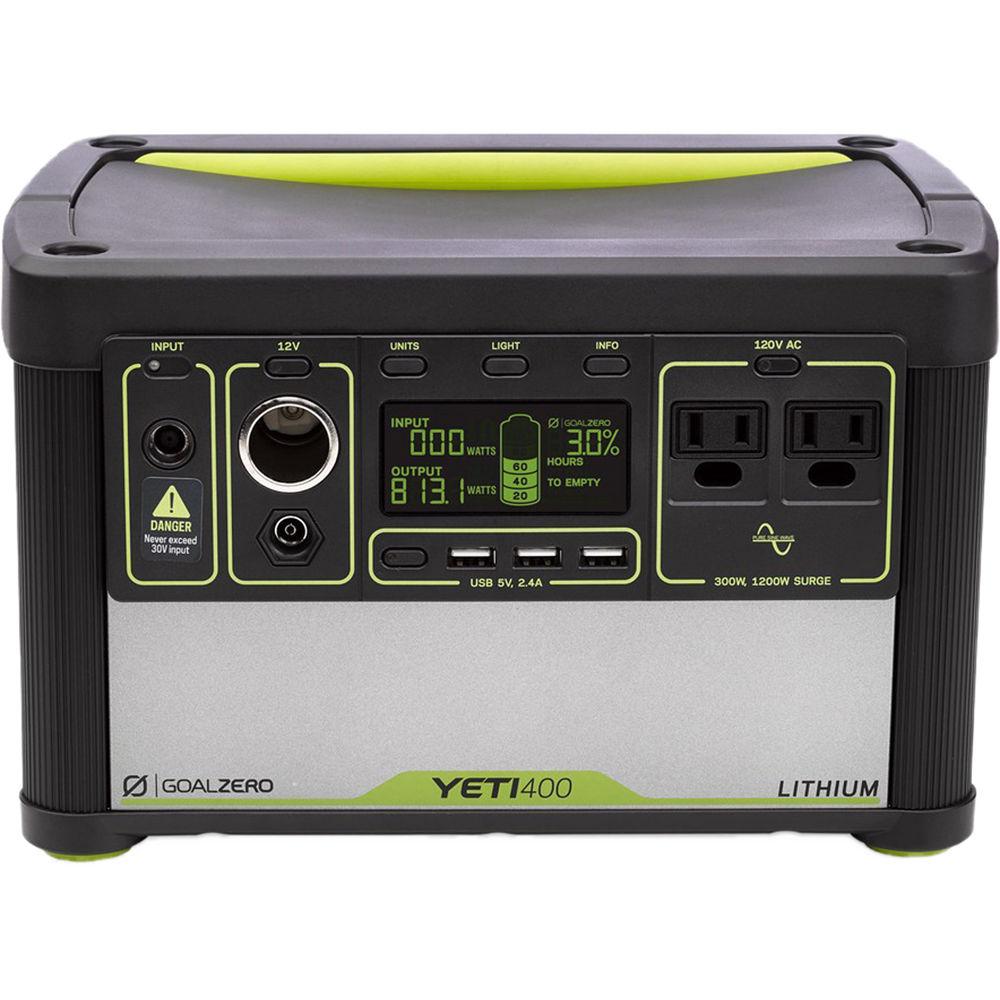

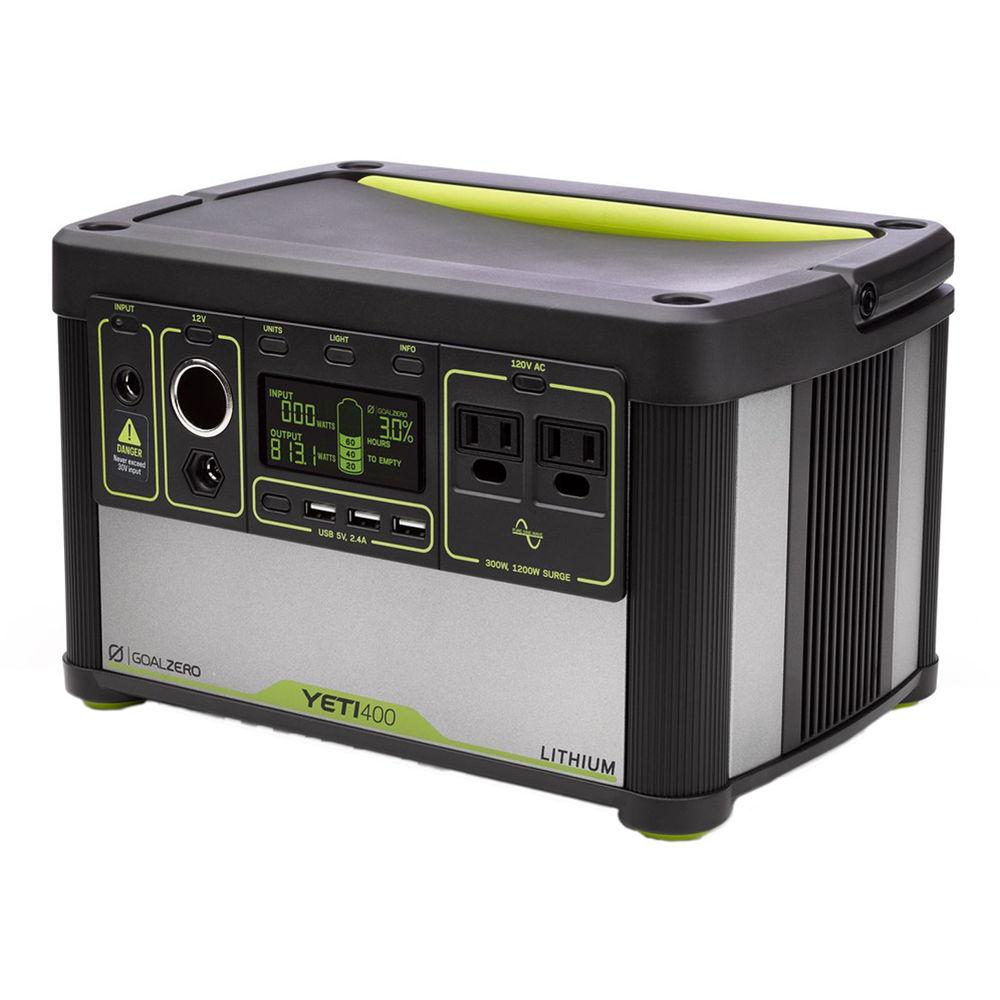

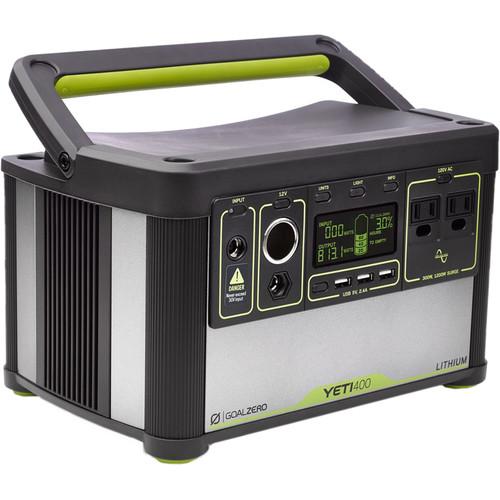

User Manual for GOAL ZERO Yeti 400 Lithium Portable Power Station Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Yeti 400 Lithium Portable
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
 |
User manual for the GOAL ZERO Yeti 400 Lithium Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|
Product description - GOAL ZERO YETI 400 LITHIUM | Tech Video
- GOAL ZERO | YETI 1400 LITHIUM
Whether you're off the grid or the grid is down, you can power laptops, tablets, lights, TVs, tools, medical devices, and more with the Yeti 400 Lithium Portable Power Station from Goal Zero. An alternative to the noise, fumes and hassle of traditional backup generators, the Yeti uses a 428Wh lithium battery that can be charged from 110 VAC house current or solar panels. The front display panel provides readouts of incoming and outgoing power, and battery status in 20% increments. This real-time feedback enables precise power management. The Yeti provides an array of output options for any energy need. It has two standard 110 VAC grounded wall plugs, four standard USB ports, a 12 VDC vehicle cigarette lighter-style socket and a 6mm 12 VDC port. The battery is easily replaced at the end of its 500-charge life cycle. The pure sine AC outlets have a maximum surge capability of 1200 watts. The Yeti recharges on AC power in 7 hours and in 16 hours from one Goal Zero Boulder 50 solar panel. -
- 428Wh capacity, 1200-watt AC surge
- Two AC outlets, four USB ports, one 6mm 12 VDC port, one car cigarette-lighter style 12 VDC socket
- Charge by AC power (7 hours) or solar (16 hours from one Goal Zero Boulder 50 solar panel)
- Real-time usage display
- Portable at 7.5 x 11.3 x 7.0" and 16.3 pounds
UPC: 847974004449 In the Box GOAL ZERO Yeti 400 Lithium Portable Power Station 110 VAC Wall Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Yeti 400 Lithium Portable Power Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGOAL ZERO Yeti 400 Lithium Specs | Battery Type | Lithium-ion NMC | | Capacity | 428 Wh (10.8 V, 39.6 Ah) | | Input | Charging port (8 mm): 14-29 V, up to 10 A (120 W max) | | Outputs | 2 x AC standard US outlets 110 VAC 60 Hz pure sine wave, 3 A, 300 W max total continuous, 1200 W surge
4 x USB 5 V, 2.4 A max (12 W max), regulated
1 x 6 mm, 12 V ports, 10 A max (120 W), regulated
Female 12 VDC port, 10 A (120 W max) | | Charging Time | 110 VAC Wall Charger: 7 hours
16 hours from one Goal Zero Boulder 50 solar panel | | Operating Temperature Range | 32-104° F / 0 - 40° C | | Dimensions | 7.50 x 11.25 x 7.00" / 19.05 x 28.77 x 5.33 cm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 19.3 lb | | Box Dimensions (LxWxH) | 14.016 x 12.047 x 9.921" |
