User Manual for GOAL ZERO Yeti 400 Lithium Power Station with Boulder 50 Solar Panel Kit Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Yeti 400 Lithium Power
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
|
User manual for the GOAL ZERO Yeti 400 Lithium Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|

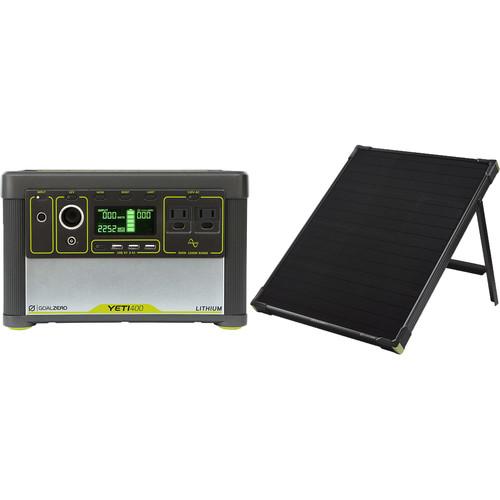

Product description Whether you're off the grid or the power's out, the Yeti 400 Lithium Portable Power Station & Boulder 50 Solar Panel Kit from Goal Zero gives you a way to power your electronic devices. An environmentally-friendly alternative to generators, the Yeti 400 LI utilizes a 428Wh, 10.8 V, 39.6Ah lithium-ion battery. The Boulder 50 delivers 50 watts of electricity under optimal conditions to charge the Yeti. - Yeti 400 Lithium Portable Power Station
- GOAL ZERO YETI 400 LITHIUM | Tech Video
- GOAL ZERO | YETI 1400 LITHIUM

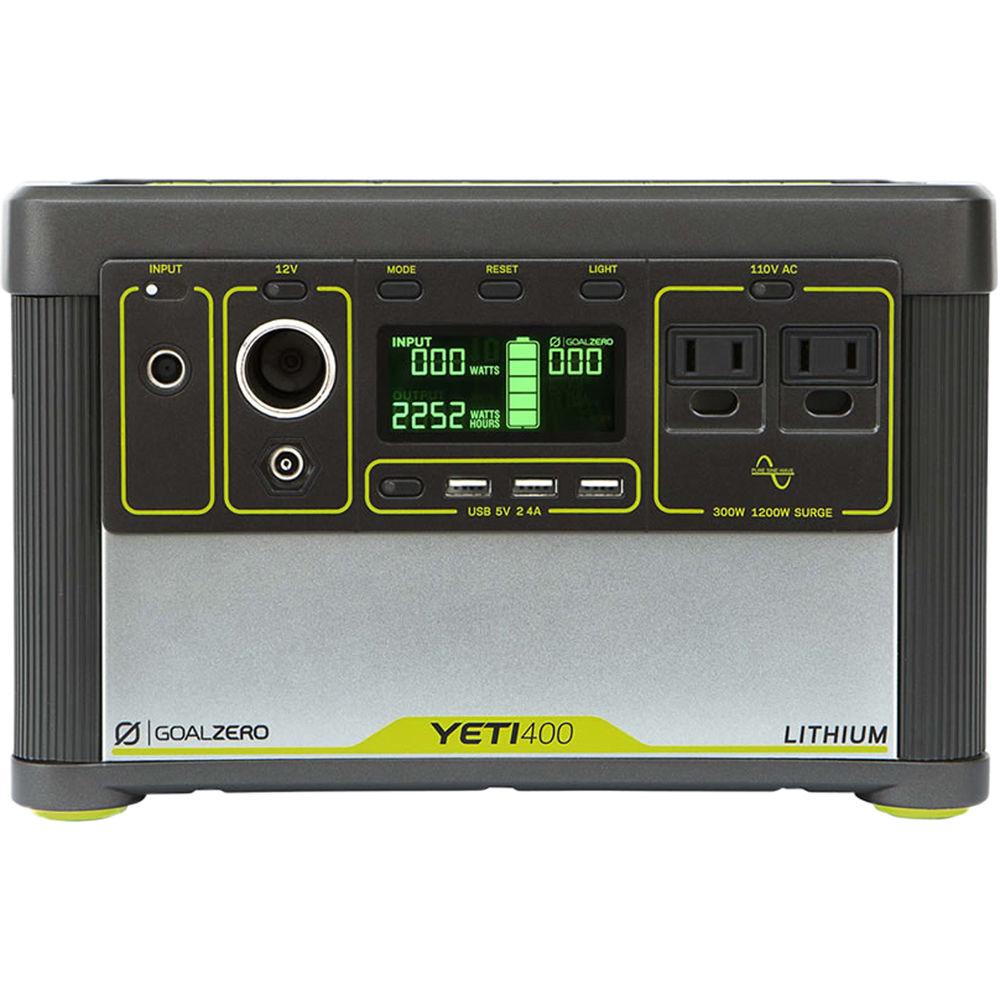

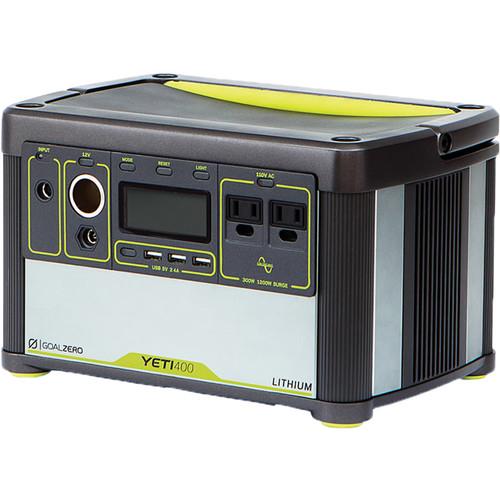

Whether you're off the grid or the grid is down, you can power laptops, tablets, lights, TVs, tools, medical devices, and more with the Yeti 400 Lithium Portable Power Station from Goal Zero. An alternative to the noise, fumes and hassle of traditional backup generators, the Yeti uses a 428Wh lithium battery that can be charged from 110 VAC house current or solar panels. The front display panel provides readouts of incoming and outgoing power, and battery status in 20% increments. This real-time feedback enables precise power management. The Yeti provides an array of output options for any energy need. It has two standard 110 VAC grounded wall plugs, four standard USB ports, a 12 VDC vehicle cigarette lighter-style socket and a 6mm 12 VDC port. The battery is easily replaced at the end of its 500-charge life cycle. The pure sine AC outlets have a maximum surge capability of 1200 watts. The Yeti recharges on AC power in 7 hours and in 16 hours from one Goal Zero Boulder 50 solar panel. -
- 428Wh capacity, 1200-watt AC surge
- Two AC outlets, four USB ports, one 6mm 12 VDC port, one car cigarette-lighter style 12 VDC socket
- Charge by AC power (7 hours) or solar (16 hours from one Goal Zero Boulder 50 solar panel)
- Real-time usage display
- Portable at 7.5 x 11.3 x 7.0" and 16.3 pounds

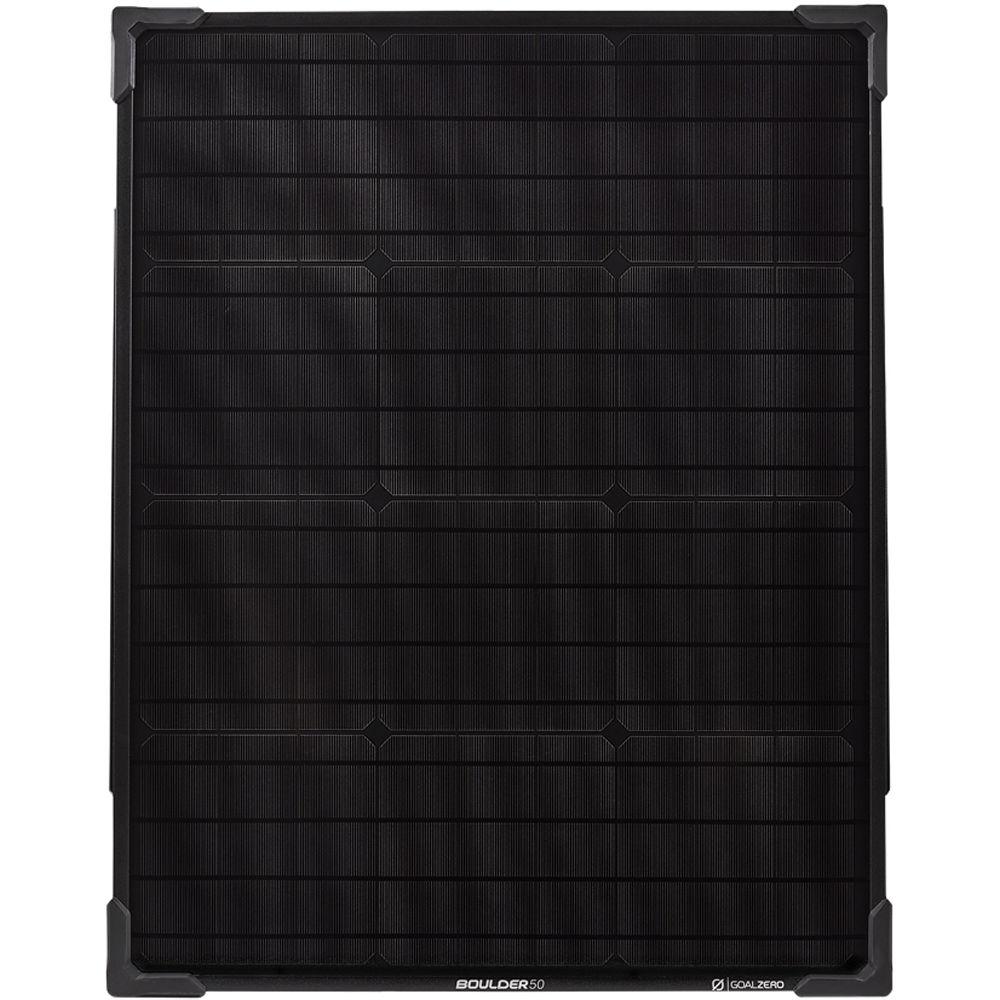

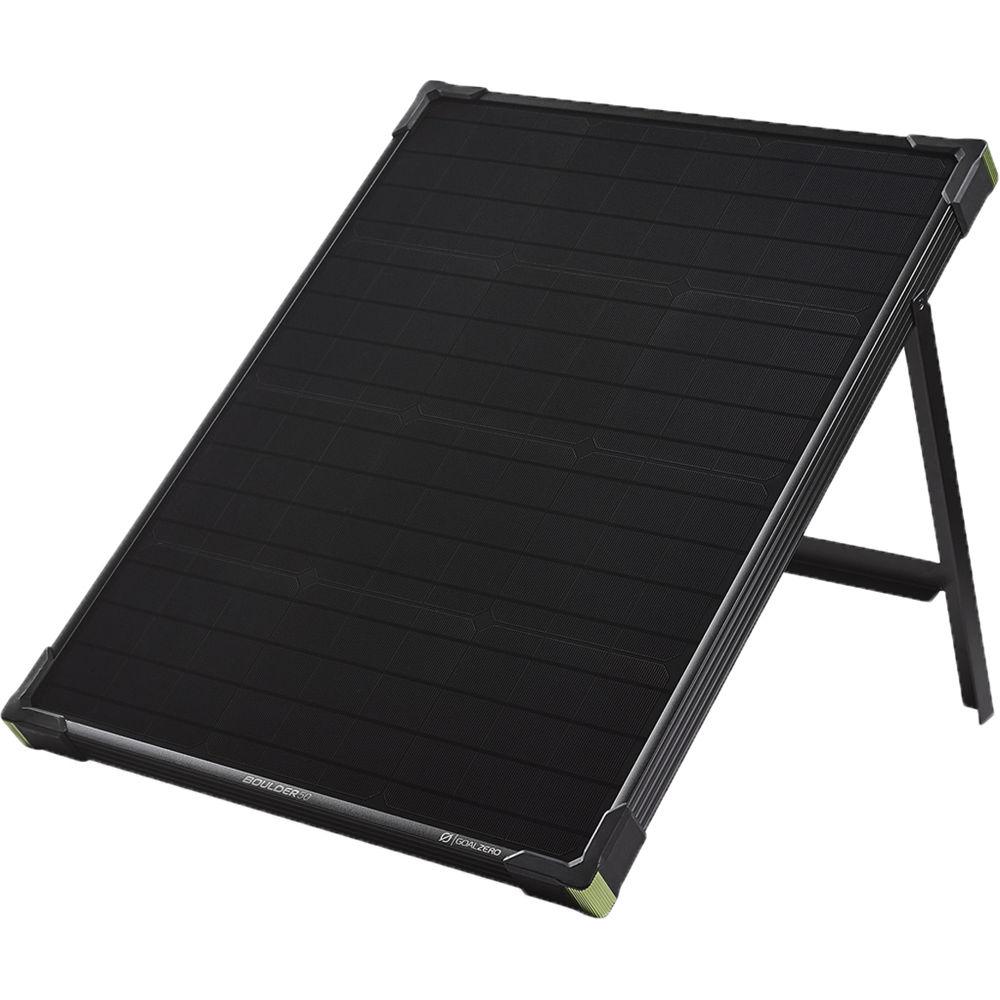

UPC: 847974004449 - Boulder 50 Solar Panel Use the clean, free and renewable power of the sun to charge your Goal Zero portable power pack with the Boulder 50 Solar Panel. This 21.75 x 26.75 x 1.75" panel produces up to 50 watts of power that can be stored in any Goal Zero recharger; it is most effective with the Yeti 150, Yeti 400, Yeti 1250, Yeti 1400, Sherpa 50 and Sherpa 100 models. You can chain up to four Boulder 50s together for increased power production. The Boulder 50 can also be chained with other models in the Boulder line. The panel is covered with scratch-resistant tempered glass and is supported by an aluminum frame with extra corner protection, and features an integrated kickstand that supports it at the optimum angle for charging. The weather-resistant Boulder 50 is rugged enough to be permanently installed, but its size and 12.4-pound weight also make it portable.
-
- Generates up to 50 watts at 18-22 volts
- Designed for compatibility with Goal Zero Yeti 150, Yeti 400, Yeti 1250, Yeti 1400, Sherpa 50, or Sherpa 100 rechargers
- Can deliver electricity for storage in any battery/power pack compatible with its output
- Monocrystalline cells
- Tempered glass panel in aluminum frame
- Kickstand for best charging angle
- For temporary or permanent installation
UPC: 847974004487 In the Box Bundle Items Yeti 400 Lithium Portable Power Station bfarbcescrexzucyxyryvrxdcatvwzdwcqcd Boulder 50 Solar Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Yeti 400 Lithium Power Station with Boulder 50 Solar Panel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yeti 400 Lithium Portable Power Station
Battery Type | Lithium-ion NMC | Capacity | 428 Wh (10.8 V, 39.6 Ah) | Input | Charging port (8 mm): 14-29 V, up to 10 A (120 W max) | Outputs | 2 x AC standard US outlets 110 VAC 60 Hz pure sine wave, 3 A, 300 W max total continuous, 1200 W surge 4 x USB 5 V, 2.4 A max (12 W max), regulated 1 x 6 mm, 12 V ports, 10 A max (120 W), regulated Female 12 VDC port, 10 A (120 W max) | Charging Time | 110 VAC Wall Charger: 7 hours 16 hours from one Goal Zero Boulder 50 solar panel | Operating Temperature Range | 32-104° F / 0 - 40° C | Dimensions | 7.50 x 11.25 x 7.00" / 19.05 x 28.77 x 5.33 cm | Weight | 16.3 lb / 7.4 kg | | Box Dimensions (LxWxH) | 14.016 x 12.047 x 9.921" | - Boulder 50 Solar Panel
Cell | Mono crystalline | Input | - Wattage: 50 W
- Open-circuit Voltage: 18 - 20 V
| Output | 8 mm solar port: 14 - 22 V, 2 Amp max, unregulated | Charge Time | - Sherpa 50: 3-4 h
- Yeti 150: 6-12 h
- Yeti 400: 16-32 h
Yeti 1400: 57-114 h | Dimensions | 21.75 x 26.75 x 1.75" (55.25 x 67.95 x 4.45 cm) | Weight | 12.4 lb (5.6 kg) | | Box Dimensions (LxWxH) | 29.1 x 23.3 x 4.4" |
