User Manual for GOAL ZERO Yeti Lithium 1400 Portable Power Station with Boulder Briefcase Solar Kit Click to enlarge the picture
Contents of the user manual for the GOAL ZERO Yeti Lithium 1400 Portable
- Product category: Solar & Portable Power GOAL ZERO
- Brand: GOAL ZERO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GOAL ZERO Solar & Portable Power
|
User manual for the GOAL ZERO Yeti Lithium 1400 Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GOAL ZERO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GOAL ZERO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GOAL ZERO product will considerably shorten its lifespan!
|

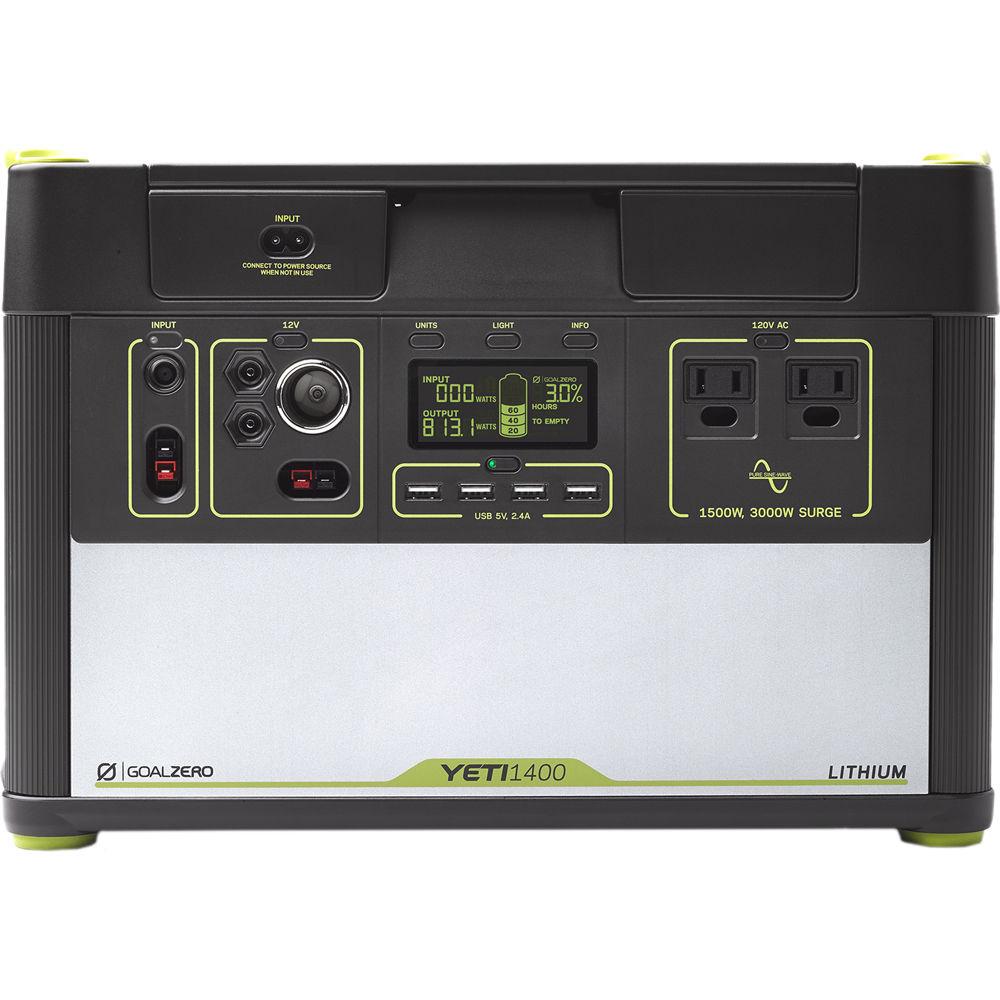

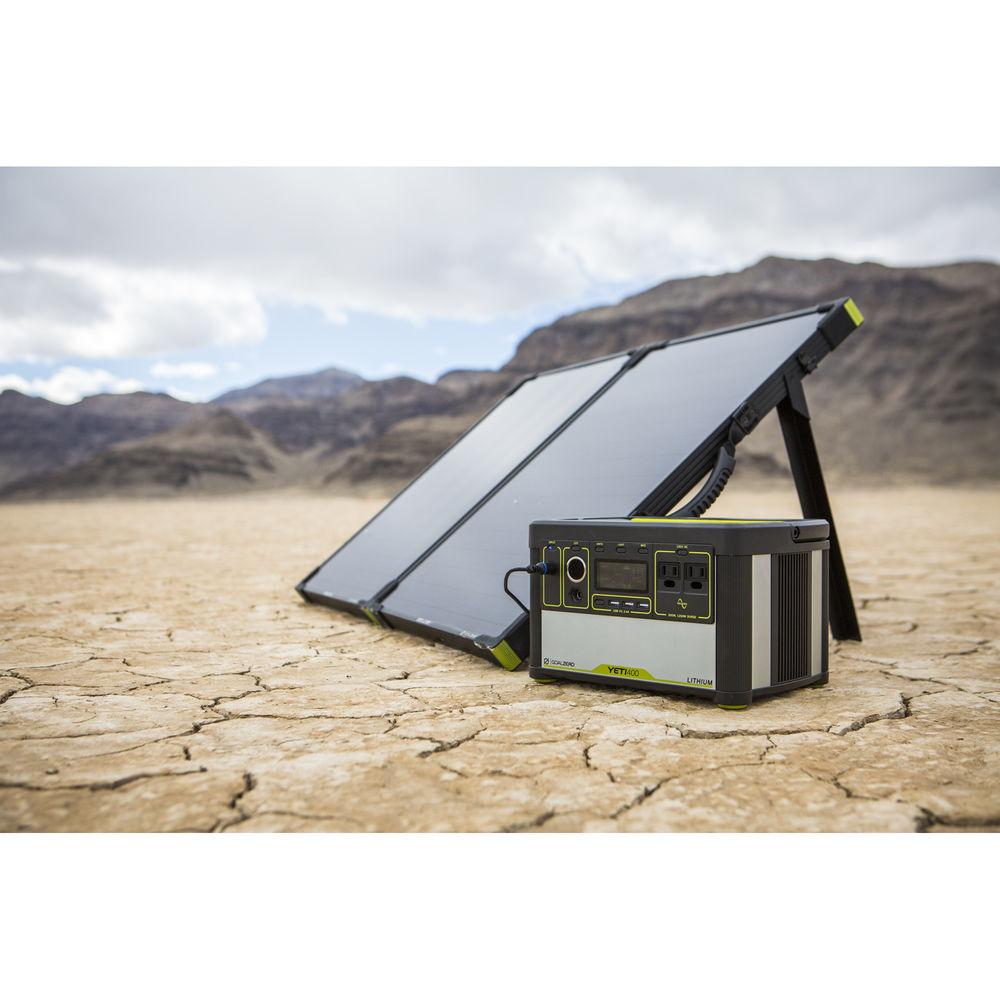

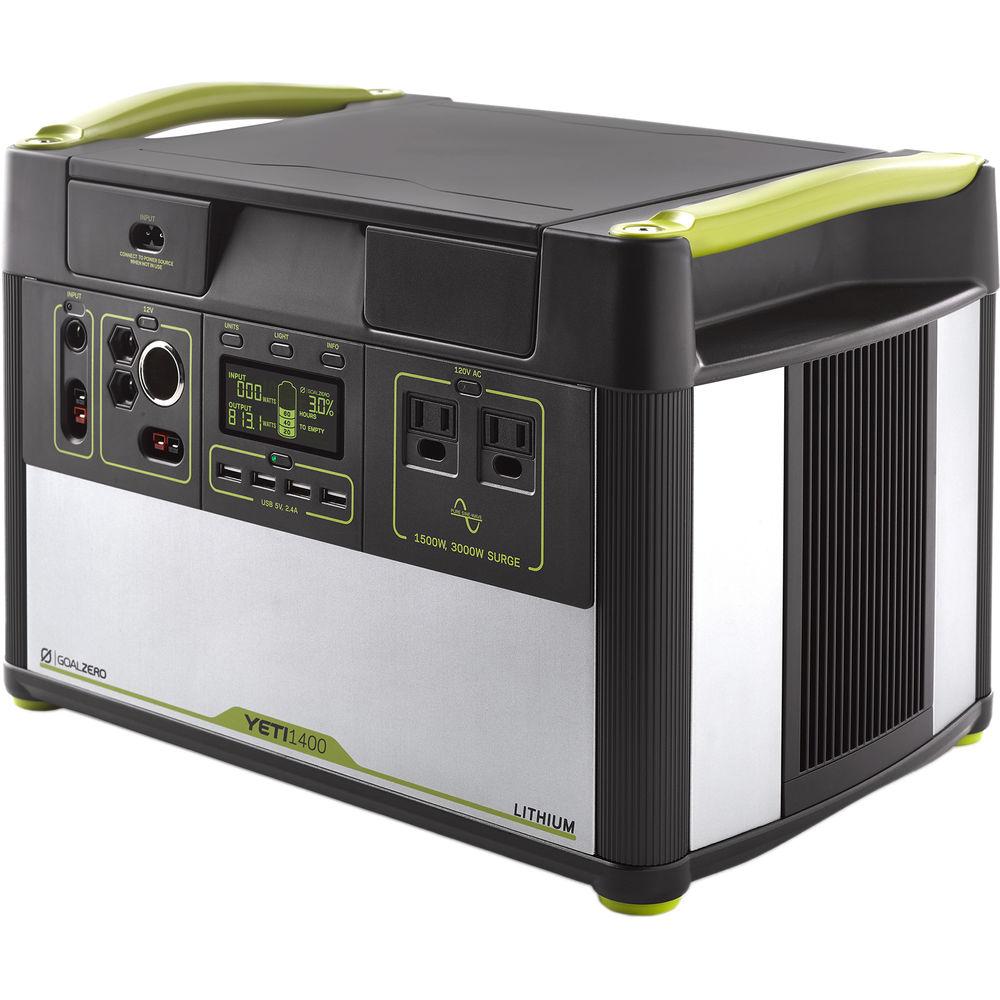

Product description Gather free, renewable solar power and store it for use running electronics and small appliances with the Yeti Lithium 1400 Portable Power Station with Boulder Briefcase Solar Kit from Goal Zero. The Briefcase's hinged 50-watt panels are made of weather-resistant tempered glass and come with a handle for easy transport. The Yeti has wall-style, pure-sine AC outputs, USB ports and 12 VDC ports — so if you're off the grid or the grid is down, you'll still have the power you need for electricity-dependent necessities. - Yeti 1400 Lithium Portable Power Station Whether you're off the grid or the grid is down, you can power laptops, tablets, lights, TVs, tools, medical devices, and more with the Yeti 1400 Lithium Portable Power Station from Goal Zero. An alternative to the noise, fumes and hassle of traditional backup generators, the Yeti uses a 1425Wh lithium battery that can be charged from 110 VAC house current or solar panels. The front display panel provides readouts of incoming and outgoing power, and battery status in 20% increments. This real-time feedback enables precise power management. The Yeti provides an array of output options for any energy need. It has two standard 110 VAC grounded wall plugs, four standard USB ports, a 12 VDC vehicle cigarette lighter-style socket and a 6mm 12 VDC port. The battery is easily replaced at the end of its 500-charge life cycle. The pure sine AC outlets have a maximum surge capability of 3000 watts. The Yeti recharges on AC power in 25 hours and in 16 hours from two Goal Zero Boulder 100 solar panels.
-
- 1425Wh capacity, 3000-watt AC surge
- Two AC outlets, four USB ports, one 6mm 12 VDC port, one car cigarette-lighter style 12 VDC socket
- Charge by AC power (25 hours) or solar (16 hours from two Goal Zero Boulder 100 solar panels)
- Real-time usage display
- Portable at 10.1 x 15.3 x 10.4" and 45.6 pounds

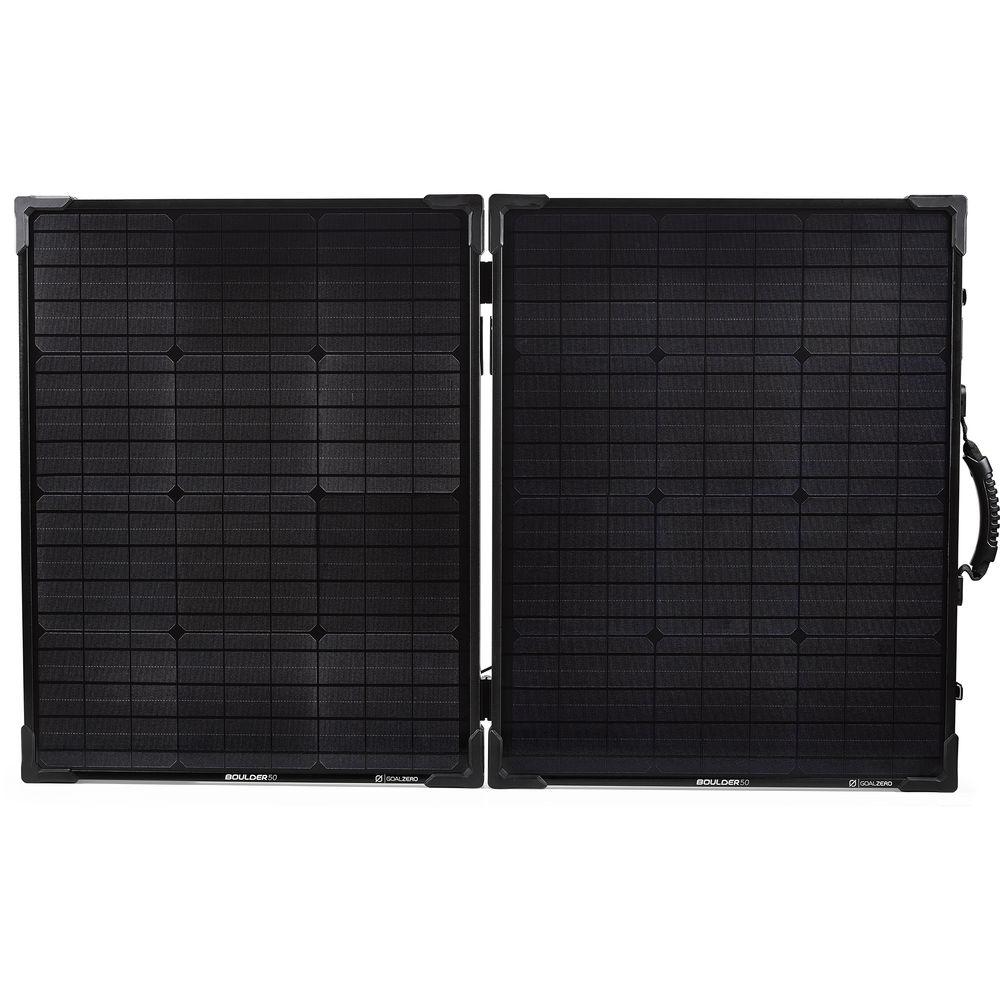

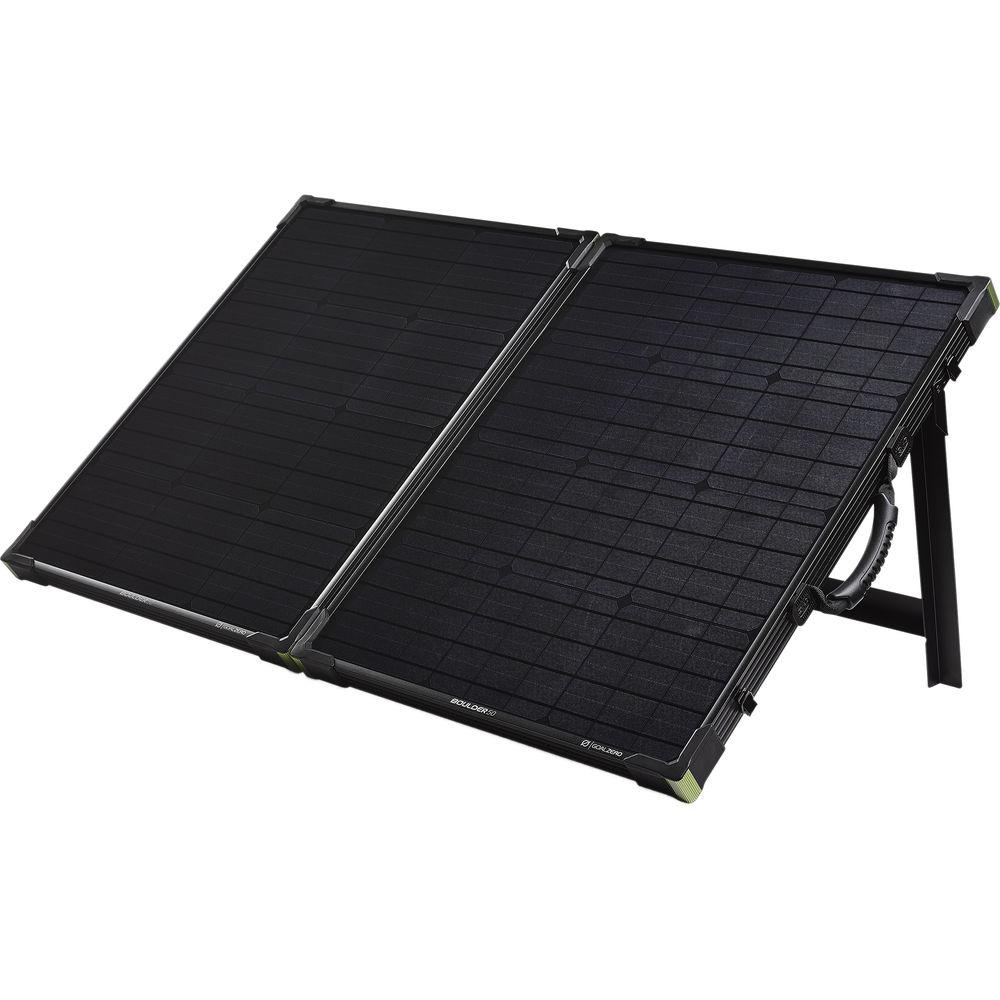

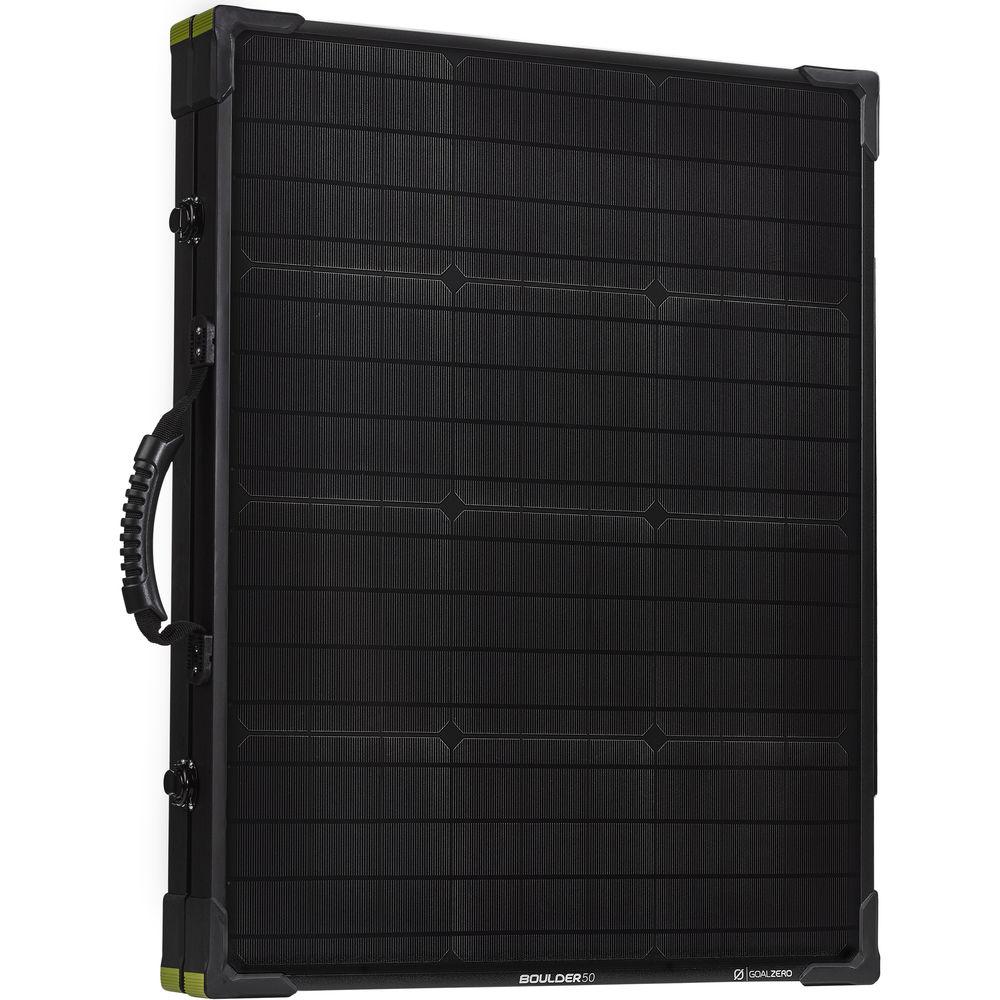

UPC: 847974004456 - Boulder 100 Briefcase Solar Panel Use the clean, free, and renewable power of the sun to charge your Goal Zero power pack with the Boulder 100 Briefcase Solar Panel. It consists of two 50-watt panels chained and joined by a hinge, so you can fold them together and carry them by the handle. Measuring 40.0 x 26.75 x 1.75" unfolded, this panel produces up to 100 watts of power that can be stored in any Goal Zero recharger: it is most effective with the Yeti and Sherpa models. You can chain the Boulder 100 Briefcase together with other Boulder panels for increased power production. The panel is covered with scratch-resistant tempered glass and is supported by an aluminum frame with extra corner protection, and features an integrated kickstand that supports it at the optimum angle for charging. The weather-resistant Boulder 100 Briefcase is rugged enough to be permanently installed, but its size, handle, and carry bag make it portable enough for car camping, RV use, and other outdoor activities.
-
- Generates up to 100 watts at 18-22 volts
- Designed for compatibility with all Goal Zero rechargers, especially Yeti & Sherpa models rechargers
- Can deliver electricity for storage in any battery/power pack compatible with its output
- Monocrystalline cells
- Folds in half for easy transport
- Tempered glass panel in aluminum frame
- Kickstand for best charging angle
- For temporary or permanent installation
UPC: 847974004791 In the Box Bundle Items Yeti 1400 Lithium Portable Power Station atdxaxfufzawux Boulder 100 Briefcase Solar Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the GOAL ZERO Yeti Lithium 1400 Portable Power Station with Boulder Briefcase Solar Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yeti 1400 Lithium Portable Power Station
Battery Type | Lithium-ion NMC | Capacity | 1425 Wh (10.8 V, 132 Ah) | Input | Charging port (8 mm): 16-30 V, up to 10 A (160 W max) Power Pole charging port: 16-30 V, up to 30 A (360 W max) | Outputs | 2 x AC standard US outlets 110 VAC 60 Hz pure sine wave, 10 A, 1500 W max total continuous, 3000 W surge 4 x USB 5 V, 2.4 A max (12 W max), regulated 1 x 6 mm, 12 V port, 10 A (120 W max), Female 12 VDC port, 10 A (120 W max) 1 x Power Pole port, 12 V, 10 A (120 W max) | Charging Time | 110 VAC Wall Charger: 25 hours 16 hours from two Goal Zero Boulder 100 solar panels | Operating Temperature Range | 32-104° F / 0 - 40° C | Dimensions | 10.1 x 15.3 x 10.4" / 25.7 x 38.8 x 26.4 cm | Weight | 45.6 lb / 20.7 kg | | Box Dimensions (LxWxH) | 18.661 x 13.307 x 12.992" | - Boulder 100 Briefcase Solar Panel
Cell | Monocrystalline | Input | - Wattage: 100 W
- Open-Circuit Voltage: 18-22 V
| Output | 8 mm Solar Port: 14-22 V, up to 7 A | Charge Time | - Sherpa 50: 3 h
- Sherpa 100: 3-4 h
- Yeti 150: 3-6 h
- Yeti 400: 8-16 h
- Yeti 1250: 25-53 h
- Yeti 1400: 29-57 h
| Dimensions | Open: 40.00 x 26.75 x 1.75" (101.60 x 67.95 x 4.45 cm) | Weight | 25.9 lb (11.7 kg) | | Box Dimensions (LxWxH) | 29.8 x 24.3 x 5.9" |
