User Manual for Gobe 58mm 2Peak Circular Polarizer Filter Click to enlarge the picture
Contents of the user manual for the Gobe 58mm 2Peak Circular Polarizer Filter
- Product category: Polarizing Gobe
- Brand: Gobe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gobe Polarizing
 |
User manual for the Gobe 58mm 2Peak Circular Polarizer Filter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gobe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gobe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gobe product will considerably shorten its lifespan!
|

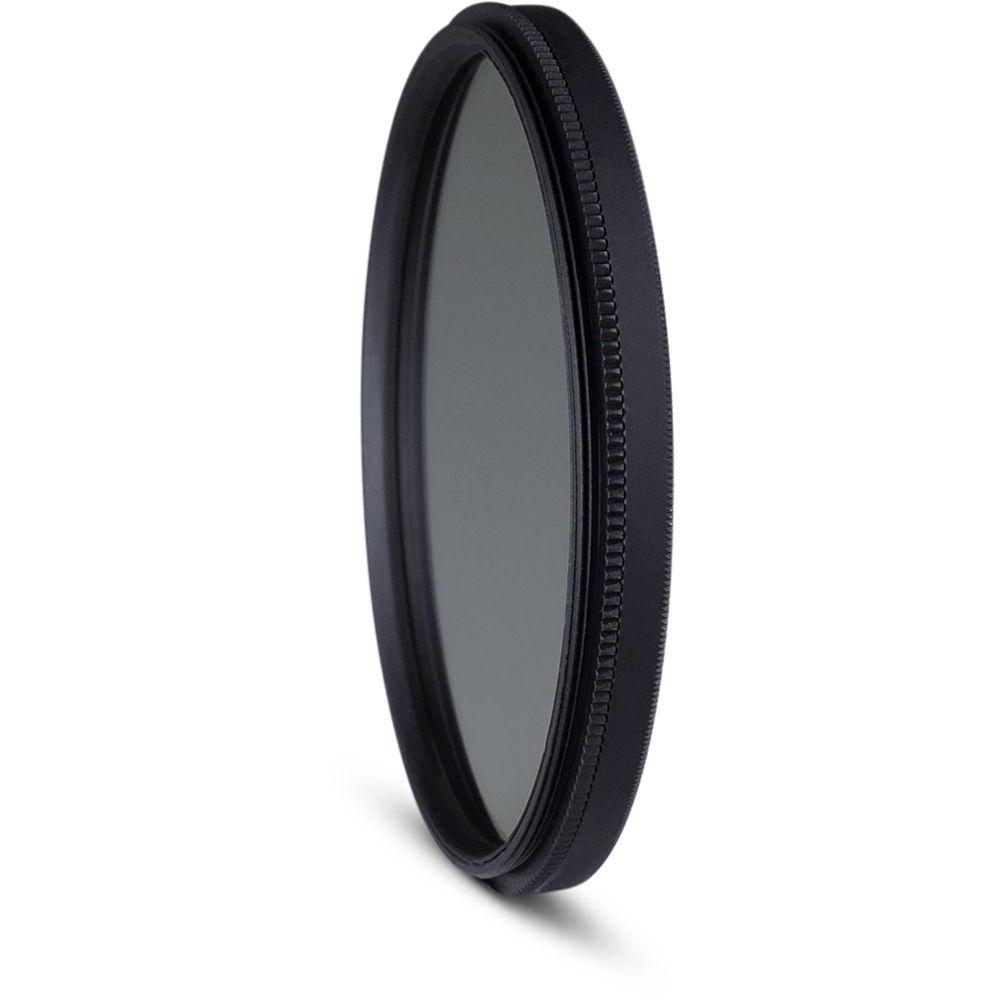

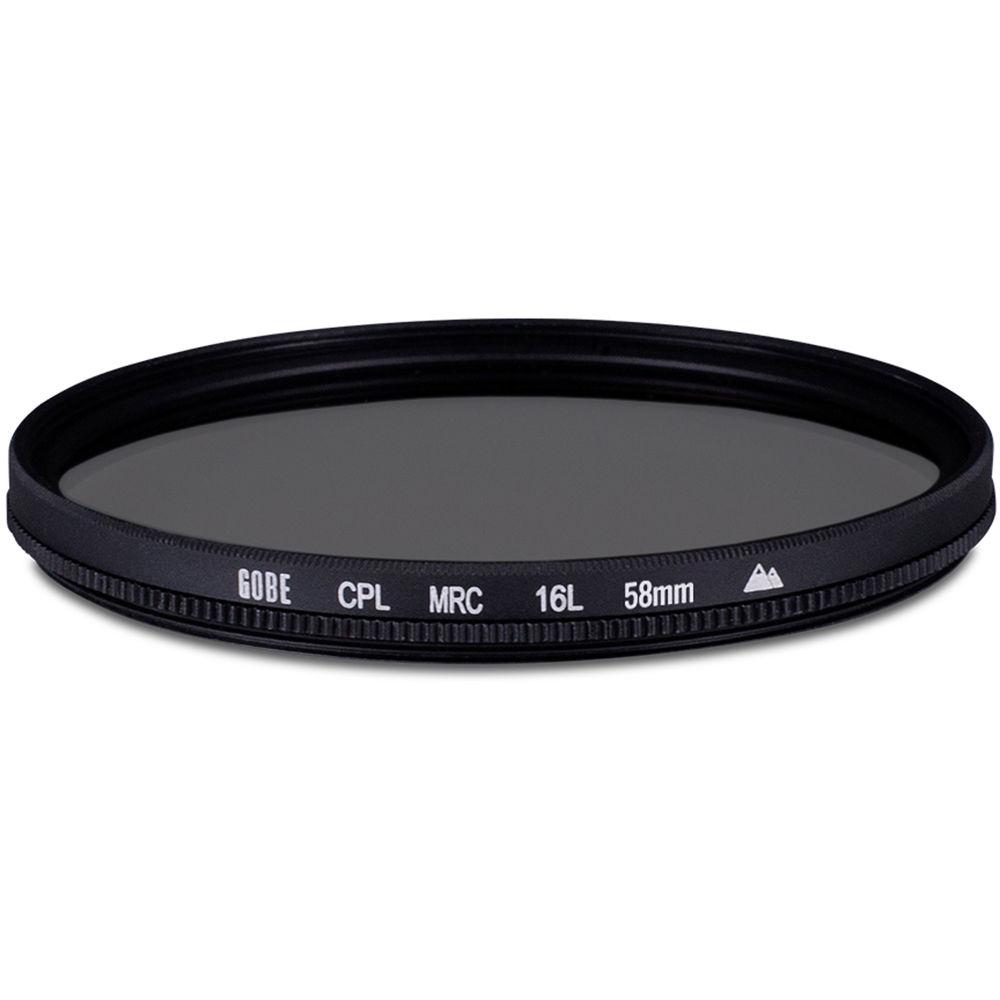

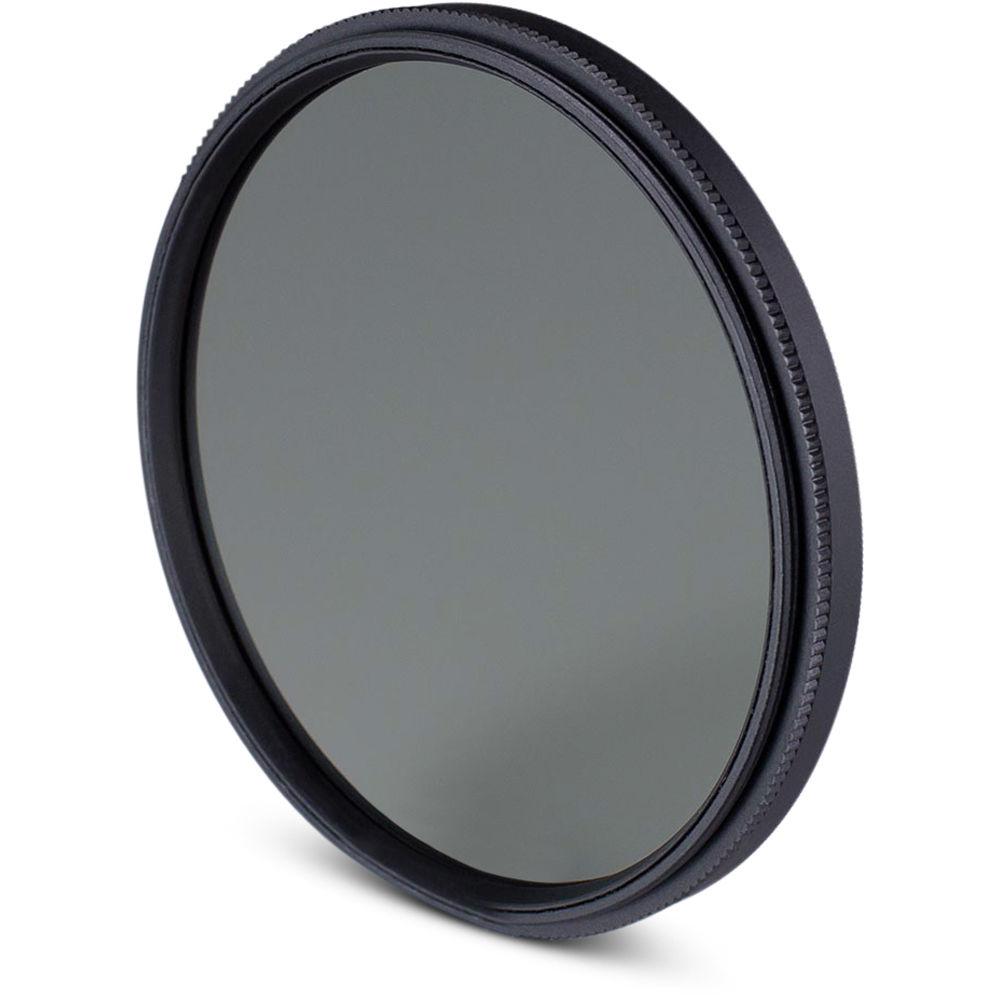

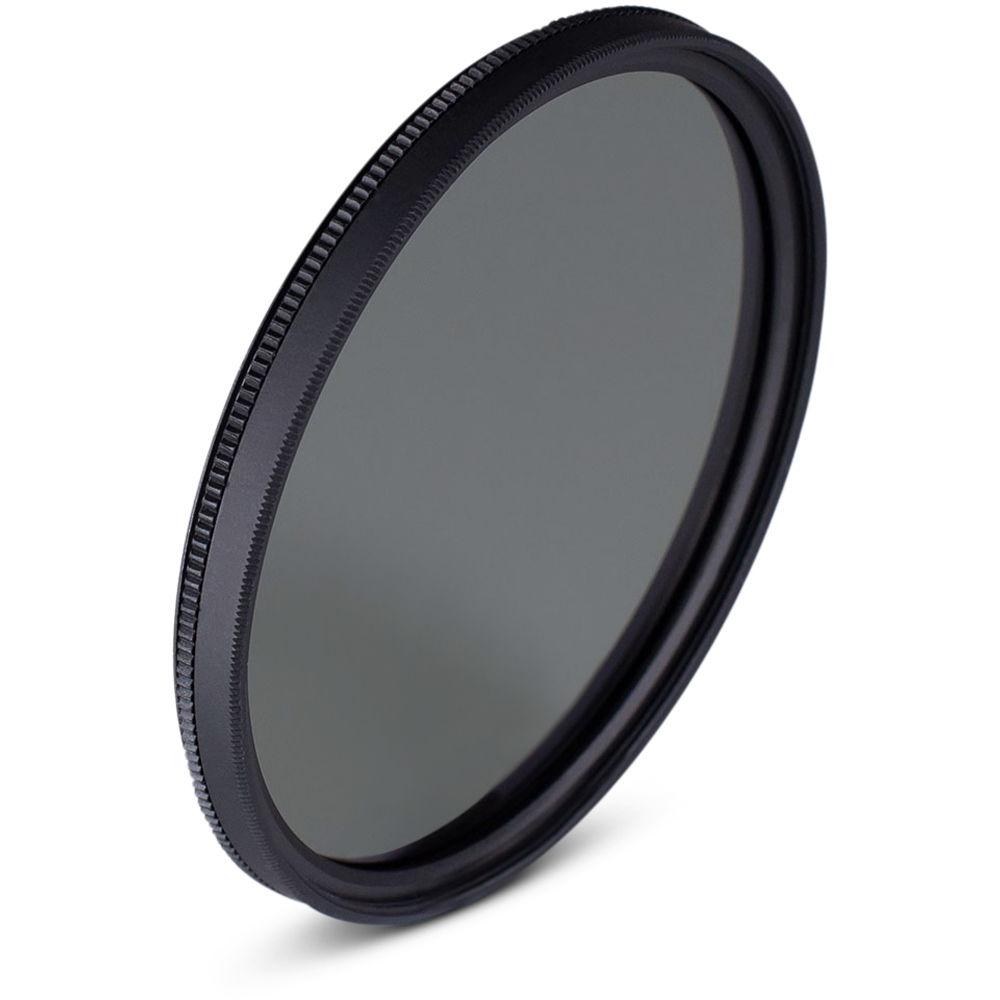

Product description The Gobe 58mm 2Peak Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is constructed from optical glass that is set within a magnalium-alloy filter ring for enhanced durability while remaining lightweight. To prevent internal ghosting and reflections, each glass surface includes 16 layers of anti-reflection coatings on each side. These coatings also offer scratch protection to the filter substrate while promoting clarity as well as color fidelity, which results in an improved beading effect when in contact with water or oil for more efficient cleaning. - Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
- Clears up haze in distant landscapes and provides more saturated, vivid colors.
- Strongest effect when used at a 90° angle from the sun.
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
- 2.3 to 2.8x filter factor reduces exposure by 1.2 to 1.5 stops.
- Constructed from optical glass.
- 16-layer multi-coating to prevent internal ghosting and reflections while promoting clarity as well as color fidelity.
- Coatings also help prevent scratches and result in an improved beading effect when in contact with water or oil for greater cleaning efficiency.
- Magnalium-alloy filter ring for enhanced durability while remaining lightweight.
- Filter ring can be rotated to adjust the intensity of the polarization effect.
- 58mm front filter threads allow for use with other filters.
- Metal filter case for storage and transport.

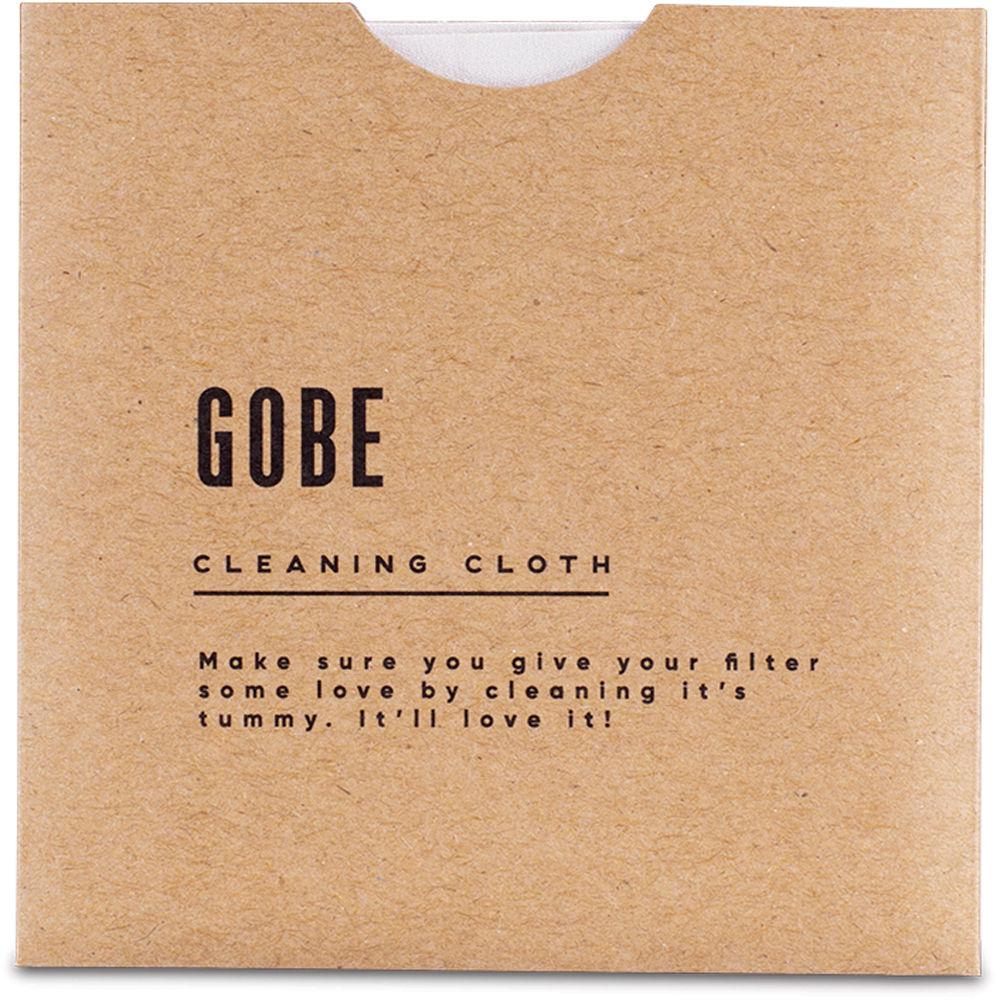

- Microfiber cloth for cleaning and maintenance.

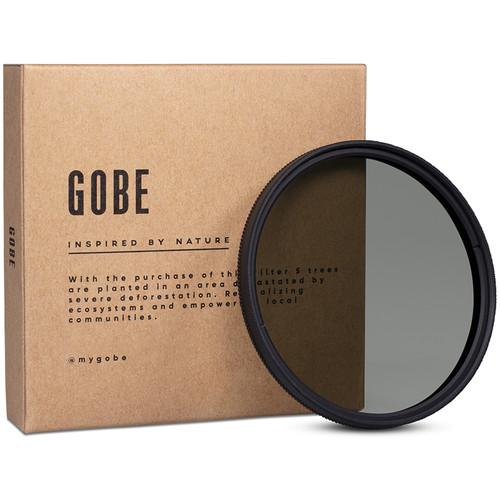

UPC: 706084997457 In the Box Gobe 58mm 2Peak Circular Polarizer Filter Filter Case Cleaning Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gobe 58mm 2Peak Circular Polarizer Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGobe G58JOCPL Specs | Filter Type | Circular Polarizer | | Filter Factor | 2.3 - 2.8 (1.2 - 1.5 Stop) | | Shape | Circle | | Circular Size | 58 mm | | Rotating | Yes | | Front Accessory Thread / Bayonet | 58 mm | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Package Weight | 0.16 lb | | Box Dimensions (LxWxH) | 3.7 x 3.6 x 0.9" |
