Godox AD200 TTL Pocket Dual Flash

Search your instruction manual in PDF to download

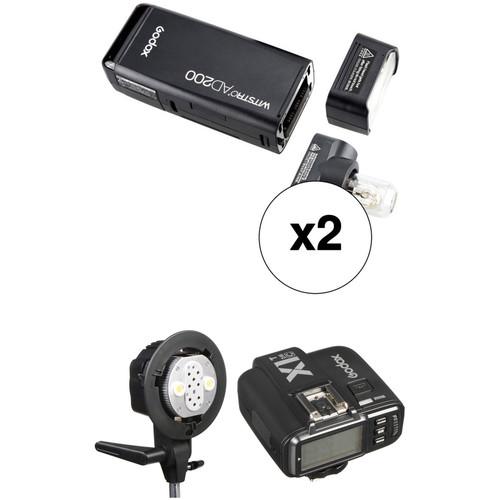

User Manual for Godox AD200 TTL Pocket Dual Flash Kit with X1T-C Trigger for Canon Cameras

Click to enlarge the picture
Godox AD200 TTL Pocket Dual Flash Kit with X1T-C Trigger for Canon Cameras Contents of the user manual for the Godox AD200 TTL Pocket Dual Flash
  • Product category: Battery Powered Heads Godox
  • Brand: Godox
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Godox Battery Powered Heads

User manual for the Godox AD200 TTL Pocket Dual Flash contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Godox product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!



Product description

Ultimate power is the advantage of the Godox AD200 TTL Pocket Dual Flash Kit from as the 200Ws flashes can be configured to power two bare-bulb heads in a single stand-mounted bracket with Bowens accessory mount. This provides users with excellent power output and customization, while the flashes can also be easily removed and used with speedlight heads for a completely different look. Also, this kit includes the X1T-C trigger, which provides wireless Canon E-TTL / E-TTL II support and the ability to remotely trigger and control the flashes from up to 328' away.
  • 2 x Godox AD200 TTL Pocket Flash Kit
    • Godox AD200 Operation introduction
    The AD200 TTL Pocket Flash Kit from Godox is built around a unique flash light source that has a standard speedlite head and a bare bulb head that give you the option of 2 distinctly different qualities of light. The kit comes with the 2 heads, lithium battery, charger and carry case.The speedlight head outputs the standard look of an on-camera flash that can be modified using an optional softbox, beauty dish or umbrella. The bare bulb head features a removable flash tube and produces 360 degrees of soft, bright, nearly shadowless light. The head uses optional reflectors that focus the beam angle and give you directional control. The AD200 has impressive core features such as 200 Ws of power adjustable in 8 steps from 1/128 to 1/1, recycling from 0.01 to 2.1 seconds and flash durations as short as 1/11,300 sec. The flash runs on a removal rechargeable lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes.The AD200 has 3 flash modes: Manual, TTL, and Multi (Stroboscopic). Manual outputs the user's choice of power, modeling light, first or second curtain sync, etc. Multi controls the stroboscopic rate up to 90 times (90 Hz). TTL takes advantage of the flash head's built-in X1 receiver. Optional X1 TTL transmitters are available for Nikon, Canon, Sony, Olympus, Panasonic and Fuji cameras. They will also detect a separately purchased LED head. The 32-channel wireless system controls flash mode, first and second curtain sync, High-speed sync up to 1/8000 sec, power level, modeling lamp and ready beeper at distances up to 328'. Firmware updates are obtainable on the Godox website.
      Built-In 2.4 GHz Wireless X System
    • Built-in wireless receiver: control triggering power level, alert beep with optional wireless transmitter. Compatible with Nikon, Canon, Sony, Olympus, Panasonic and Fuji TTL.
      Bare Bulb and Speedlight Flash Heads
    • Bare bulb and speedlite flash heads are included to vary your quality of light. Color temperature is a steady 5600K over the entire power range.
      Large Capacity Lithium Battery Pack
    • The 14.4 V / 2900 mAH battery pack gets 500 full power flashes with 0.01 to 2.1 sec. recycling.
      AV Panel
    • Easily readable digital panel displays your adjustments
      Accessories
    • Barn Doors, color filters and diffusers are available to personalize your work.
      Numerous Control Functions
      • 8-step power range: 1/1 to 1/128
      • Supports flash exposure compensation
      • 1/8000 sec high-speed Sync
      • First and second curtain sync
      • Modeling lamp
      • Manual flash
      • Multi flash
      • Custom functions
  • Godox Dual Power Flash Bracket for AD200
    • Godox AD200 Operation introduction
    The Dual Power Flash Bracket for AD200 from Godox allows you to mount two AD200 Pocket Flashes together to double the flash power. The bracket has a Bowens S-type front accessory mount and a 5/8" receiver for light stands.
  • Godox X1T-C TTL Wireless Flash Trigger Transmitter for Canon
    • Godox AD200 Operation introduction
    Enjoy TTL-enabled and reliable wireless flash by picking up the X1T-C TTL Wireless Flash Trigger Transmitter from Godox. This 2.4 GHz X wireless system is compatible with Canon cameras and flashes that support E-TTL / E-TTL II for automatic exposure and metering, making it an excellent choice for shooters who need to work quickly. It also has an outstanding range of 328' and can be set to one of 32 channels for limiting interference with other nearby systems. Another huge benefit is the ability to control up to five groups at a time, or set the unit to ratio flash mode for three groups with varying power relative to one another.

    Users will have access to many settings through the backlit LCD and can make adjustments to settings such as sync delay and triggering modes. Also, through E-TTL / E-TTL II compatibility the system will support high-speed sync, flash exposure compensation, and flash exposure lock, among other settings. Beyond this, users will be able to easily mount their flash to the transmitter's top hot shoe, or you can connect a studio strobe via the PC sync terminal on the receiver or PC sync terminal on the transmitter. Additionally, it runs on two AA batteries and has a micro-USB port for firmware updates.
In the Box
  • 2 x AD200 TTL Pocket Flash Kit yaaeddzv
  • H200 Speedlite Flash Head
  • Bare Bulb Flash Head
  • Flash Tube
  • Lithium-Ion Battery Pack for AD200 Pocket Flash (14.4V, 2900mAh)
  • Charger and Cable
  • AD-E Holder (Stand Mount)
  • Carrying Case
  • Limited 2-Year Warranty
  • Dual Power Flash Bracket for AD200
  • X1T-C TTL Wireless Flash Trigger Transmitter for Canon
Table of Contents




Upload User Manual

Have you got an user manual for the Godox AD200 TTL Pocket Dual Flash Kit with X1T-C Trigger for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 2 x Godox AD200 TTL Pocket Flash Kit
    Maximum Watt/Seconds 200
    Compatibility TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters
    TTL with Olympus/Panasonic, Fuji cameras with optional X1T-O and X1T-F transmitters
    Control Manually on unit
    Via X1 Transmitter Which Will Wirelessly Control:
    Flash Mode: TTL, Manual, Multi (Stroboscopic), power level
    Modeling lamp on/off, Beeper on/off
    First and second curtain sync, High Speed Sync
    Guide Number At Full Power:
    Speedlite Flash Head: 170.6' (52 m) ISO 100 @ 35 mm
    Bare Bulb Flash Head: 197' (60 m) ISO 100 with AD-S2 reflector @ 28 mm
    Color Temperature 5600K (+/-200K)
    Recycle Time 0.01 to 2.1 sec
    Flash Duration Speedlite Flash Head at t0.1: 1/220 to 1/13,000 sec
    Bare Bulb Flash Head at t0.1: 1/220 to 1/11,300 sec
    Flash Variability 8 Steps: 1/128 to 1/1
    Flash Delay Yes, 0.01 to 30 sec
    Flash Modes TTL, Manual, Multi (Stroboscopic)
    Stroboscopic: up to 90 times (99 Hz)
    Modeling Light Uses Speedlite Head: Auto turn off after 30 minutes
    Sync Mode High-speed sync up to 1/8000 sec
    First curtain sync and second curtain sync
    Flash Exposure Compensation Yes, plus or minus 3 stops in 1/3 stop increments
    Flash Ready Indicator LED, beep
    Flash hibernates automatically after 30 minutes of non-use
    Built-in Slave Cell S1 and S2 optical slave modes
    2.4 GHz radio system
    Wireless & Radio Specifications Function: Slave or Off
    Channels: 32
    Groups: 5 (A, B, C, D, E)
    Range: 328' (100 m)
    Mounting 1/4"-20 female threads
    AD-E Holder (stand mount)
    Fan Cooled No
    Replaceable Flashtube Yes, in bare bulb head
    Connectors 3.5 mm sync input
    Wireless control port
    USB port
    Battery Lithium, 14.4 V / 2900 mAH
    Power remaining indicator
    Number of Flashes @ Full Power 500
    Dimensions 6.6 x 3.0 x 2.0" (168 x 75 x 50 mm) without flash head
    Weight 19.7 oz (560 g) without flash head and battery
    Box Dimensions (LxWxH) 10.0 x 7.6 x 3.9"
  • Godox Dual Power Flash Bracket for AD200
    Mount 5/8" (16 mm)
    Box Dimensions (LxWxH) 10.65 x 7.9 x 4.75"
  • Godox X1T-C TTL Wireless Flash Trigger Transmitter for Canon
    Channels 32
    Groups 5
    Wireless Range 328' / 100 m
    Radio Frequency 2.4 GHz
    Control Modes TTL
    Sync Speed 1/8000 Sec
    Ports 1 x PC Sync
    1 x Micro-USB
    Bottom Mount Hot Foot
    Top Mount Hot Shoe
    Battery Type 2 x AA
    Dimensions 2.8 x 3 x 2" / 72 x 75 x 52 mm (Transmitter)
    Weight 3.5 oz / 99.2 g
    Box Dimensions (LxWxH) 4.4 x 4.3 x 2.2"
