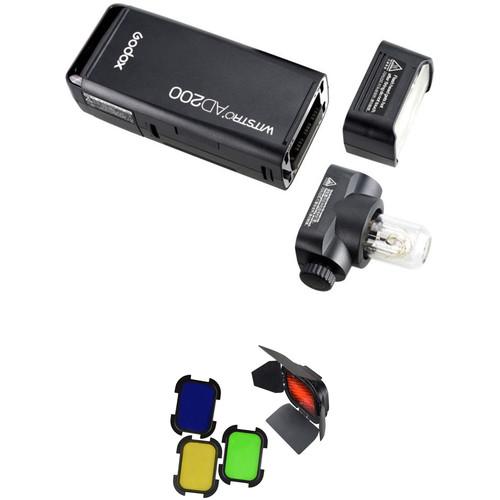

User Manual for Godox AD200 TTL Pocket Flash with Barndoor Kit Click to enlarge the picture
Contents of the user manual for the Godox AD200 TTL Pocket Flash with
- Product category: Battery Powered Heads Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox Battery Powered Heads
|
User manual for the Godox AD200 TTL Pocket Flash with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description With outstanding versatility and a variety of different looks that can be achieved, this Godox AD200 TTL Pocket Flash with Barndoor Kit from is an excellent choice for photographers who want to start with lights or expand an already advanced kit. The 200Ws flash offers both a speedlight and bare bulb head for different techniques and features a built-in X system receiver for remote triggering, including support for TTL. This kit also features a set of 4-leaf barndoors and red, blue, yellow, and orange filters for modifying and controlling the light. - Godox AD200 TTL Pocket Flash Kit
- Godox AD200 Operation introduction
The AD200 TTL Pocket Flash Kit from Godox is built around a unique flash light source that has a standard speedlite head and a bare bulb head that give you the option of 2 distinctly different qualities of light. The kit comes with the 2 heads, lithium battery, charger and carry case.The speedlight head outputs the standard look of an on-camera flash that can be modified using an optional softbox, beauty dish or umbrella. The bare bulb head features a removable flash tube and produces 360 degrees of soft, bright, nearly shadowless light. The head uses optional reflectors that focus the beam angle and give you directional control. The AD200 has impressive core features such as 200 Ws of power adjustable in 8 steps from 1/128 to 1/1, recycling from 0.01 to 2.1 seconds and flash durations as short as 1/11,300 sec. The flash runs on a removal rechargeable lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes.The AD200 has 3 flash modes: Manual, TTL, and Multi (Stroboscopic). Manual outputs the user's choice of power, modeling light, first or second curtain sync, etc. Multi controls the stroboscopic rate up to 90 times (90 Hz). TTL takes advantage of the flash head's built-in X1 receiver. Optional X1 TTL transmitters are available for Nikon, Canon, Sony, Olympus, Panasonic and Fuji cameras. They will also detect a separately purchased LED head. The 32-channel wireless system controls flash mode, first and second curtain sync, High-speed sync up to 1/8000 sec, power level, modeling lamp and ready beeper at distances up to 328'. Firmware updates are obtainable on the Godox website. - Built-In 2.4 GHz Wireless X System
- Built-in wireless receiver: control triggering power level, alert beep with optional wireless transmitter. Compatible with Nikon, Canon, Sony, Olympus, Panasonic and Fuji TTL.
- Bare Bulb and Speedlight Flash Heads
- Bare bulb and speedlite flash heads are included to vary your quality of light. Color temperature is a steady 5600K over the entire power range.
- Large Capacity Lithium Battery Pack
- The 14.4 V / 2900 mAH battery pack gets 500 full power flashes with 0.01 to 2.1 sec. recycling.
- AV Panel
- Easily readable digital panel displays your adjustments
- Accessories
- Barn Doors, color filters and diffusers are available to personalize your work.
- Numerous Control Functions
-
- 8-step power range: 1/1 to 1/128
- Supports flash exposure compensation
- 1/8000 sec high-speed Sync
- First and second curtain sync
- Modeling lamp
- Manual flash
- Multi flash
- Custom functions
- Godox Barndoor Kit with 4 Color Gels for AD200 Speedlight Head
- Godox AD200 Operation introduction
The Barndoor Kit with 4 Color Gels for the AD200 Speedlight from Godox attaches directly to the front of the flash. Each leaf on the 4-leaf barndoor moves independently to maintain and control the direction of the light. A 4-color gel set is also included, which consists of red, blue, yellow, and green colors. These gels help create dramatic lighting effects in your images. In the Box - AD200 TTL Pocket Flash Kit awbybdvtxvsrdtwt
- H200 Speedlite Flash Head
- Bare Bulb Flash Head
- Flash Tube
- Lithium-Ion Battery Pack for AD200 Pocket Flash (14.4V, 2900mAh)
- Charger and Cable
- AD-E Holder (Stand Mount)
- Carrying Case
- Limited 2-Year Warranty
- Barndoor Kit with 4 Color Gels for AD200 Speedlight Head
Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD200 TTL Pocket Flash with Barndoor Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Godox AD200 TTL Pocket Flash Kit
| Maximum Watt/Seconds | 200 | | Compatibility | TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters
TTL with Olympus/Panasonic, Fuji cameras with optional X1T-O and X1T-F transmitters | | Control | Manually on unit
Via X1 Transmitter Which Will Wirelessly Control:
Flash Mode: TTL, Manual, Multi (Stroboscopic), power level
Modeling lamp on/off, Beeper on/off
First and second curtain sync, High Speed Sync | | Guide Number | At Full Power:
Speedlite Flash Head: 170.6' (52 m) ISO 100 @ 35 mm
Bare Bulb Flash Head: 197' (60 m) ISO 100 with AD-S2 reflector @ 28 mm | | Color Temperature | 5600K (+/-200K) | | Recycle Time | 0.01 to 2.1 sec | | Flash Duration | Speedlite Flash Head at t0.1: 1/220 to 1/13,000 sec
Bare Bulb Flash Head at t0.1: 1/220 to 1/11,300 sec | | Flash Variability | 8 Steps: 1/128 to 1/1 | | Flash Delay | Yes, 0.01 to 30 sec | | Flash Modes | TTL, Manual, Multi (Stroboscopic)
Stroboscopic: up to 90 times (99 Hz) | | Modeling Light | Uses Speedlite Head: Auto turn off after 30 minutes | | Sync Mode | High-speed sync up to 1/8000 sec
First curtain sync and second curtain sync | | Flash Exposure Compensation | Yes, plus or minus 3 stops in 1/3 stop increments | | Flash Ready Indicator | LED, beep
Flash hibernates automatically after 30 minutes of non-use | | Built-in Slave Cell | S1 and S2 optical slave modes
2.4 GHz radio system | | Wireless & Radio Specifications | Function: Slave or Off
Channels: 32
Groups: 5 (A, B, C, D, E)
Range: 328' (100 m) | | Mounting | 1/4"-20 female threads
AD-E Holder (stand mount) | | Fan Cooled | No | | Replaceable Flashtube | Yes, in bare bulb head | | Connectors | 3.5 mm sync input
Wireless control port
USB port | | Battery | Lithium, 14.4 V / 2900 mAH
Power remaining indicator | | Number of Flashes @ Full Power | 500 | | Dimensions | 6.6 x 3.0 x 2.0" (168 x 75 x 50 mm) without flash head | | Weight | 19.7 oz (560 g) without flash head and battery | | | | Box Dimensions (LxWxH) | 10.0 x 7.6 x 3.9" | - Godox Barndoor Kit with 4 Color Gels for AD200 Speedlight Head
| | | Box Dimensions (LxWxH) | 4.1 x 3.2 x 1.8" |
