Product description

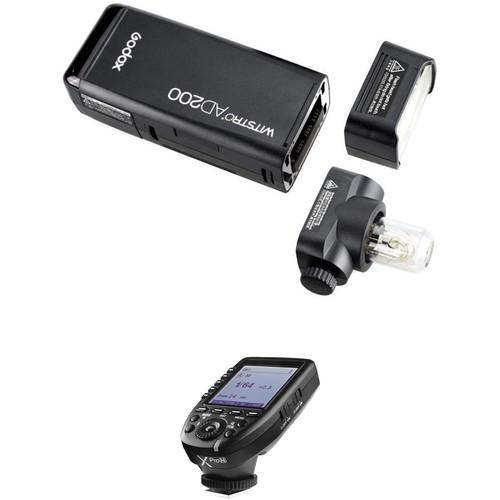

• Godox AD200 TTL Pocket Flash Kit
  • Godox AD200 Operation introduction
  The AD200 TTL Pocket Flash Kit from Godox is built around a unique flash light source that has a standard speedlite head and a bare bulb head that give you the option of 2 distinctly different qualities of light. The kit comes with the 2 heads, lithium battery, charger and carry case.The speedlight head outputs the standard look of an on-camera flash that can be modified using an optional softbox, beauty dish or umbrella. The bare bulb head features a removable flash tube and produces 360 degrees of soft, bright, nearly shadowless light. The head uses optional reflectors that focus the beam angle and give you directional control. The AD200 has impressive core features such as 200 Ws of power adjustable in 8 steps from 1/128 to 1/1, recycling from 0.01 to 2.1 seconds and flash durations as short as 1/11,300 sec. The flash runs on a removal rechargeable lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes.The AD200 has 3 flash modes: Manual, TTL, and Multi (Stroboscopic). Manual outputs the user's choice of power, modeling light, first or second curtain sync, etc. Multi controls the stroboscopic rate up to 90 times (90 Hz). TTL takes advantage of the flash head's built-in X1 receiver. Optional X1 TTL transmitters are available for Nikon, Canon, Sony, Olympus, Panasonic and Fuji cameras. They will also detect a separately purchased LED head. The 32-channel wireless system controls flash mode, first and second curtain sync, High-speed sync up to 1/8000 sec, power level, modeling lamp and ready beeper at distances up to 328'. Firmware updates are obtainable on the Godox website.
  Built-In 2.4 GHz Wireless X System
  • Built-in wireless receiver: control triggering power level, alert beep with optional wireless transmitter. Compatible with Nikon, Canon, Sony, Olympus, Panasonic and Fuji TTL.
  Bare Bulb and Speedlight Flash Heads
  • Bare bulb and speedlite flash heads are included to vary your quality of light. Color temperature is a steady 5600K over the entire power range.
  Large Capacity Lithium Battery Pack
  • The 14.4 V / 2900 mAH battery pack gets 500 full power flashes with 0.01 to 2.1 sec. recycling.
  AV Panel
  • Easily readable digital panel displays your adjustments
  Accessories
  • Barn Doors, color filters and diffusers are available to personalize your work.
  Numerous Control Functions
  • • 8-step power range: 1/1 to 1/128
    • Supports flash exposure compensation
    • 1/8000 sec high-speed Sync
    • First and second curtain sync
    • Modeling lamp
    • Manual flash
    • Multi flash
    • Custom functions
• Godox XProN TTL Wireless Flash Trigger for Nikon Cameras
  • Godox AD200 Operation introduction
  Using the 2.4 GHz Godox X wireless radio system, the XProN TTL Wireless Flash Trigger can be used to effectively and reliably trigger flashes from up to 328' away, and when used with compatible flashes and receivers users will have the added benefit of remote power control. This model is compatible with Nikon's i-TTL system, including support for high-speed sync up to 1/8000 second, and offers advanced control options along with settings for working with system-specific features. For ensuring maximum reliability and control, users can set up 16 groups on one of 32 channels and can then access 99 wireless ID settings for limiting interference from other nearby systems.

  In addition to basic manual and TTL control modes, other settings are available, including stroboscopic flash and second-curtain sync. Users can adjust flash exposure compensation from -3 to +3 EV as well as wirelessly control the modeling light, zoom setting, and more. For using the XProN with other camera systems there is a 2.5mm sync port that supports triggering via a wired connection. Also, a USB Type-C port is present for firmware updates and the devices run on two AA batteries for convenience.

• AD200 TTL Pocket Flash Kit dyrauytx
• H200 Speedlite Flash Head
• Bare Bulb Flash Head
• Flash Tube
• Lithium-Ion Battery Pack for AD200 Pocket Flash (14.4V, 2900mAh)
• Charger and Cable
• AD-E Holder (Stand Mount)
• Carrying Case
• Limited 2-Year Warranty

• XProN TTL Wireless Flash Trigger for Nikon Cameras

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Godox AD200 TTL Pocket Flash Kit

  Maximum Watt/Seconds	200
  Compatibility	TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters TTL with Olympus/Panasonic, Fuji cameras with optional X1T-O and X1T-F transmitters
  Control	Manually on unit Via X1 Transmitter Which Will Wirelessly Control: Flash Mode: TTL, Manual, Multi (Stroboscopic), power level Modeling lamp on/off, Beeper on/off First and second curtain sync, High Speed Sync
  Guide Number	At Full Power: Speedlite Flash Head: 170.6' (52 m) ISO 100 @ 35 mm Bare Bulb Flash Head: 197' (60 m) ISO 100 with AD-S2 reflector @ 28 mm
  Color Temperature	5600K (+/-200K)
  Recycle Time	0.01 to 2.1 sec
  Flash Duration	Speedlite Flash Head at t0.1: 1/220 to 1/13,000 sec Bare Bulb Flash Head at t0.1: 1/220 to 1/11,300 sec
  Flash Variability	8 Steps: 1/128 to 1/1
  Flash Delay	Yes, 0.01 to 30 sec
  Flash Modes	TTL, Manual, Multi (Stroboscopic) Stroboscopic: up to 90 times (99 Hz)
  Modeling Light	Uses Speedlite Head: Auto turn off after 30 minutes
  Sync Mode	High-speed sync up to 1/8000 sec First curtain sync and second curtain sync
  Flash Exposure Compensation	Yes, plus or minus 3 stops in 1/3 stop increments
  Flash Ready Indicator	LED, beep Flash hibernates automatically after 30 minutes of non-use
  Built-in Slave Cell	S1 and S2 optical slave modes 2.4 GHz radio system
  Wireless & Radio Specifications	Function: Slave or Off Channels: 32 Groups: 5 (A, B, C, D, E) Range: 328' (100 m)
  Mounting	1/4"-20 female threads AD-E Holder (stand mount)
  Fan Cooled	No
  Replaceable Flashtube	Yes, in bare bulb head
  Connectors	3.5 mm sync input Wireless control port USB port
  Battery	Lithium, 14.4 V / 2900 mAH Power remaining indicator
  Number of Flashes @ Full Power	500
  Dimensions	6.6 x 3.0 x 2.0" (168 x 75 x 50 mm) without flash head
  Weight	19.7 oz (560 g) without flash head and battery

  Box Dimensions (LxWxH)	10.0 x 7.6 x 3.9"

• Godox XProN TTL Wireless Flash Trigger for Nikon Cameras

  Channels	32
  Groups	16
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	Manual, TTL, i-TTL
