User Manual for Godox AD360 WITSTRO Portable Flash Click to enlarge the picture
Contents of the user manual for the Godox AD360 WITSTRO Portable Flash
- Product category: On Camera Flashes Godox
- Brand: Godox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Godox On Camera Flashes
 |
User manual for the Godox AD360 WITSTRO Portable Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Godox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Godox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Godox product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More Offering plenty of light in a portable package, the AD360 WITSTRO Portable Flash from Godox features a bare-bulb design that is capable of outputting 360Ws when set to full power. When used with its included reflector, it provides beautiful directional light and has a guide number of 262' at ISO 100. Operating like most shoe-mounted speedlights, it can tilt from -15 to 90° and rotate 270° for use with bounce flash techniques. When not connected directly to the camera, this flash can be adjusted and triggered from afar via an optional FT-series remote that goes into its wireless control port. PC and 3.5mm sync sockets are also available to provide you with even more control options. This flash can be used on manual mode or be programmed to fire multiple flashes in stroboscopic mode, and can also function as an optical slave in complete synchrony with the master or while skipping a single pre-flash. An additional high-speed sync triggering mode is available for extremely quick shutter speeds, and can be used only with certain optional transceivers. The AD360 WITSTRO runs on an external PB960 lithium battery pack, which needs to be purchased separately. This power pack allows for recycling times of 0.05 to 4.5 seconds depending on your settings, and provides enough energy for 450 full-power flashes. -

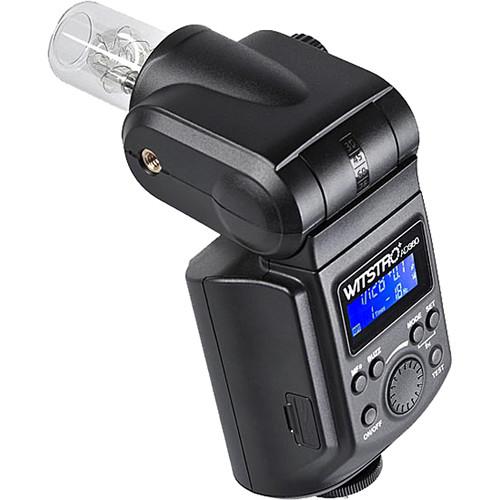

- Bare-bulb flash with maximum output of 360Ws

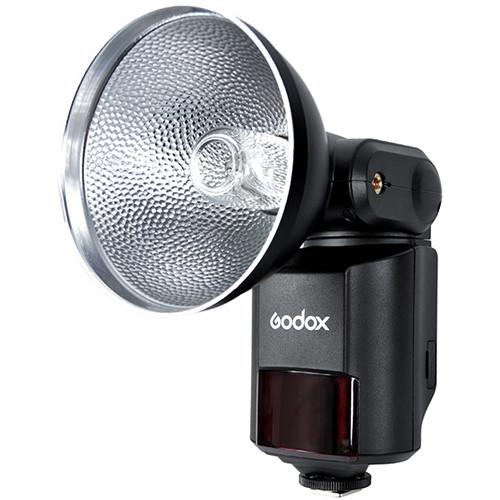

- Guide number of 262' at ISO 100 when used with included reflector
- Tilts from -15 to 90°, rotates a total of 270°

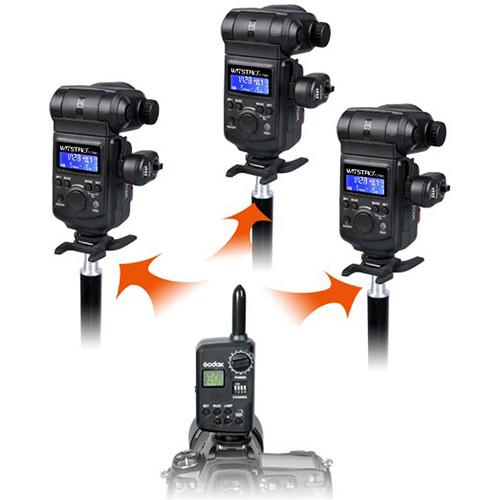

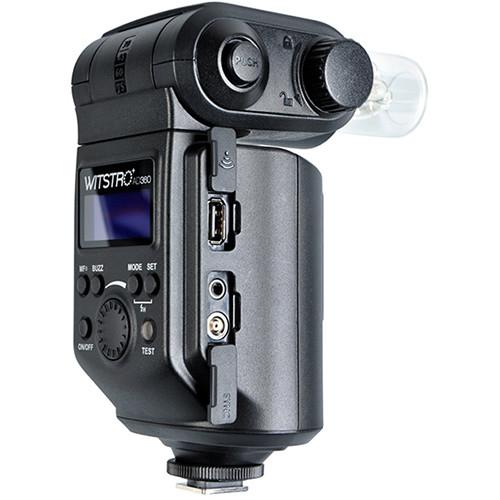

- Wireless control port for FT series remotes, as well as PC and 3.5mm sync sockets

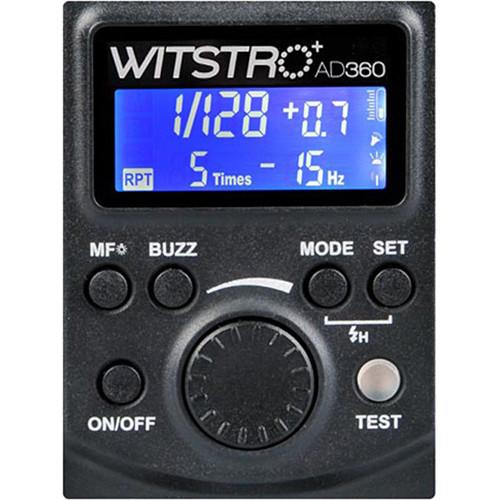

- Manual, S1 slave, S2 slave, and stroboscopic modes, with the capability of functioning as an optical slave
- High-speed sync triggering mode available when used together with some triggers such as Godox Cells II transceiver
- Recycling times of 0.05 to 4.5 seconds depending on configuration
- Variable power from 1/1 to 1/128th in 1/3 stop increments

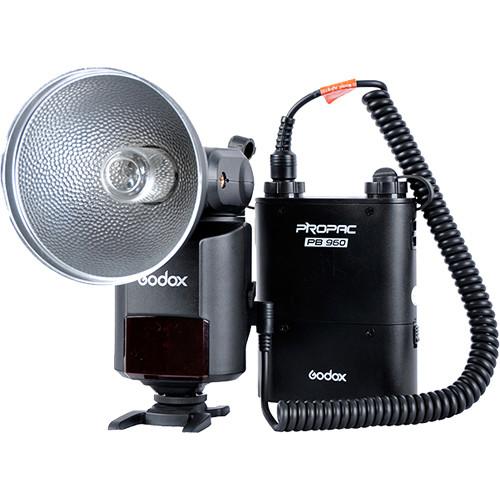

- Runs on separately available PB960 lithium battery pack, which provides enough power for 450 full-power flashes
- Focus assist beam for poorly lit conditions

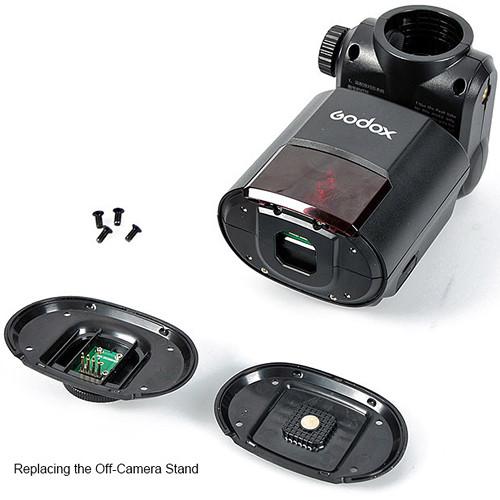

- Includes flash tube, reflector, diffuser panel, mini stand, power cable, off-camera adapter, and a bag
In the Box Godox AD360 WITSTRO Portable Flash Flash Tube Reflector Reflector Diffuser Power Cable Mini Stand Off-Camera Adapter with 1/4"-20 Mount Protective Bag Limited 1-Year Warranty User Manual PDF 4.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Godox AD360 WITSTRO Portable Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGodox AD360 Specs | Mount | Shoe | | Guide No. | 262.47' / 80 m ISO 100 | | Exposure Control | Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -15 to 90° | | Swivel Head | 270° | | Coverage | 28 mm | | Off-Camera Terminal | 3.5 mm, PC | | Recycle Time | Approximately 0.05 to 4.5 Seconds | | Flash Duration | 1/300 to 1/10000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 49.21' / 15 m
Mode: Optical Slave | | Power Source | 1 x Proprietary Lithium Battery Pack | | Dimensions (W x H x D) | 3.0 x 3.7 x 8.7" / 7.5 x 9.5 x 22.0 cm without flash tube and reflector | | Weight | 1.72 lb / 780 g without flash tube and reflector | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 11.0 x 10.25 x 6.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
